W.O.D. 1350 Driveshaft Builder Kit
SKU: WF03000
The Wide Open Design 1350 Driveshaft Builder Kit is built for serious off-road abuse and custom driveline setups. This DIY kit includes the same high quality components we run in house on our buggies, giving you confidence when it’s time to put power to the ground.
Designed for fabricators and builders, this kit allows you to build a thick wall, heavy duty driveshaft to your exact length, which is ideal for rock crawlers, Jeeps, buggies, and custom suspension builds.

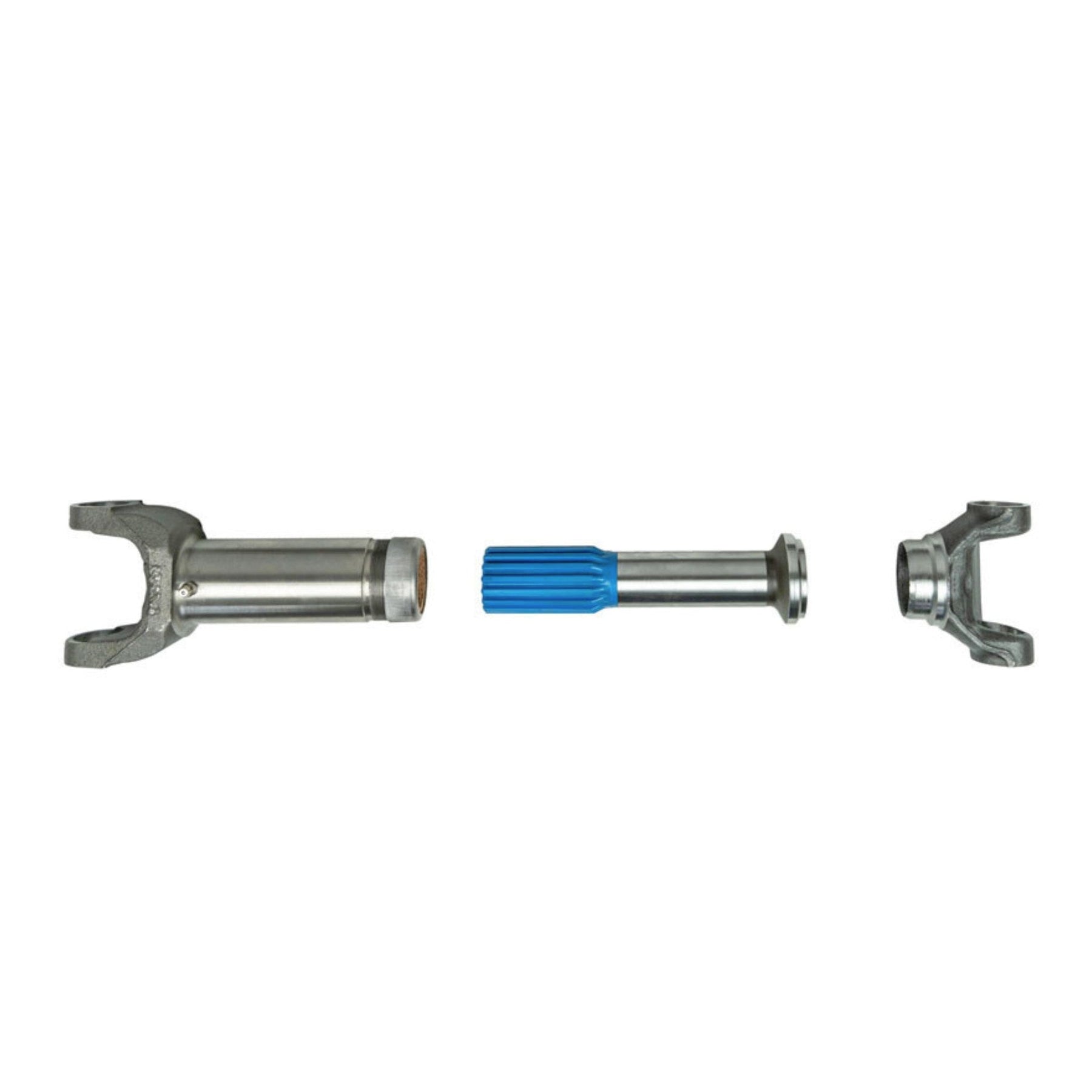

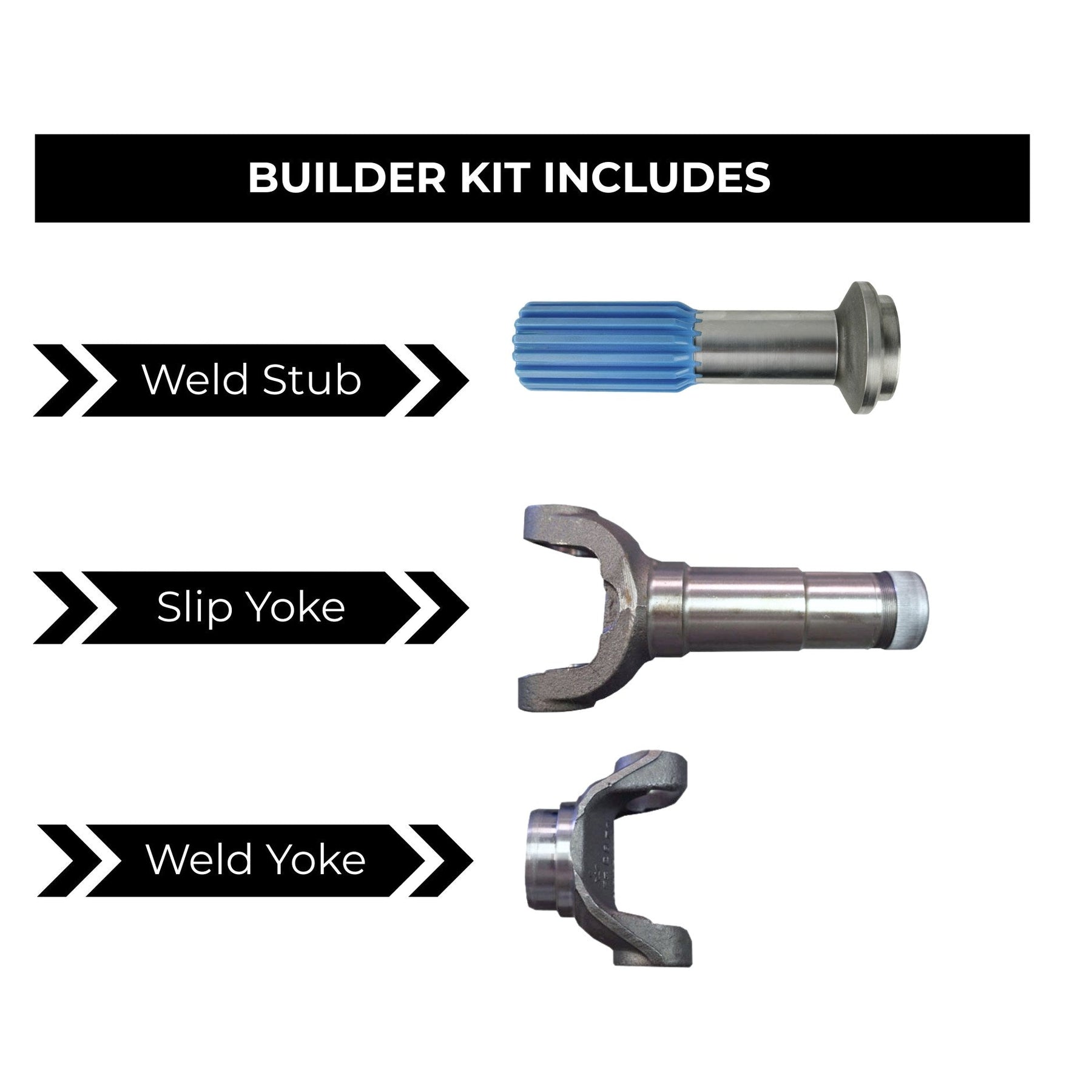

Kit Includes:
- Dana / Spicer Weld Stub
- Dana/Spicer 1350 Weld Yoke
- Dana/Spicer 1350 Slip Yoke

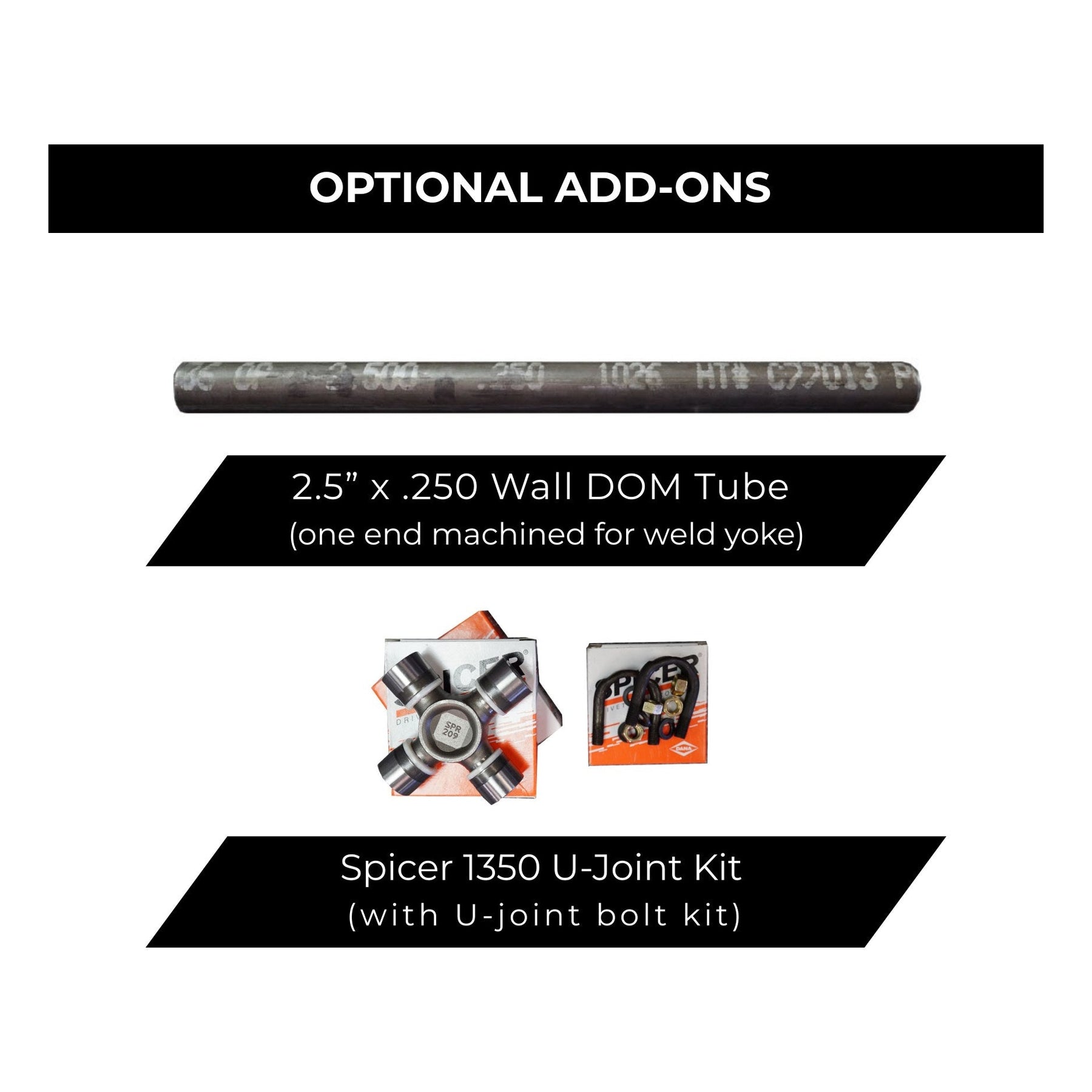

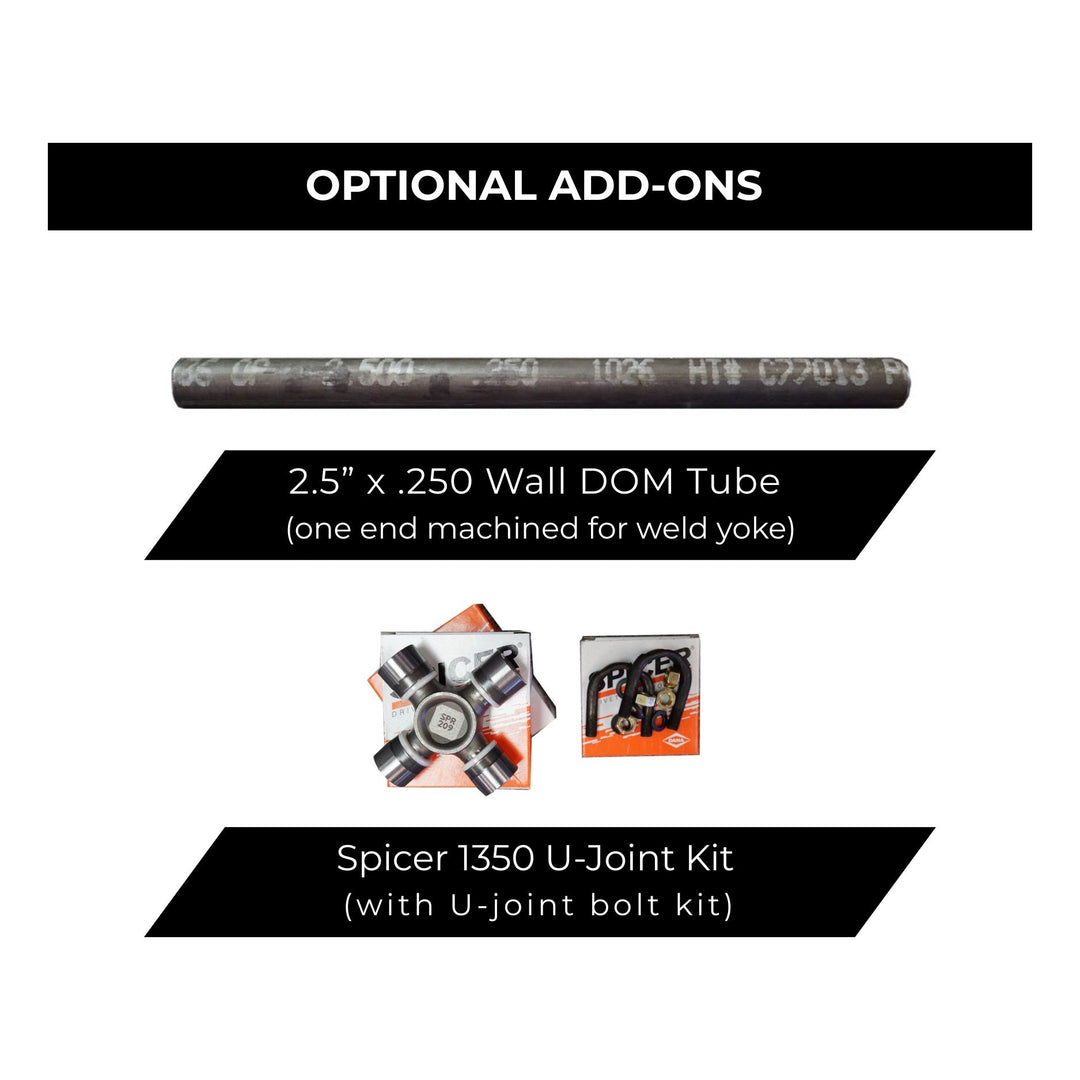

Optional Add-Ons:
- 2.5" x .250 Wall DOM Tube (one end machined for the weld yoke)
- Dana/Spicer 1350 U-Joint Kit with U-joint bolt kit
DOES NOT COME ASSEMBLED – this is a DIY builder kit requiring welding and final fitment.
Specifications
- U-Joint Series: 1350
- Tube Size (Optional): 2.5 OD x .250 Wall DOM
- Application: Heavy duty off-road / performance use
- Assembly: DIY / Fabricator installed
- Sold As: Builder kit (tube and U-joint optional)
Fitment
- Rock crawlers
- Off-road buggies
- Jeeps
- Custom drivetrain and suspension builds
- Trail rigs requiring non-standard driveshaft lengths
Tech Insight
The 2.5 x .250 wall DOM tube option delivers exceptional resistance to denting, bending, and torsional failure. This setup is ideal for rigs that see hard throttle inputs and constant rock contact. Order the DOM tube length you need and cut to final size for your application. Perfect for buggy builds where driveline length, suspension travel, and axle placement demand precision.
Wide Open Design offers five total driveshaft configurations:
- 1350 Weld / Slip Yoke
- 1410 Weld / Slip Yoke
- 1480 Weld / Slip Yoke
- 1350 Weld / 1410 Slip Hybrid
- 1410 Weld / 1350 Slip Hybrid
Choose the configuration that best matches your torque load, vehicle weight, and driving style.
