Wide Open Design Revolution Rock Crawler Chassis with Jeep CJ Hood & Grille
SKU: WC020073H
The Wide Open Design Revolution Rock Crawler Chassis with Jeep CJ Hood and Grille blends the performance of a purpose-built rock crawler buggy with the classic look of a Jeep front end. Designed for Jeep enthusiasts who want the capability of a tube buggy while still keeping the iconic Jeep styling, this chassis delivers the perfect Jeep buggy crossover.
Built on our proven Revolution Rock Crawler chassis platform, this version integrates a Jeep CJ hood and grille into the design, creating a unique buggy that stands out on the trail while maintaining the strength and performance Wide Open Design is known for. The chassis supports modern drivetrain combinations, full-width axles, and high-performance suspension setups, making it ideal for serious rock crawling and trail riding.
Like all Wide Open Design chassis, the Revolution platform is built using heavy-duty DOM tubing and incorporates proper suspension geometry so suspension components work cohesively with the frame design. Builders benefit from a professionally engineered platform that was once only available as a one-off custom chassis.
Typical Lead Time: Call for current lead time
Specifications
- Wheelbase range: 115" – 122"
- Widest point: 55"
- Weld type: MIG
- Main structure: 1-3/4" x .120 wall DOM steel tubing
- Belly pan lower bars: 1-3/4" x .188 wall DOM steel tubing
- Rocker bars / sliders: 1-3/4" x .188 wall DOM steel tubing
- Jeep CJ hood and grille integrated into chassis design
- Designed for modern drivetrain combinations
- Proper 4-link suspension geometry
Fitment
- Custom rock crawler buggy builds
- Jeep buggy crossover builds
- Trail riding buggies
- Rock racing vehicles
- Compatible with most popular solid axle configurations and 4-link suspension setups
- If you are unsure whether your axle configuration will work with the chassis, contact our team and we will help confirm compatibility.
Tech Insight
The Revolution Rock Crawler chassis with Jeep hood and grille combines the rugged capability of a tube buggy with the recognizable style of a Jeep front end. This configuration is popular with builders who want a high-performance rock crawler without losing the classic Jeep-inspired appearance.

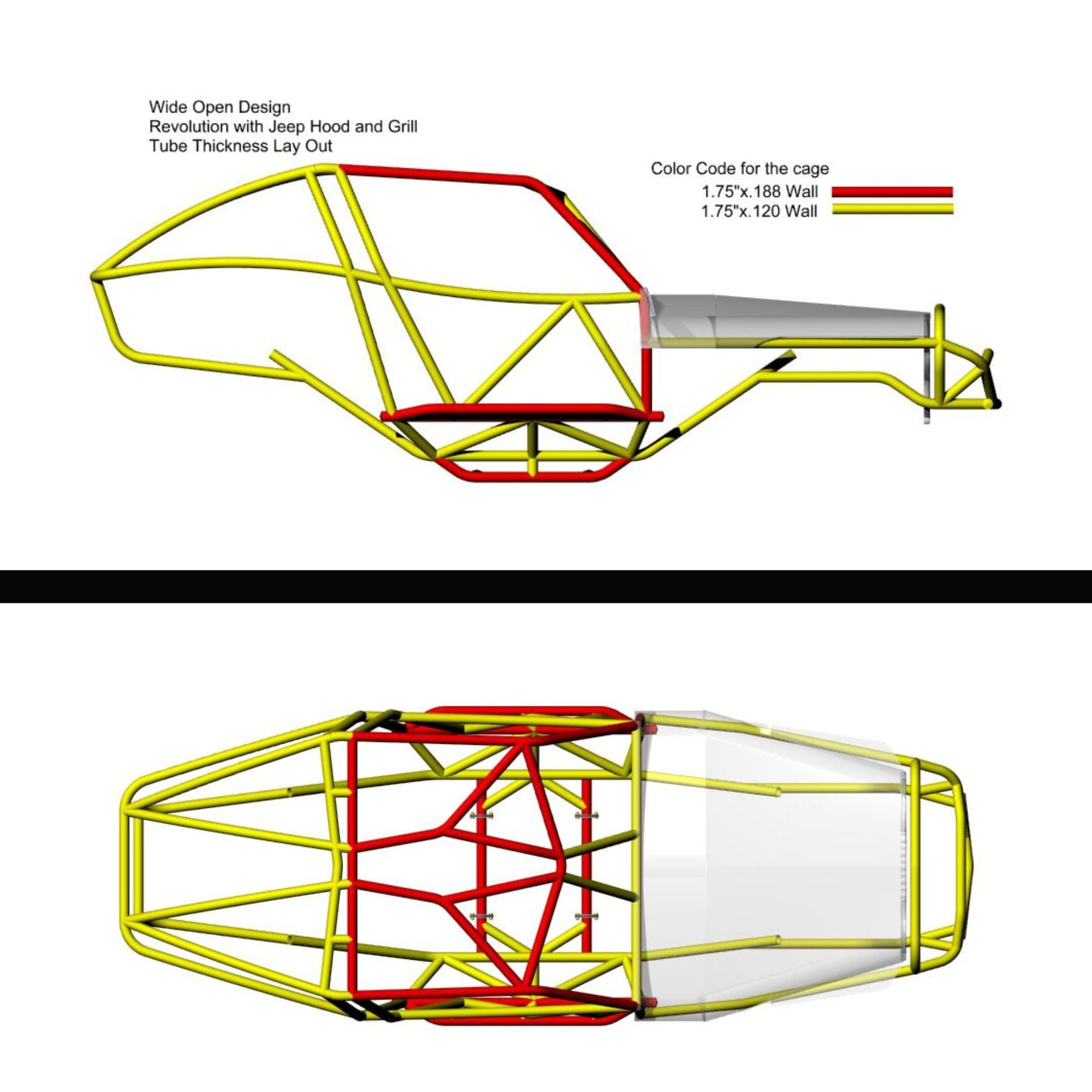

Strategic use of .188 wall DOM tubing in high-impact areas strengthens the chassis where additional durability is required while maintaining a manageable overall weight. This heavy-duty design helps prevent dents or structural damage during aggressive trail use.

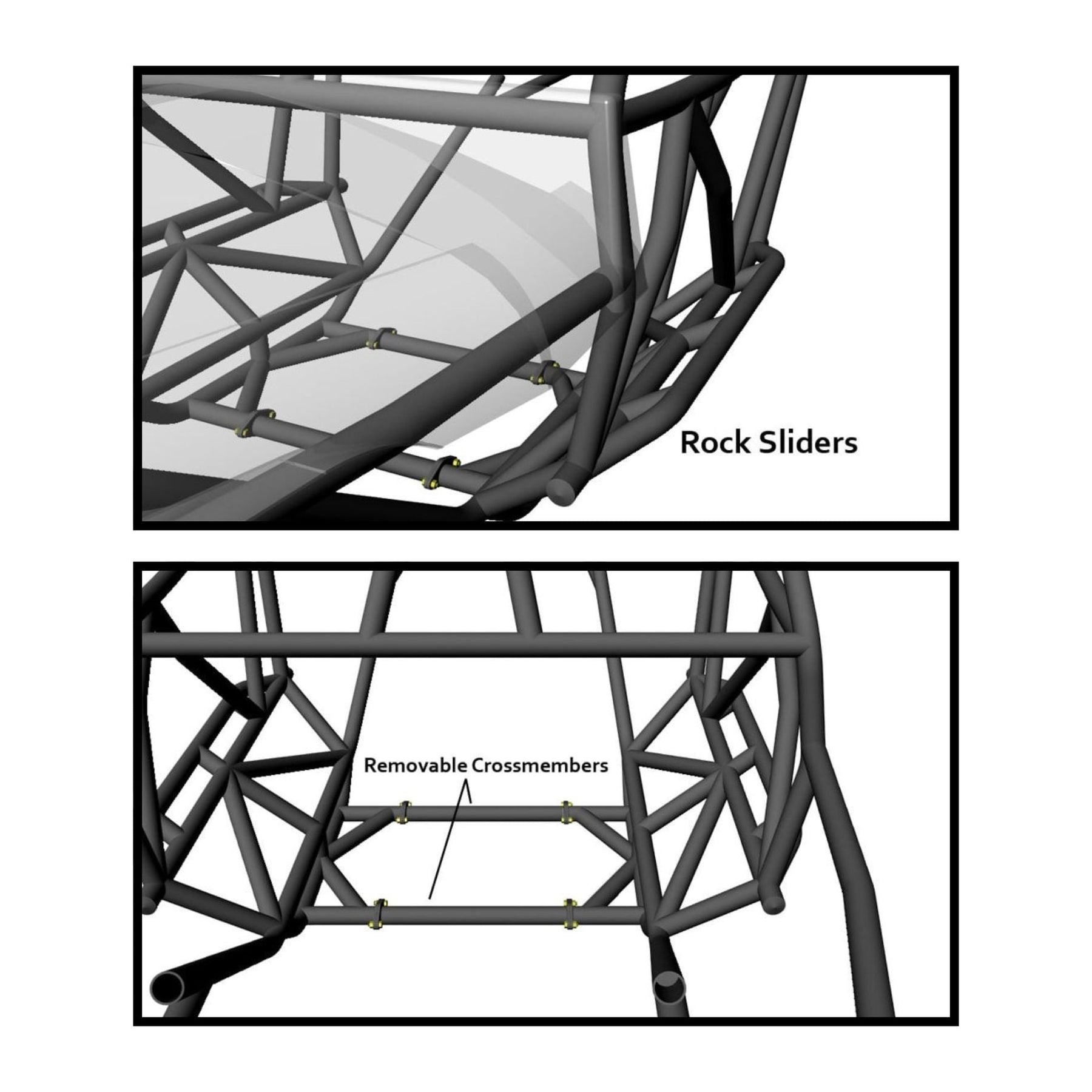

Replaceable .188 wall rock sliders protect the sides of the chassis and can easily be replaced if damaged. The chassis also incorporates removable drivetrain crossmembers connected with tube flange sets, allowing drivetrain components to be installed or removed more easily during the build process or future maintenance.
The rear chassis section provides space for a 15-gallon fuel cell and a fabricated toolbox or cooler, making the platform well suited for both competitive rock crawling and extended trail rides.
