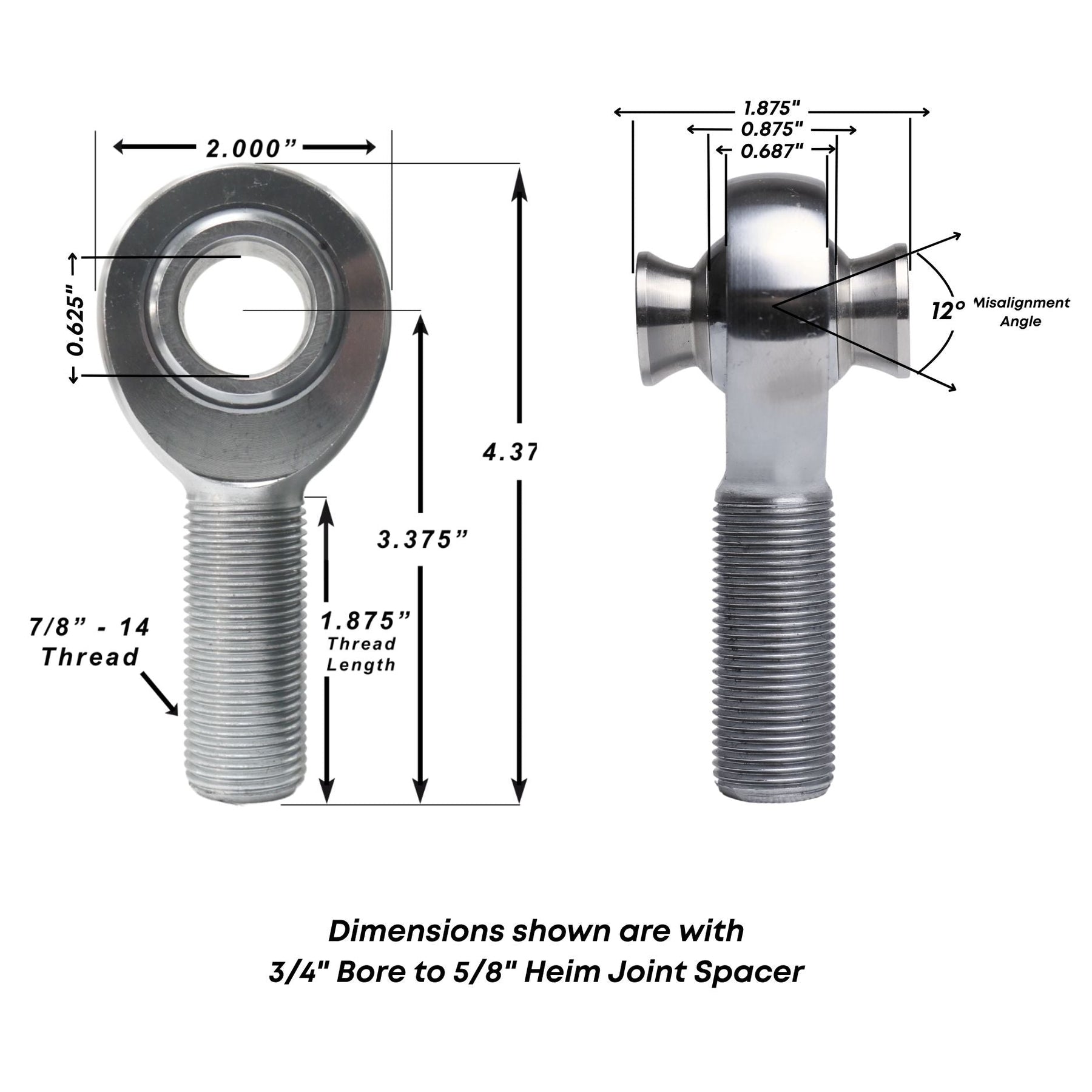

Technical drawing of a heim joint and high angle spacer with dimensions labeled
universal 4 link kit with radial static load rating on a white background
Technical diagram of four link suspension kit with labels and close-up in use insets.
Table showing rod end shank size, bore size, high angle heim joint spacer size, and radial static load for a four link suspension kit
Collection of 4 Link Suspension Parts on a white background
Technical drawing of a heim joint and high angle spacer with dimensions labeled
universal 4 link kit with radial static load rating on a white background
Technical diagram of four link suspension kit with labels and close-up in use insets.
Table showing rod end shank size, bore size, high angle heim joint spacer size, and radial static load for a four link suspension kit

Chromoly Four Link Rod End Kit - 7/8" Shank - 3/4" to 5/8" High Angle Spacer

SKU: FL7858

$221.69
/

Wide Open Design’s 7/8" Chromoly Four Link Rod End Kit with 3/4" Bore to 5/8" High Angle Heim Joint Spacers is designed for builders who want the strength of a larger shank rod end while maintaining compatibility with 5/8" hardware and brackets.

This complete kit includes all the rod ends, jam nuts, and stainless misalignment spacers needed to properly four-link the front or rear of your rig. These are the same high quality chromoly rod ends we trust on every rig we build, proven under real trail use and hard driving.

Kit Includes:

  • (8) 7/8"-14 Thread Rod Ends
  • (16) 5/8" Stainless Steel High Angle Heim Joint Spacer
  • 4 Left-Hand Thread
  • 4 Right-Hand Thread
  • (8) Matching Jam Nuts
Specifications
  • Thread Size: 7/8"-14
  • Material: Chromoly Steel
  • High Angle Heim Joint Spacer: ⅝" Stainless Steel
  • Radial Static Load Rating: 43,486 lbs
  • Thread Direction: Left & Right Hand Included
Fitment
  • Universal four-link suspension systems
  • Front or rear suspension applications
  • Rock crawlers, buggies, trail rigs, race vehicles, and custom chassis builds
  • Ideal for setups retaining 5/8" mounting hardware with higher shank strength
  • Industrial applications
Shank Size (Thread) Bore Size Misalignment Spacer Size Radial Static Load
3/4" 3/4" 3/4" 28,081 lbs
7/8" 3/4" 3/4" 43,486 lbs
7/8" 3/4" 5/8" 43,486 lbs
1-1/4" 1" 1" to 3/4" 76,200 lbs
1-1/4" 1" 1" 76,200 lbs
Tech Insight

Q: Why run a 7/8" shank rod end with a 5/8" bolt?
This setup increases overall rod end strength and load capacity while allowing you to retain existing brackets designed for 5/8" hardware—no need to rework tabs or mounts.

Q: What are the benefits of using high angle heim joint spacers?
High angle spacers improve articulation and allow the suspension to cycle smoothly without binding, especially important in long-travel four-link setups.

Q: Is this kit suitable for high-performance suspension systems?
Yes, this kit is designed for demanding applications like rock crawlers and race rigs using 7075 aluminum links or heavy-wall steel links, where strength and reliability are critical.

Q: What does the complete kit include?
The kit includes 7/8"-14 chromoly rod ends (left and right-hand thread), matching jam nuts, and 5/8" stainless high angle spacers—everything needed to properly set up a four-link system.
