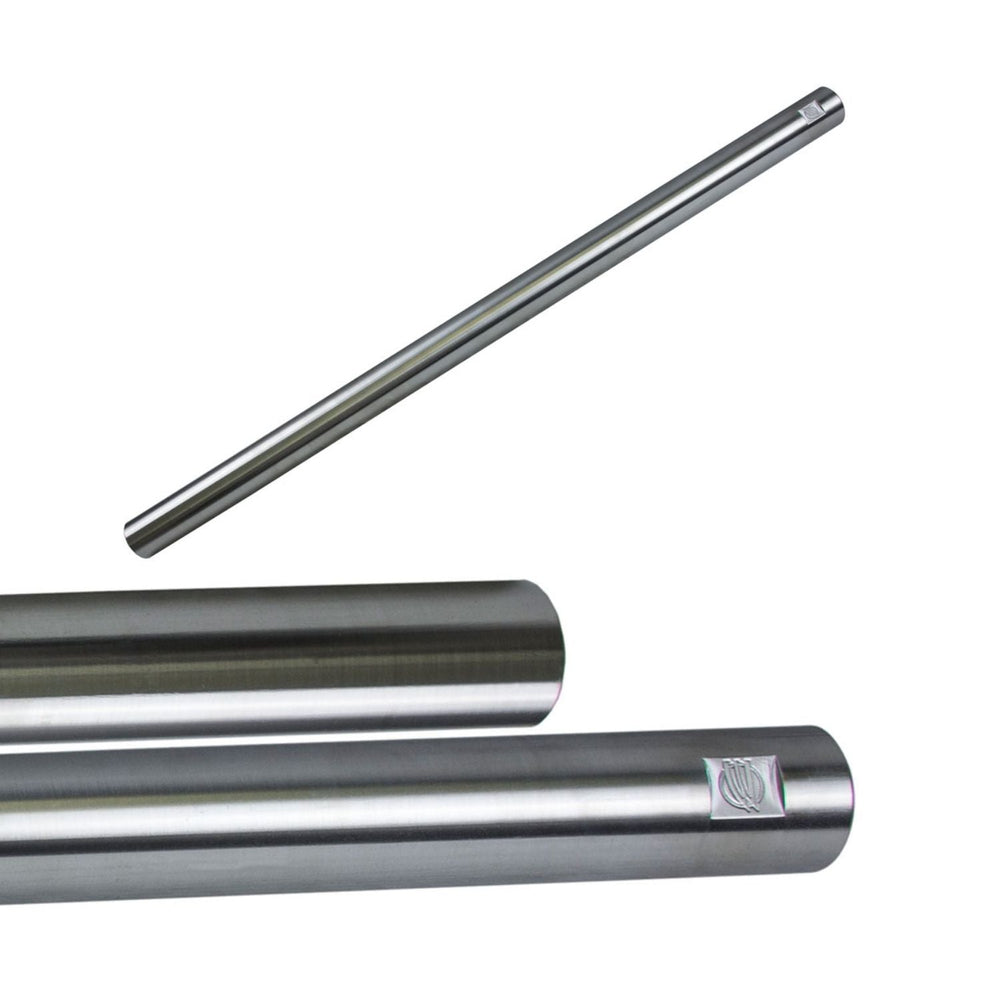

Wide Open Design custom 7075 Aluminum Suspension Links are purpose built to 4-link your buggy or rig for increased flex, strength, and suspension travel. Manufactured in-house, these suspension links are custom made to order, allowing us to deliver one of the fastest turnaround times in the industry because we know downtime kills momentum.

7075 aluminum offers exceptional strength with built in memory, meaning the links flex under impact and return to their original shape instead of staying bent like DOM steel. If you’re tired of straightening or replacing steel links after hard trail days, this is the upgrade you’ve been waiting for.

Includes:

(1) Custom cut 7075 aluminum suspension link
Precision machined threads per selected size and direction
Wrench flat machined on LH threaded side (when applicable)

Important: These links are custom built and non-returnable. Please double-check all measurements before placing your order.

Specifications

Link Material: 7075 Aluminum
Outside Diameter: 1.50", 1.75", 2.00", 2.25", 2.50"
Construction: Solid bar
Machining: Wrench flat on LH threaded side
Build Type: Custom made to order
Measurement Entry Tip: Use decimals for fractional lengths. Example: 35-1/2 = 35.5

Thread Options:

3/4"-16
7/8"-14
7/8"-18 (Tie Rod)
1"-12 (ONLY AVAILABLE FOR 1.75" TUBING OR LARGER)
1"-14 (ONLY AVAILABLE FOR 1.75" TUBING OR LARGER)
1-1/4"-12 (ONLY AVAILABLE FOR 1.75" TUBING OR LARGER)

Thread Direction Options:

RH
LH
RH/LH

Fitment

Universal application for custom suspension builds including:
Rock crawlers
Buggies
Trail rigs
Competition rigs
Custom 4-link suspensions
(Proper joint and mount selection required.)

Tech Insight

7075 aluminum is significantly stronger than DOM steel and features natural memory properties. When struck against rocks or obstacles, the material flexes and rebounds instead of permanently bending, dramatically extending service life and protecting your suspension geometry.

This is the same reason 7075 is used in aerospace and high-load racing applications. Once you run aluminum links, you won’t go back.
