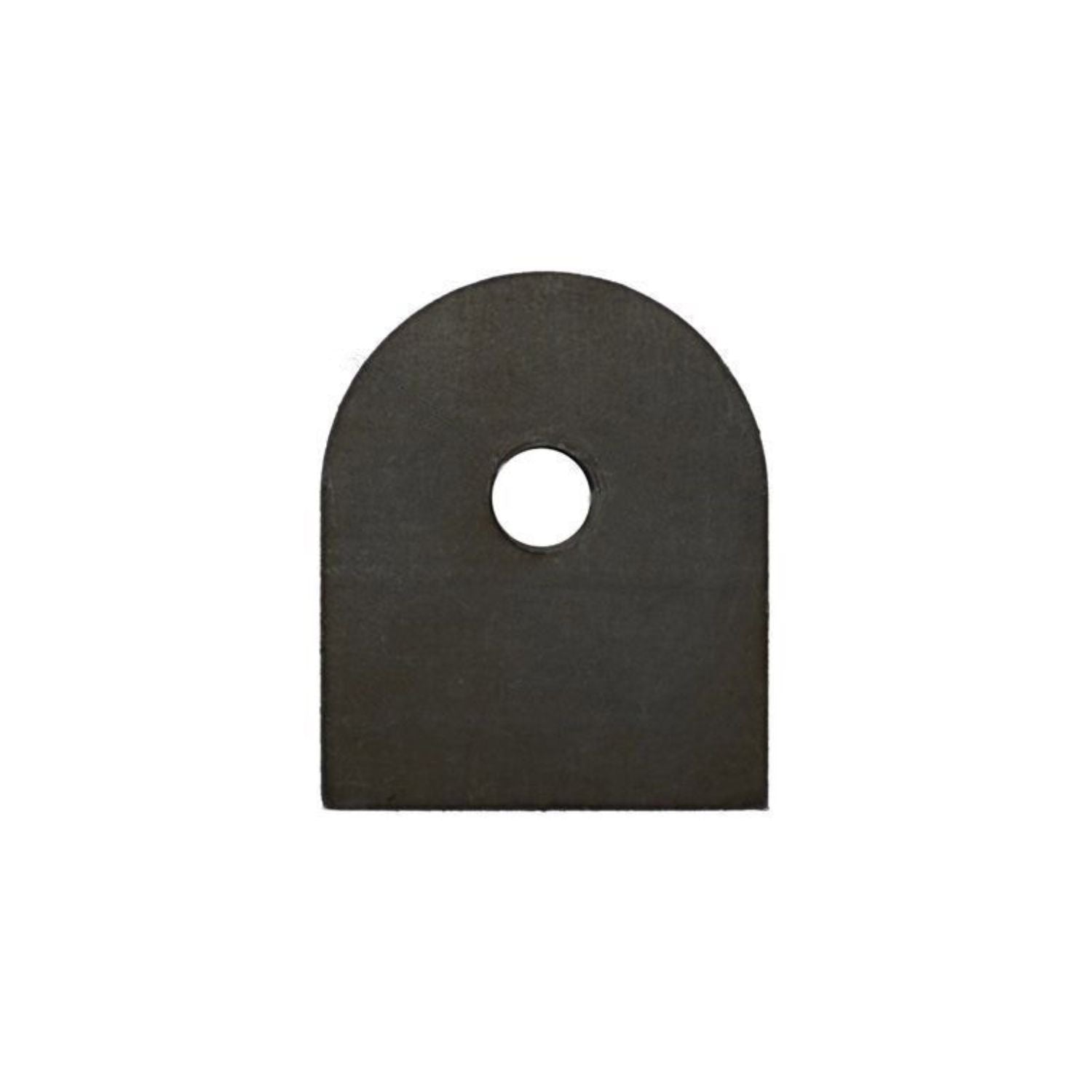

3/8 steel belly pan mount tab on a white background

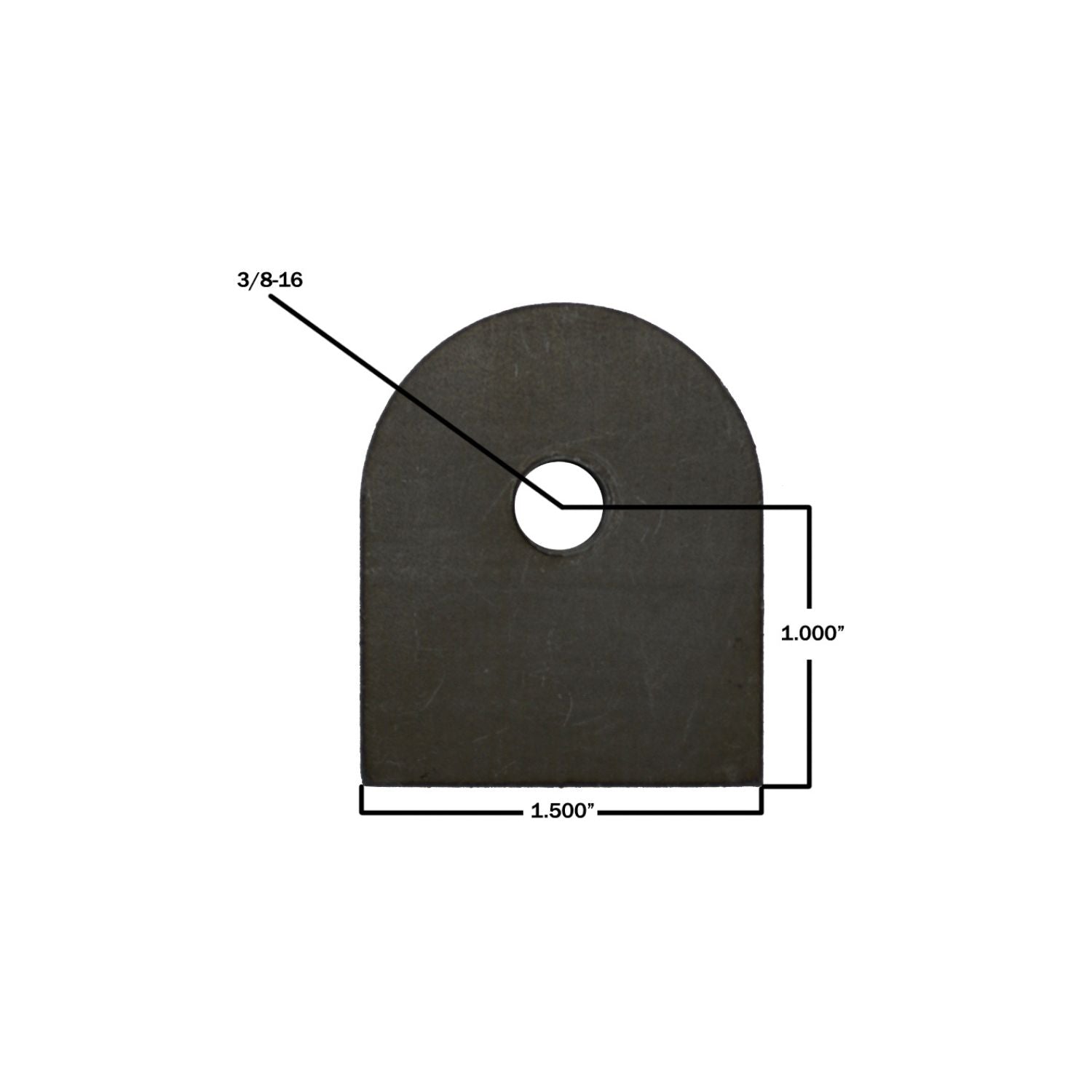

measurement data for weld on belly pan mount on a white background

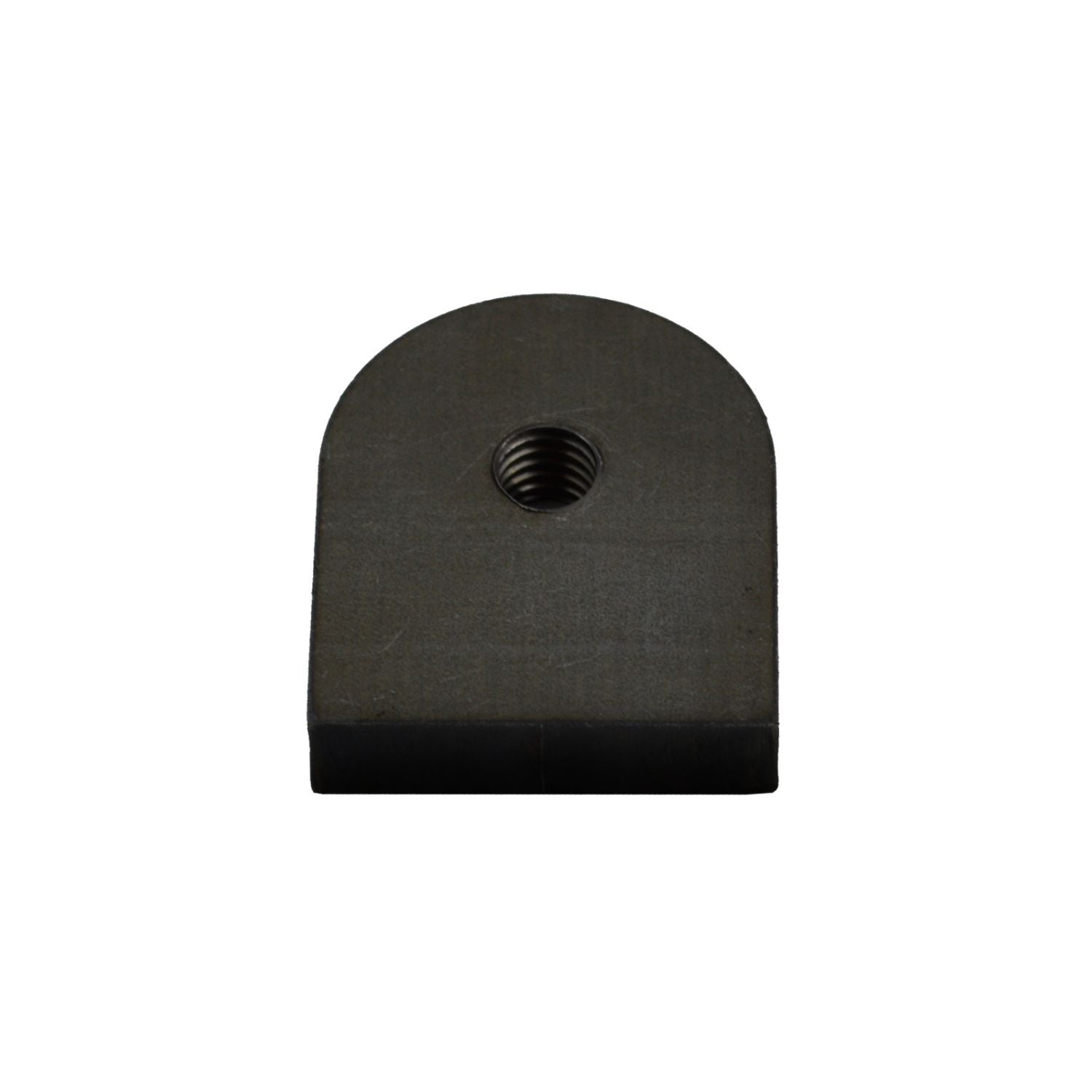

skid plate tab with a threaded hole on a white background
3/8 steel belly pan mount tab on a white background
measurement data for weld on belly pan mount on a white background
skid plate tab with a threaded hole on a white background

Belly Pan Mount Tab

WA05040

$6.99
/
Shipping calculated at checkout.

The Belly Pan Mount Tab is a heavy duty, weld-on mounting solution designed specifically for attaching belly pans and skid plates to custom built chassis. Precision laser cut from 3/8" high strength steel and tapped to 3/8"-16, these tabs give you a strong, clean, ready-to-weld mounting point that makes belly pan installation simple and reliable.

Perfect for off-road rigs, rock bouncers, Ultra4 builds, crawlers, and high abuse vehicles that rely on a strong skid system to protect critical drivetrain components.

Includes:

  • (1) Belly Pan Mount Tab
Specifications
  • Material: 3/8" High Strength Plate Steel
  • Thread Size: 3/8"-16 tapped
  • Cutting Method: Precision laser cut
  • Style: Weld-on, threaded mount tab
  • Application: Belly pans, skid plates, underbody protection
  • Condition: Weld-ready
  • Made in the USA
Fitment

Perfect for mounting:

  • Steel or aluminum belly pans
  • Skid plates
  • Drivetrain protection plates
  • Under-chassis armor on custom tube chassis

Fits:

  • Rock crawlers
  • Rock bouncers
  • Ultra4 race vehicles
  • Jeep builds
  • Custom fabrication and tube chassis projects
Tech Insight

Belly pans take massive abuse—sliding over rock ledges, protecting transfer cases, and handling heavy impacts. Using 3/8" threaded mount tabs instead of loose nuts makes servicing faster and prevents hardware from spinning or loosening. Laser cut accuracy ensures perfect repeatability across multiple mounting points.
