Spicer 1350 Yoke 1.5" x 10 Spline - U-Bolt Style
3-4-13881-1
The Spicer 1350 Yoke (1.5" x 10-spline) is a proven driveline component designed for off-road vehicles that demand strength, reliability, and smooth operation under extreme suspension movement. The 1350 series has become one of the most widely used driveline platforms in off-road vehicles because it delivers an excellent balance of strength, articulation, availability, and serviceability.
While larger 1410 and 1480 driveline systems are often selected for extreme horsepower applications, the 1350 series continues to be the preferred choice for many Jeep builds, trail rigs, and recreational rock crawlers. This Spicer yoke is one of three available driveline options alongside 1410 and 1480 series components, allowing builders to choose the driveline strength that best matches their vehicle, tire size, and horsepower requirements.
Includes
- (1) Spicer 1350 Yoke
- 1.5" x 10-Spline
- U-Bolt Style Universal Joint Retention

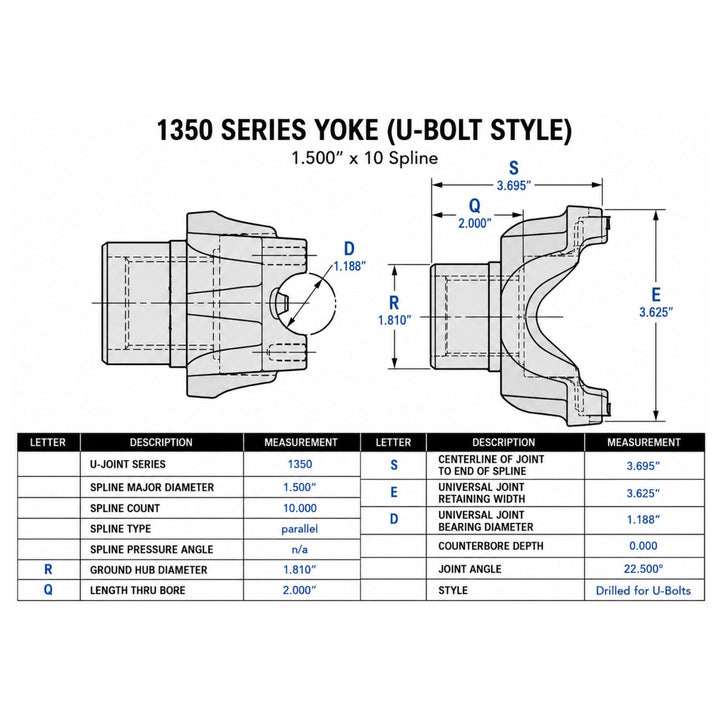

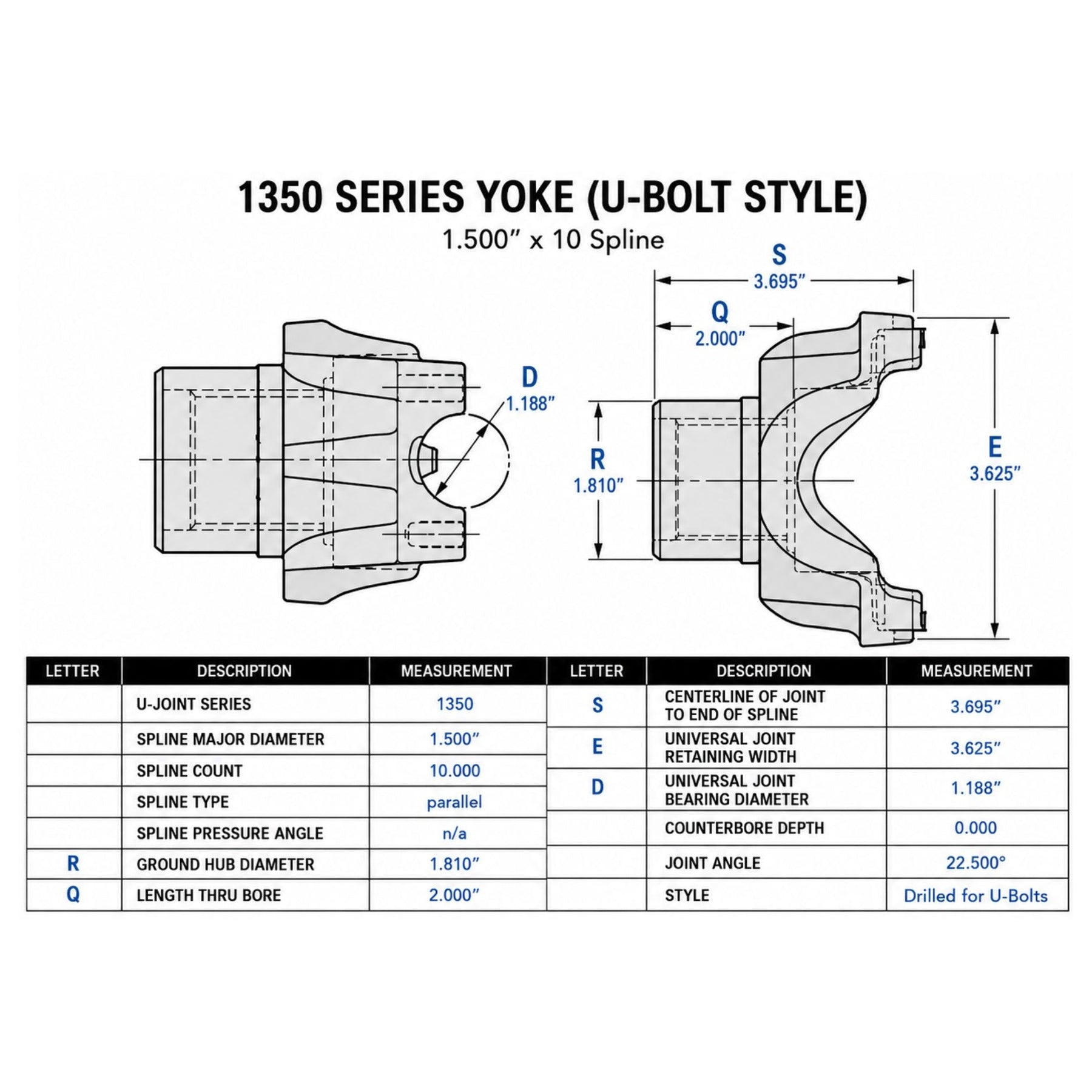

Specifications
|
Specification |
Value |
|
U-Joint Series |
1350 |
|
Spline Major Diameter |
1.500" |
|
Spline Count |
10 |
|
Spline Type |
Parallel |
|
Ground Hub Diameter (R) |
1.810" |
|
Length Through Bore (Q) |
2.000" |
|
Centerline of Joint to End of Spline (S) |
3.695" |
|
Universal Joint Retaining Width (E) |
3.625" |
|
Universal Joint Bearing Diameter (D) |
1.188" |
|
Maximum Joint Angle |
22.5° |
|
Retention Style |
U-Bolt |
Driveshaft Series Comparison
|
Specification |
1350 Series |
1410 Series |
1480 Series |
|
Common Use |
Jeeps, Trail Rigs, Lightweight Buggies |
Rock Crawlers, Ultra4 Cars, Rock Bouncers |
Extreme Horsepower Buggies, Mega Trucks |
|
Bearing Cap Diameter |
1.188" |
1.188" |
1.375" |
|
U-Joint Width |
3.625" |
4.188" |
4.188" |
|
Relative Strength |
Good |
Better |
Best |
|
Driveline Shock Load Capacity |
Moderate |
High |
Extreme |
|
Common Tire Sizes |
Up to 40" |
40"-43" |
43"+ |
|
Typical Horsepower Range* |
Up to 600 HP |
600-900 HP |
900+ HP |
|
Articulation Capability |
Excellent |
Excellent |
Good |
|
Weight |
Lightest |
Moderate |
Heaviest |
*Actual driveline capacity depends on vehicle weight, gearing, tire size, driving style, and overall driveline design.
Fitment
|
Vehicle Type |
Recommended Series |
|
Jeep TJ |
1350 |
|
Jeep LJ |
1350 |
|
Jeep JK |
1350 or 1410 |
|
Jeep JL |
1350 or 1410 |
|
Trail Rig |
1350 |
|
Recreational Rock Crawler |
1350 |
|
Lightweight Buggy |
1350 |
|
Overland Vehicle |
1350 |
|
UTV Conversion |
1350 |
|
Trail Buggy |
1350 |
|
Ultra4 Sportsman Car |
1350 |
|
Weekend Warrior Build |
1350 |
Common Applications
- Front Driveshafts
- Intermediate Shaft Assemblies
- Carrier Bearing Shaft Systems
- Multi-Piece Driveshaft Systems
- Trail Rigs
- Rock Crawlers
- Lightweight Buggies
- Custom Chassis Vehicles
Compatible With
Tech Insight
What U-joint does this yoke require?
This yoke is designed for standard 1350 series universal joints and is commonly paired with the Spicer 1350 Universal Joint & U-Bolt Kit.
Will this fit the WOD Single Ended Carrier Bearing?
Yes. This yoke is specifically designed to work with the WOD Single Ended Carrier Bearing and WOD 1350 Carrier Bearing Shaft Builder Kit.
Is a 1350 driveline strong enough for off-road use?
Absolutely. The 1350 series is commonly used in Jeeps, trail rigs, lightweight buggies, Ultra4 Sportsman vehicles, and recreational rock crawlers running up to 40" tires.
Should I choose a 1350, 1410, or 1480 driveline?
A 1350 driveline is ideal for most recreational off-road vehicles. Builders running larger tires, heavier vehicles, or higher horsepower engines may choose a 1410 or 1480 series driveline for additional strength.
Can this be used in front or rear driveshaft applications?
Yes. This yoke is commonly used in front driveshafts, rear driveshafts, intermediate shafts, and carrier bearing shaft assemblies.
Does this yoke use U-bolts or straps?
This version is drilled for U-bolt retention, which provides a stronger and more secure universal joint attachment than traditional strap-style retainers.
What driveshaft kits work with this yoke?
This yoke is commonly used with the WOD 1350 Driveshaft Builder Kit and WOD 1350 Carrier Bearing Shaft Builder Kit.
