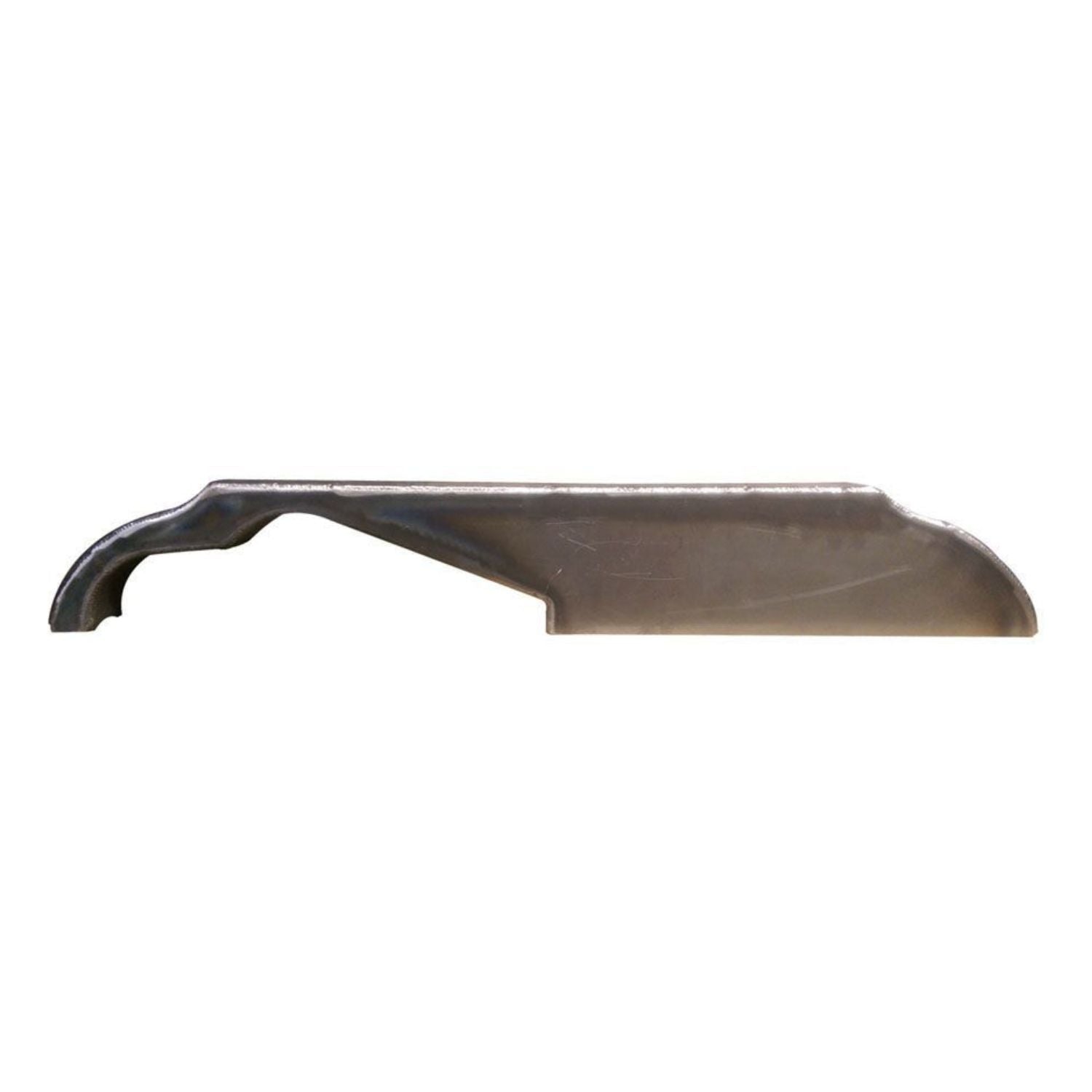

WOD GM Dana 60 Front Axle Truss

WF03015

$329.99
/
Shipping calculated at checkout.

The Wide Open Design GM Dana 60 Front Axle Truss is engineered to strengthen General Motors and Dodge Dana 60 front axles used in demanding environments. Weld ready and built from 1/4" thick steel, this truss is precision cut and contoured to fit tightly to the Dana 60 differential housing for maximum weld surface area and long-term durability.

By extending across the majority of the long-side axle tube, this truss significantly reduces tube flex and housing distortion under hard use. It’s an ideal foundation for custom axle builds where strength, reliability, and clean fitment matter.

Includes:

  • (1) GM/Dodge Dana 60 Front Axle Truss

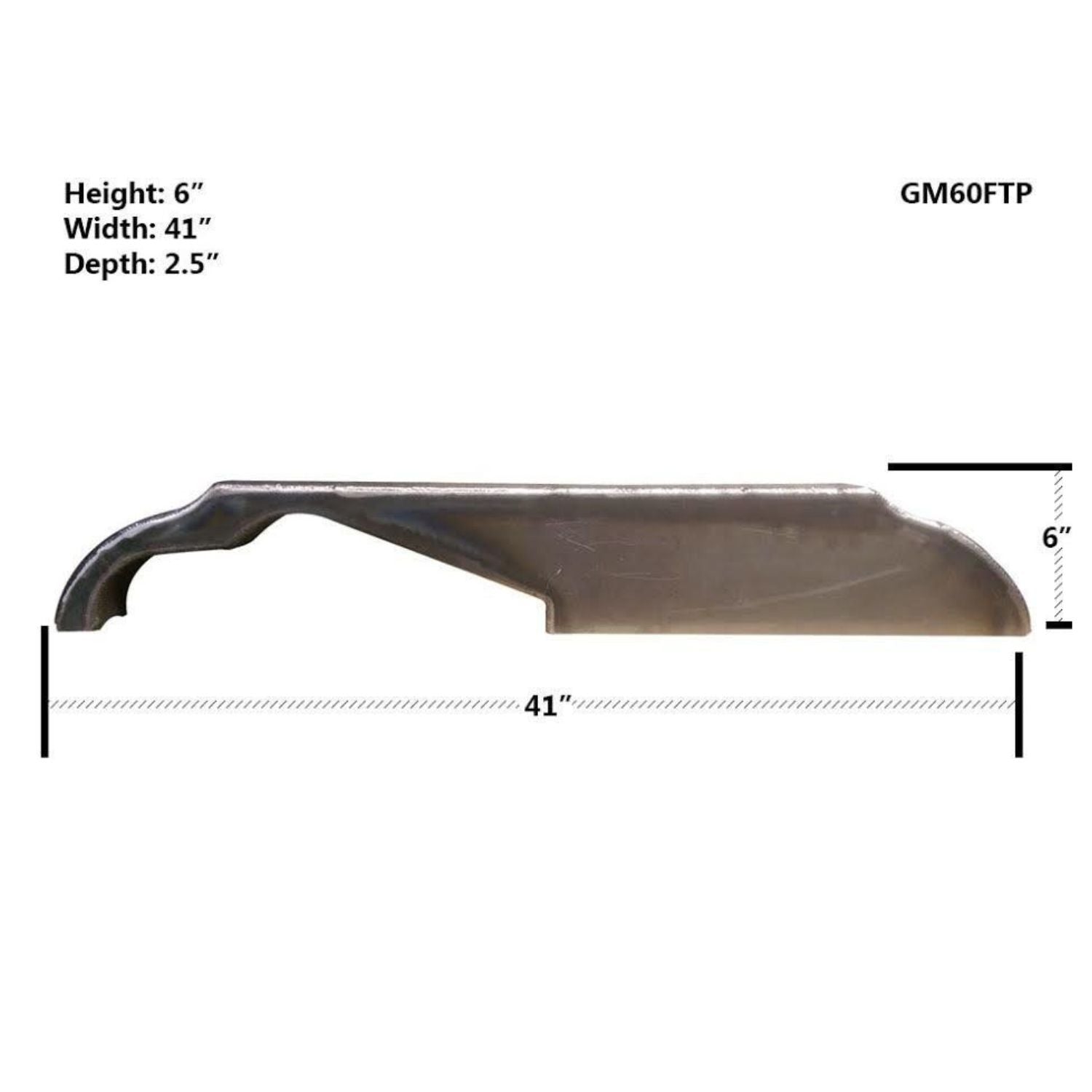

Specifications
  • Axle Type: GM / Dodge Dana 60 Front
  • Material: 1/4" Steel Plate
  • Length: 41"
  • Height: 6"
  • Depth: 2.5"
  • Design: Cut and contoured for tight Dana 60 differential housing fit
  • Country of Origin: Made in USA
Fitment
  • GM Dana 60 Front Axles
  • Dodge Dana 60 Front Axles
  • Install Note: Welding required
  • Fitment Note: Designed for custom, off-road, and competition axle builds
Tech Insight

Dana 60 front housings experience extreme torsional and bending loads during off-road use, especially with larger tires and high horsepower drivetrains. This truss ties the differential housing into the long-side tube, helping prevent tube rotation and housing flex. Adding optional link tabs allows you to tailor the setup for custom suspension and steering geometry.
