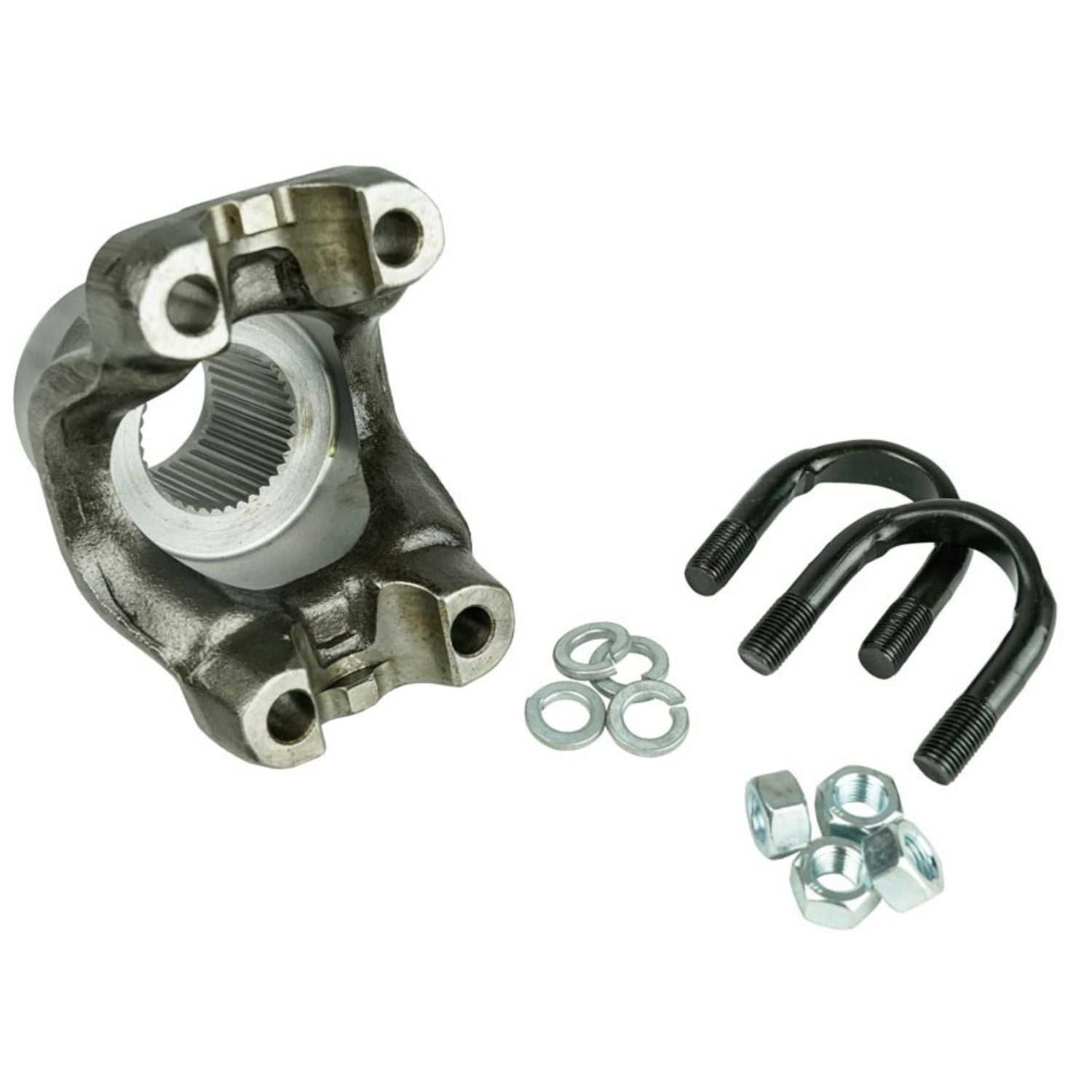

1480 Dana 80 forged U-bolt yoke with hardware on a white background

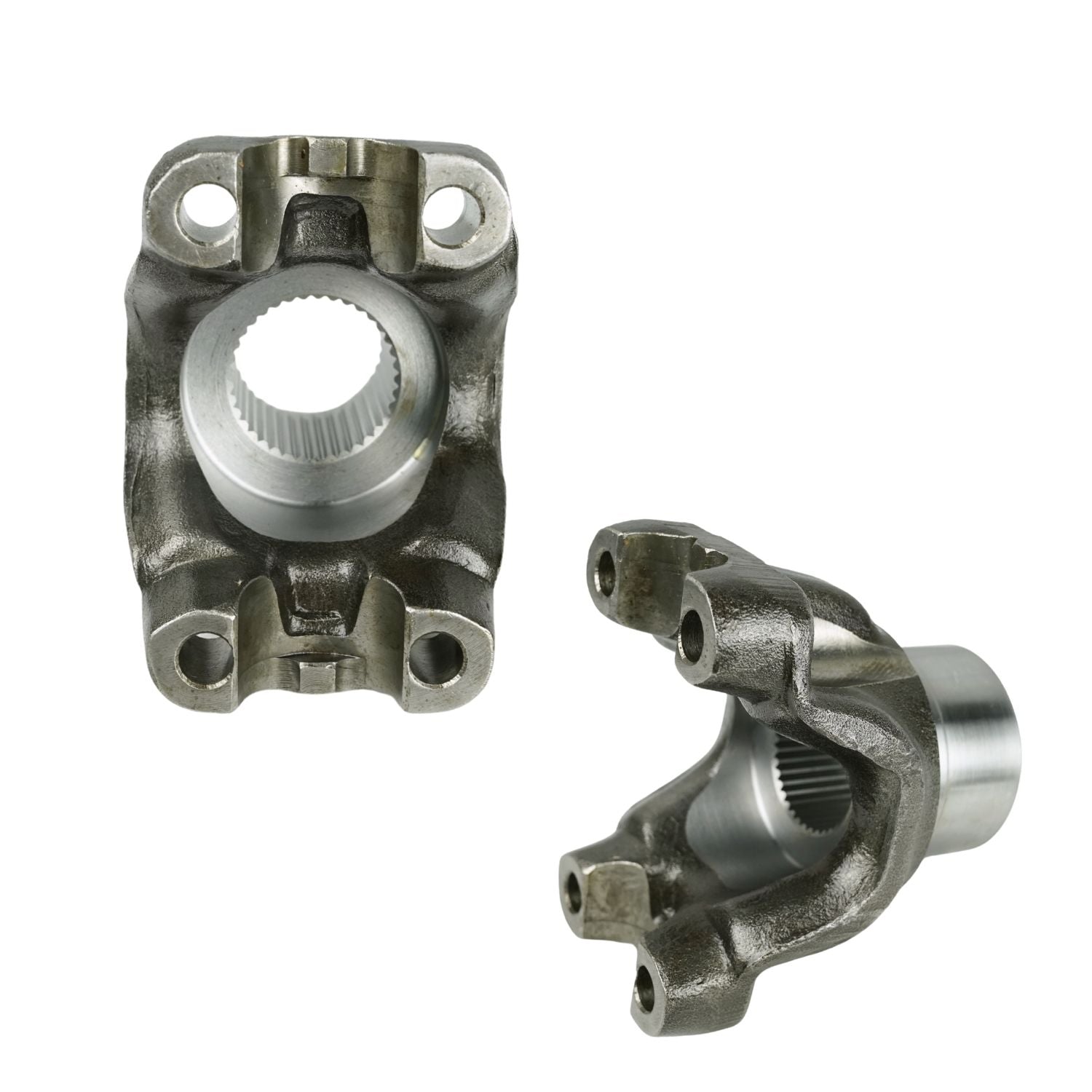

D80 heavy-duty 1480 U-joint yoke on a white background

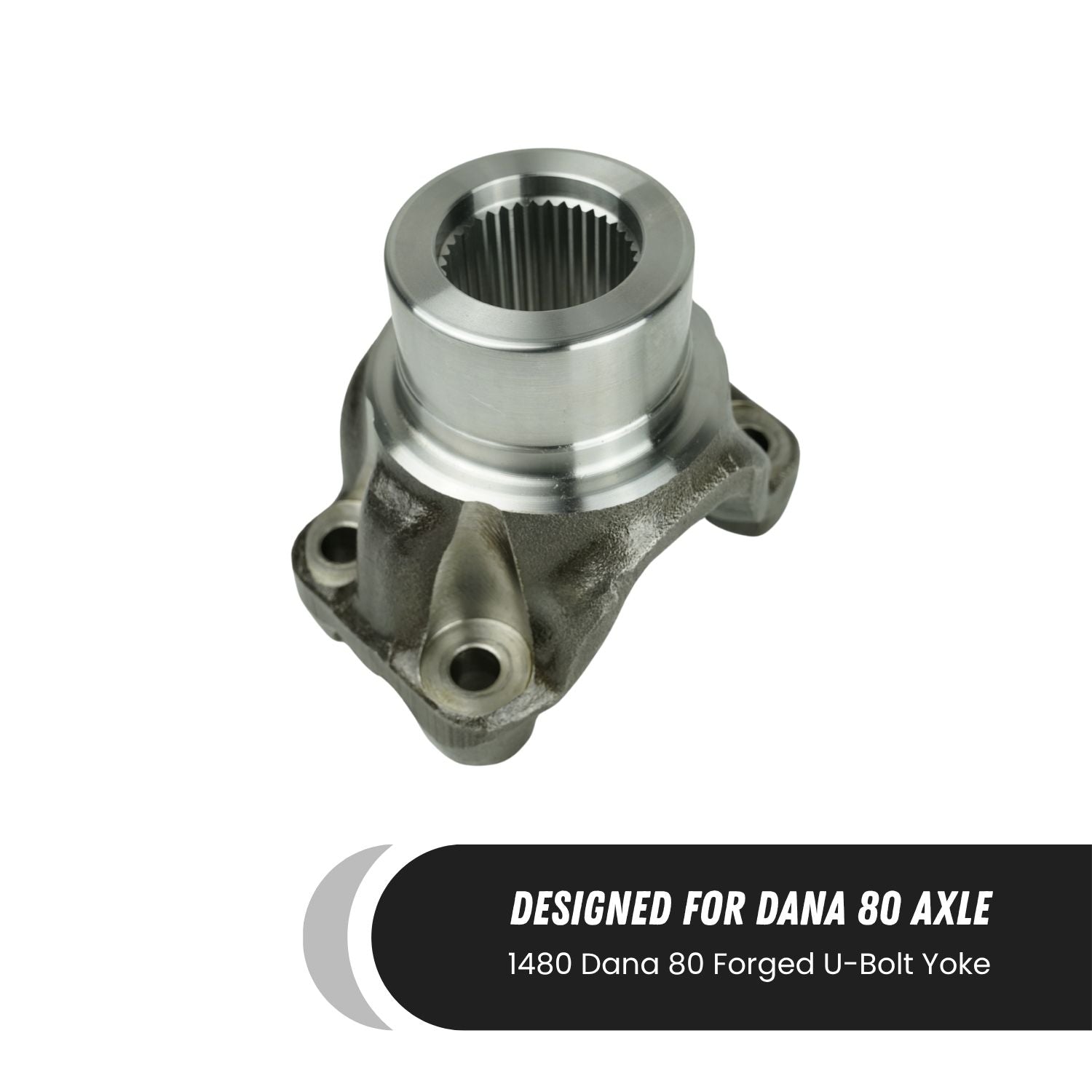

Off-road U-bolt yoke replacement with text indicating it is designed for Dana 80 axle on a white background
Technical specifications of off-road driveshaft U-bolt yoke with hardware on a white background
1480 Dana 80 forged U-bolt yoke with hardware on a white background
D80 heavy-duty 1480 U-joint yoke on a white background
Off-road U-bolt yoke replacement with text indicating it is designed for Dana 80 axle on a white background
Technical specifications of off-road driveshaft U-bolt yoke with hardware on a white background

1480 Dana 80 Forged U-Bolt Yoke

3-4-11171

$189.56
/
Shipping calculated at checkout.

The 1480 Dana 80 Forged U-Bolt Yoke is built for strength, serviceability, and durability under extreme off-road or heavy duty conditions. Designed for the Dana 80 axle, this yoke uses U-bolts instead of straps, making field repairs easier and faster. Forged construction ensures superior structural integrity and reliability for demanding torque loads.

Includes:

  • (1) 1480 Dana 80 Forged U-Bolt Yoke
  • (2) U-Bolts (with Nuts and Lock Washers)

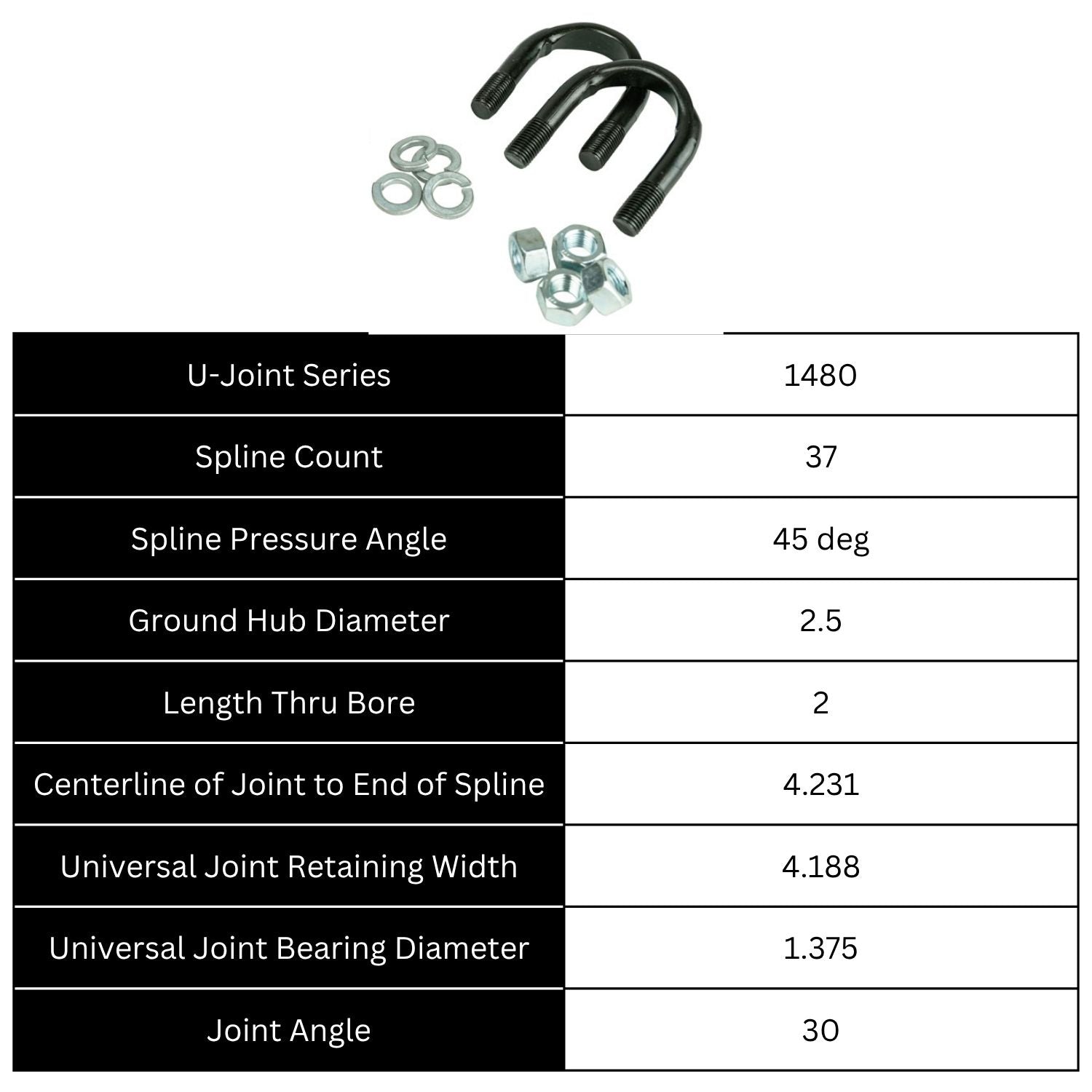

Specifications
  • U-Joint Series: 1480
  • Spline Count: 37
  • Spline Pressure Angle: 45°
  • Ground Hub Diameter: 2.500
  • Length Thru Bore: 2.000
  • Centerline of Joint to End of Spline: 4.231
  • Universal Joint Retaining Width: 4.188
  • Universal Joint Bearing Diameter: 1.375
  • Joint Angle: 30°
Fitment
  • Fits Dana 80 axle assemblies utilizing a 1480 series U-joint.
Tech Insight

This yoke design uses U-bolts instead of straps to simplify maintenance in the field. If a U-joint fails, simply replace the U-bolts—no more dealing with broken strap bolts stuck in the yoke. The forged construction provides exceptional strength and impact resistance compared to cast or billet alternatives, making it the preferred choice for off-roaders and builders pushing the limits of their drivetrain.
