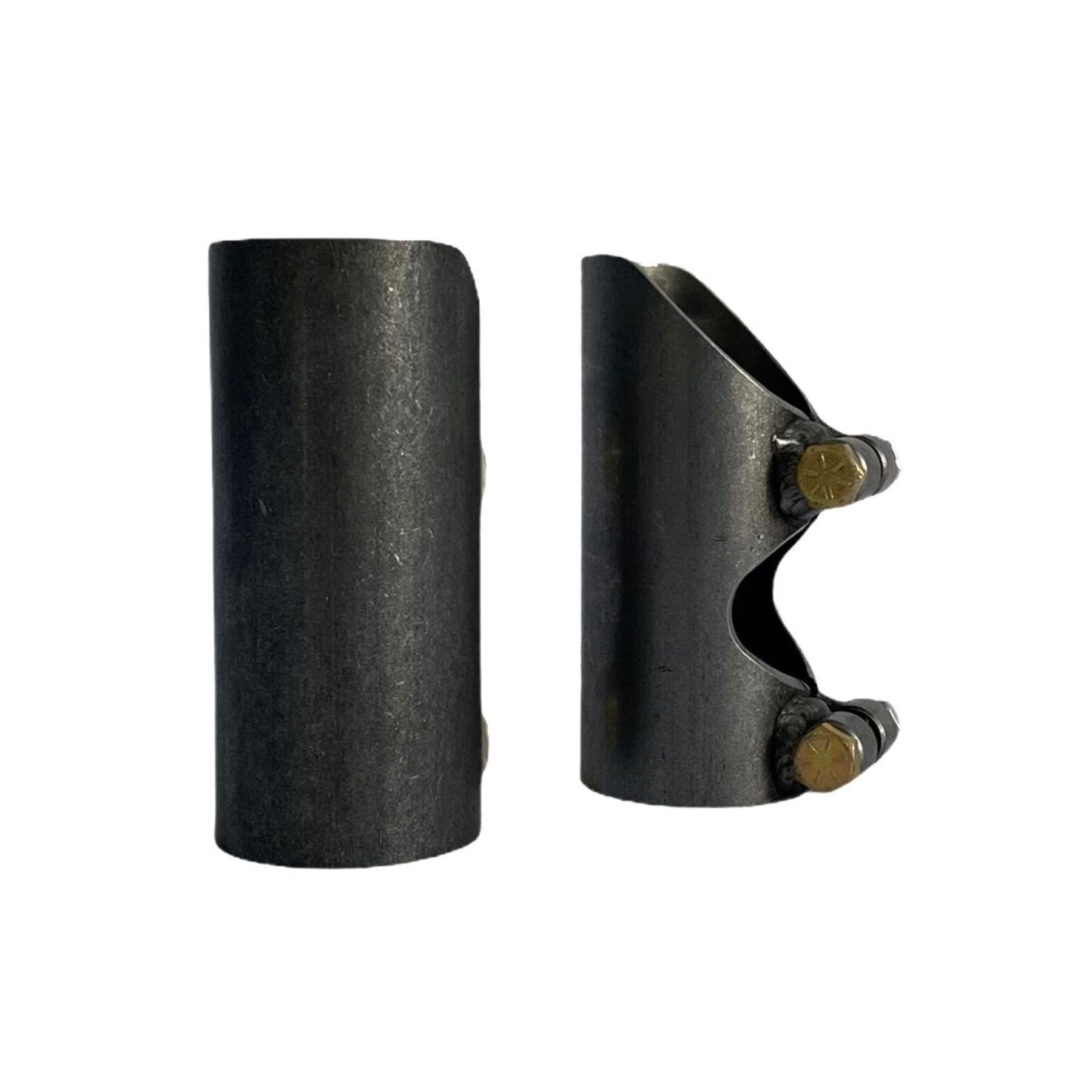

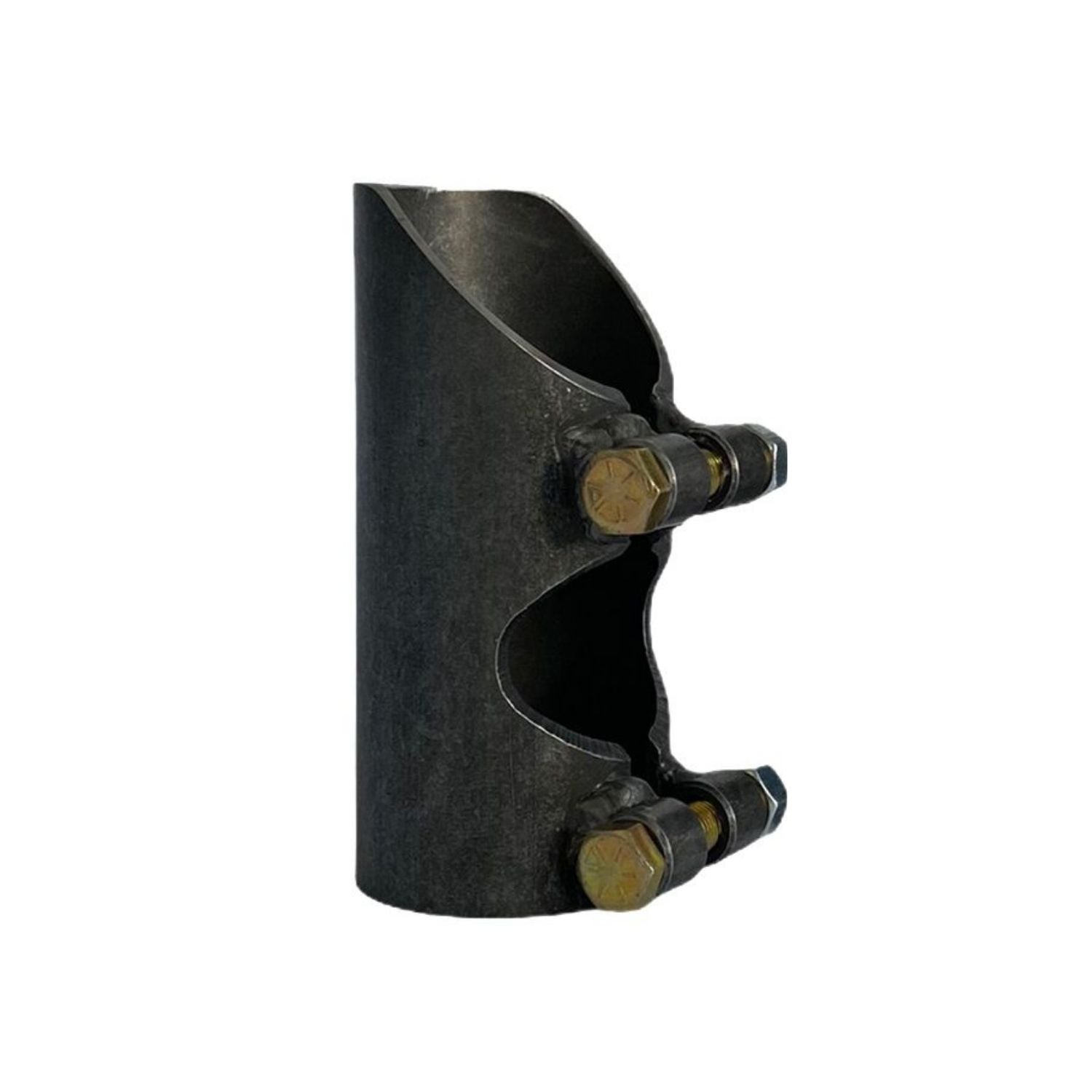

Black 2 inch short bump can with bolts on a white background

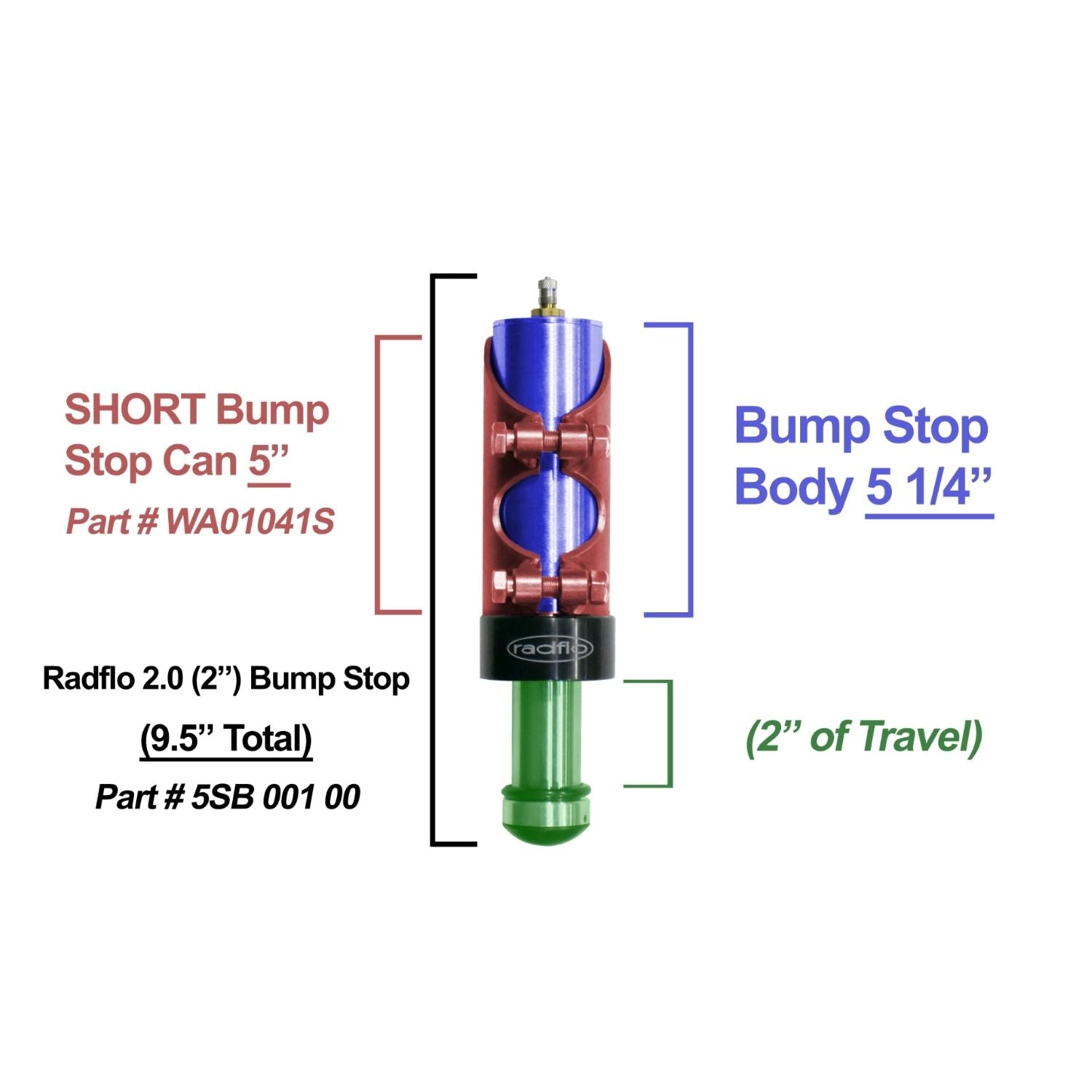

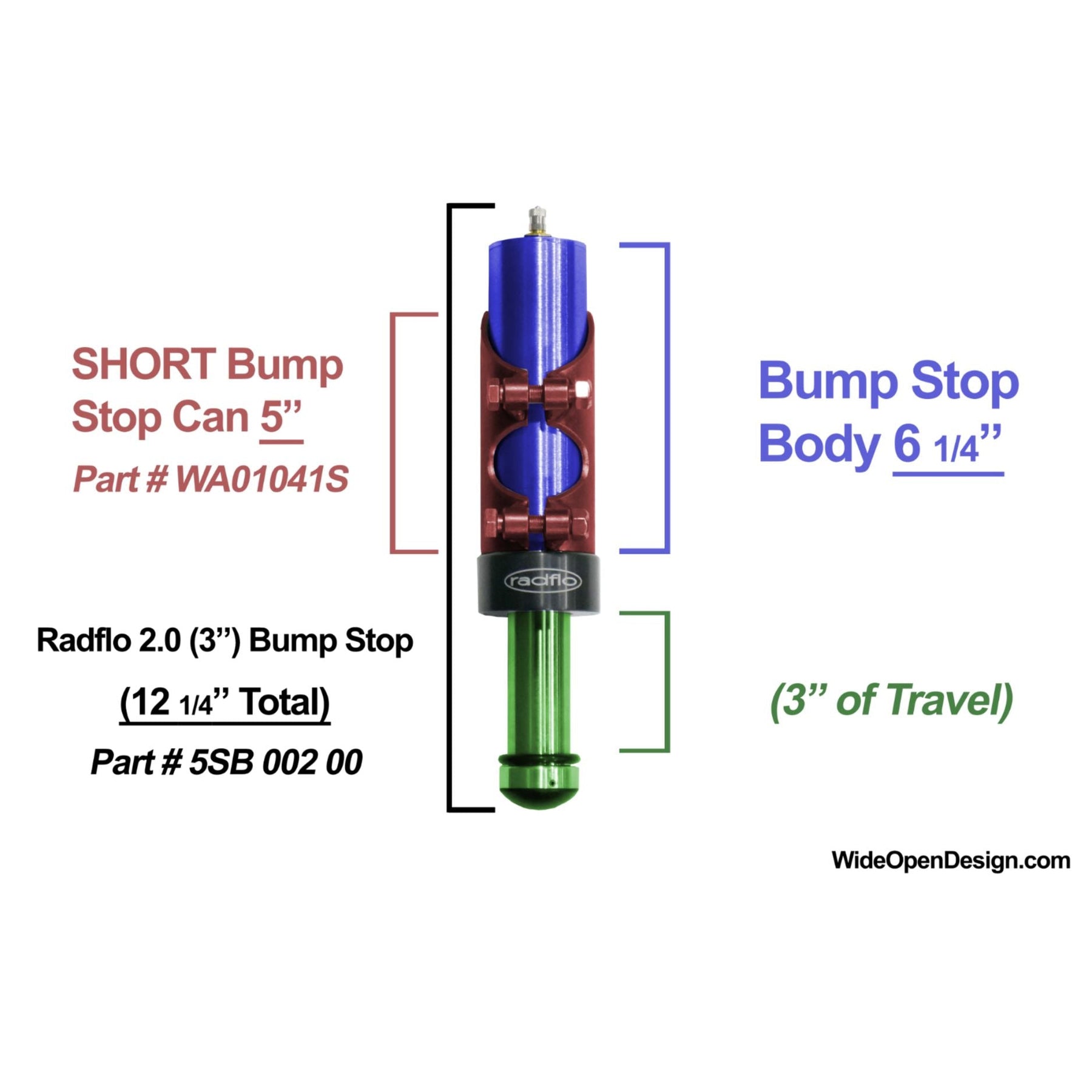

Technical diagram of a short hydraulic bump can with labeled parts and dimensions on a white background
2" Bump Stop Can - Short - For 2" & 3" Travel

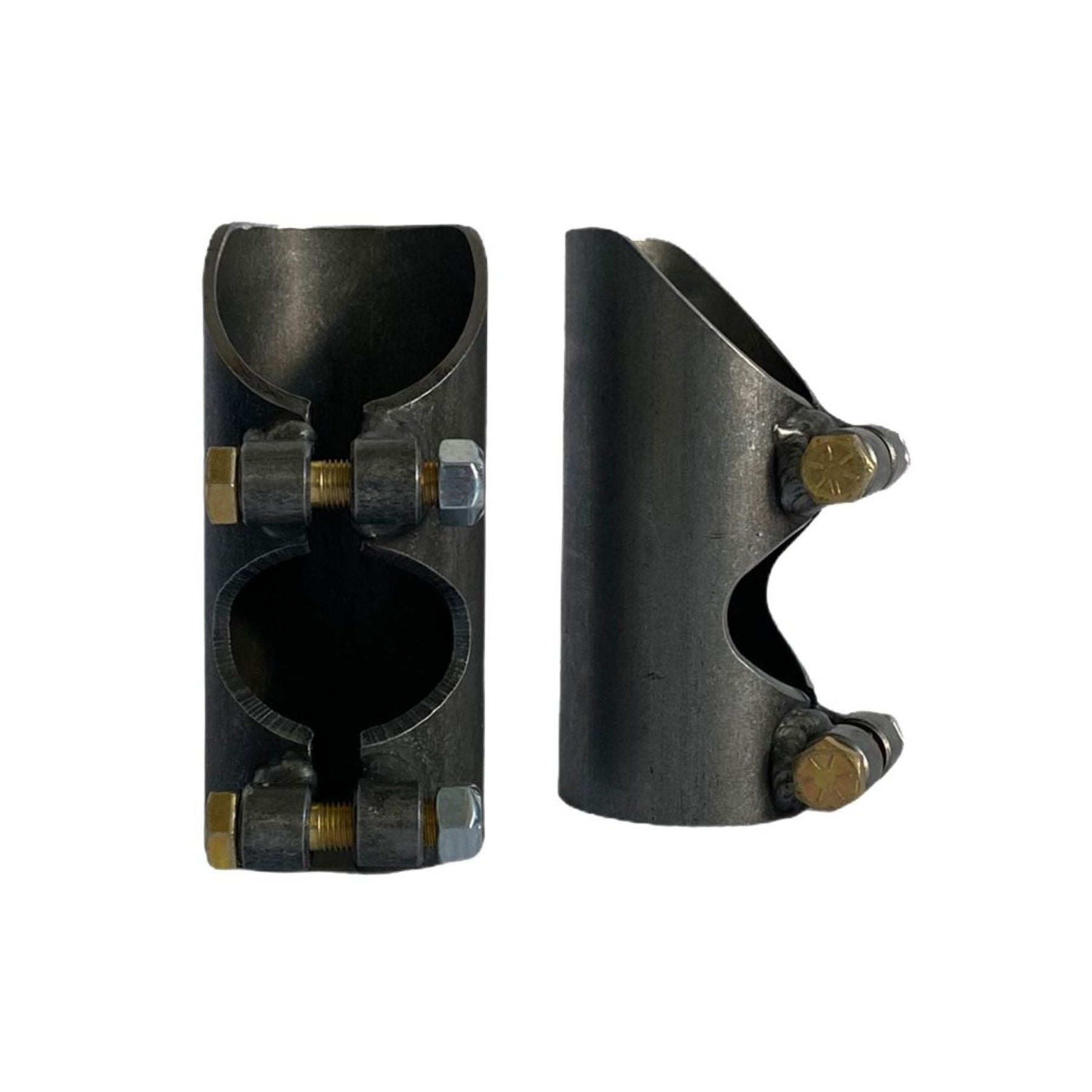

Fabricated dom steel weld on bump can with dimensions indicated on a white background
2" Bump Stop Can - Short - For 2" & 3" Travel
2" Bump Stop Can - Short - For 2" & 3" Travel
2" Bump Stop Can - Short - For 2" & 3" Travel
Black 2 inch short bump can with bolts on a white background
Technical diagram of a short hydraulic bump can with labeled parts and dimensions on a white background
2" Bump Stop Can - Short - For 2" & 3" Travel
Fabricated dom steel weld on bump can with dimensions indicated on a white background
2" Bump Stop Can - Short - For 2" & 3" Travel
2" Bump Stop Can - Short - For 2" & 3" Travel
2" Bump Stop Can - Short - For 2" & 3" Travel

2" Bump Stop Can - Short - For 2" & 3" Travel

WA01041S

$44.38
/
Shipping calculated at checkout.

The 2 Inch Short Bump Stop Can is a compact, weld-ready bump can designed specifically for 2" and 3" travel hydraulic or air bump stops. Made from precision laser cut DOM steel tubing, this shorter design is ideal for tight packaging areas where full length cans won’t fit.

Includes:

  • (1) Short 2" Bump Stop Can
  • Hardware
Specifications
  • Material: DOM Steel Tubing
  • Cutting Method: Precision laser cut
  • Fitment: Fits most 2" diameter, 2" or 3" travel hydraulic/air bump stops
  • Style: Short-length weld-on bump can
  • Hardware: Includes high-quality bolts & nuts
  • Condition: Weld/Fabrication ready
  • Made in the USA
Fitment

Compatible with:

  • Fox 2 bumps (2 & 3 travel)
  • King 2.0 bumps
  • Radflo 2 bumps
  • ADS 2 bumps
  • ORI 2 bump stops
  • Other 2 hydraulic/air bump stops with 2–3 travel

Perfect for:

  • Tight suspension packaging
  • Front or rear bump stop mounts
  • Rock crawlers & rock bouncers
  • Ultra4 suspension setups
  • Custom chassis fabrication
Tech Insight

Short bump cans are essential for builds where space is limited—especially around coilover towers, truss areas, and upper link mounts. Using laser-cut DOM tubing ensures consistent inner diameter, allowing the bump stop to slide smoothly and seat correctly. Proper bump alignment is critical to suspension performance and preventing harsh bottom-outs.

This shorter can is ideal when you don’t need the length of a standard 4–5 can.

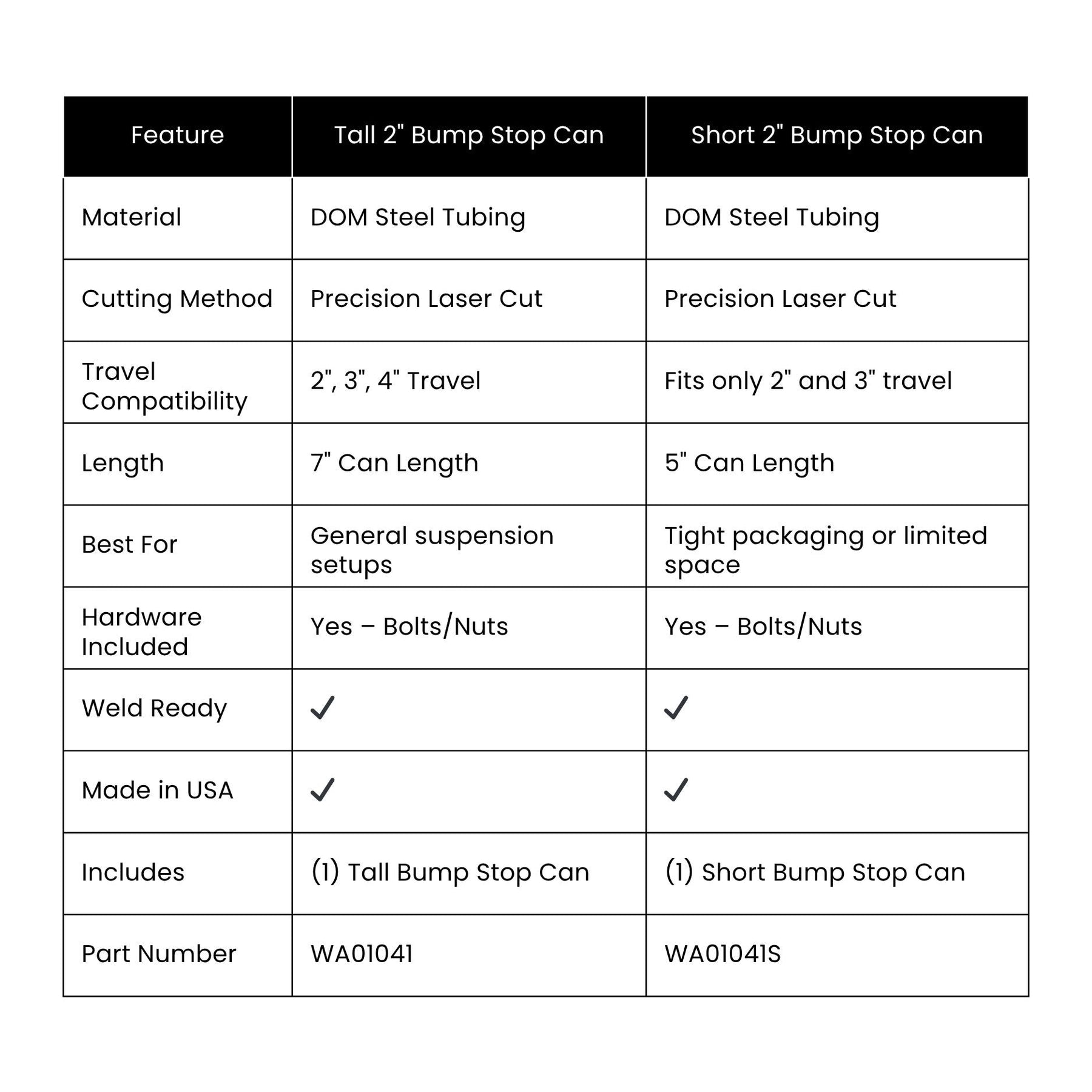

Feature Standard 2 Bump Stop Can Short 2 Bump Stop Can
Material DOM Steel Tubing DOM Steel Tubing
Cutting Method Precision Laser Cut Precision Laser Cut
Travel Compatibility Fits most 2 hydraulic/air bumps (2, 3, 4) Fits only 2 and 3 travel 2 bump stops
Length Standard full-length can Short, compact can for tight clearance
Best For General suspension setups Tight packaging or limited space
Hardware Included Yes – Bolts/Nuts Yes – Bolts/Nuts
Weld Ready ✔️ ✔️
Made in USA ✔️ ✔️
Includes (1) Standard Bump Stop Can (1) Short Bump Stop Can
Part Number WA01041 WA01041S
