FL7834

$208.09
/
Shipping calculated at checkout.

Wide Open Design’s 7/8" Chromoly Four Link Rod End Kit is built for higher-load suspension setups that demand maximum strength and reliability. This complete kit includes everything needed to properly four-link the front or rear of your rig with no mismatched parts, no compromises.

Each kit includes rod ends, jam nuts, and stainless heim joint spacers to get your suspension mounted correctly and moving freely. These are the same chromoly rod ends we trust on every rig we build, proven under real-world abuse on trail rigs, hardcore crawlers, and competition builds.

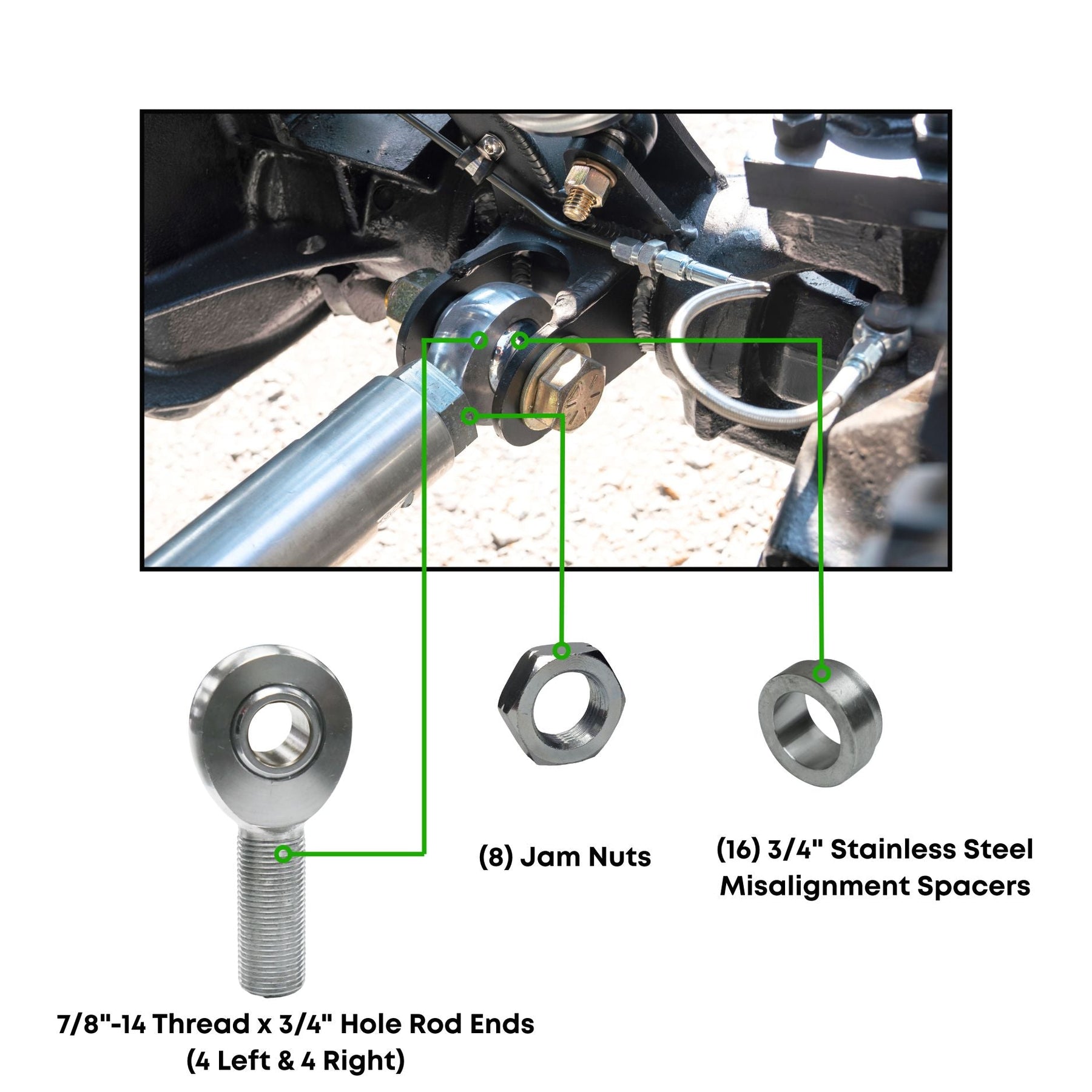

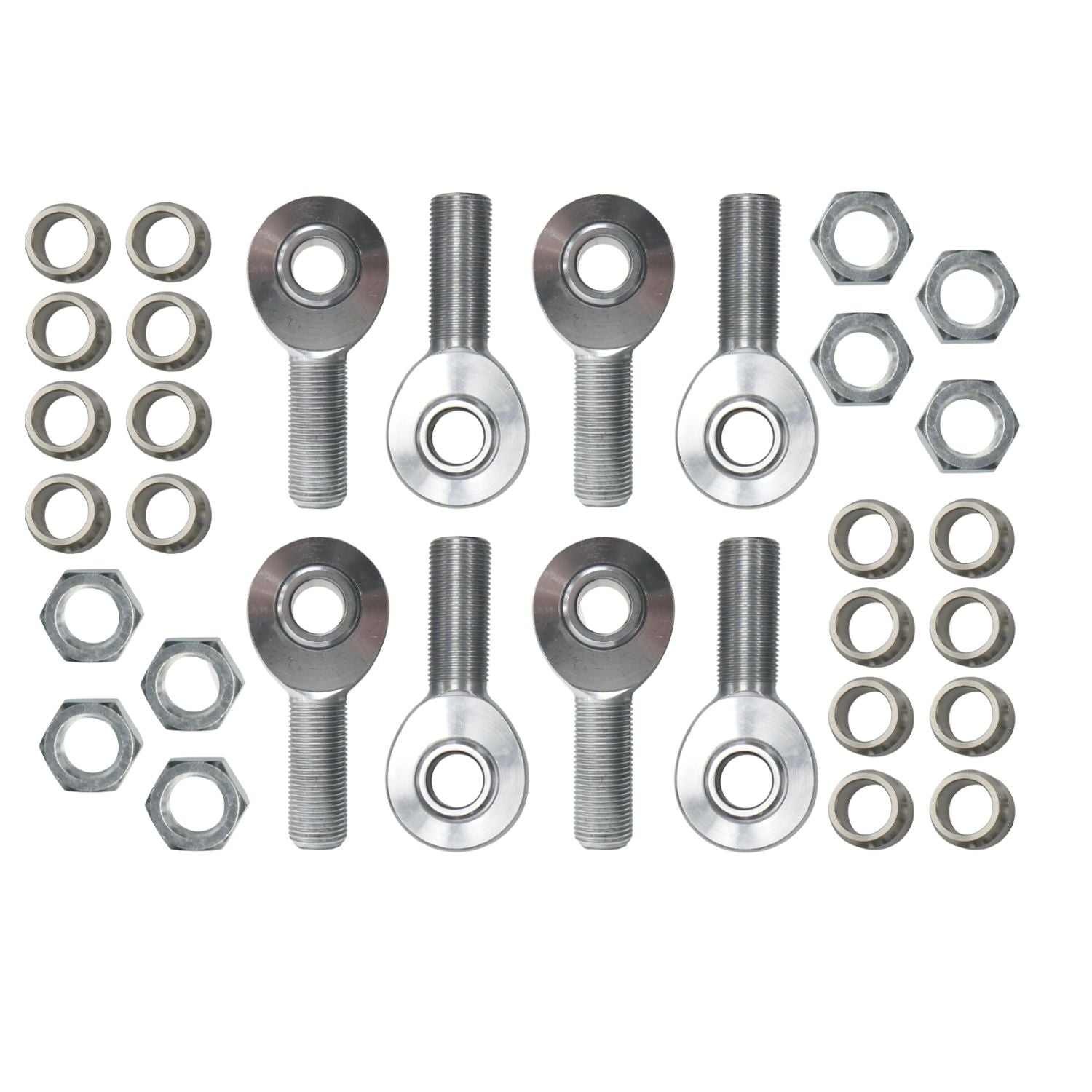

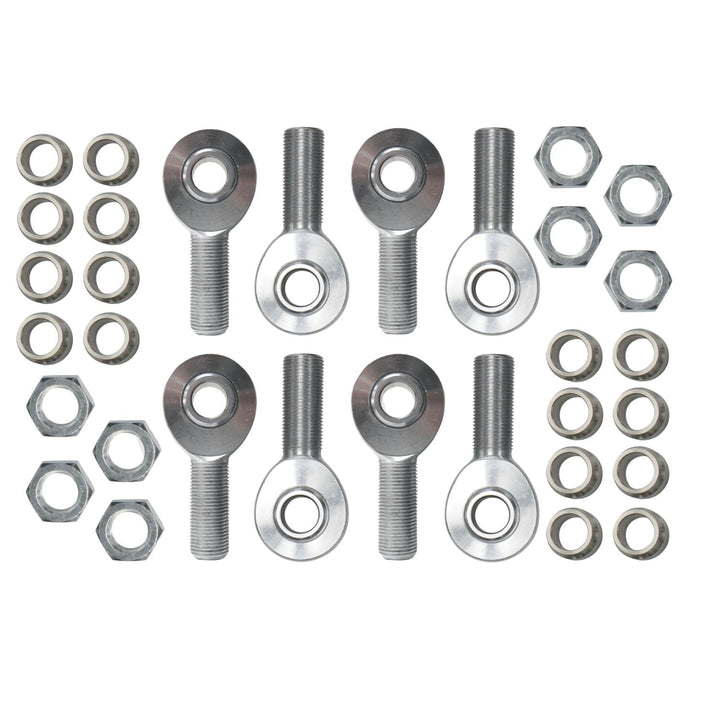

Kit Includes:

  • (8) 7/8"-14 Thread Rod Ends w/ 3/4" Bore
  • 4 Left-Hand Thread
  • 4 Right-Hand Thread
  • (8) Matching Jam Nuts
  • (16) 3/4" Stainless Steel Heim Joint Spacers

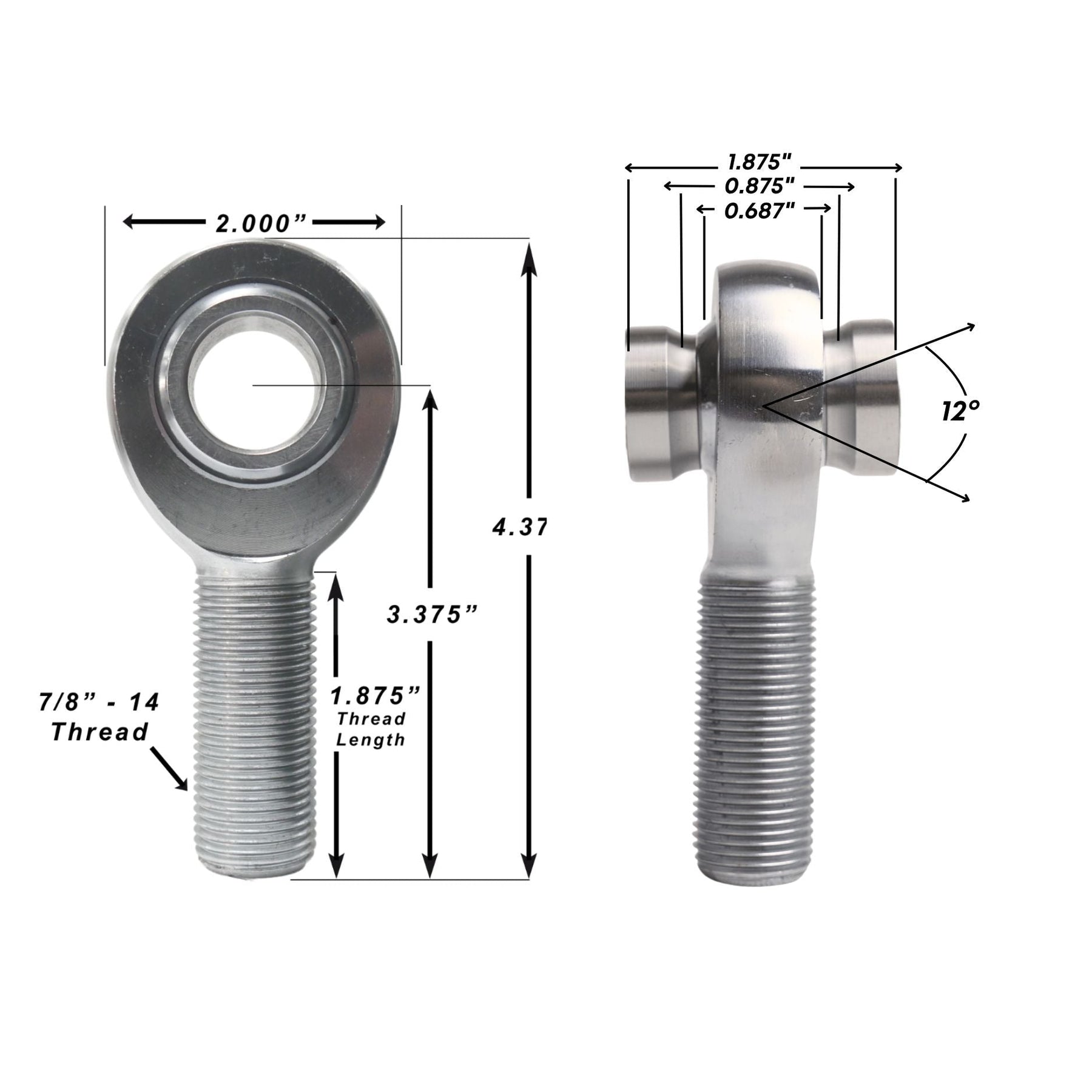

Specifications
  • Thread Size: 7/8"-14
  • Bore Size: 3/4"
  • Material: Chromoly Steel
  • Heim Joint Spacers: Stainless Steel

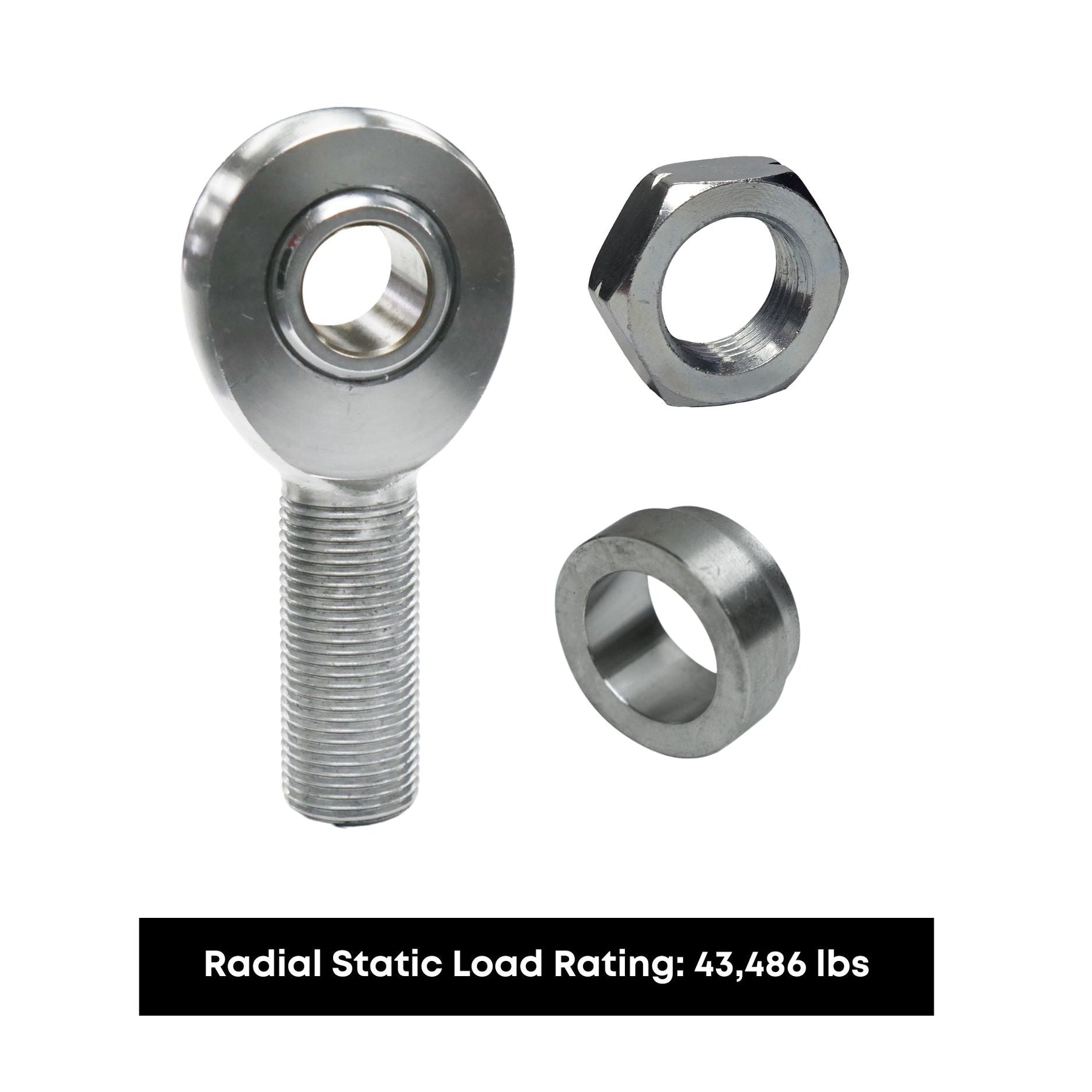

  • Radial Static Load Rating: 43,486 lbs
  • Thread Direction: Left & Right Hand Included
Fitment
  • Universal four-link suspension systems
  • Front or rear applications
  • Rock crawlers, buggies, trail rigs, race vehicles, and custom tube chassis builds

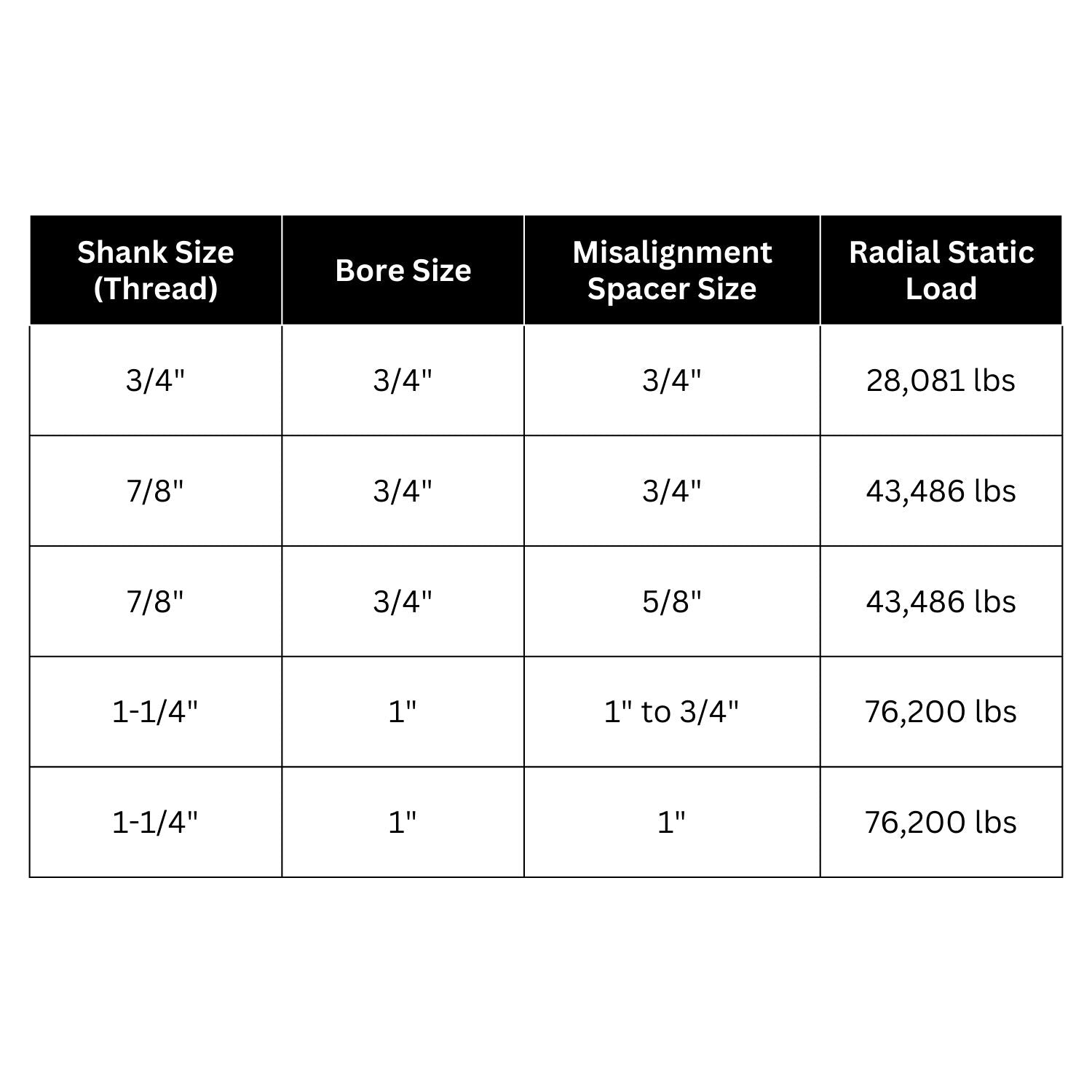

Shank Size (Thread) Bore Size Heim Joint Spacer Size Radial Static Load
3/4" 3/4" 3/4" 28,081 lbs
7/8" 3/4" 3/4" 43,486 lbs
7/8" 3/4" 5/8" 43,486 lbs
1-1/4" 1" 1" to 3/4" 76,200 lbs
1-1/4" 1" 1" 76,200 lbs
Tech Insight

Moving to a 7/8" shank rod end significantly increases load capacity and resistance to deformation, making this kit ideal for heavier vehicles, high-horsepower applications, and aggressive suspension geometry. Paired with stainless heim joint spacers, this setup delivers smooth articulation while maintaining joint strength where it matters most.

Designed to pair perfectly with 7075 aluminum suspension links or heavy-wall steel links in extreme-use builds.
