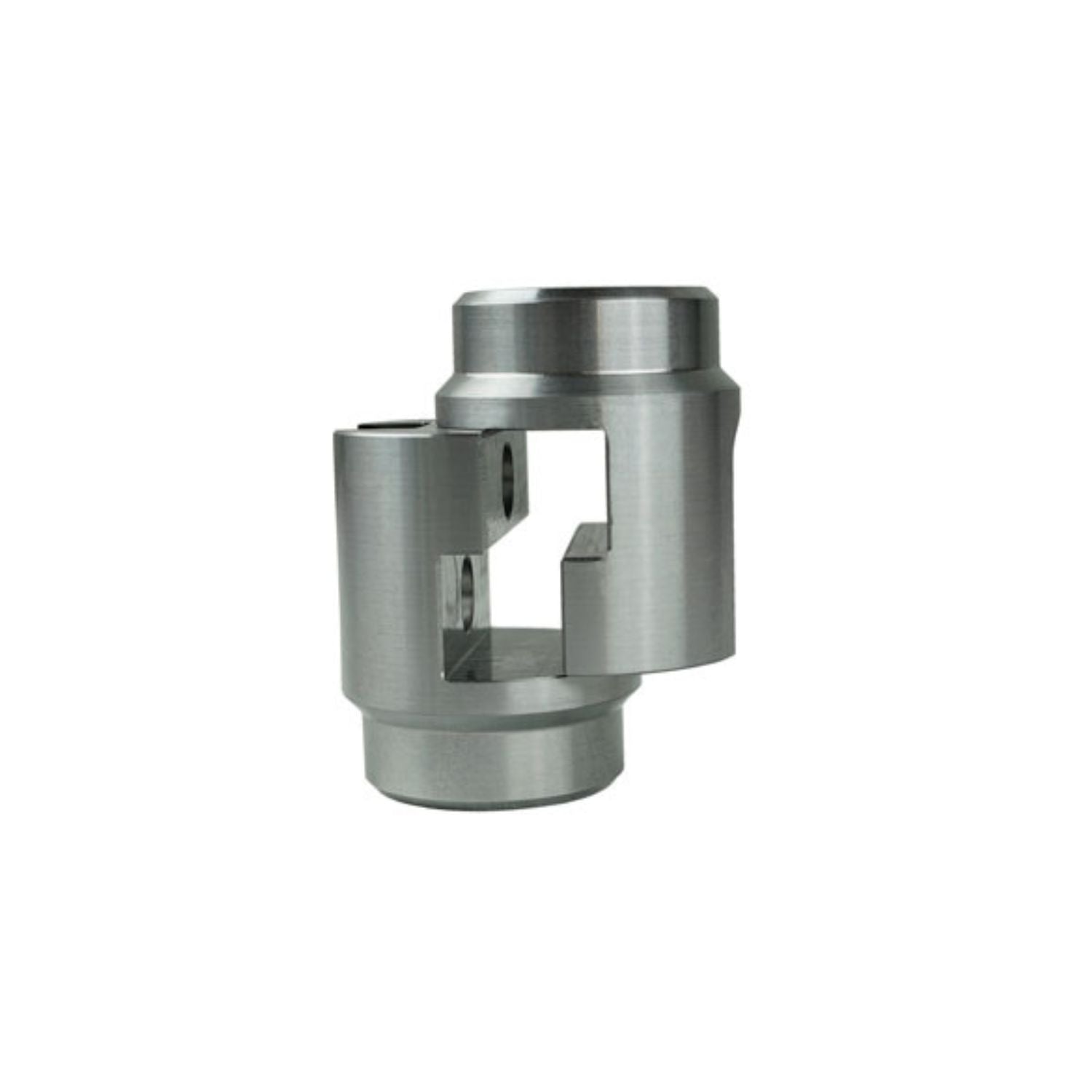

Chromoly interlocking tube disconnect on a white background

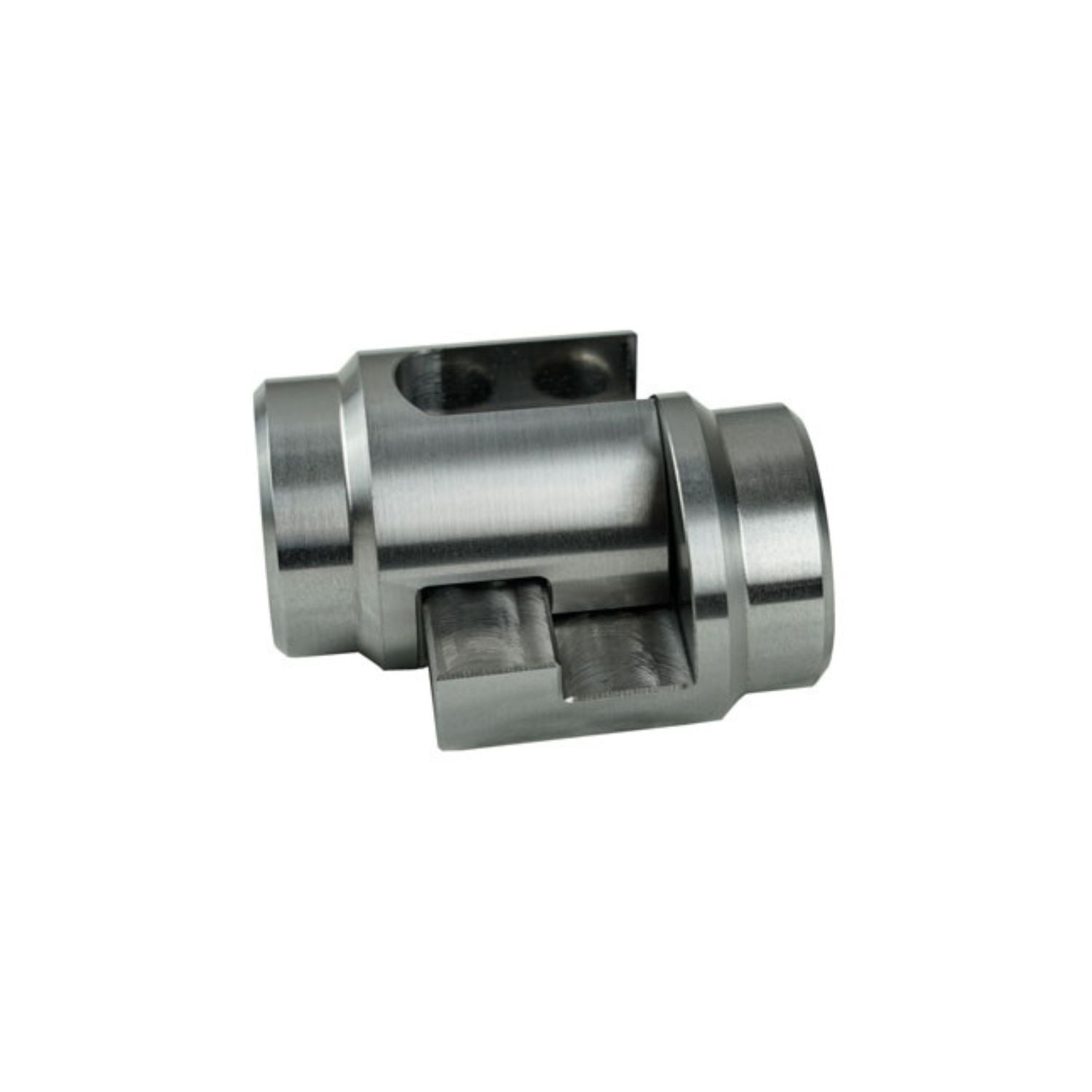

1.50 removable chassis tube clamp with bolts on a white background

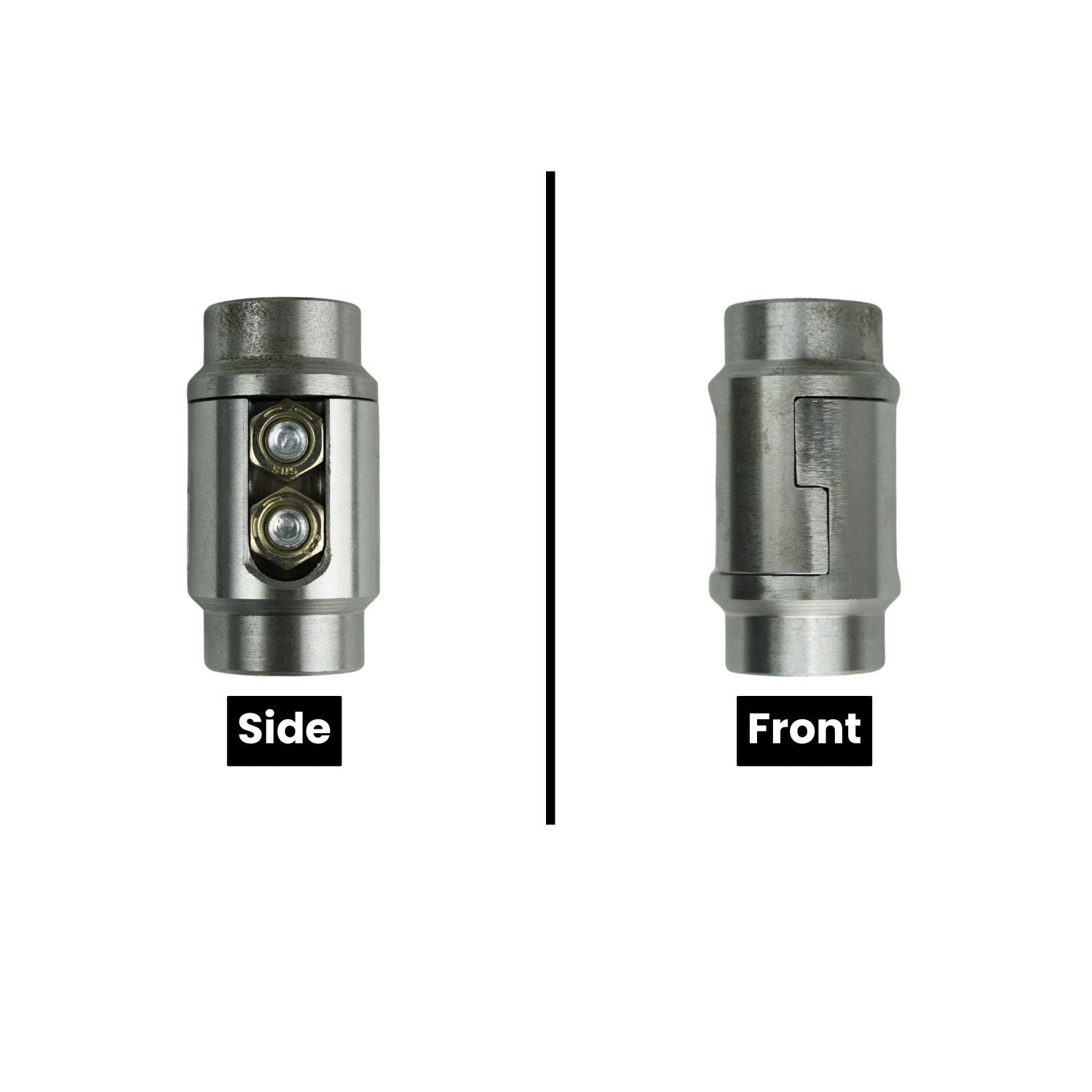

4140 chromoly tube connector shown from side and front views on a white background

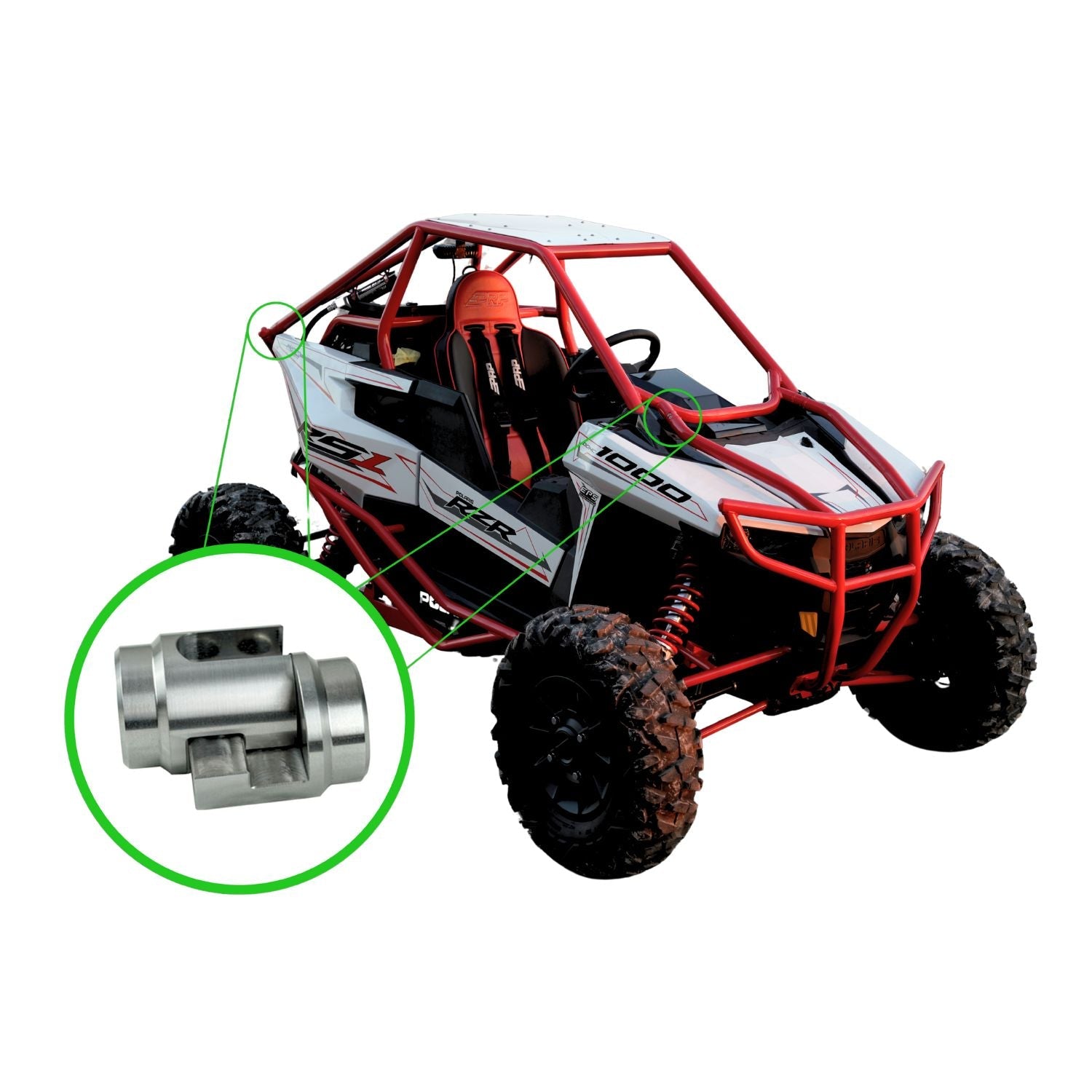

Red and white off-road buggy with a close-up of a 1.5 tube disconnect in use on a white background

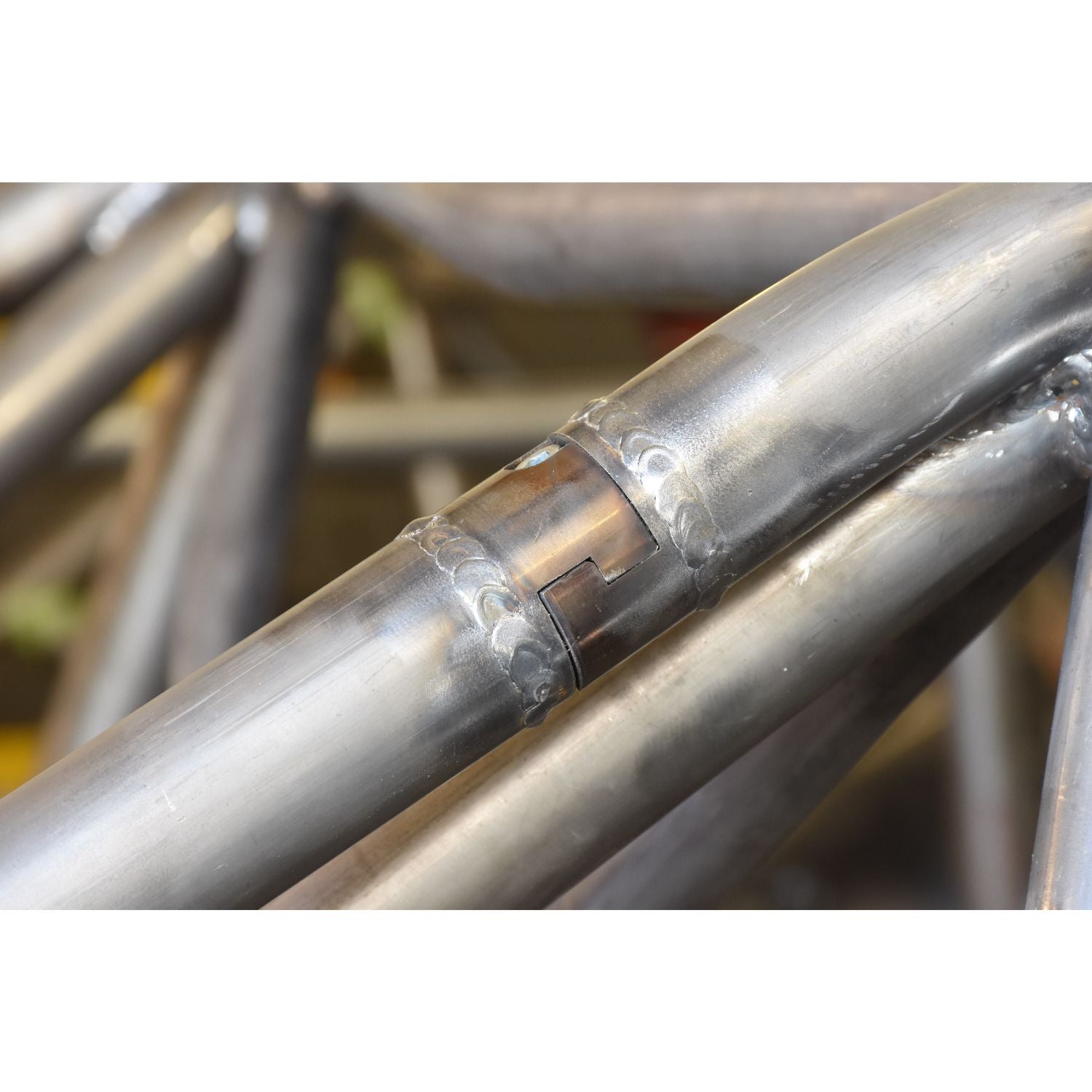

Close-up of a chassis with a removable 1.5 tube clamp welded on the frame on a blurred background
Chromoly Interlocking Tube Disconnect – 1.5" OD x .095 Wall
1.5 chromoly tube clamp on a white background
Chromoly interlocking tube disconnect on a white background
1.50 removable chassis tube clamp with bolts on a white background
4140 chromoly tube connector shown from side and front views on a white background
Red and white off-road buggy with a close-up of a 1.5 tube disconnect in use on a white background
Close-up of a chassis with a removable 1.5 tube clamp welded on the frame on a blurred background
Chromoly Interlocking Tube Disconnect – 1.5" OD x .095 Wall

Chromoly Interlocking Tube Disconnect – 1.5" OD x .095 Wall

WA01048

$34.99
/
Shipping calculated at checkout.

If you need a support tube across your buggy, but also need it to be removable for engine, transmission, seat, or service access, these Chromoly Interlocking Tube Disconnect are the perfect solution.

Machined from 100% 4140 Chromoly, these clamps fit extremely tight with zero slop, providing a strong, precise, and clean disconnect point anywhere in your chassis. The interlocking design ensures strength and alignment, while the countersunk Allen bolts keep everything compact and secure.

Ideal for engine cages, removable crossbars, roof structures, and service friendly panels in high performance off-road builds.

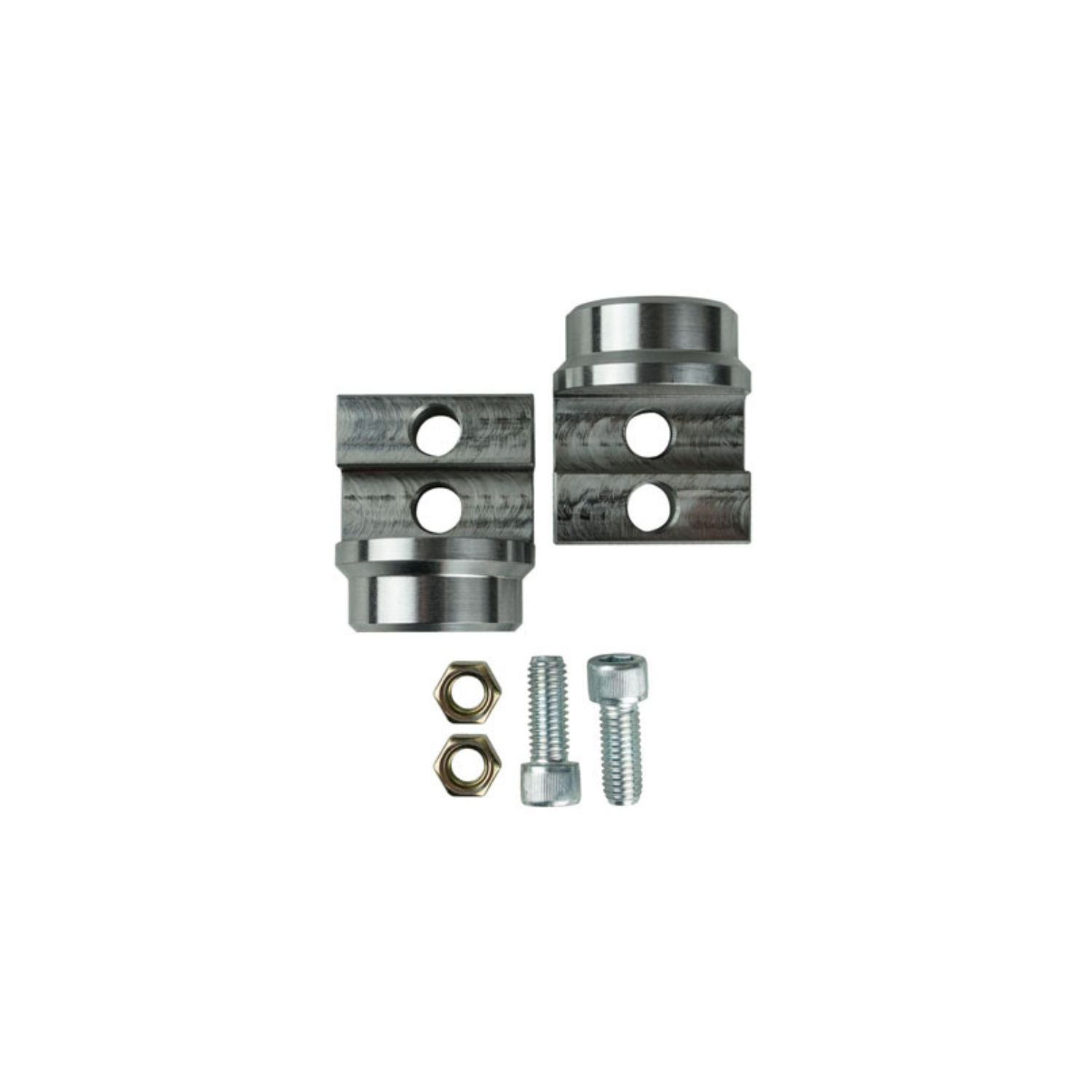

Includes:

  • (1) Chromoly Interlocking Tube Clamp
  • (2) Countersunk Allen Head Bolts
Specifications
  • Tube Size: Fits 1.50 OD x .095 wall tubing
  • Material: 4140 Chromoly Steel
  • Design: Precision interlocking clamp
  • Fasteners: Countersunk Allen head bolts (included)
  • Fitment: Tight, zero-slop interface
  • Condition: Ready to weld to tubing ends
Fitment

Perfect for removable sections in:

  • Engine cages
  • Removable seat bars
  • Transmission cross supports
  • Rear chassis structures
  • Spare tire carriers
  • Cooling system access bars
  • Any place where tube removal is needed for service or accessibility
Tech Insight

Interlocking tube clamps allow builders to create rigid removable tubes while maintaining structural strength. Unlike slip-fit designs or simple bolted tabs, these clamps precisely interlock to keep alignment true under load. The 4140 Chromoly construction ensures durability in high stress areas, making them ideal for competition builds, Ultra4 rigs, rock bouncers, and trail buggies.

Feature / Spec 1.5 Tube Disconnect 1.75 Tube Disconnect
Tube Size Compatibility 1.50 OD x .095 wall 1.75 OD x .095 wall
Material 4140 Chromoly Steel 4140 Chromoly Steel
Fit Precision Zero-slop interlocking fit Zero-slop interlocking fit
Fasteners Countersunk Allen bolts Countersunk Allen bolts
Best Use Engine cages, removable small-diameter tubes Main chassis tubes, high-load removable structures
Overall Strength Strong Stronger (larger tube footprint)
Ideal Applications Interior bracing, seat bars, small hoops Engine cages, upper shock bars, rear chassis sections
Part Number WA01048 WA01046
Includes 1 clamp + hardware 1 clamp + hardware
Made in USA Yes Yes
