Chromoly Rod Ends - 7/8" Hole with 7/8"-14 Shank

XMR14

$19.70
/
Shipping calculated at checkout.

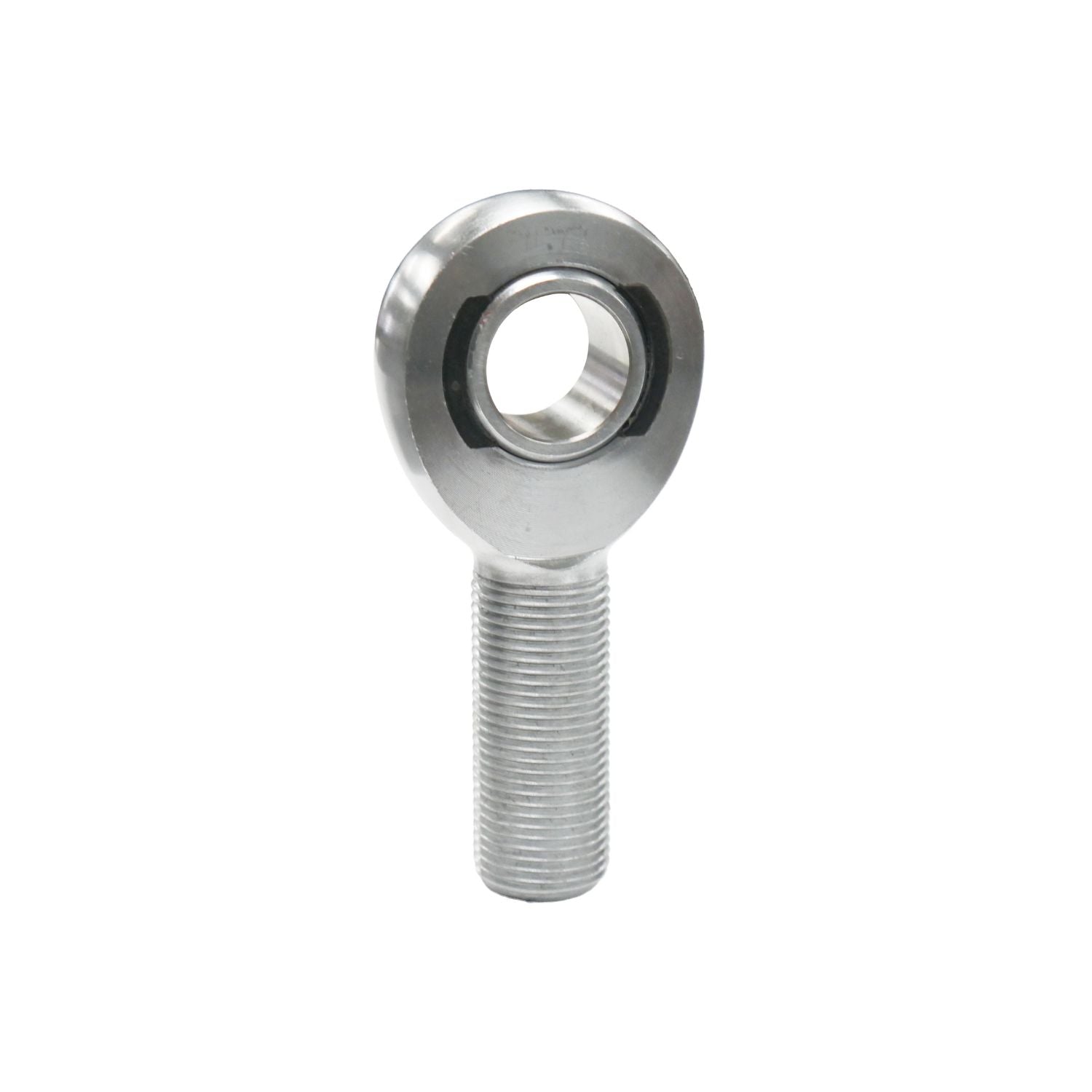

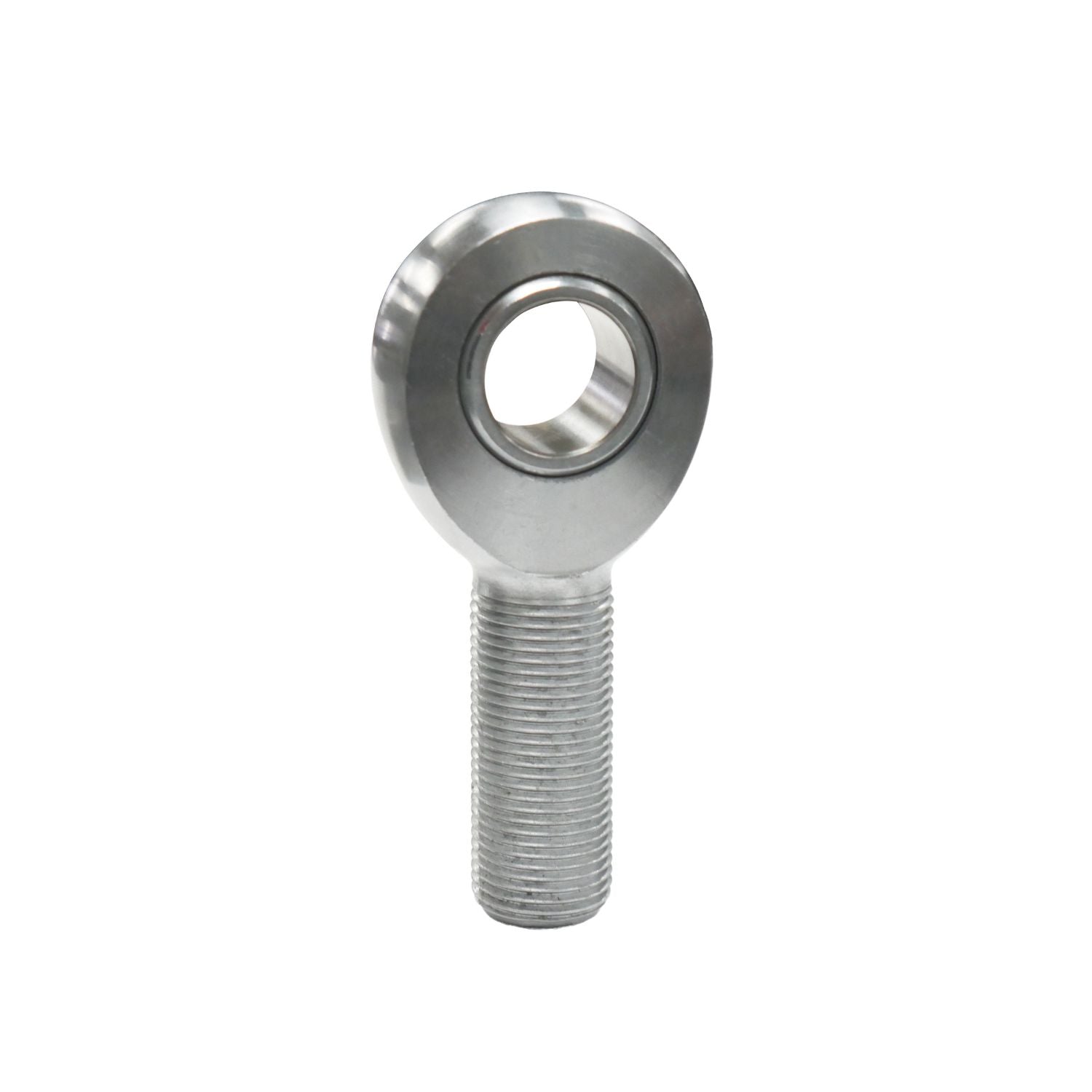

For the ultimate in performance rod ends, look no further than these Chromoly Steel Series male rod ends. Built for strength, durability, and long service life, these heavy duty rod ends are commonly used in four-link and ladder bar applications where reliability under load is critical.

These rod ends feature a self-sealing, self-lubricating Nylon/PTFE injection molded race that keeps dirt and debris out while delivering smooth, consistent articulation. This design reduces wear and maintenance compared to traditional metal-on-metal rod ends, making them ideal for demanding off-road and performance environments.

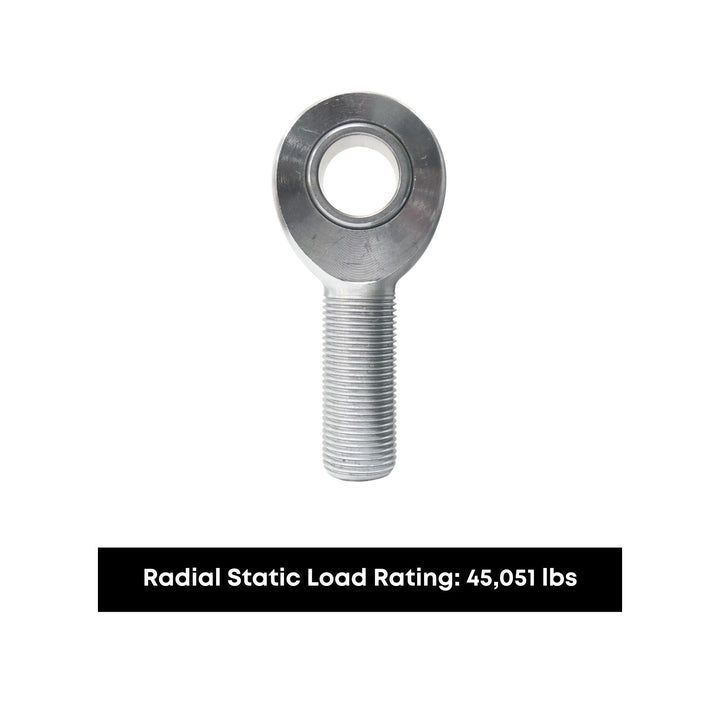

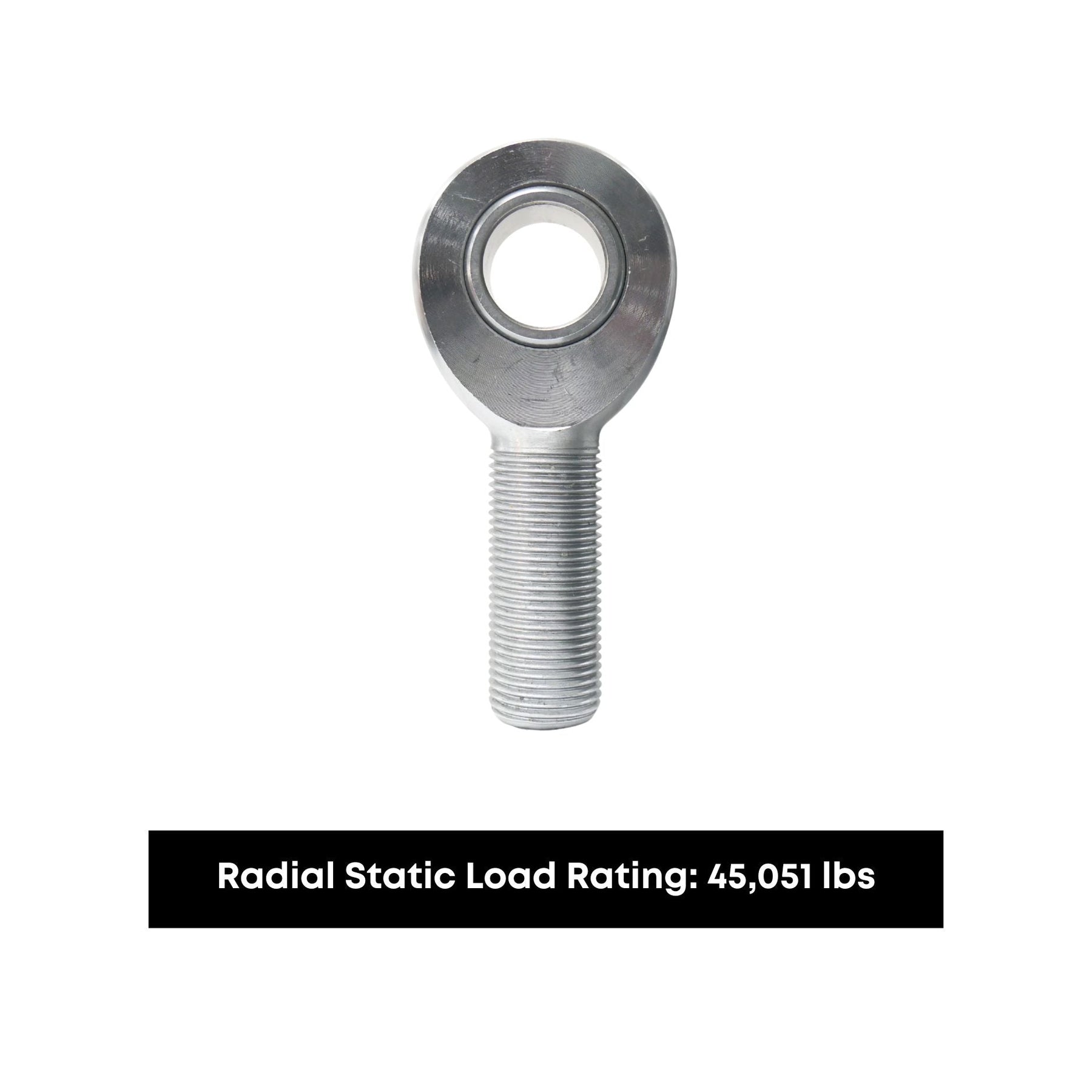

Radial Static Load Rating: 45,051 lbs

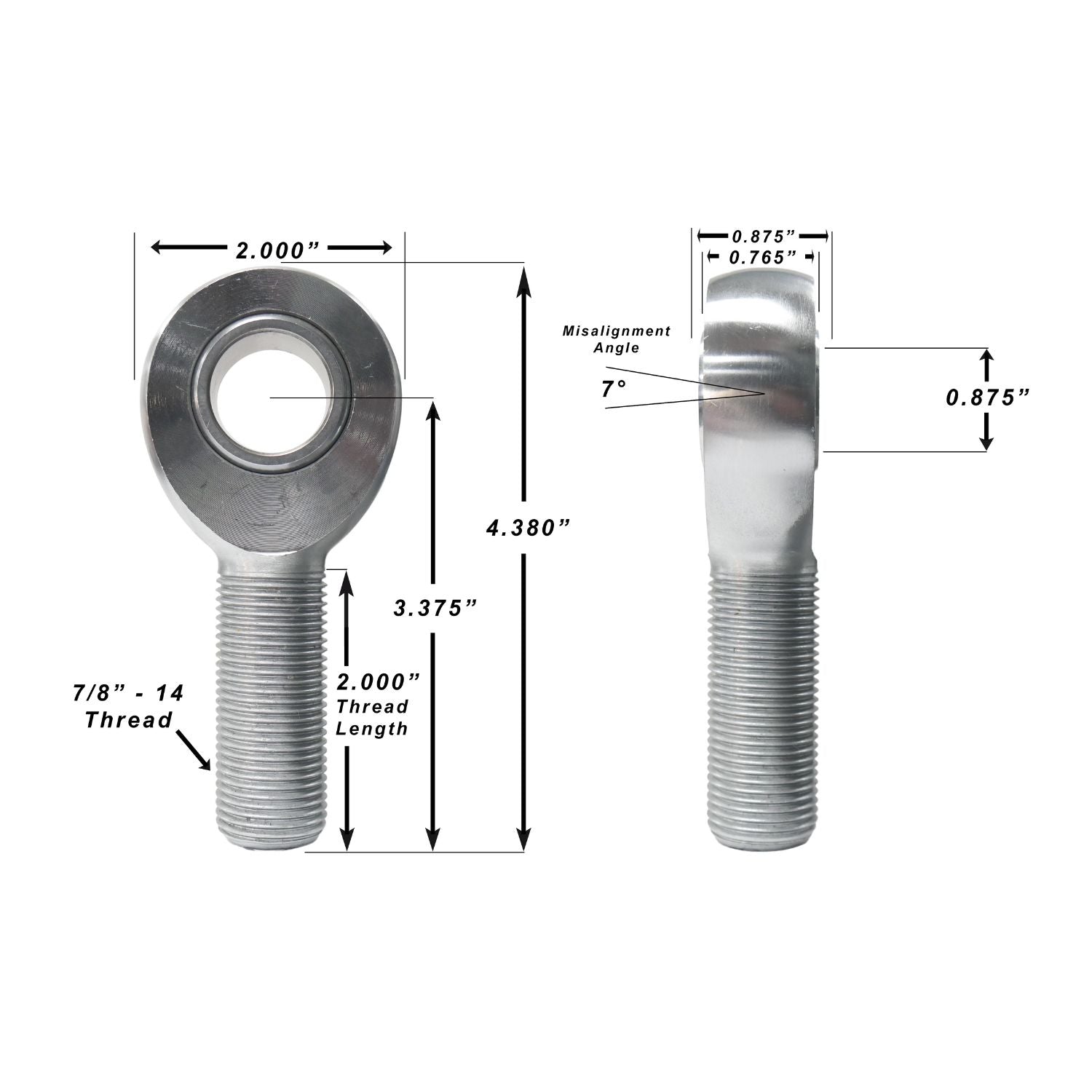

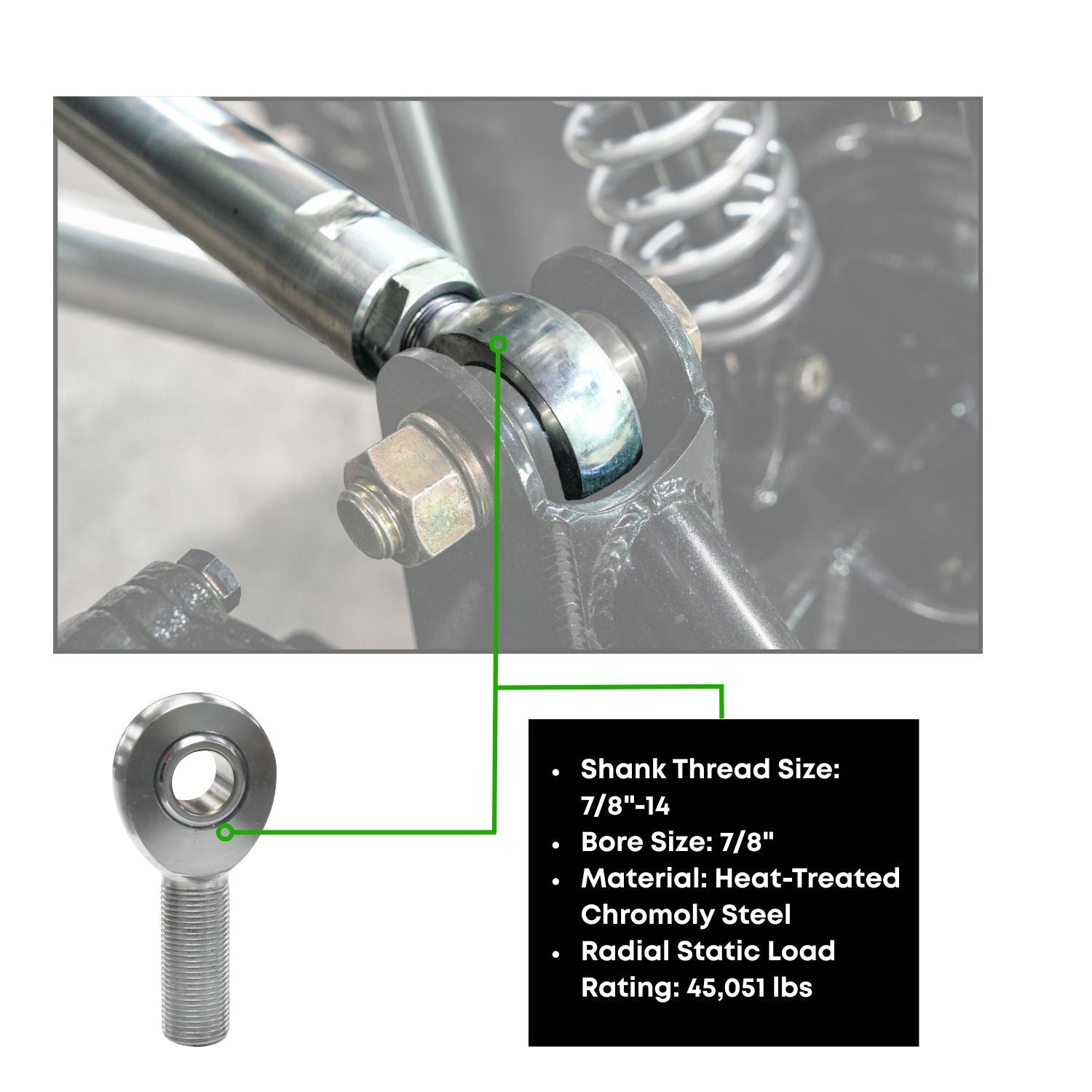

Specifications
  • Shank Thread Size: 7/8"-14
  • Bore Size: 7/8"
  • Body Material: Chromoly Steel (Heat Treated)
  • Ball Material: 52100 Bearing Steel (Heat Treated)
  • Ball Finish: Hard Chrome Plated, Precision Ground
  • Race Material: Nylon/PTFE (Self-Lubricating & Self-Sealing)
  • Corrosion Resistance: Protective Coating
  • Radial Static Load Rating: 45,051 lbs

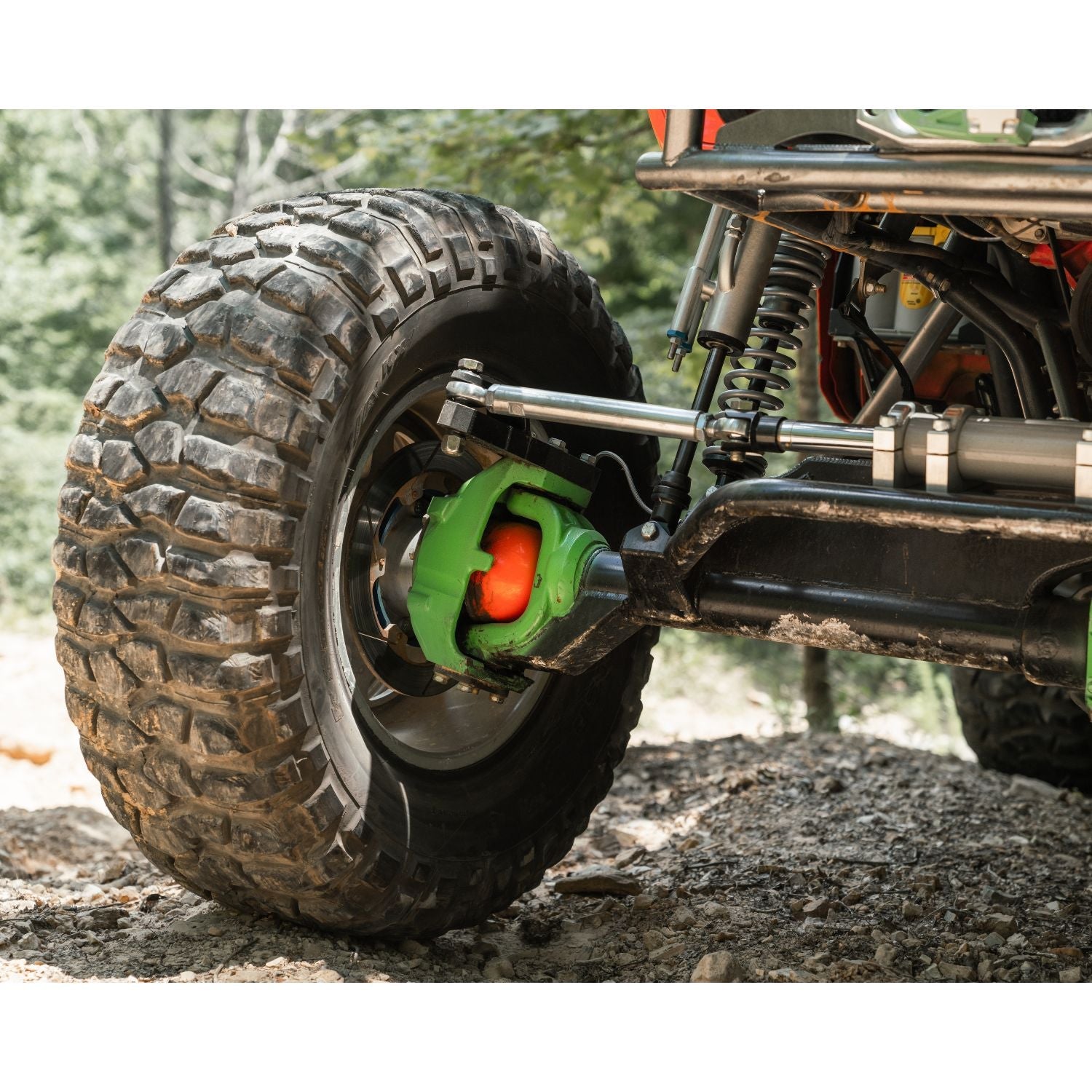

Fitment
  • Four-link suspension systems
  • Ladder bars
  • Custom suspension and chassis fabrication
  • Off-road, performance, and race applications
Tech Insight

Running a full 7/8 bore with a 7/8-14 shank provides excellent strength and shear capacity while keeping packaging straightforward for brackets designed around 7/8 hardware. These rod ends are engineered with metal-to-metal support to withstand heavy shock loads, and the increased cross-sectional thickness improves tensile strength in high abuse suspension applications.

The sealed Nylon/PTFE race keeps articulation smooth and helps extend service life in harsh environments where dirt, water, and debris are unavoidable.
