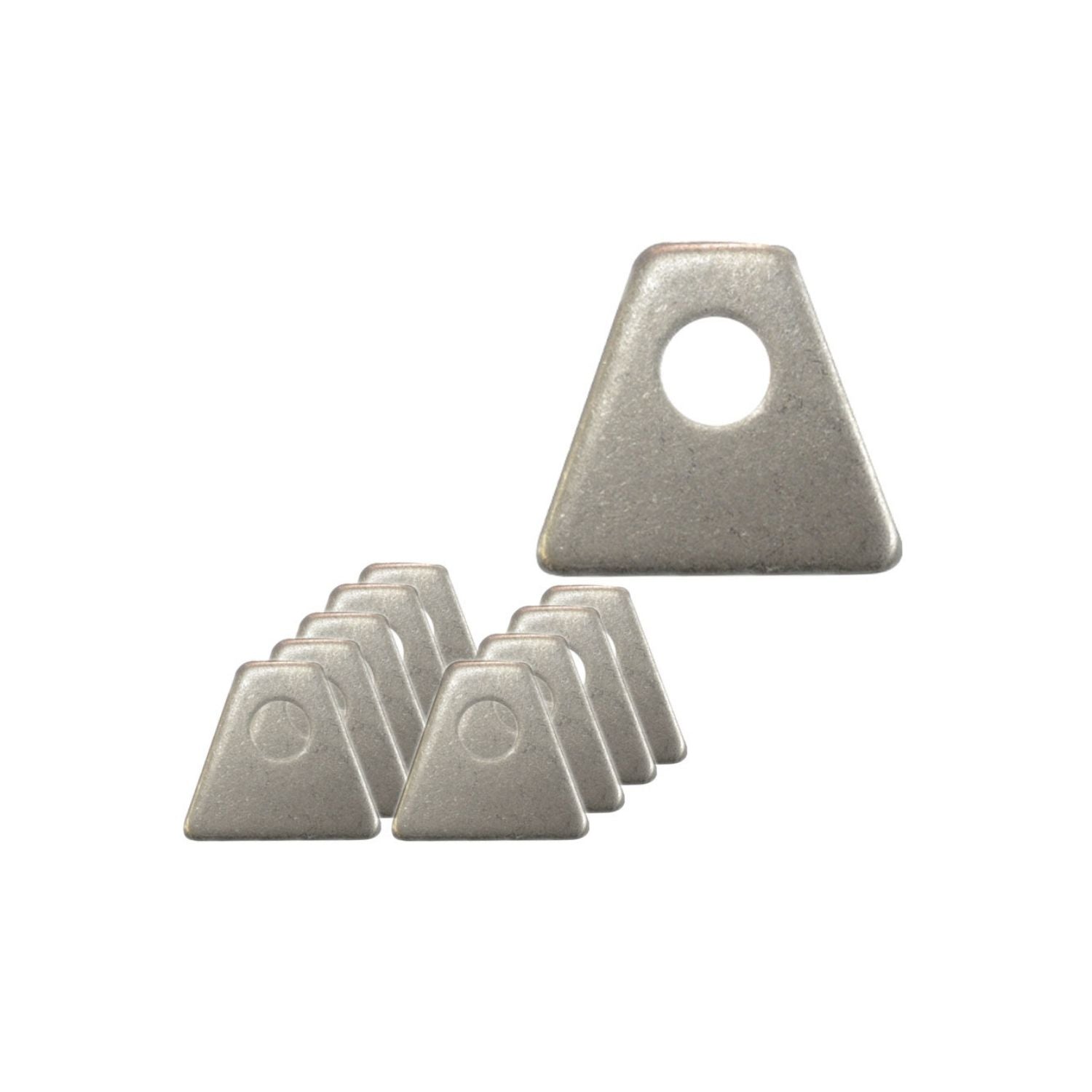

Set of weld on flat panel tabs on a white background

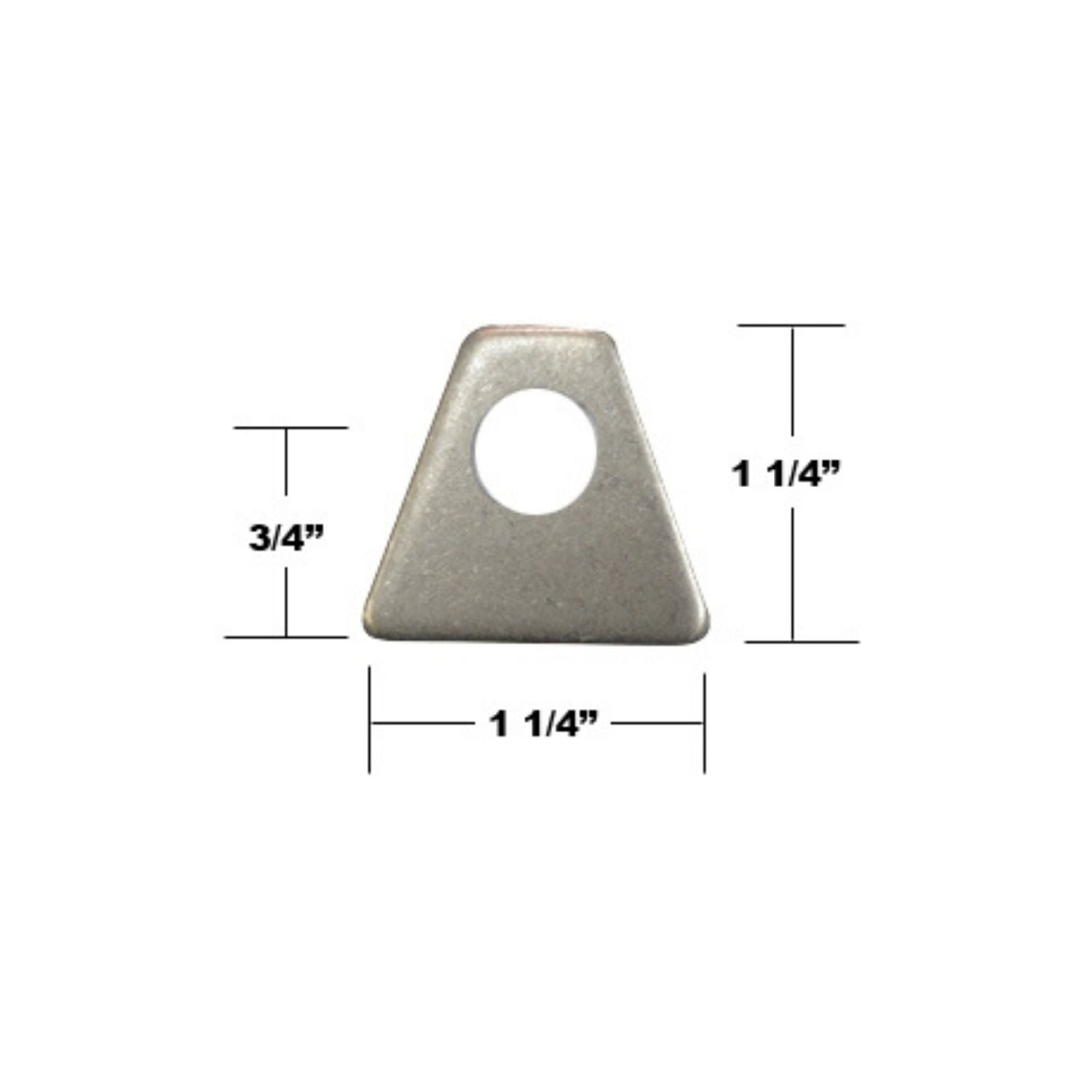

laser cut flat mounting tabs with dimensions labeled on a white background

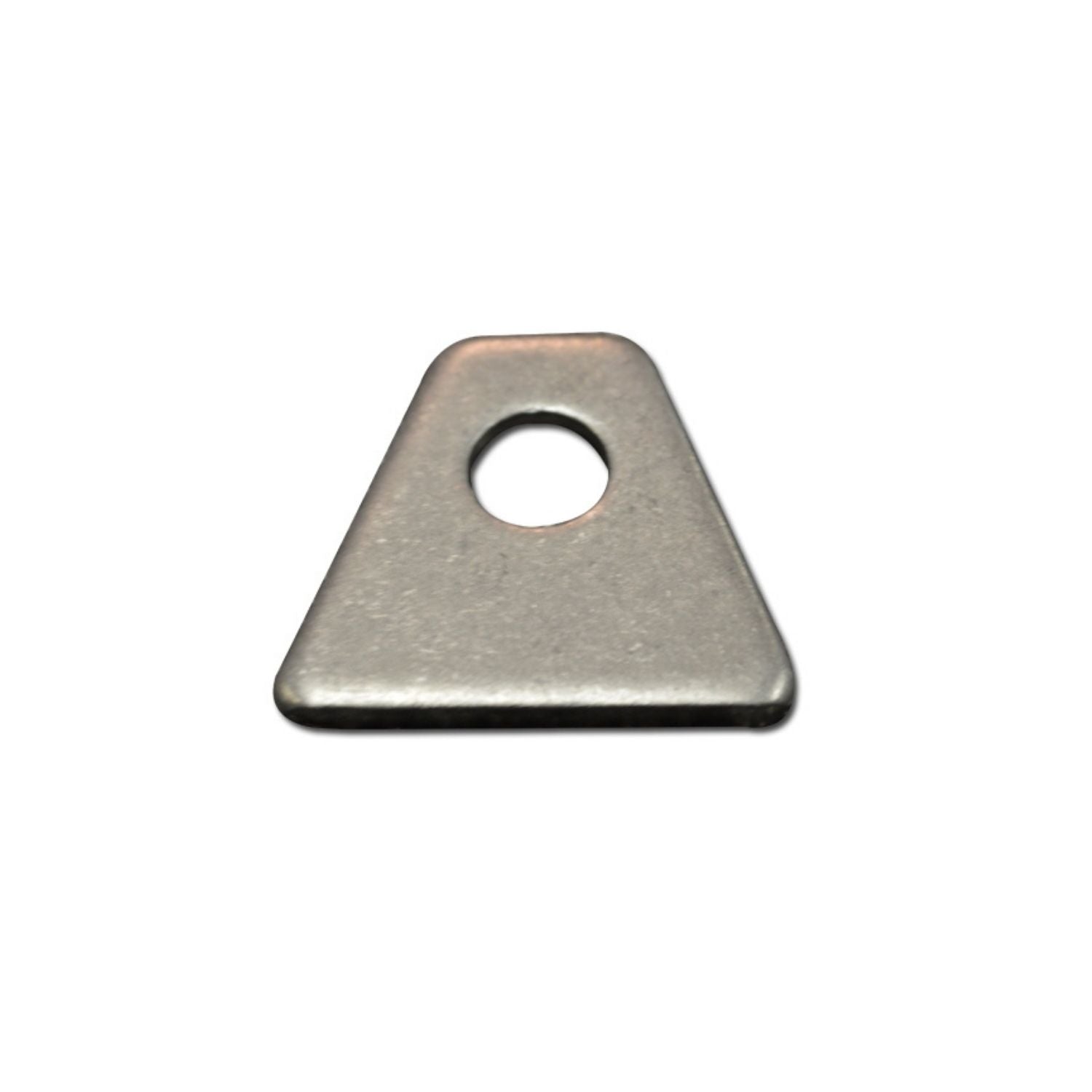

bolt on flat panel tab with a 3/8" hole on a white background
Set of weld on flat panel tabs on a white background
laser cut flat mounting tabs with dimensions labeled on a white background
bolt on flat panel tab with a 3/8" hole on a white background

Flat Panel Tabs (Set of 10)

WF03021-10

$10.90
/
Shipping calculated at checkout.

These Flat Panel Tabs are designed for welding directly to your chassis, making it easy to mount commonly used body panels, roof skins, interior panels, and other flat components. These flat tabs sit flush against plate or tubing and use a 3/8" bolt hole for simple through-bolt mounting.

Laser cut from 1/8" steel, these tabs arrive fabrication ready and save builders time on cutting and shaping their own mounting points. Perfect for off-road builds, race chassis, and custom fabrication projects.

Includes:

  • (10) Flat Panel Tabs
Specifications
  • Material: 1/8" Steel
  • Hole Diameter: 3/8"
  • Style: Flat tab for body/roof panel mounting
  • Condition: Weld-ready
  • Quantity: 10 tabs per set
  • Nutserts:  Optional
Fitment

Ideal for mounting:

  • Flat body panels
  • Roof skins
  • Aluminum interior panels
  • Service or access covers
  • Any panel requiring flat mounting to the chassis
Tech Insight

Flat Panel Tabs are a must-have when you need flush fit panels without the standoff created by winged Trick Tabs. Their simple, flat profile allows easy welding to any flat surface. Pair them with rivnuts, nutserts, or traditional nuts/bolts depending on your panel access and maintenance needs.

Flat Panel Tabs Comparison

Feature / Spec Flat Panel Tabs Flat Panel Tabs with NutSerts
Material 1/8" Steel 1/8" Steel
Hole Type 3/8" bolt hole Pre-installed 1/4-20 NutSert
Threaded Insert No Yes – 1/4-20 NutSert
Mounting Method Bolt + nut required Bolt threads directly into tab
Overall Length 1.50 (same style) 1.50 (same style)
Best Use Simple panel mounting Panels removed frequently
Installation Speed Standard Fast – single-tool install
Profile   Flat, low profile    Flat, low profile
Ideal For Roof skins, interior panels, static panels Service panels, roof skins, interior panels
Made in USA Yes Yes
Quantity Per Set 10 tabs 10 tabs
