WA121063

$20.99
/
Shipping calculated at checkout.

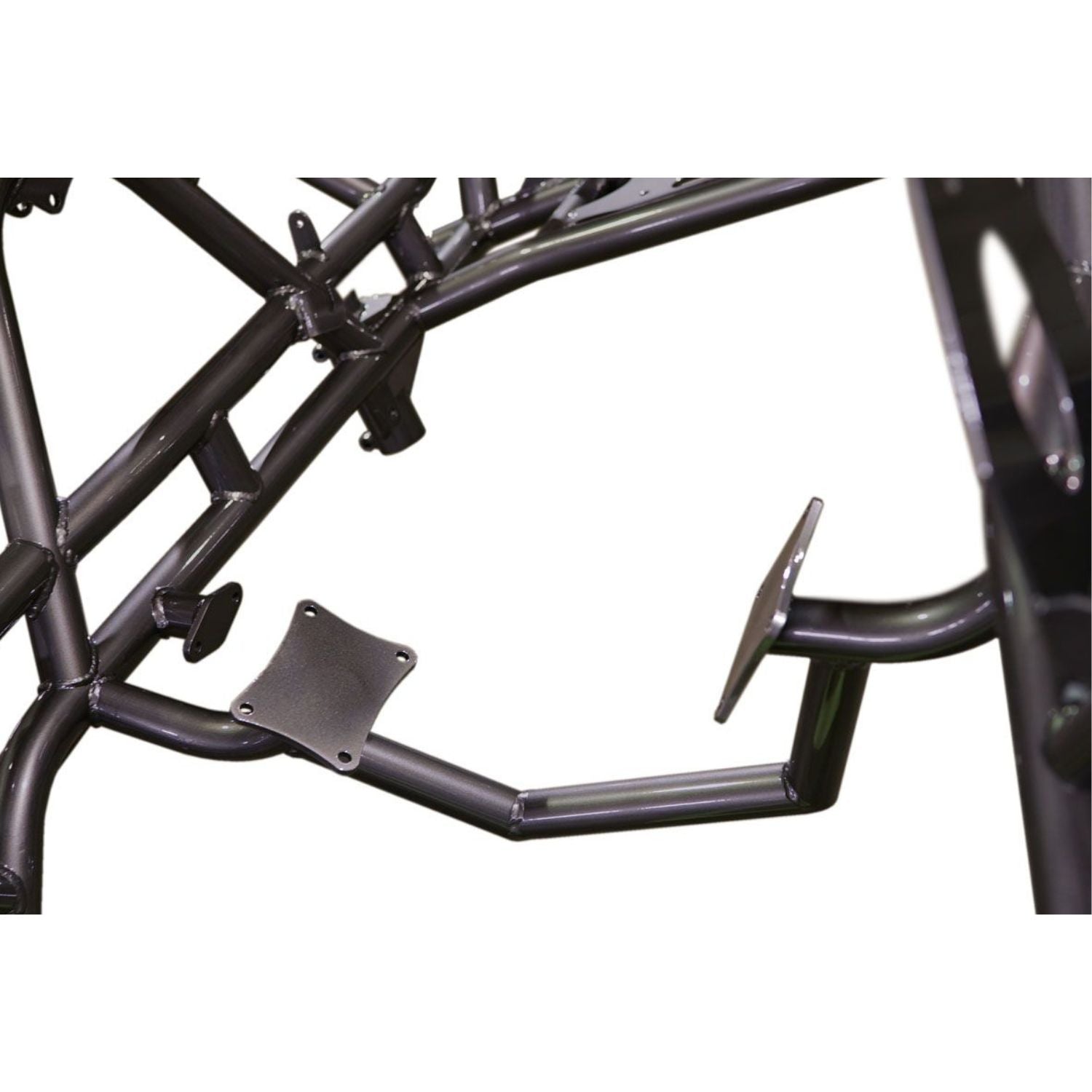

These Chevy LS Swap Engine Mount Plates line up perfectly with the factory mounting pattern on all Chevy LS-series engines. Designed for fabricators building custom chassis, engine swaps, or off-road vehicles, these plates allow you to weld DOM tubing or custom brackets directly to the engine mounts—giving you full control over engine placement, angle, and position.

Precision laser cut from 1/4" high-strength plate steel, these mounts provide consistent accuracy and a weld-ready surface. This is the same style of mount used in our own Wide Open Design rigs for race vehicles, rock bouncers, and custom LS-powered builds.

Includes:

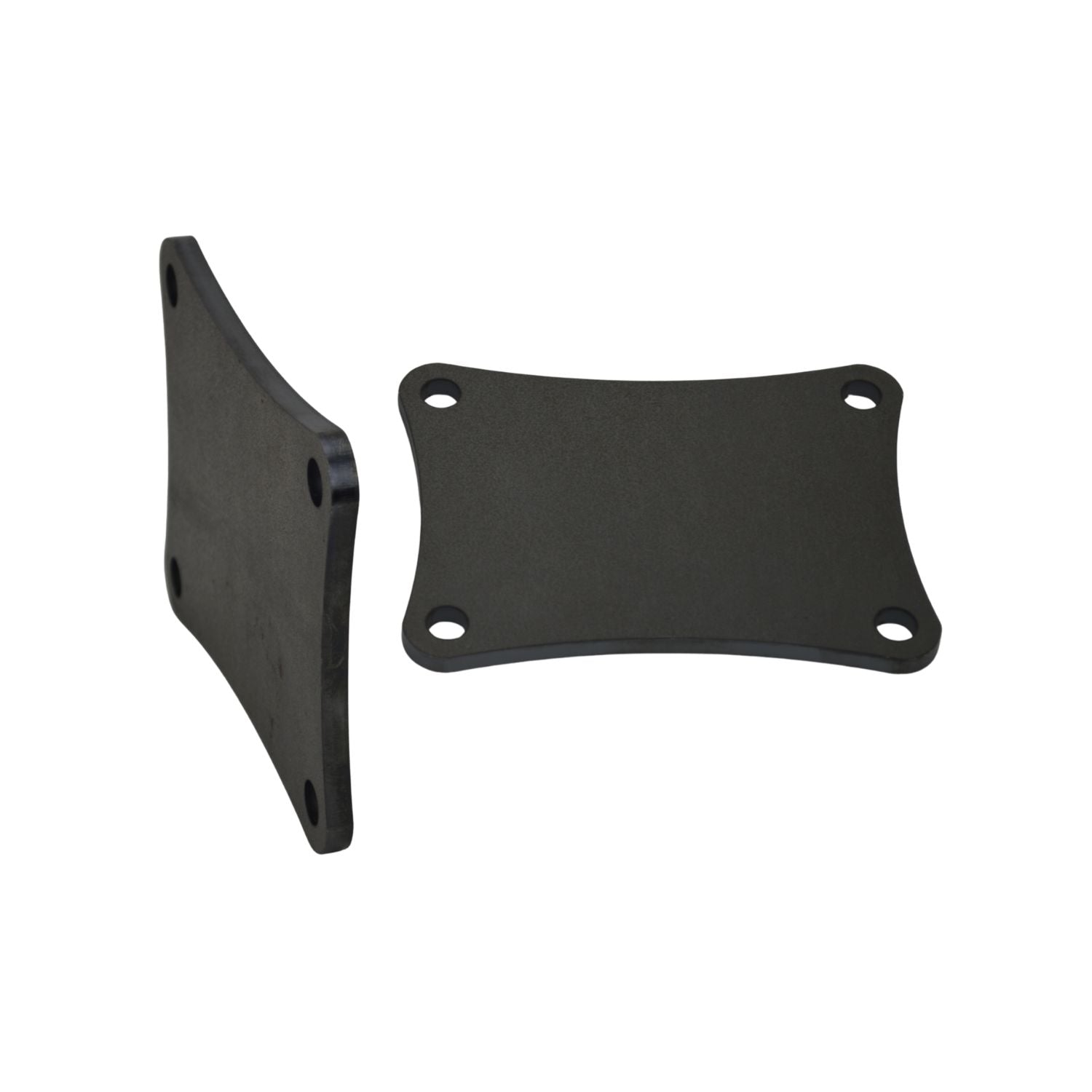

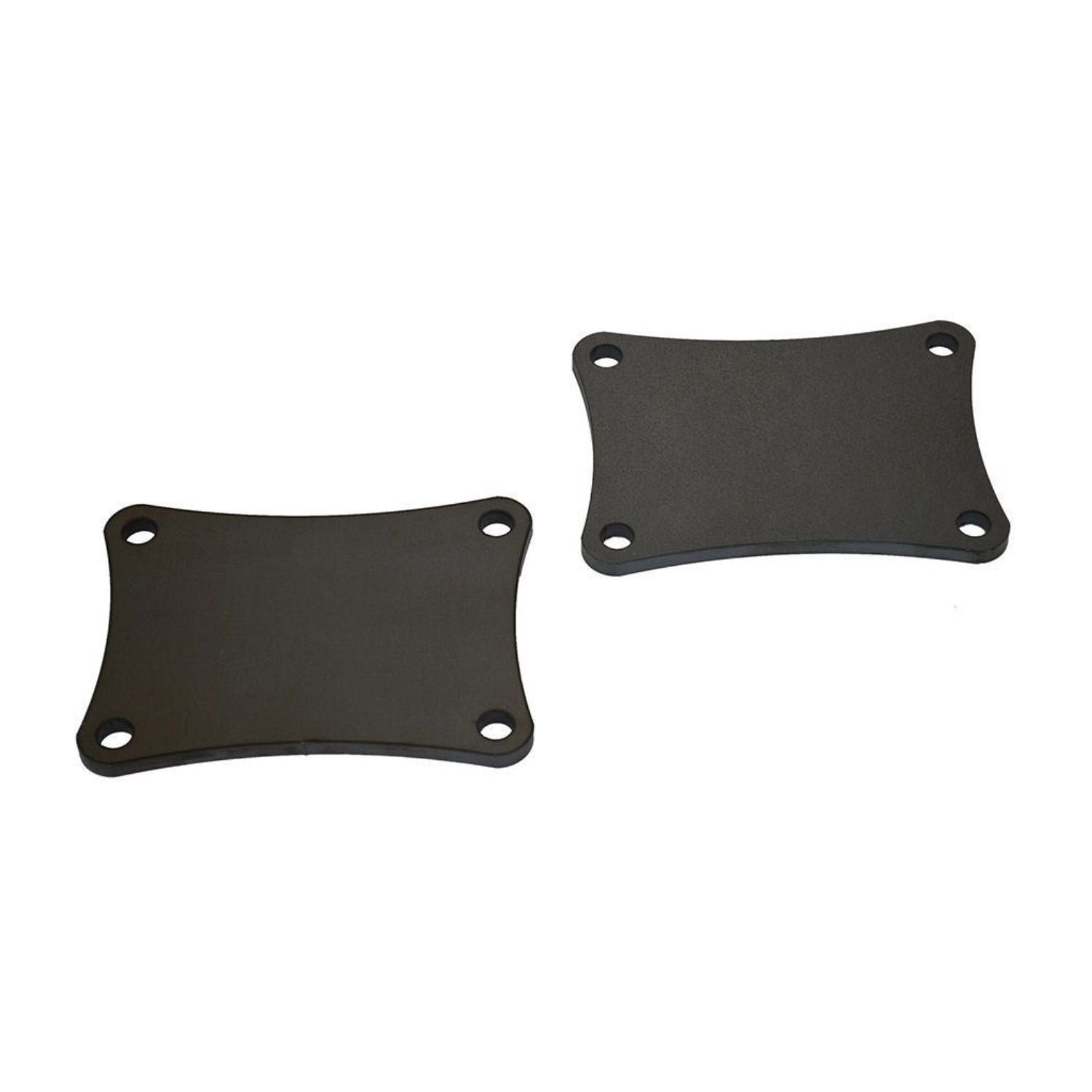

  • (2) LS Engine Mount Plates (Sold as a Pair)

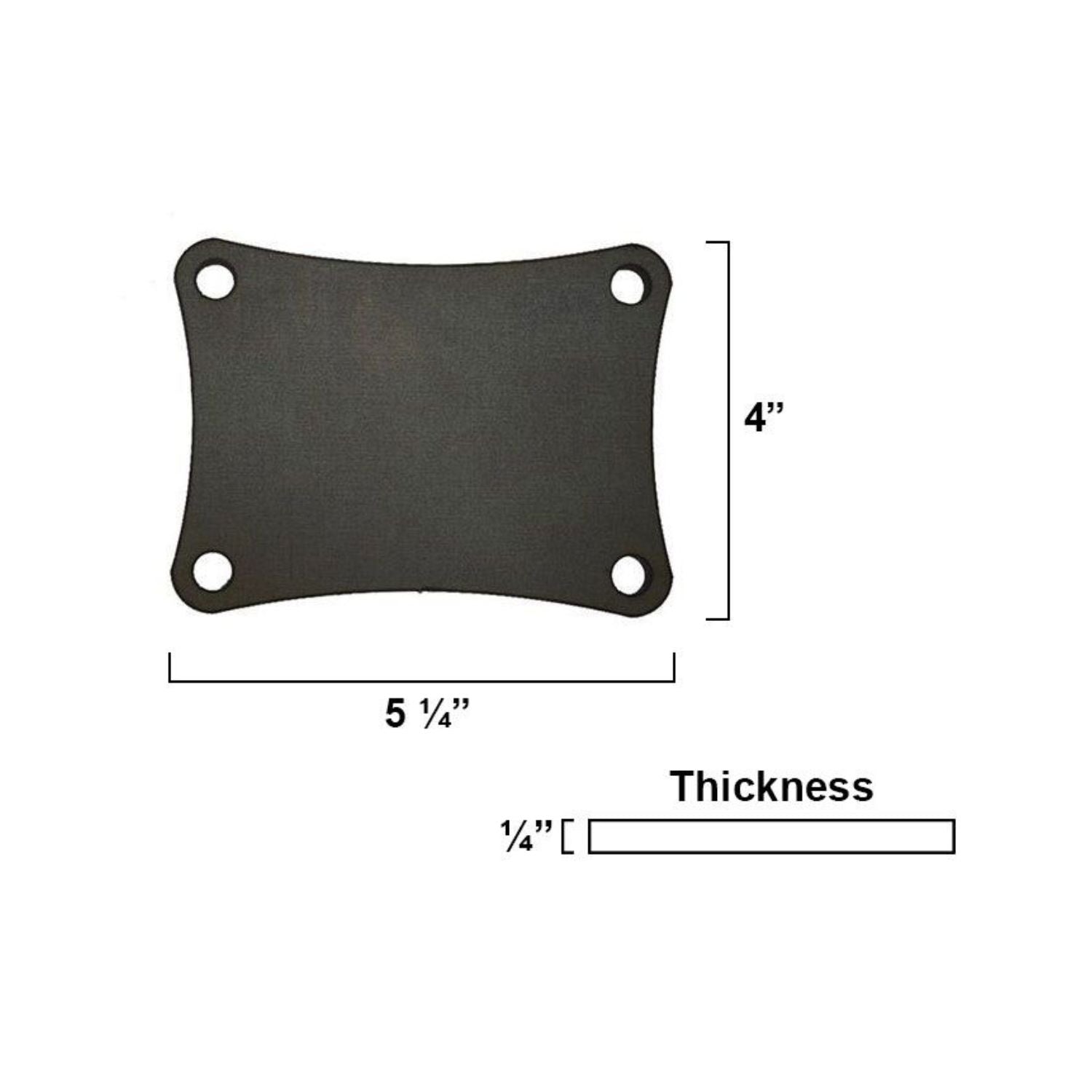

Specifications
  • Material: 1/4" High Strength Plate Steel
  • Overall Length: 5.25"
  • Overall Width: 4"
  • Hole Diameter: 3/8"
  • Cutting Method: Precision laser cut
  • Engine Compatibility: All Chevy LS-series engines
  • Condition: Weld-ready
  • Sold In: Pairs
  • Made in the USA
Fitment
  • Designed to fit all GM LS engines, including:
  • LS1, LS2, LS3
  • LQ4, LQ9
  • LS6, LS7
  • 5.3L, 6.0L, 6.2L, and similar LS-based variants
  • Allows you to:

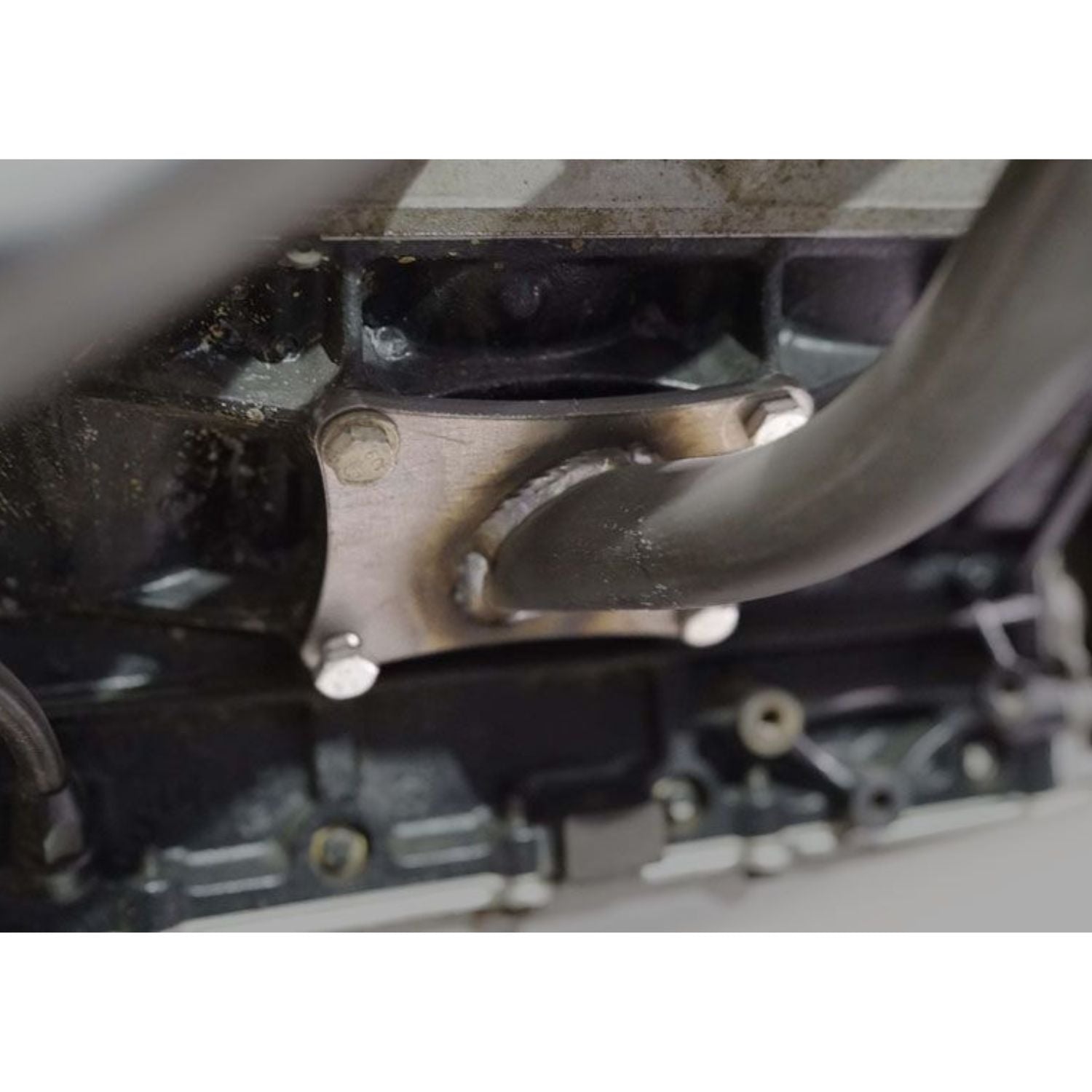

  • Weld DOM tubing directly to the plates
  • Position your LS engine exactly where you want it
  • Build custom motor mounts for any chassis layout
Tech Insight

Unlike bolt-on swap mounts, these universal LS plates give fabricators total control. By welding tubing or boxed plates to the mount, you can tailor engine height, fore/aft position, and angle to your drivetrain setup. Precision laser cutting ensures that bolt hole alignment is perfect every time, preventing stress on the block and ensuring clean installation.
