These Large Front Truss Link Tabs make it easy to mount your suspension links by creating a strong, repeatable mounting point on your front truss. Designed to work with small front truss tabs, you can fine tune your link angle and geometry for your specific build.
Each tab is precision laser cut from 1/4" high strength plate steel, so you get clean edges, consistent shape, and a weld-ready surface right out of the box. No more wasting time trying to hand cut tabs, just position, tack, and weld. Proudly made in the USA.
Includes:
(1) Large Front Truss Link Tab (Note: 2 tabs needed to mount a single link arm.)

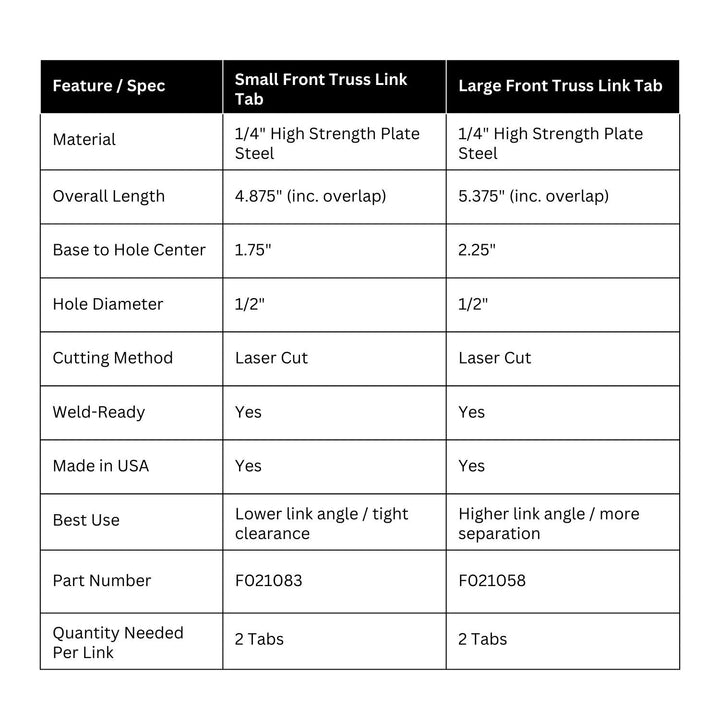

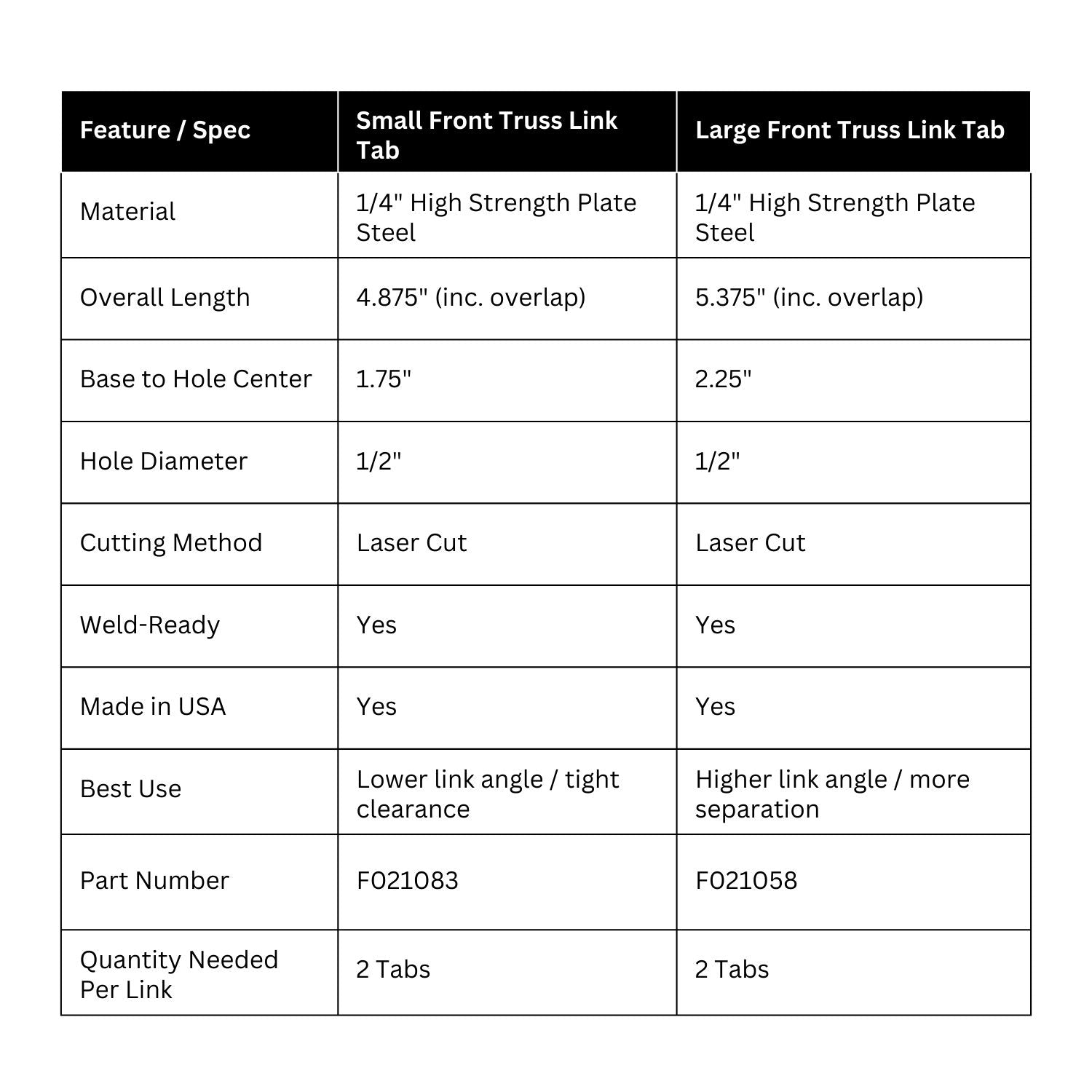

Specifications
Material: 1/4" High Strength Plate Steel

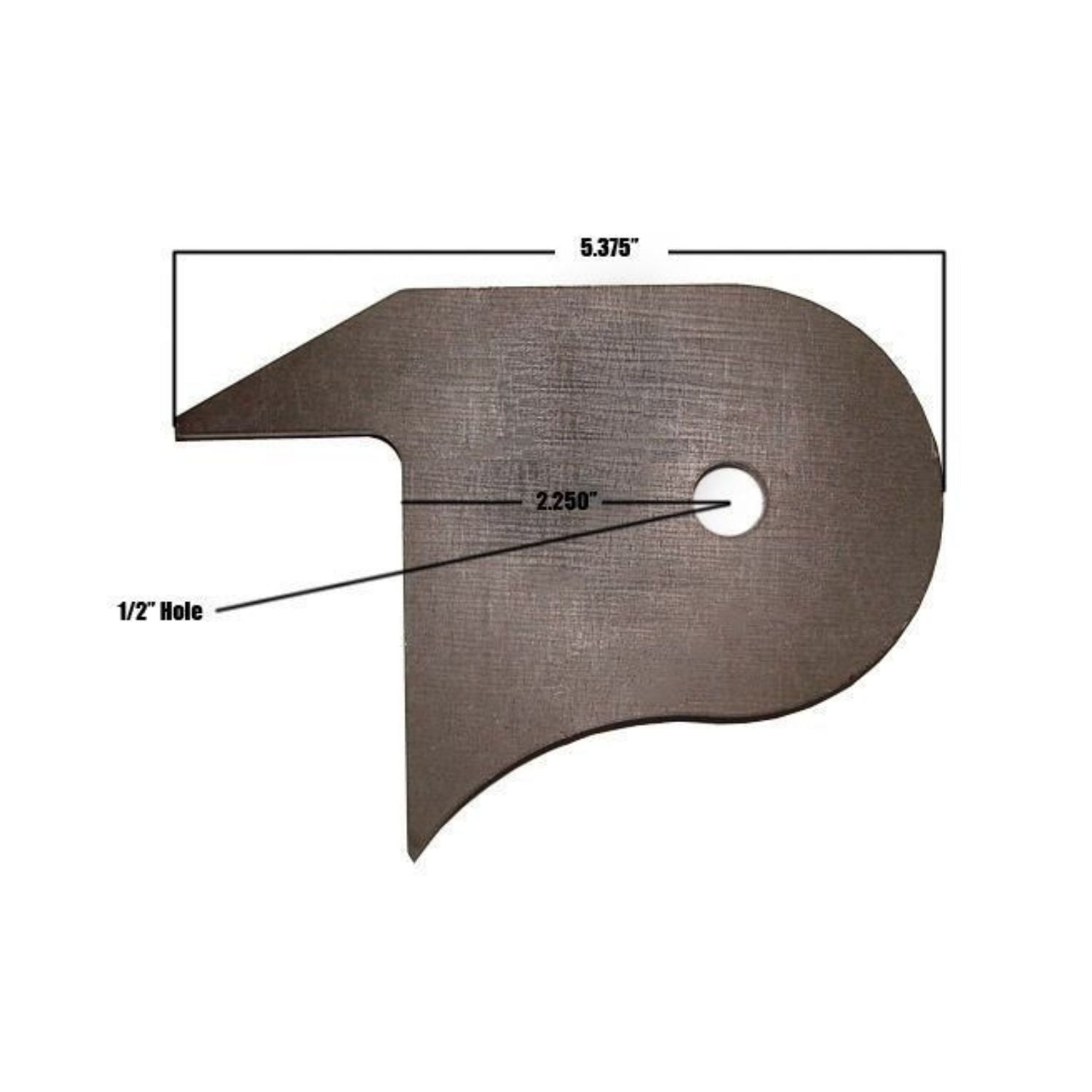

Overall Length: 5.375" (including overlap)
Base to Hole Center: 2.250"
Hole Diameter: 1/2"
Process: Precision laser cut
Condition: Weld-ready
Pairing: Can be matched with Short, Medium, or Long Truss Link Tabs to achieve desired link angle
Country of Origin: Made in the USA
Fitment
Universal weld-on fitment for front axle trusses on custom off-road builds, rock crawlers, bouncers, and linked trail rigs.
