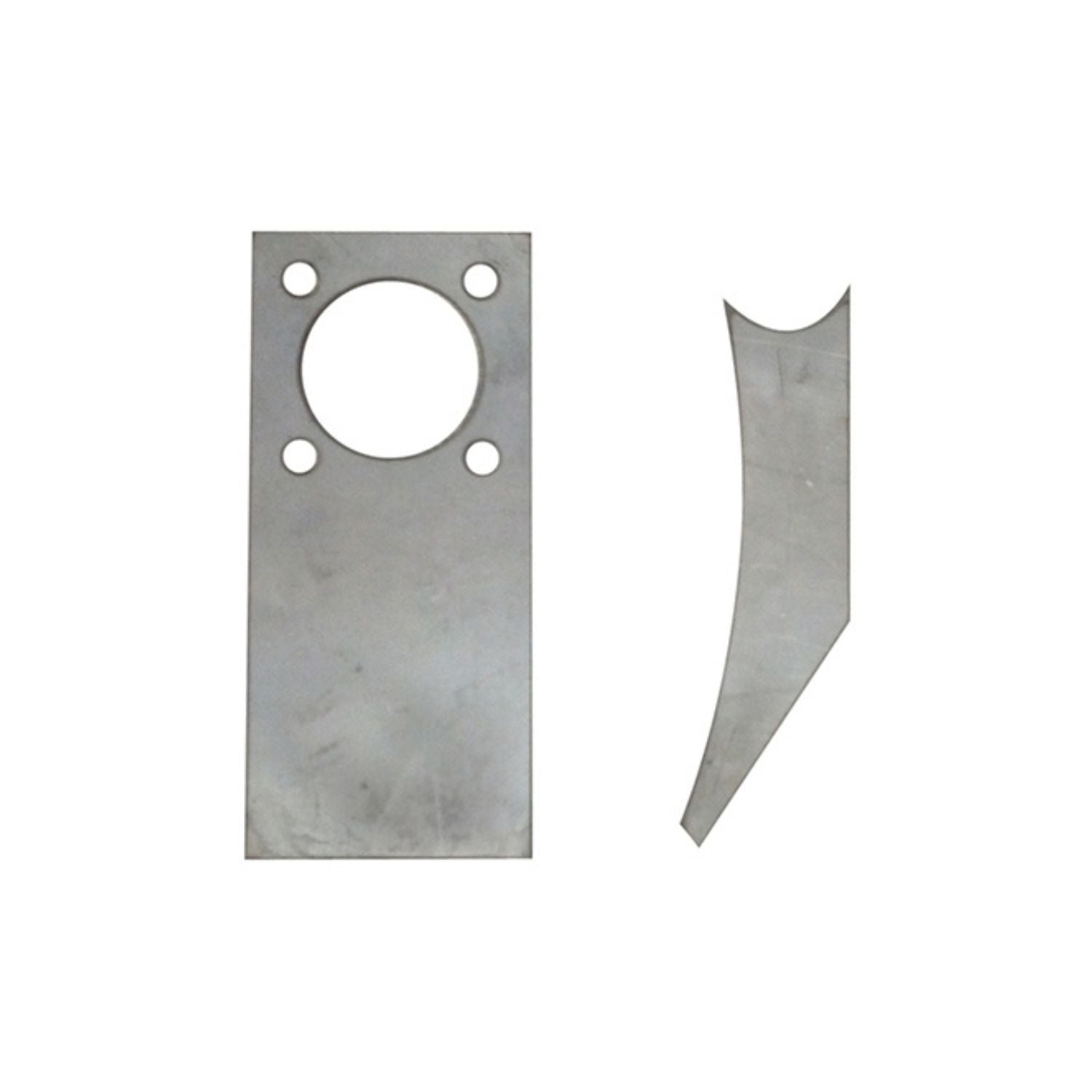

orbital valve mount assembly on white background

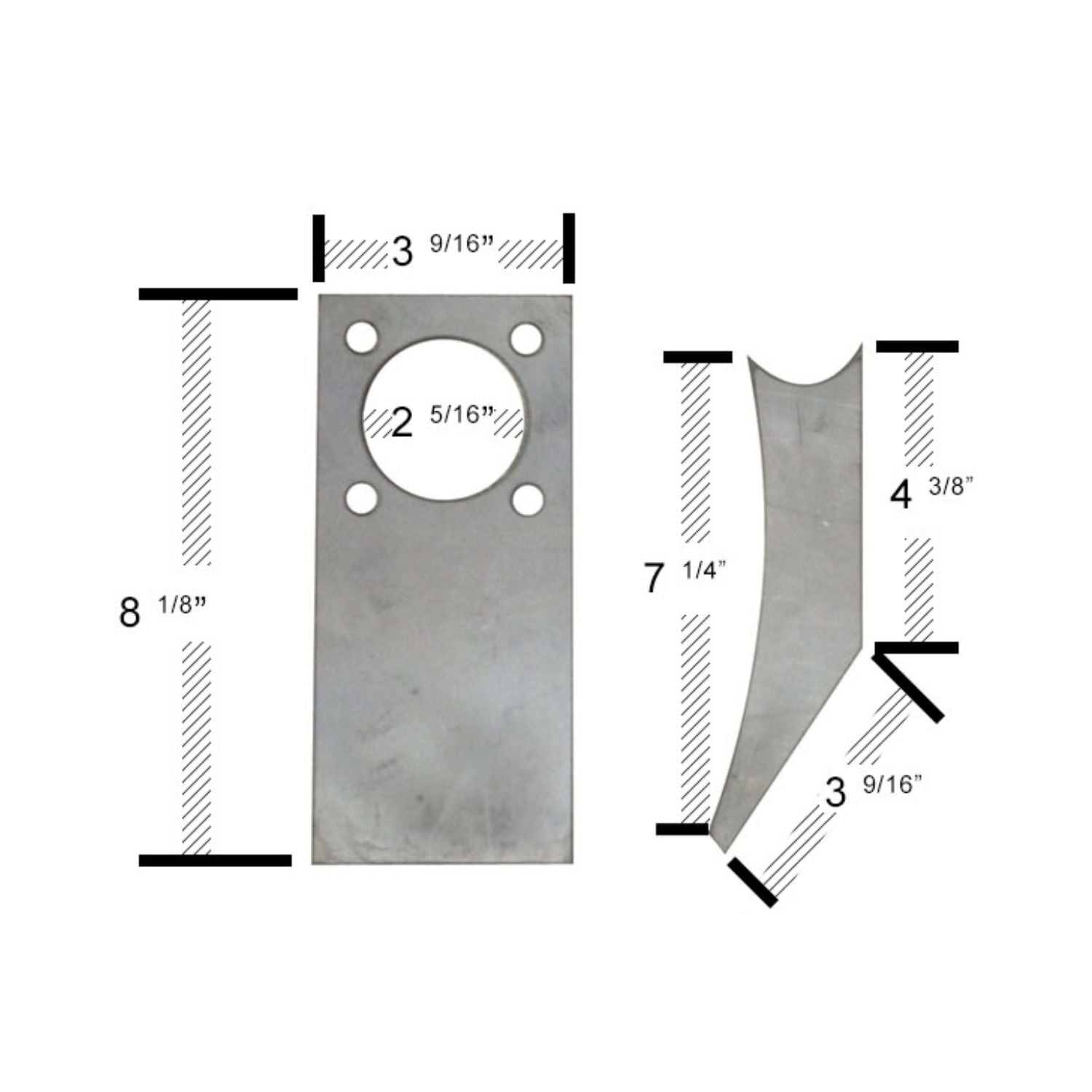

weld on tube steering valve bracket with dimensions on a white background

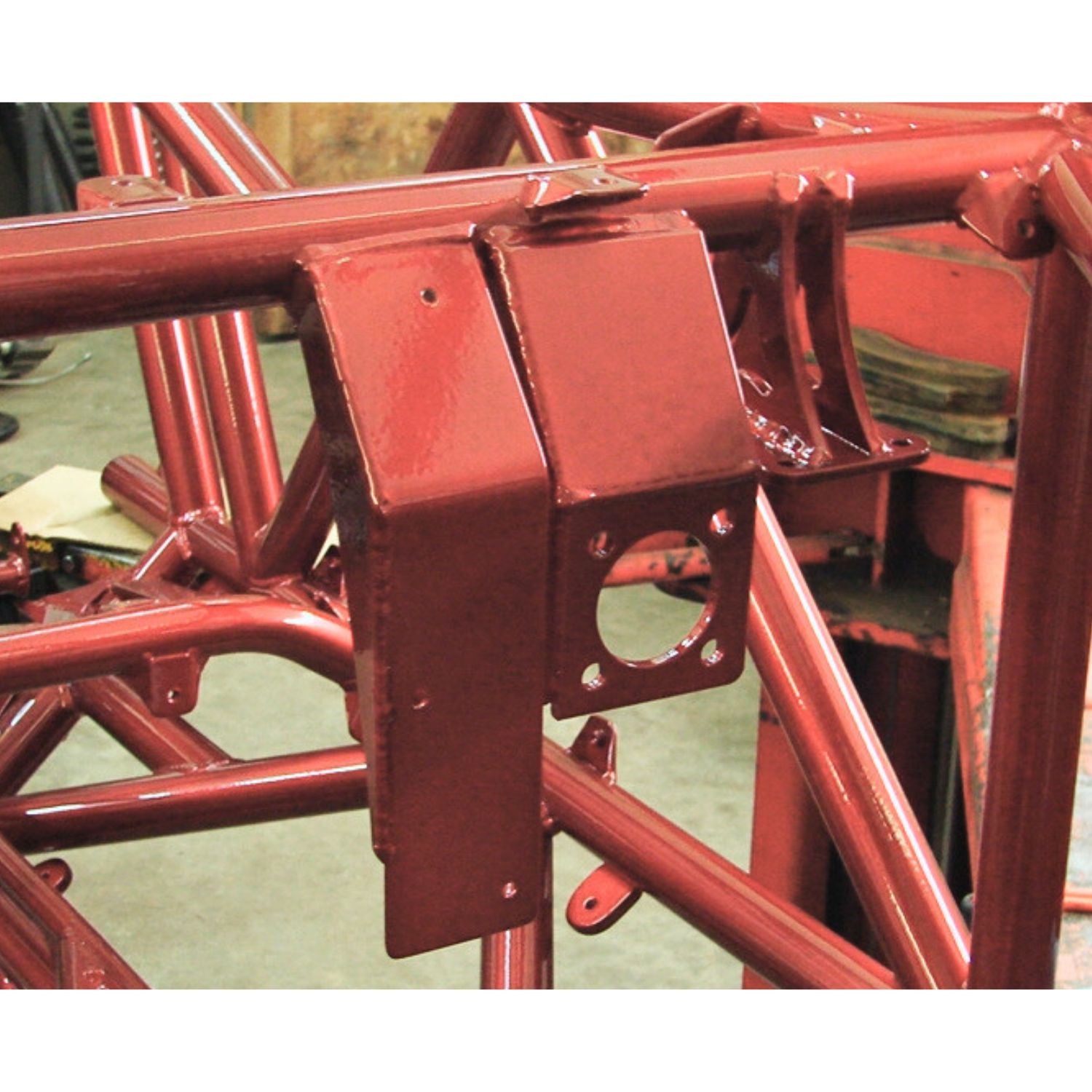

full hydro orbital valve mount welded and installed on a red chassis
orbital valve mount assembly on white background
weld on tube steering valve bracket with dimensions on a white background
full hydro orbital valve mount welded and installed on a red chassis

Orbital Valve Mount

WA121068

$26.99
/
Shipping calculated at checkout.

The Orbital Valve Mount is a clean, strong starting point for building a custom orbital steering valve mount in your off-road rig. Cut from 1/4" high strength steel, this plate can be welded directly to your chassis or hung from 1.75" tubing for simple, secure orbital placement.

Whether you're building full hydraulic steering on a rock crawler, bouncer, Ultra4 car, or custom buggy, this mount gives you a solid foundation for positioning your steering orbital exactly where you need it.

Includes:

  • (1) Orbital Valve Mount (weld ready)
Specifications
  • Material: 1/4" High Strength Plate Steel
  • Cutting Method: Precision laser cut
  • Mounting Style: Weld-on / tube-hung
  • Compatible With: Orbital steering valves (common full-hydro setups)
  • Condition: Weld-ready
  • Made in the USA
Fitment

Perfect for mounting:

  • Hydraulic orbital steering valves
  • PSC orbital valves
  • Charlynn-style steering valves
  • Full hydraulic steering systems
  • Common locations:
  • 1.75" chassis tubes
  • Dash bars / steering towers
  • Upright braces
  • Custom steering columns
Tech Insight

Orbital valve placement is critical to steering feel and hose routing. This mount gives fabricators a rigid, laser-cut foundation that can be easily modified or gusseted depending on the build. Hanging it from 1.75" tubing allows clean hose routing while keeping the valve protected and accessible for maintenance.
