Name: Standard Heim Joint Spacers
Brand: Wide Open Design
SKU: WA01040
Price: 6.7 USD
Availability: InStock

$6.70

Shipping calculated at checkout.

Quantity

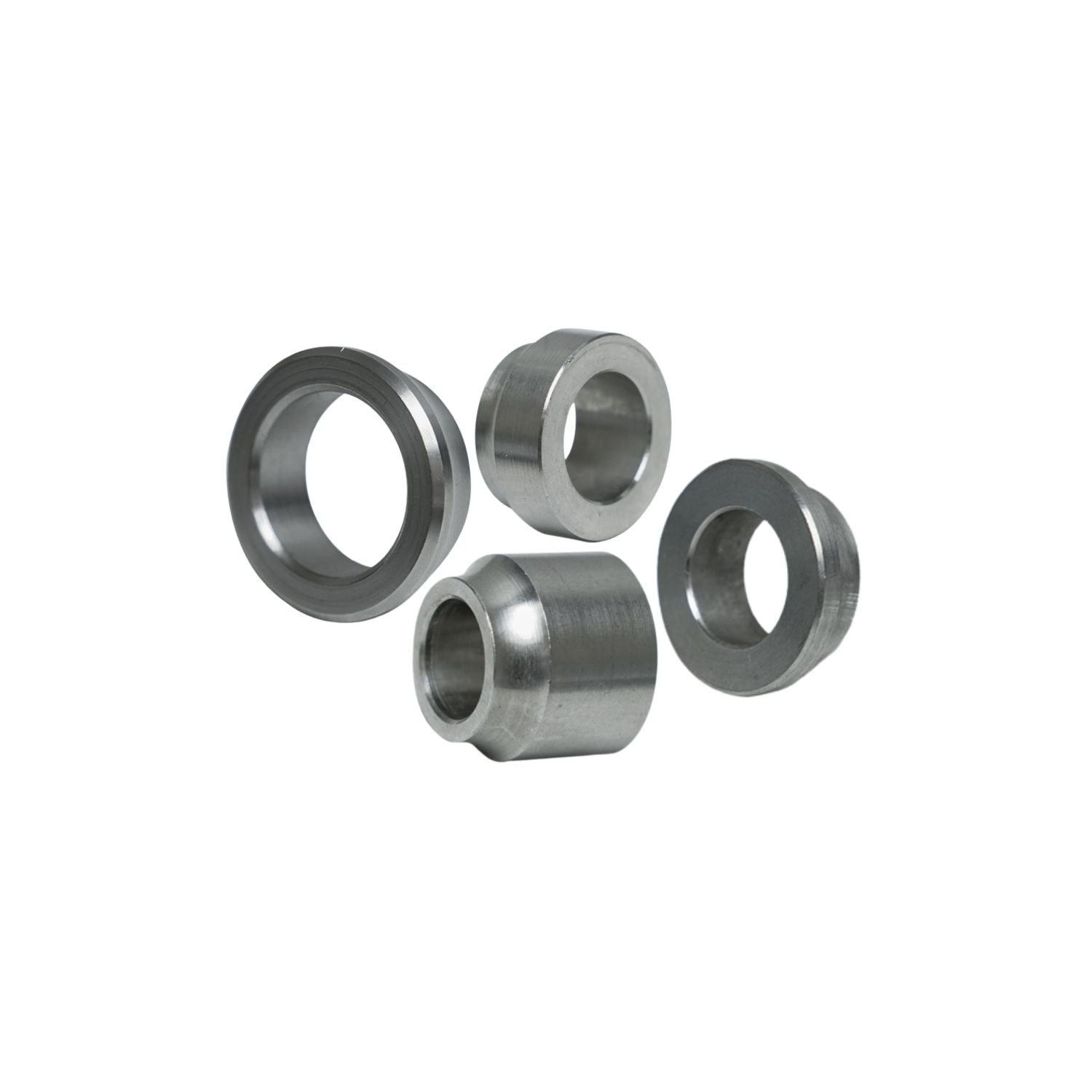

Standard Heim Joint Spacers are designed to add the required mounting width between suspension or steering tabs while maintaining proper rod end articulation. These spacers are ideal for applications where the width of the rod end ball is too narrow for the mount, but increased angular misalignment is not needed.

Unlike high angle heim joint spacers, standard spacers do not reduce the inside diameter of the rod end, preserving the original bore size and strength. This makes them a great choice for low to moderate articulation setups where fitment spacing is the primary concern.

Precision machined from 303 stainless steel, these spacers offer excellent corrosion resistance and long term durability in off-road, racing, and high performance suspension systems.

Sold individually.

Material: 303 Stainless Steel
Function: Adds mounting width between tabs
Bore Diameter: Maintains full rod end inside diameter
Finish: Natural stainless steel
Sold: Individually

Sku	Title	Bore Size	Width	Mount Width	Rod End Size

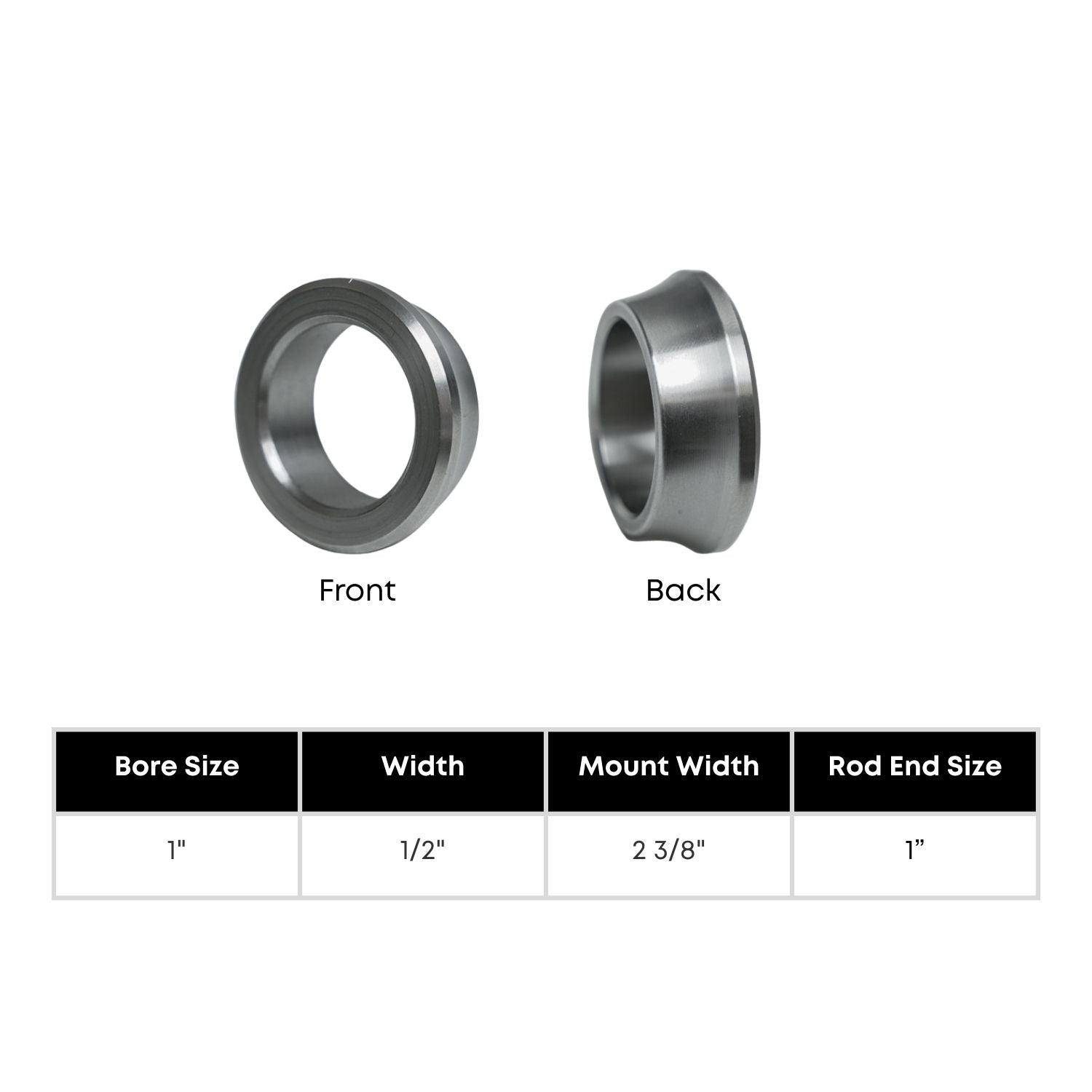

WA01040	1" Bore x 1/2" Wide	1	1/2	2 3/8	1

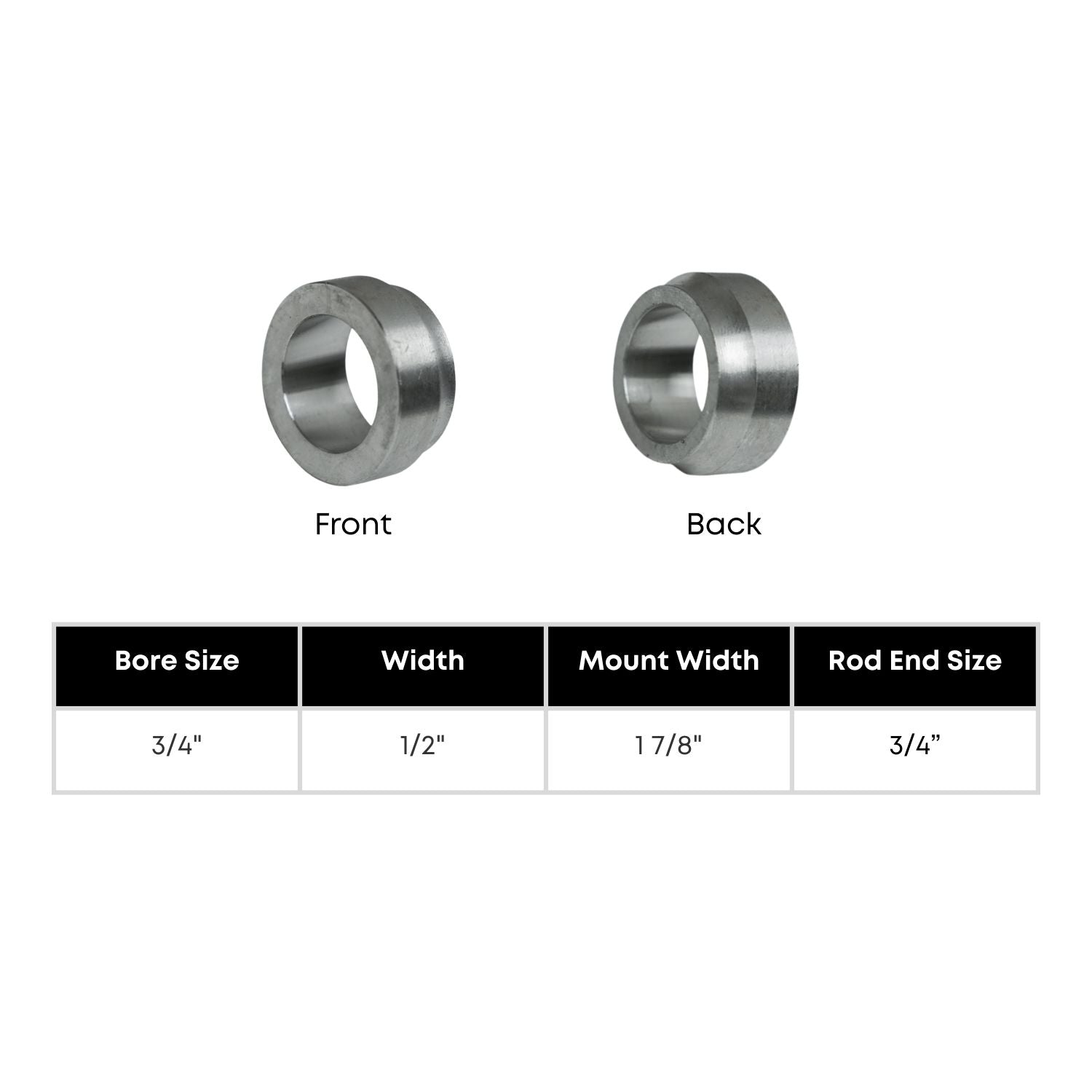

SG128	3/4" Bore x 1/2" Wide	3/4"	1/2"	1-7/8"	3/4"

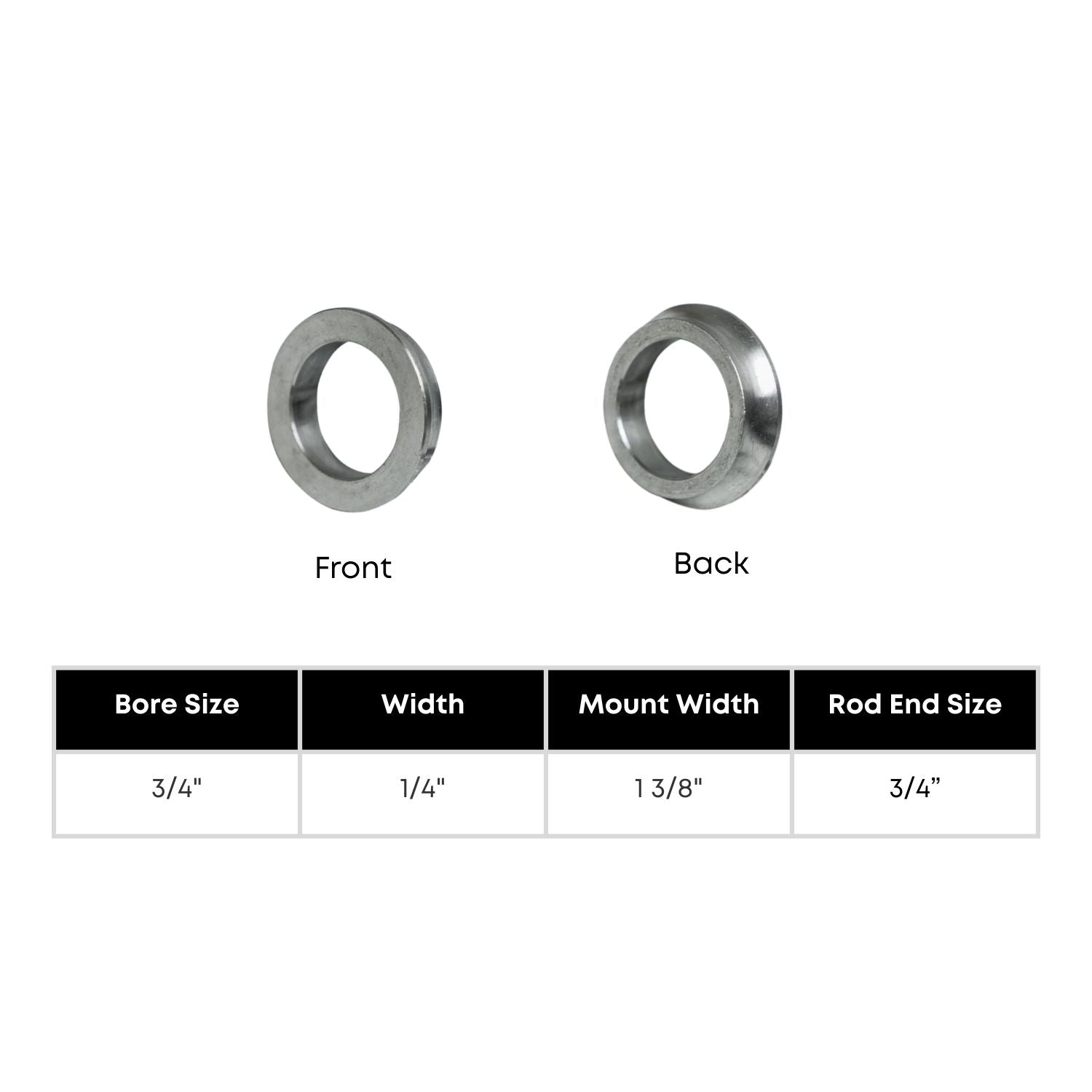

SG124	3/4" Bore x 1/4" Wide	3/4"	1/4"	1-3/8"	3/4"

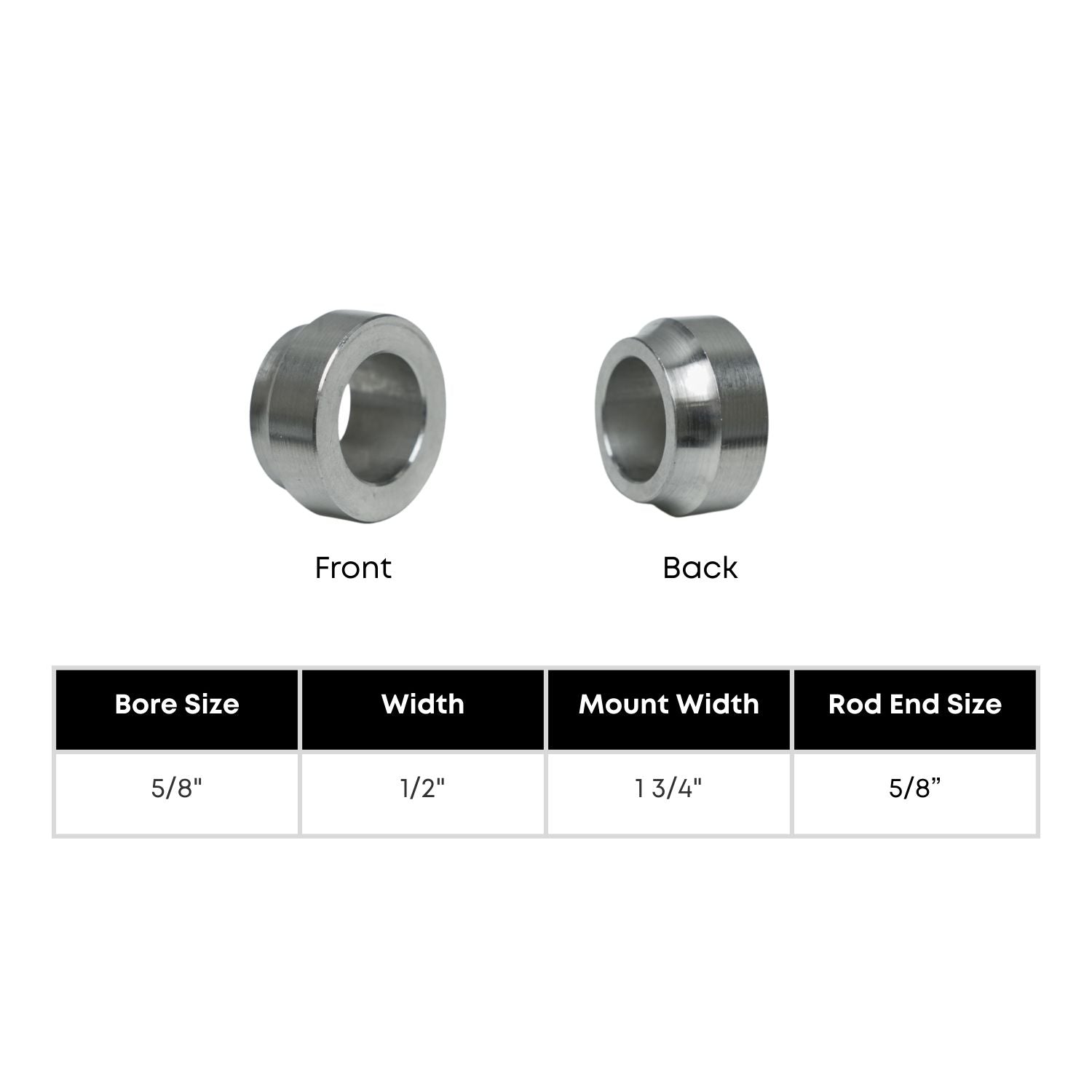

SG108	5/8" Bore x 1/2" Wide	⅝"	½"	1-¾"	⅝"

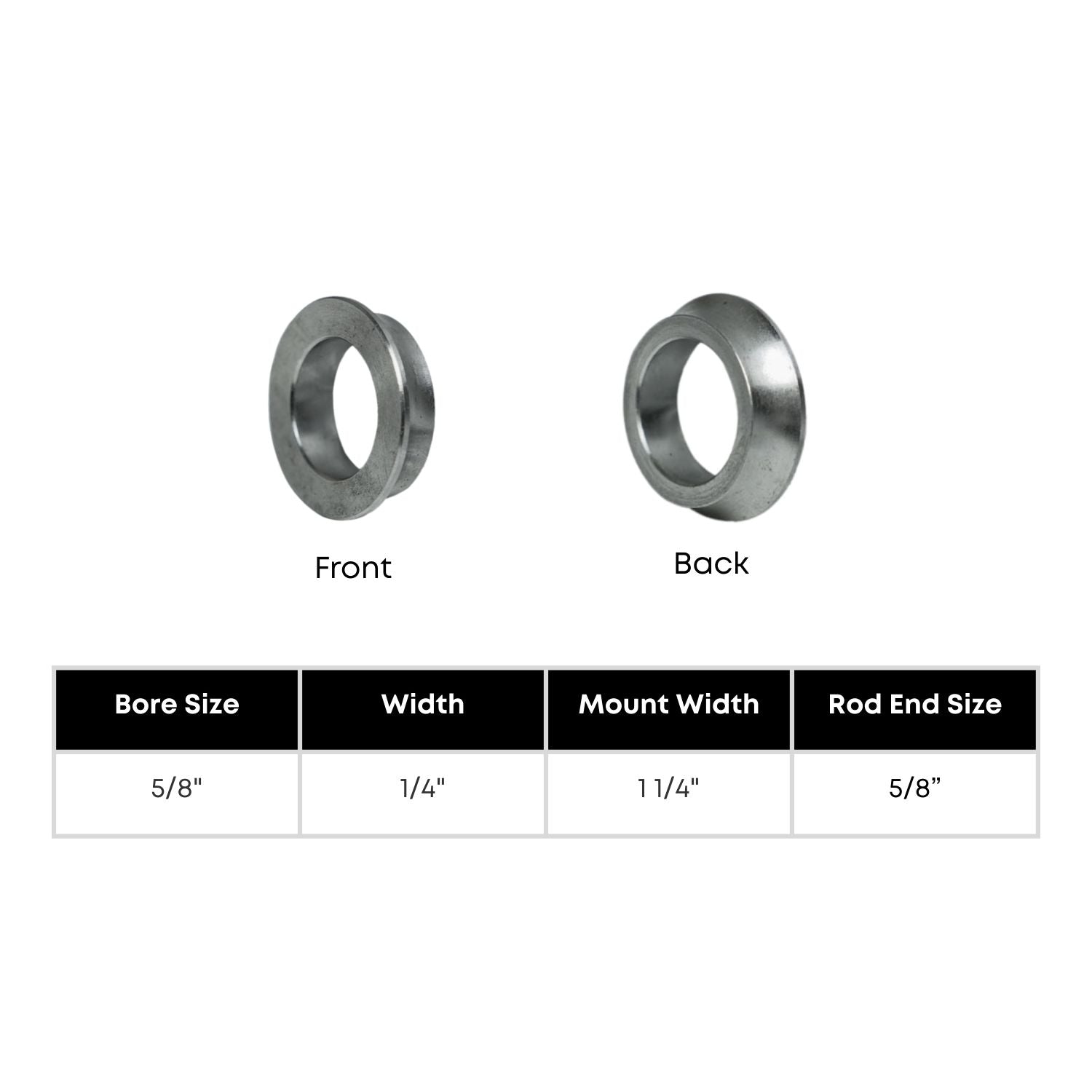

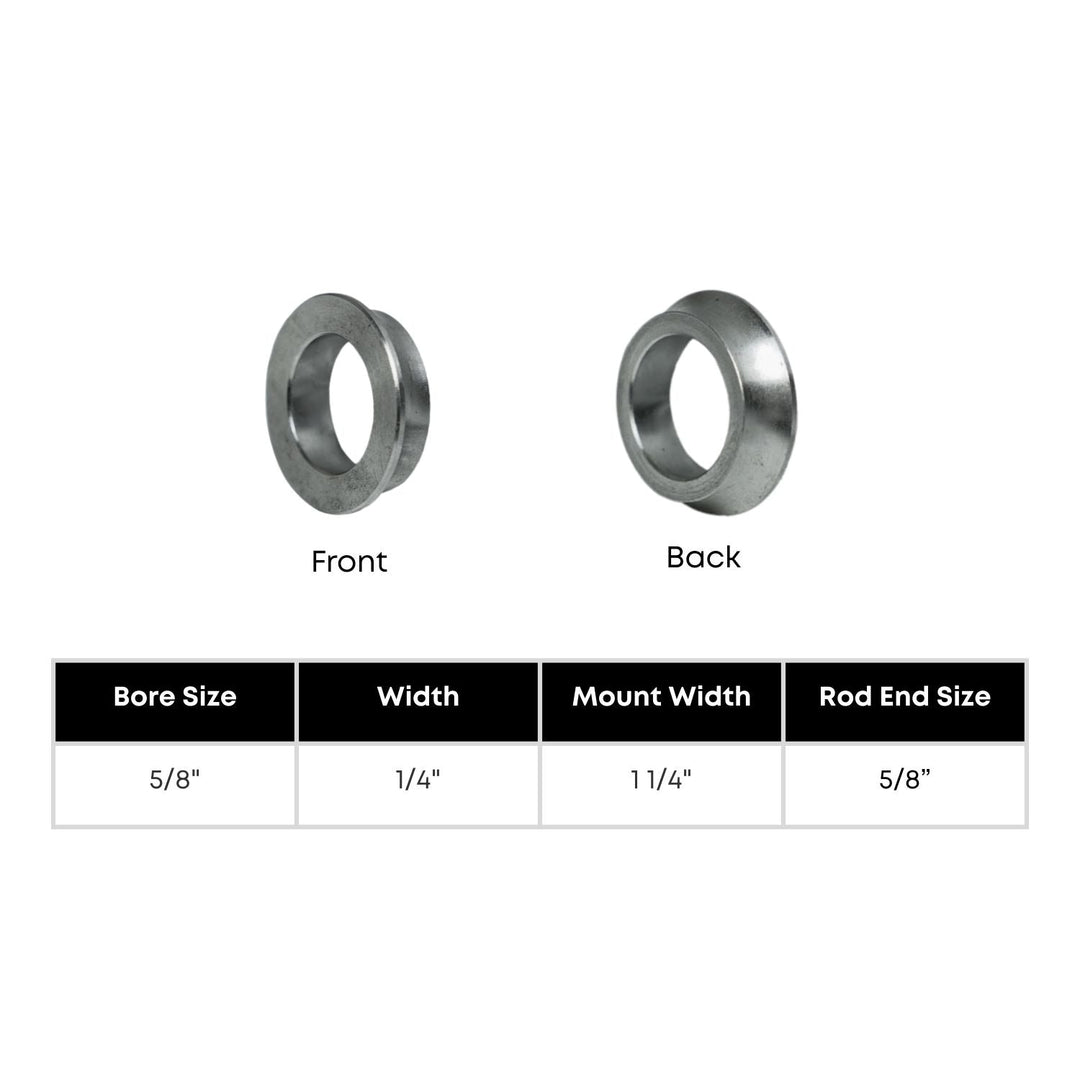

SG104	5/8" Bore x 1/4" Wide	⅝"	¼"	1-¼"	⅝"

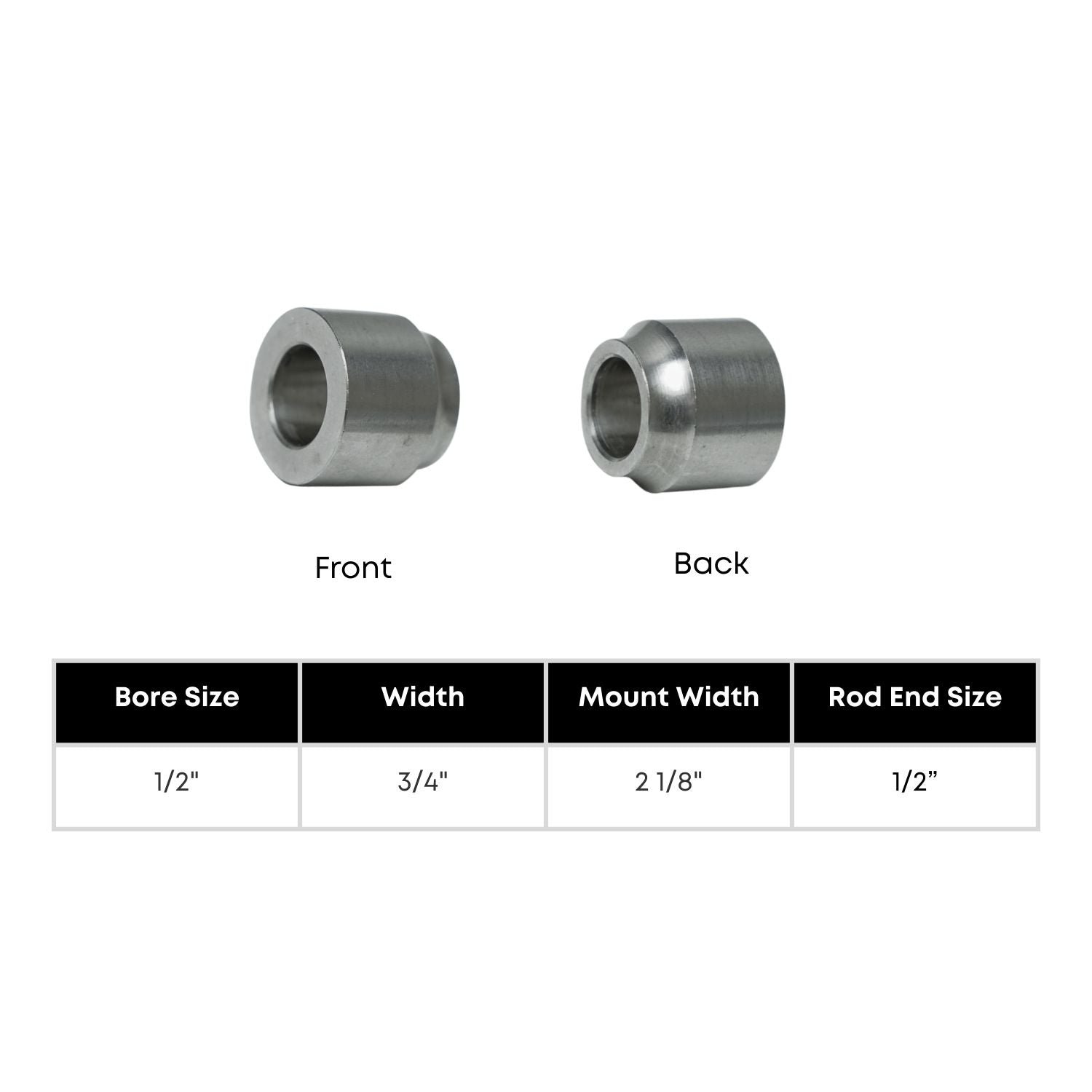

SG812	1/2" Bore x 3/4" Wide	½"	¾"	2-⅛"	½"

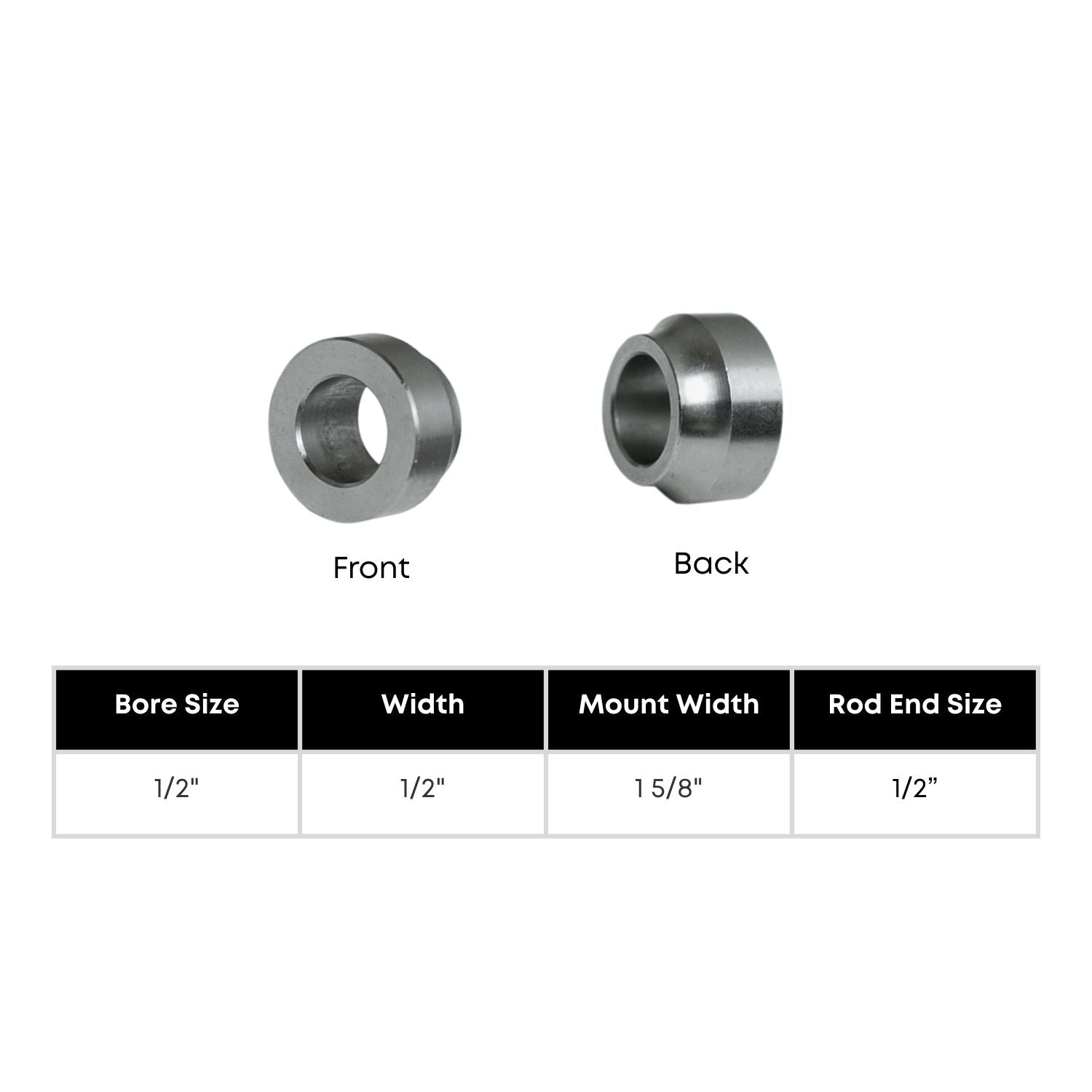

SG88	1/2" Bore x 1/2" Wide	½"	½"	1-⅝"	½"

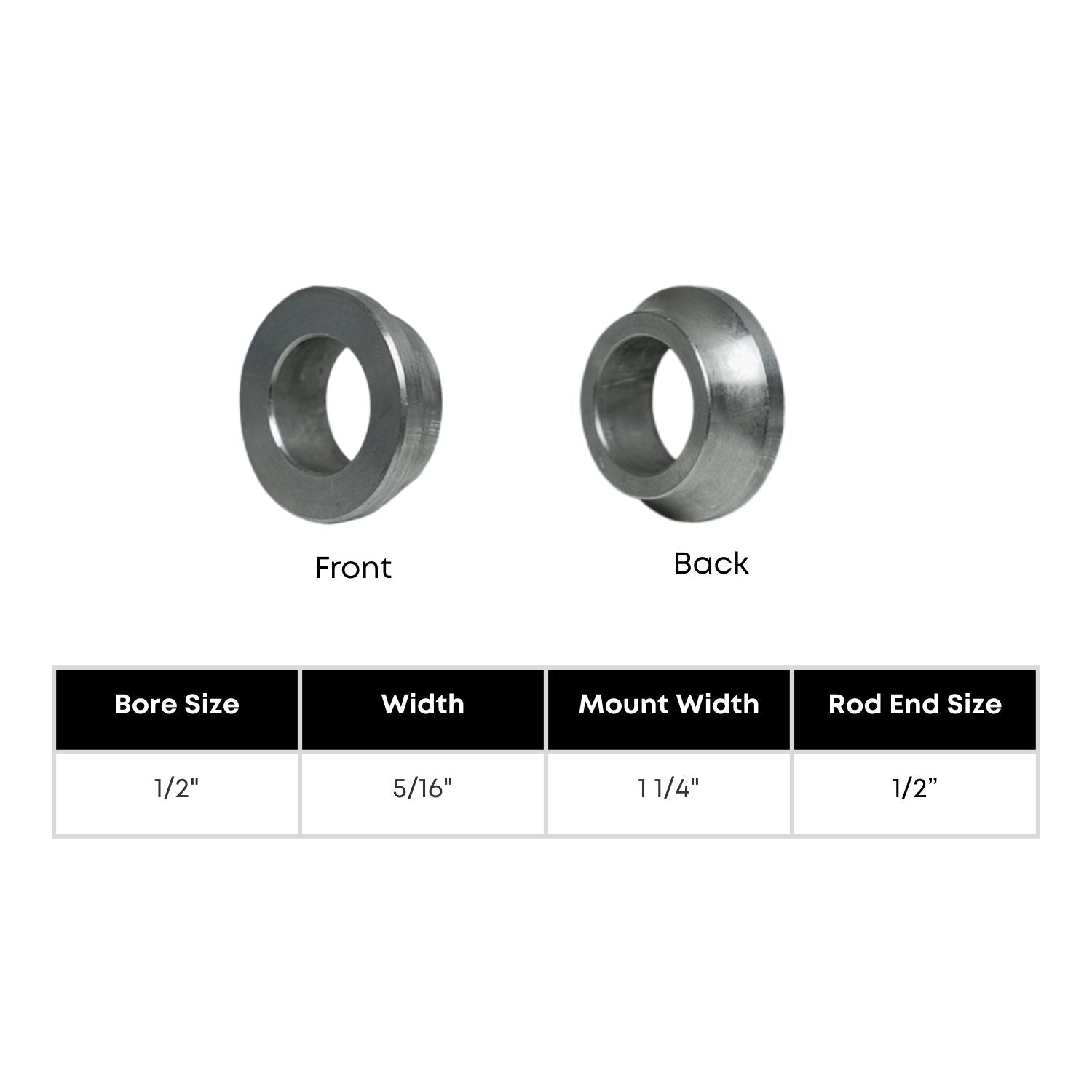

SG85	1/2" Bore x 5/16" Wide	½"	5/16"	1-¼"	½"

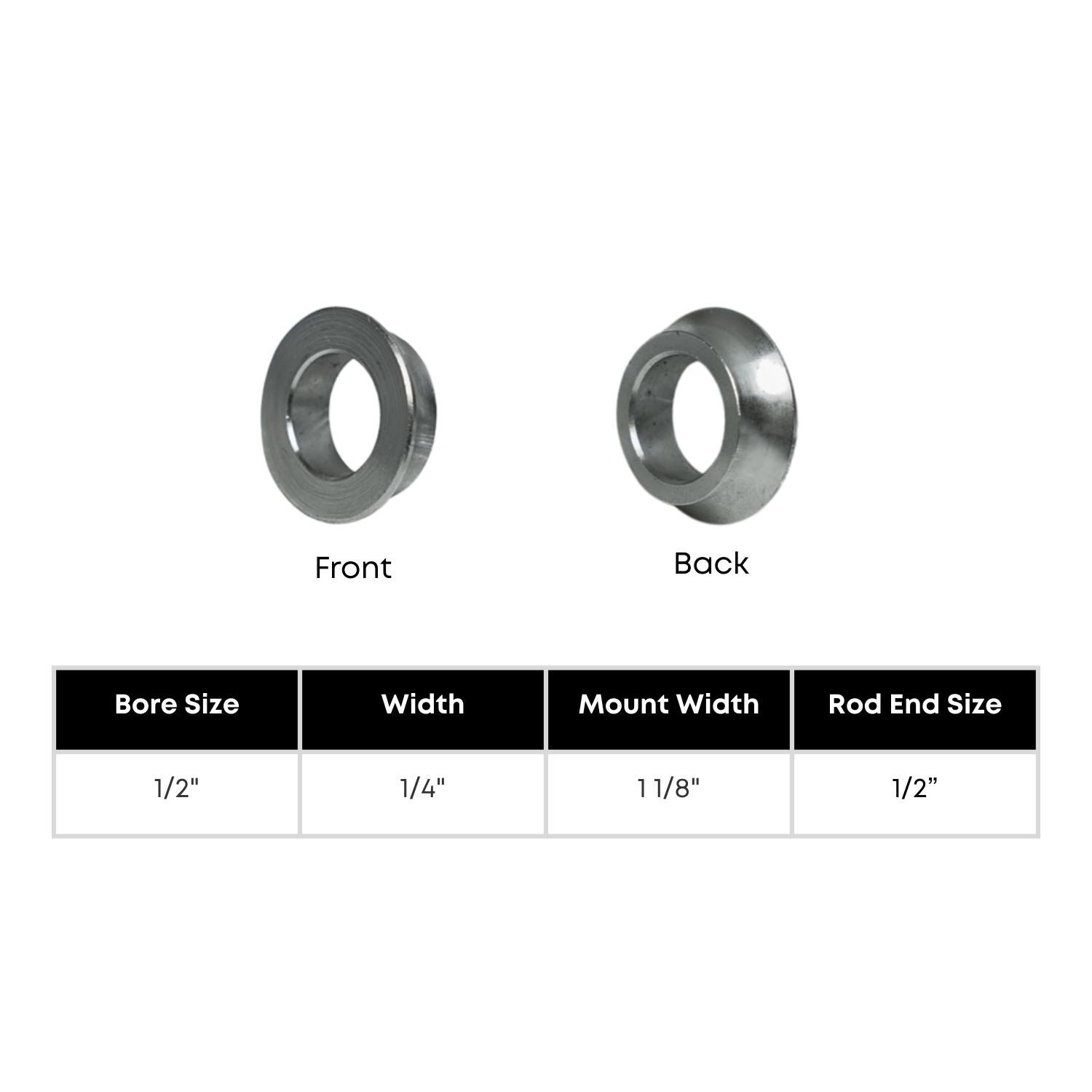

SG84	1/2" Bore x 1/4" Wide	½"	¼"	1-⅛"	½"

Compatible with rod ends (heim joints) matching listed bore sizes

Standard misalignment spacers are intended for spacing correction—not increased articulation. If your application requires greater angular movement or the ability for the ball to rotate further into the rod end body, High Misalignment Spacers should be used instead. Using the correct spacer style helps prevent binding and premature wear in suspension and steering systems.

Available Sizes

1 Bore × 1/2 Wide

3/4 Bore × 1/2 Wide

3/4 Bore × 1/4 Wide

5/8 Bore × 1/2 Wide

5/8 Bore × 1/4 Wide

1/2 Bore × 3/4 Wide

1/2 Bore × 1/2 Wide

1/2 Bore × 5/16 Wide

1/2 Bore × 1/4 Wide
