Name: WOD 14-Bolt Driver Drop Front Axle Truss
Brand: Wide Open Design
SKU: WF03013
Price: 329.99 USD
Availability: InStock

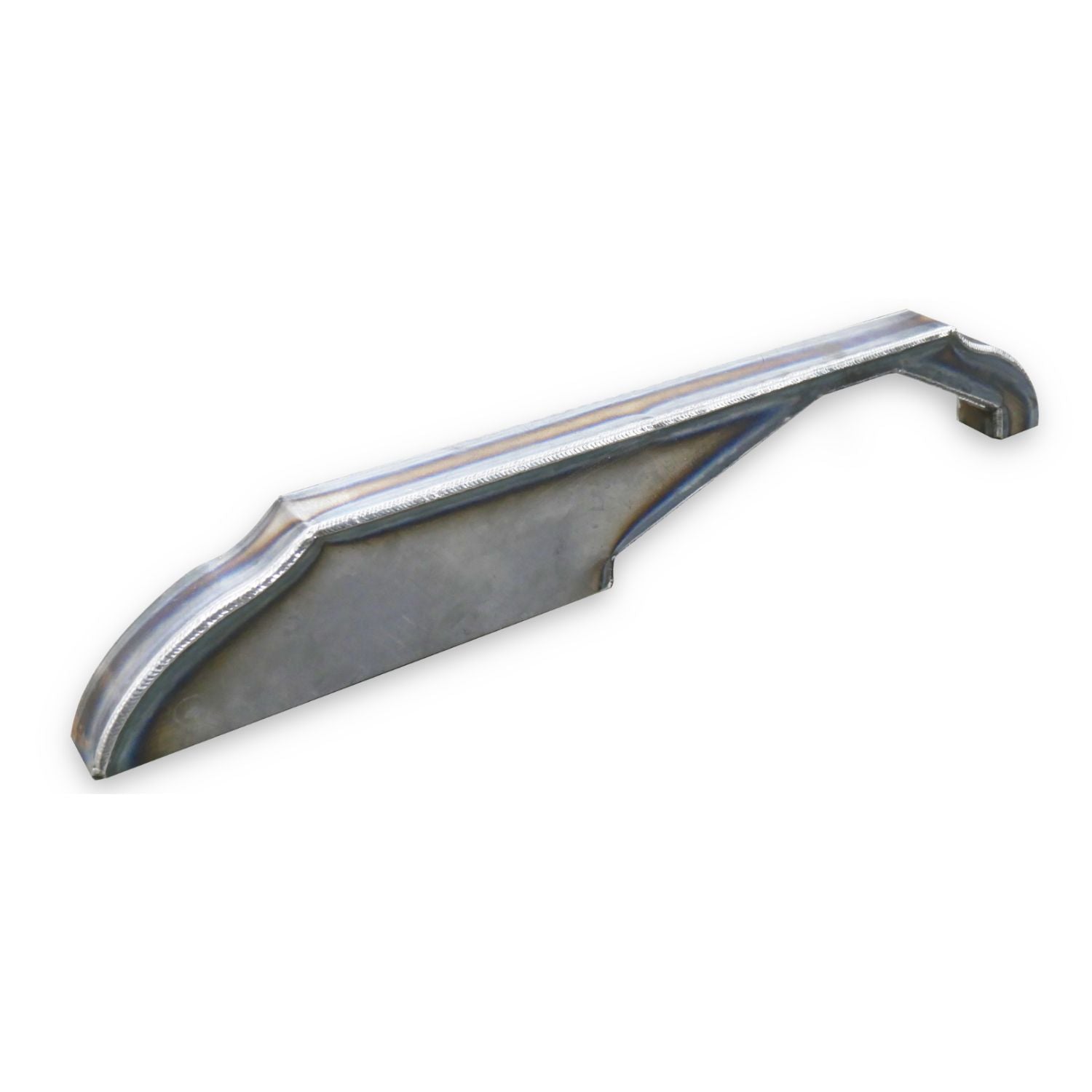

14 bolt driver drop front axle truss on a white background

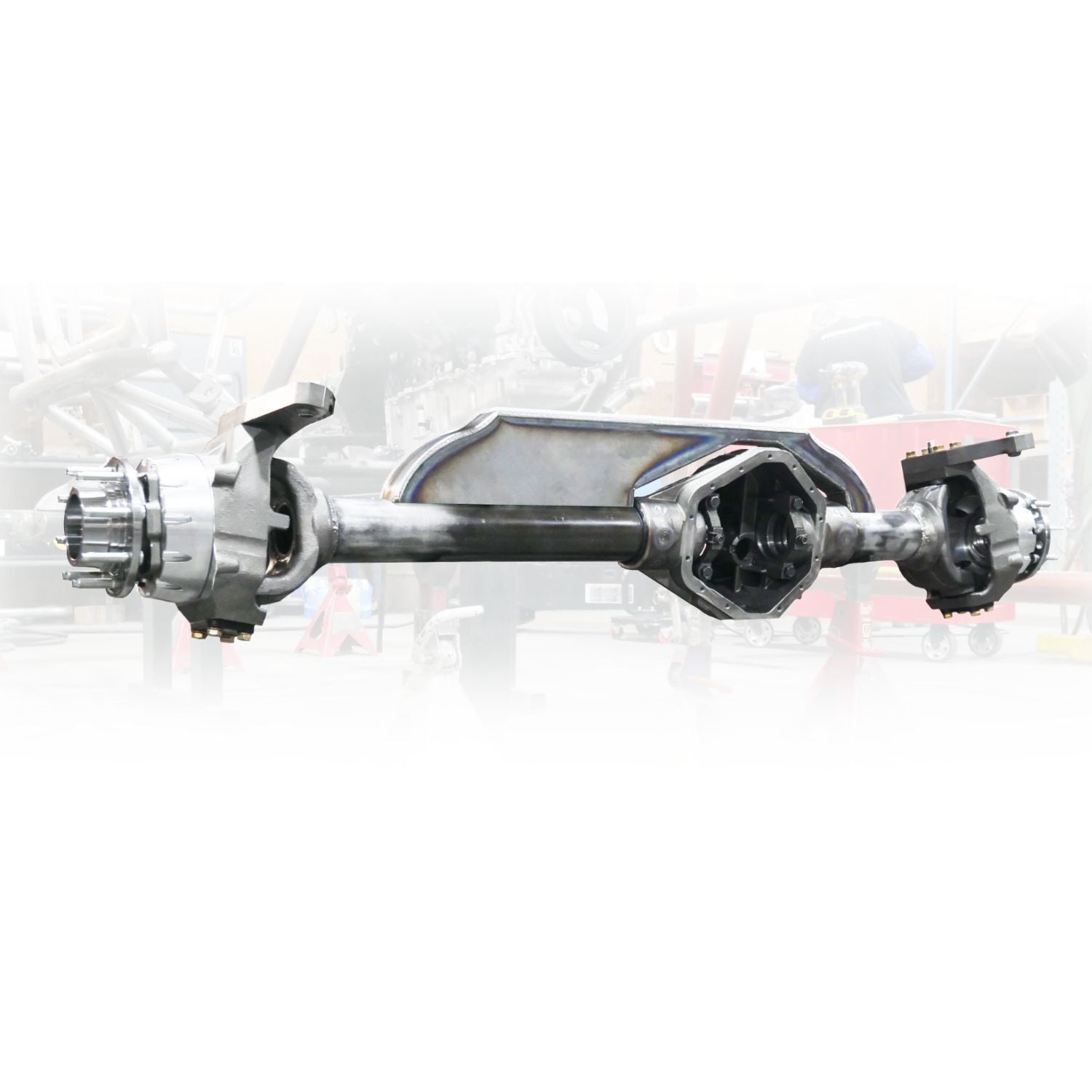

Car axle with 14 bolt front truss 1/4 inch steel welded on a white background

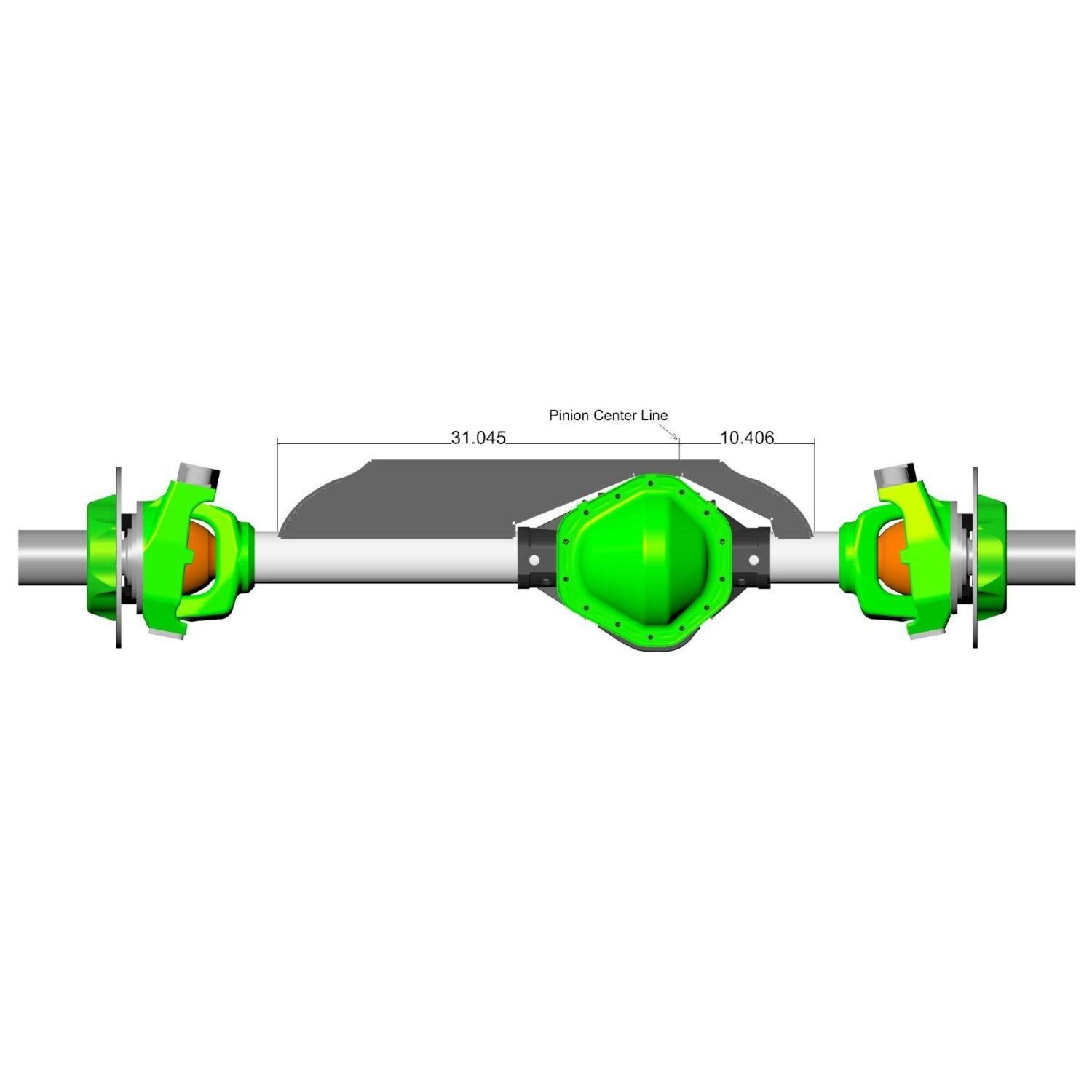

Technical drawing of a Driver drop 14 bolt axle truss welded on a white background

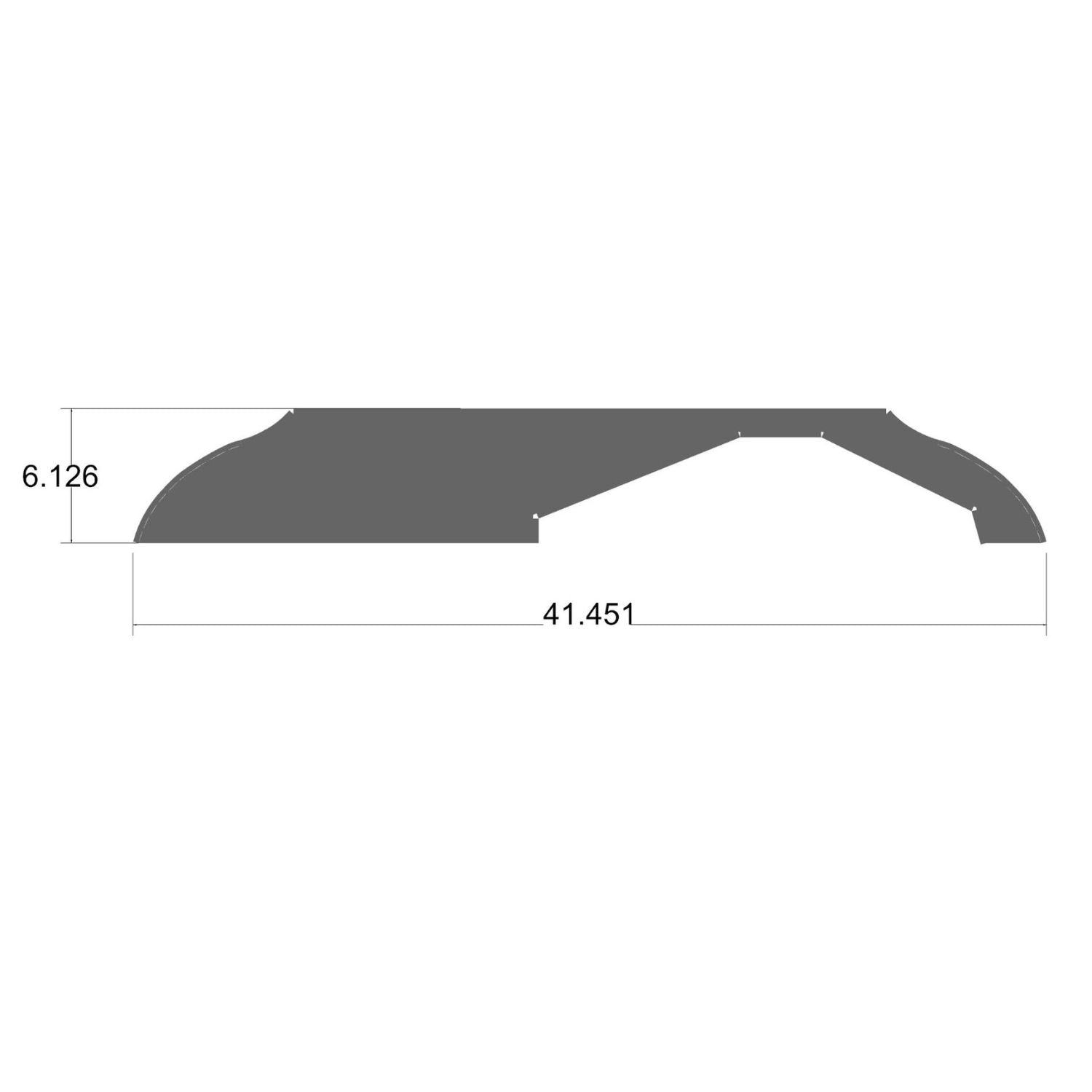

Technical drawing of a 14 bolt differential housing truss with dimensions on a white background

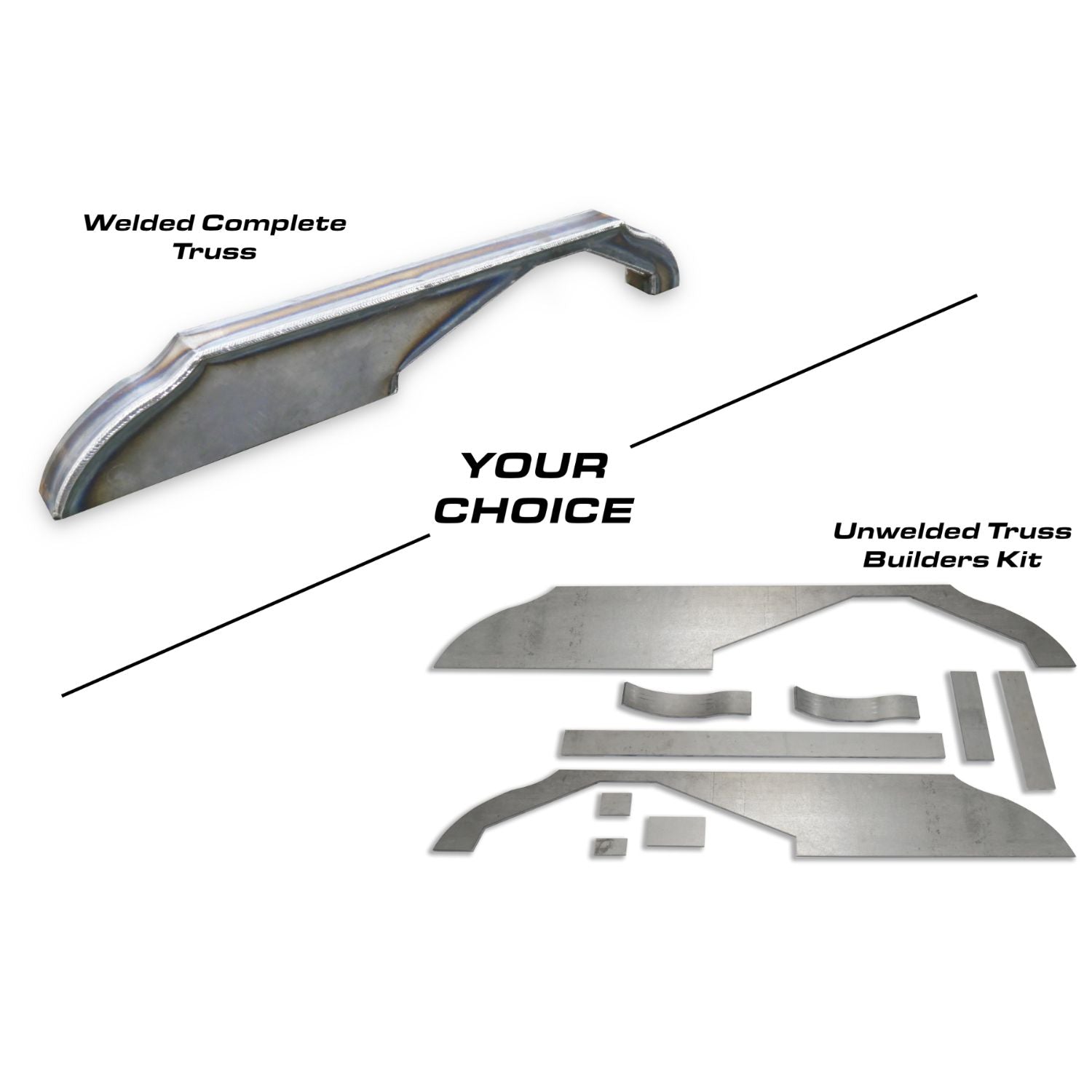

Off-road 14 bolt front axle reinforcement with text indicating welded complete truss and unwelded builders kit options on a white background.

$329.99

Shipping calculated at checkout.

Quantity

The Wide Open Design 14-Bolt Driver Drop Front Truss is designed to add serious strength and rigidity to driver side drop 14-bolt front axle housings used in high abuse off-road and competition applications. Built from ¼" thick steel, this truss is precision cut and contoured to fit tightly around the 14-bolt differential housing, maximizing weld surface area and structural support.

This truss is available fully welded or as flat plate components for builders who prefer to assemble and weld their own setup. Optional tab and mount upgrades are available to tailor the truss to your suspension and steering configuration.

Ordering Options:

Fully Welded Truss (Made to Order)
Flat Plate Kit (DIY Weld-It-Yourself)

Includes:

(1) 14-Bolt Driver Drop Front Axle Truss

Lead Time:
Fully welded trusses are made to order with a 2 business day lead time before shipping.

Axle Type: 14-Bolt Front Driver Drop
Material: 1/4" Steel Plate
Length: 41.451"
Height: 6.126"
Depth: 2.5"
Design: Cut and contoured for tight 14-bolt differential housing fit
Country of Origin: Made in USA

Driver drop 14-bolt front axle housings
Welding required (unless fully welded option is selected)
Designed for off-road, trail, and competition axle builds

Large front axle housings see extreme torsional and impact loads, especially in rock crawling, racing, and heavy trail rigs. This truss reinforces the differential housing and long side tube area, helping prevent housing flex and tube movement under load. For maximum durability, consider pairing this truss with a tie-in and pinion guard to further protect the housing and driveline components.
