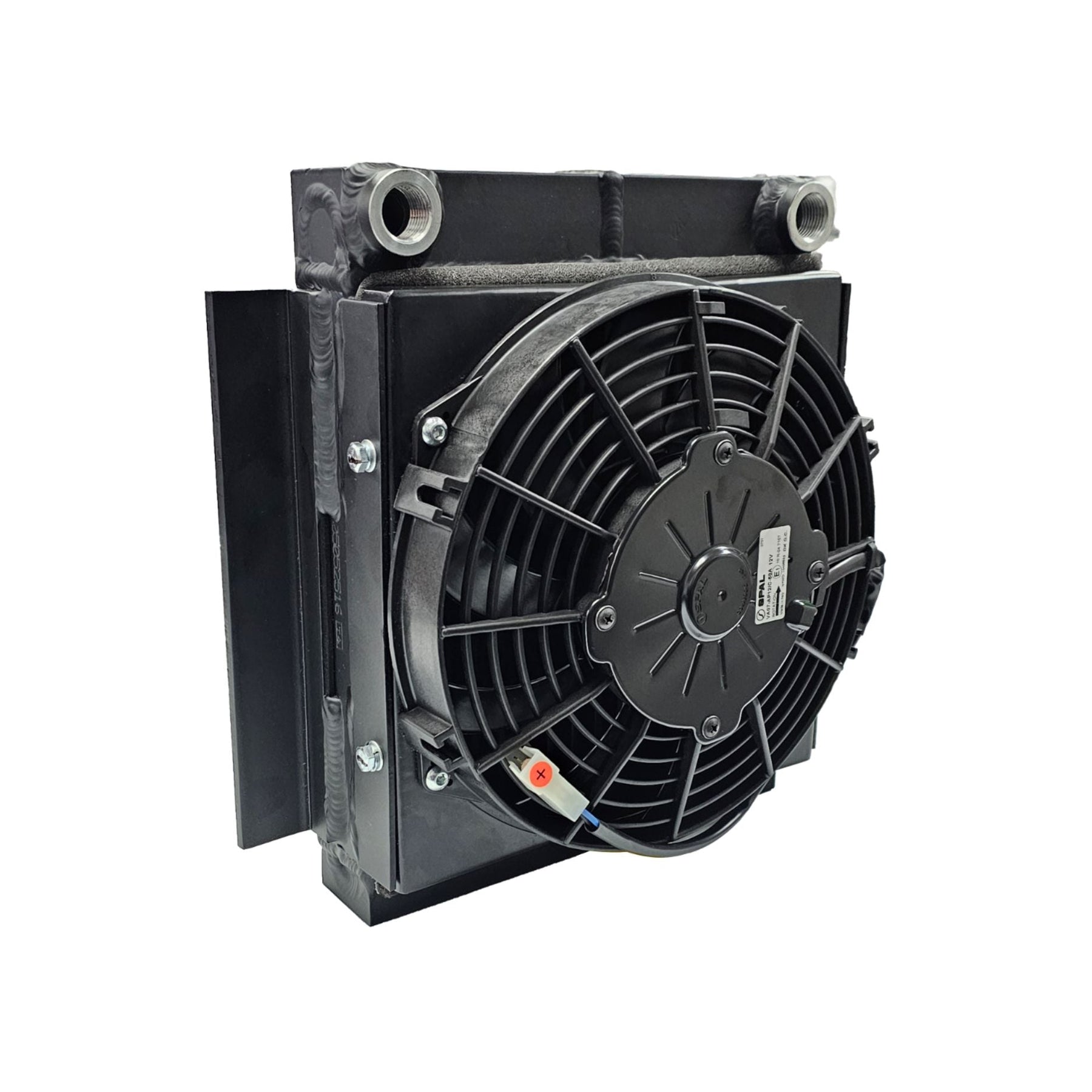

Black Griffin race fluid cooler with SPAL fan for rock crawler on a white background

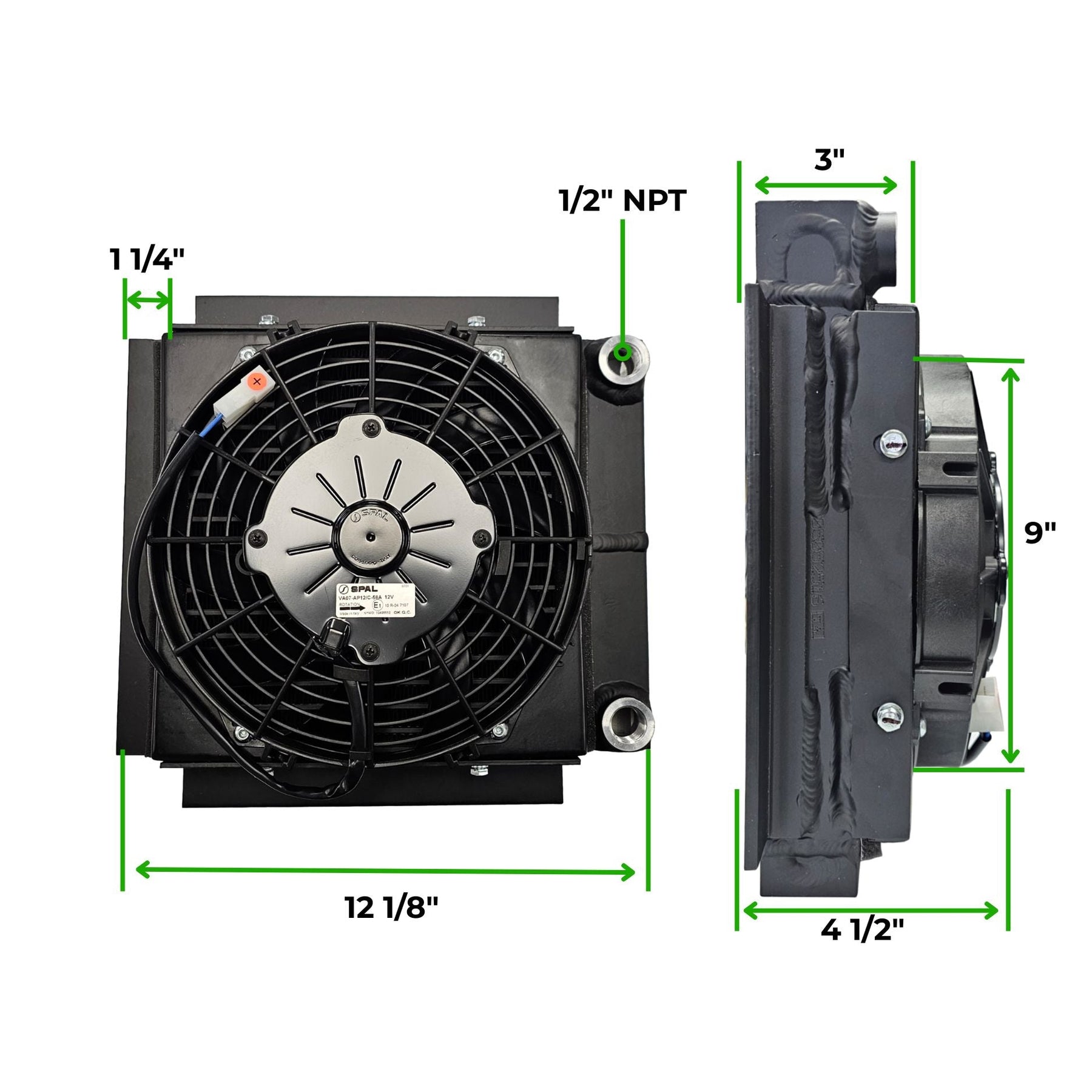

Black dual pass aluminum transmission cooler with electric fans with dimensions labeled on a white background

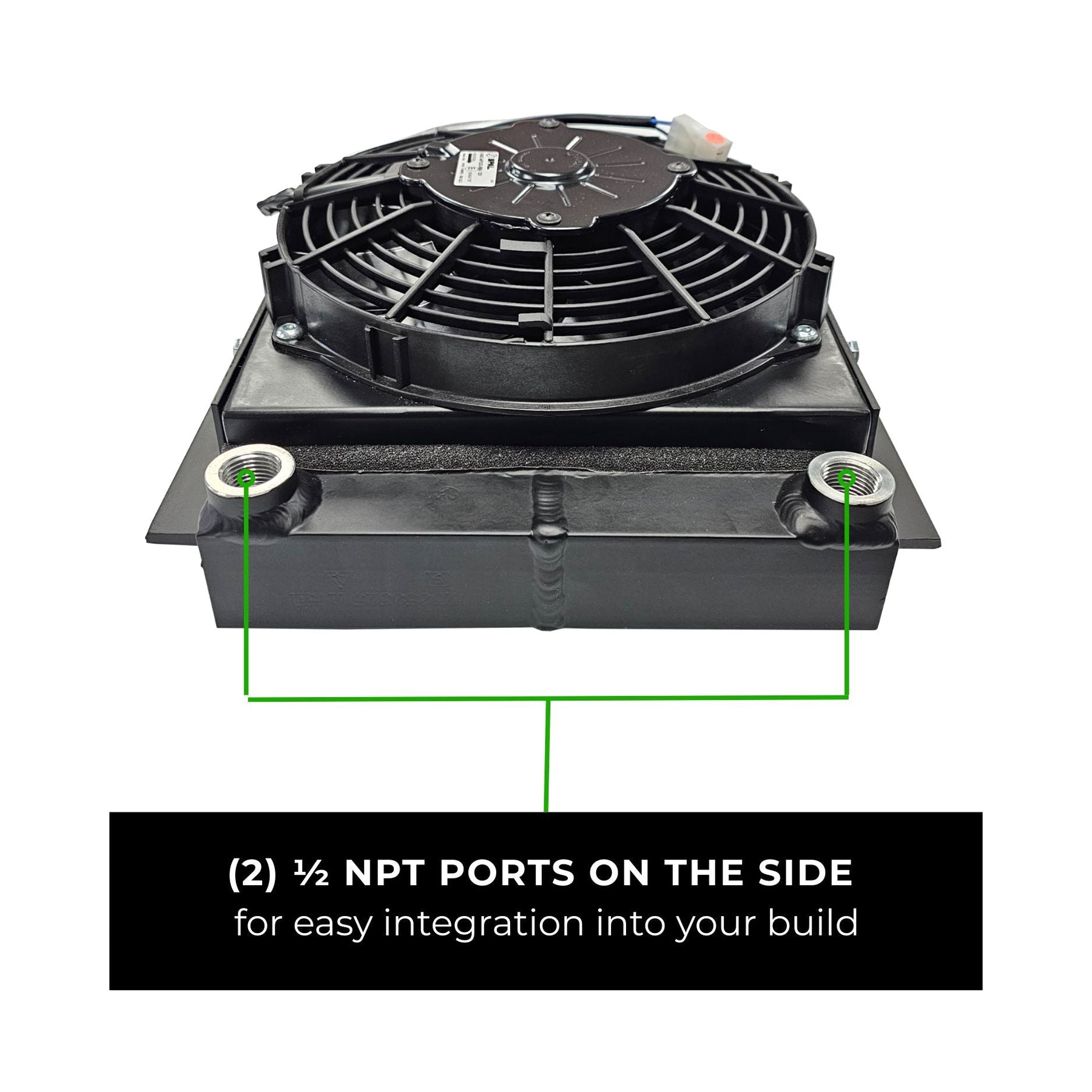

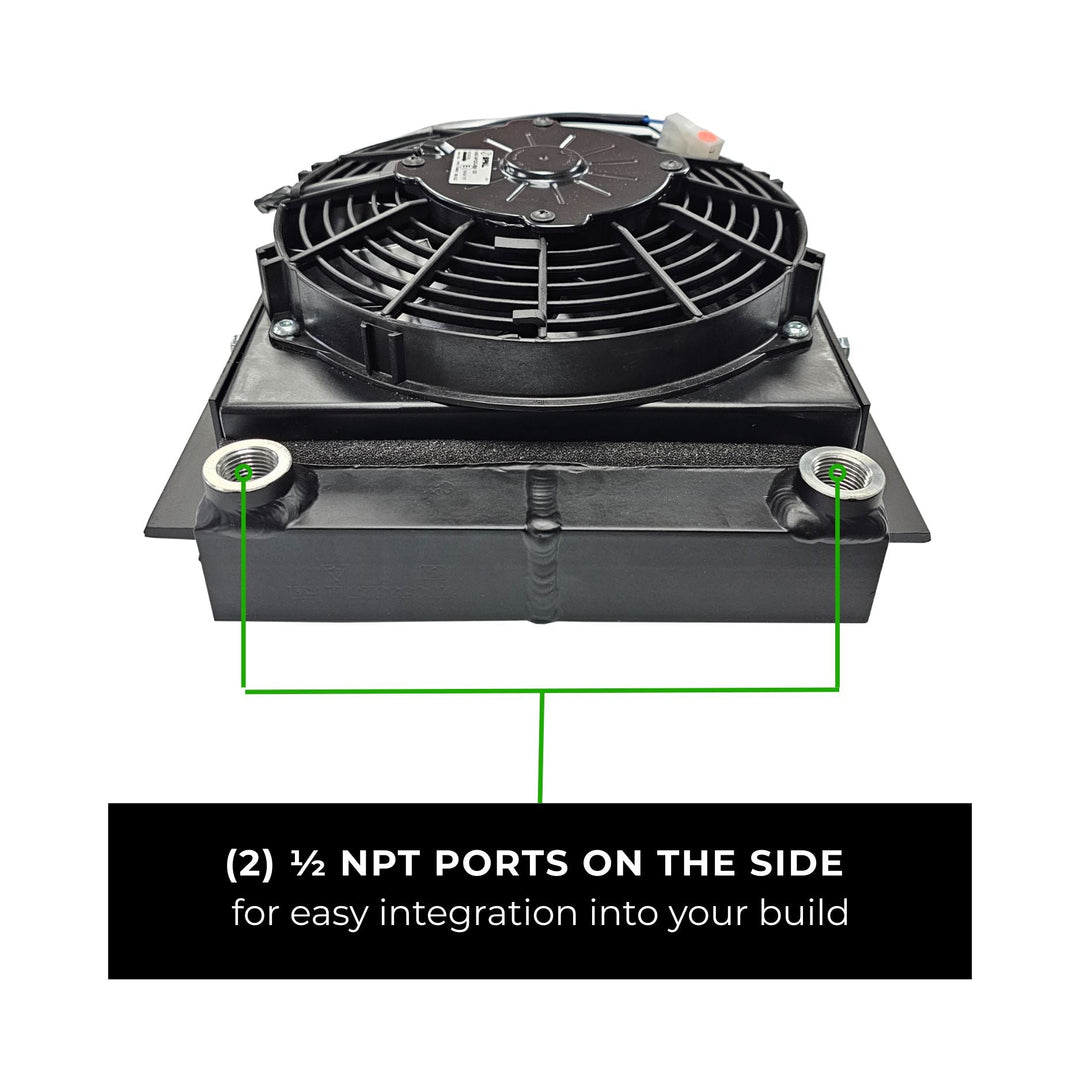

universal off road power steering fluid cooler with NPT ports on a white background
high performance differential fluid cooler on a white background
Black Griffin race fluid cooler with SPAL fan for rock crawler on a white background
Black dual pass aluminum transmission cooler with electric fans with dimensions labeled on a white background
universal off road power steering fluid cooler with NPT ports on a white background
high performance differential fluid cooler on a white background

Griffin Small Race Fluid Cooler w/ 9" SPAL Fan

CXU-00002

$418.00
/
Shipping calculated at checkout.

Griffin Coolers are a proven solution for keeping fluid temperatures under control in demanding off-road and race environments. Constructed from heavy duty extruded tube and fin aluminum, the dual-pass core increases fluid contact time for improved heat rejection, while the integrated aluminum shroud and high output SPAL fan ensure consistent airflow even at low vehicle speeds. These coolers are designed to cool transmission fluid, engine oil, differential fluid, and power steering fluid and feature (2) 1/2" NPT female ports on the side for simple plumbing integration into your custom build.

Includes:

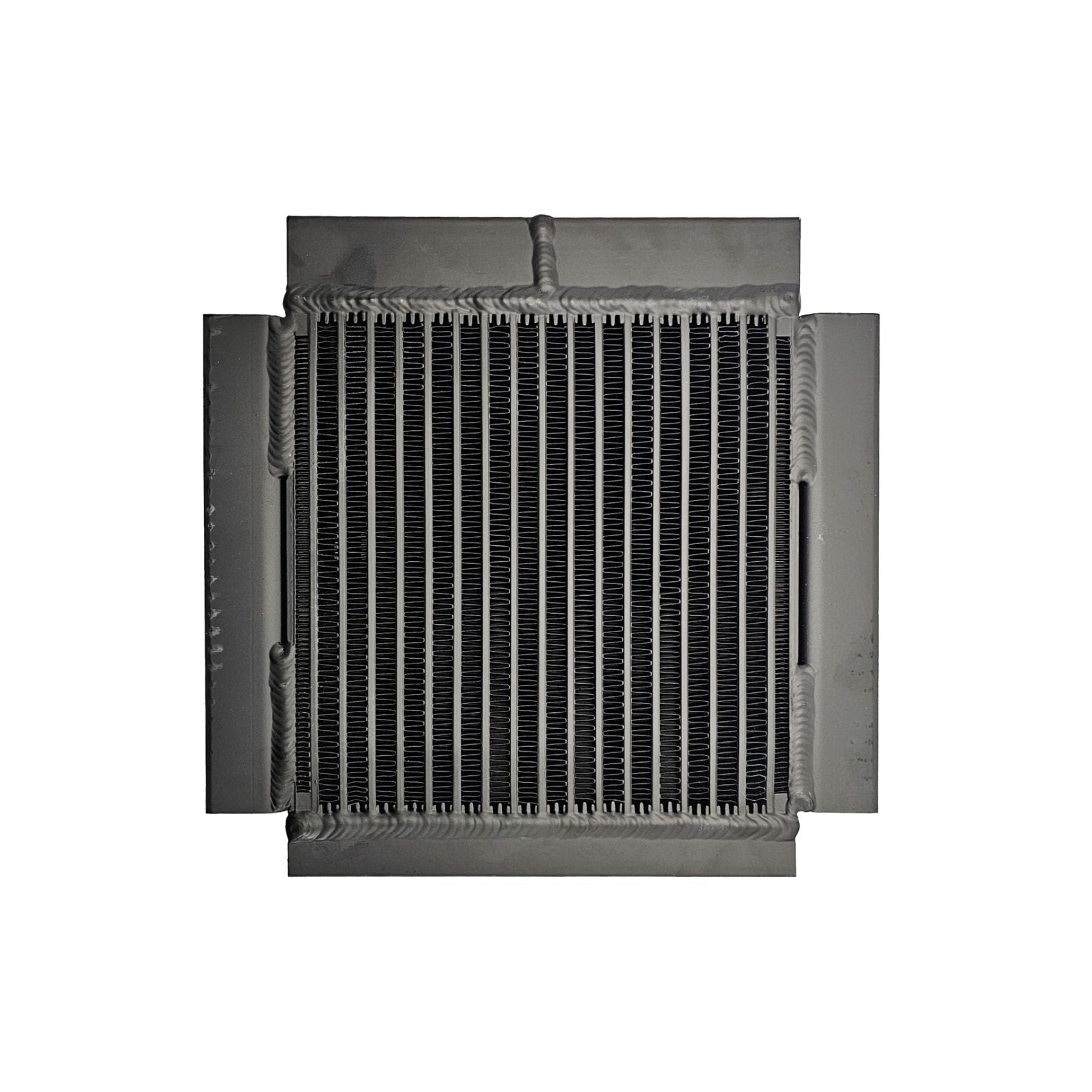

  • Dual-pass extruded aluminum cooler core
  • Integrated aluminum fan shroud
  • 9" SPAL electric fan
  • Mounting brackets
Specifications
  • Finish: Natural
  • Material: Aluminum
  • Radiator Style: Crossflow
  • Core Design: Dual Pass, 1 Row
  • Core Thickness: 1.75"
  • Tube Size: 1.75" Extruded Tube
  • Overall Thickness (with fan): 6.5"
  • Overall Width: 12.06"
  • Overall Height (with brackets): 12.47"
  • Core Width: 9.5"
  • Core Height: 9.47"

Ports:

  • Inlet/ Outlet Location: Either
  • Inlet Size: 1/2" NPT Female
  • Outlet Size: 1/2" NPT Female

Fan:

  • Fan Included: Yes
  • Fan Quantity: 1
  • Fan Diameter: 9"
  • Maximum Fan CFM: 800
  • Blade Color: Black
  • Blade Material: Plastic
  • Shroud Color: Natural
  • Shroud Material: Aluminum
Fitment

Common applications include:

  • LS engine swaps
  • TH400, Powerglide, 4L80E, and 700R4 transmissions
  • Full hydraulic steering systems
  • High load trail and race applications
    Note: For a dedicated race rig or running higher horsepower and sustained load conditions, the Large Race Cooler is the recommended choice.
Tech Insight

Heat is one of the leading causes of fluid breakdown and component failure in off-road vehicles. The dual pass extruded core increases fluid contact time within the cooler, improving heat rejection compared to standard tube and fin designs.

The integrated SPAL fan and aluminum shroud direct airflow evenly across the entire core surface, ensuring consistent cooling performance even during slow speed rock crawling or technical trail sections.
