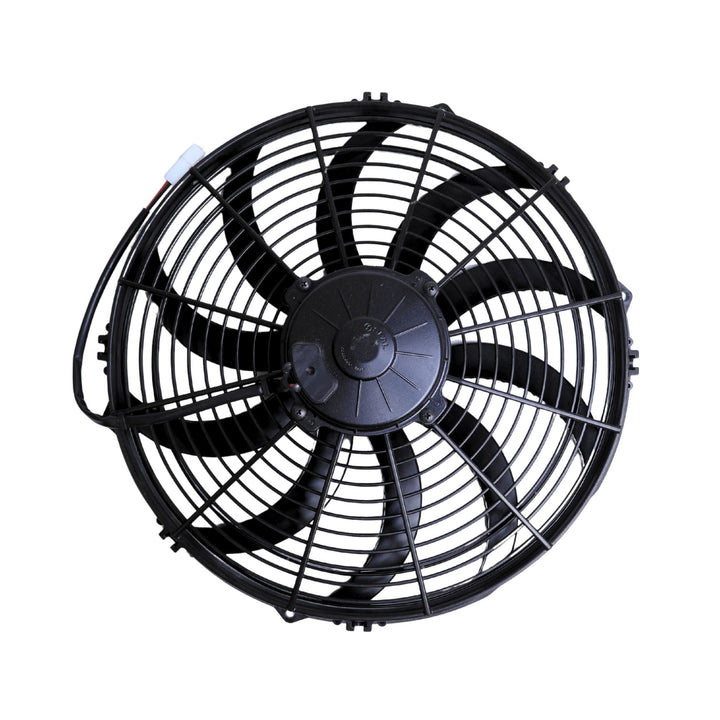

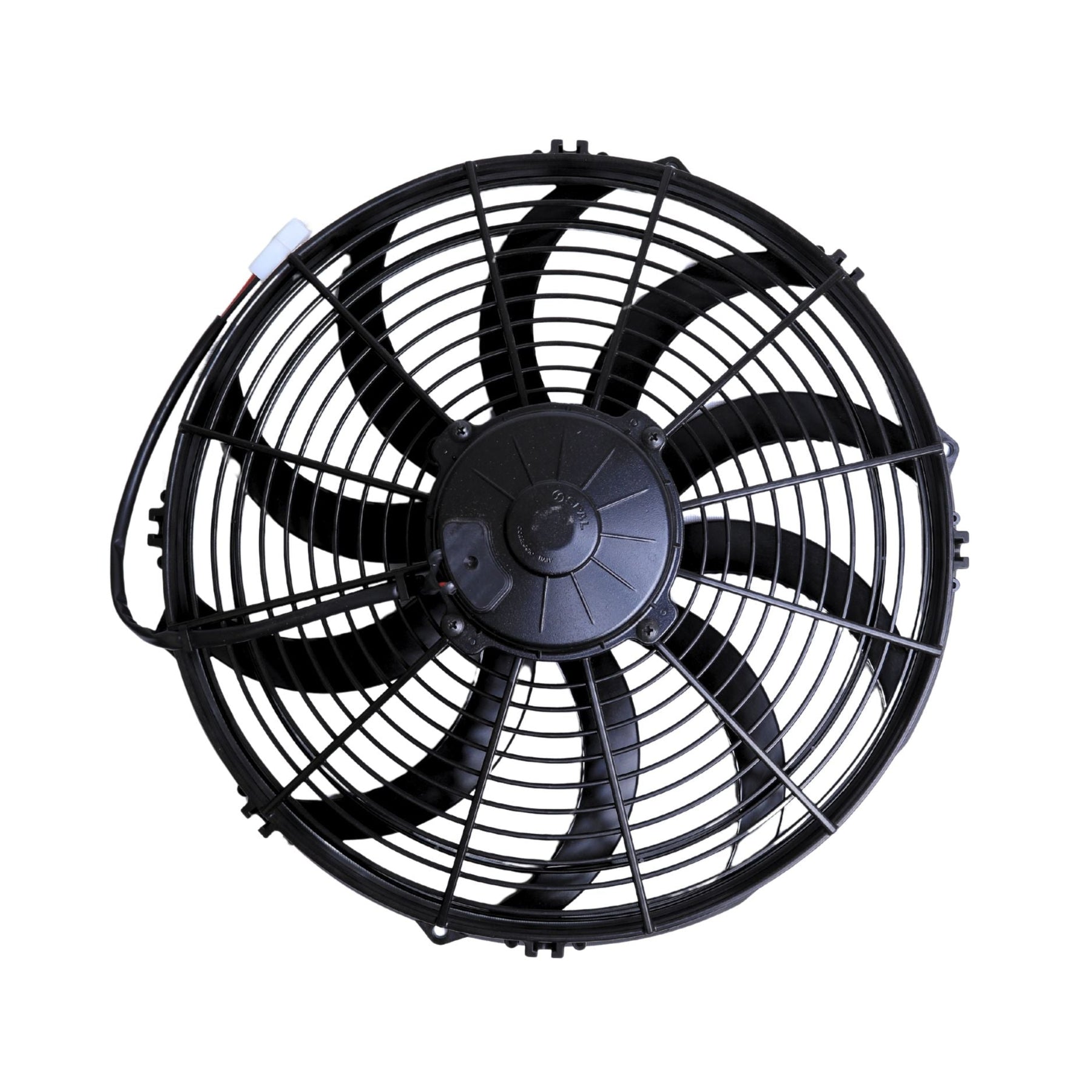

SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V
SPAL 14" Electric Radiator Fan – 1864 CFM – 12V

SPAL 14" Electric Radiator Fan – 1864 CFM – 12V

30102042

$207.19
/
Shipping calculated at checkout.

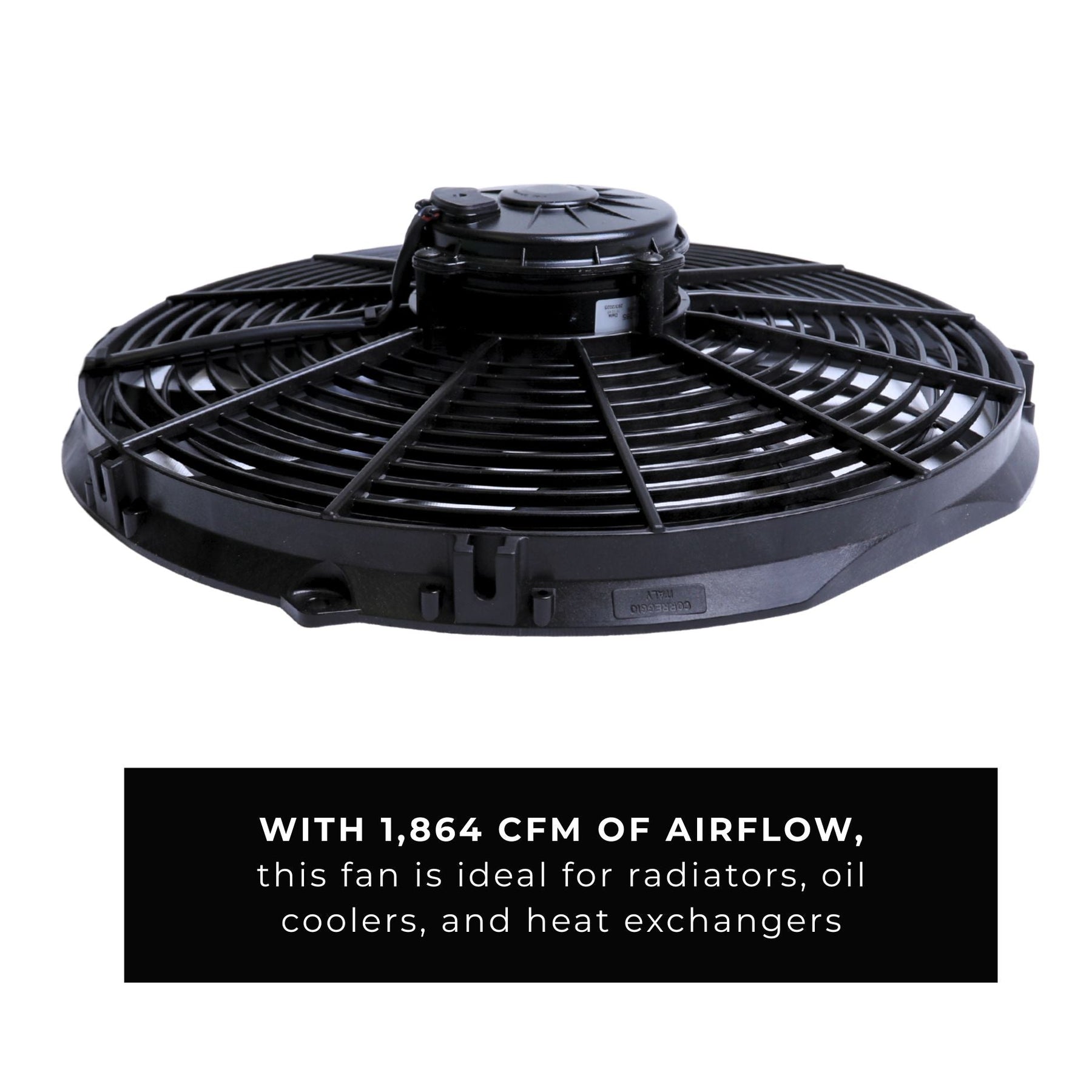

The SPAL 14" Electric Radiator Puller Fan is a curved blade fan that delivers reliable cooling performance for demanding automotive and off-road applications. Producing up to 1,864 CFM of airflow, this 12-volt puller fan is ideal for radiators, oil coolers, heat exchangers, and tight cooling packages where efficient airflow is critical to maintaining proper engine temperature.

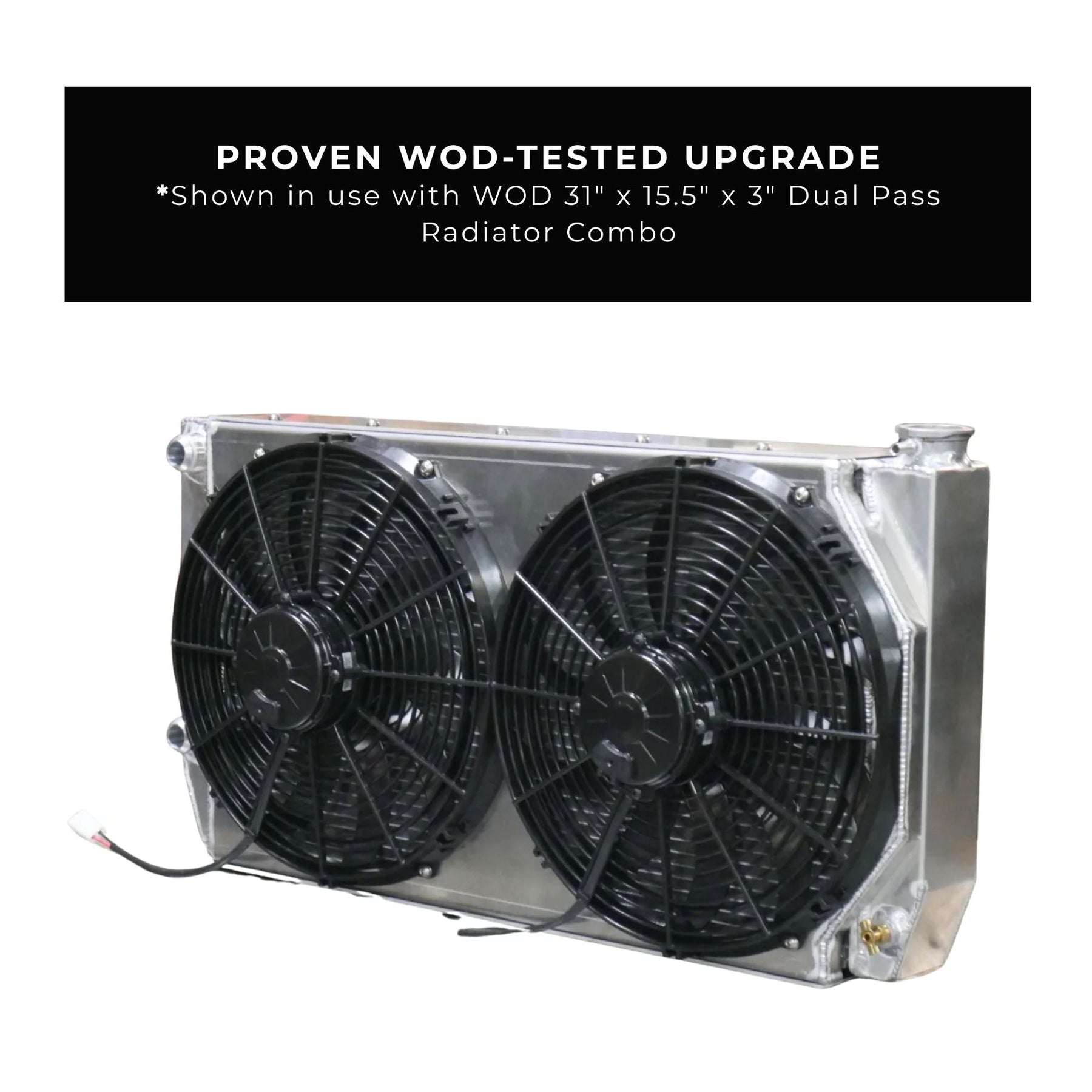

After extensive testing with different electric fans across the market, this SPAL curved blade puller fan has delivered the best results we have seen in a 14" fan. Because of that real-world performance, this is the fan we use in our WOD 31" x 15.5" x 3" Dual Pass Radiator Combo cooling package for LS/LT applications, including -16 AN radiator combo setups.

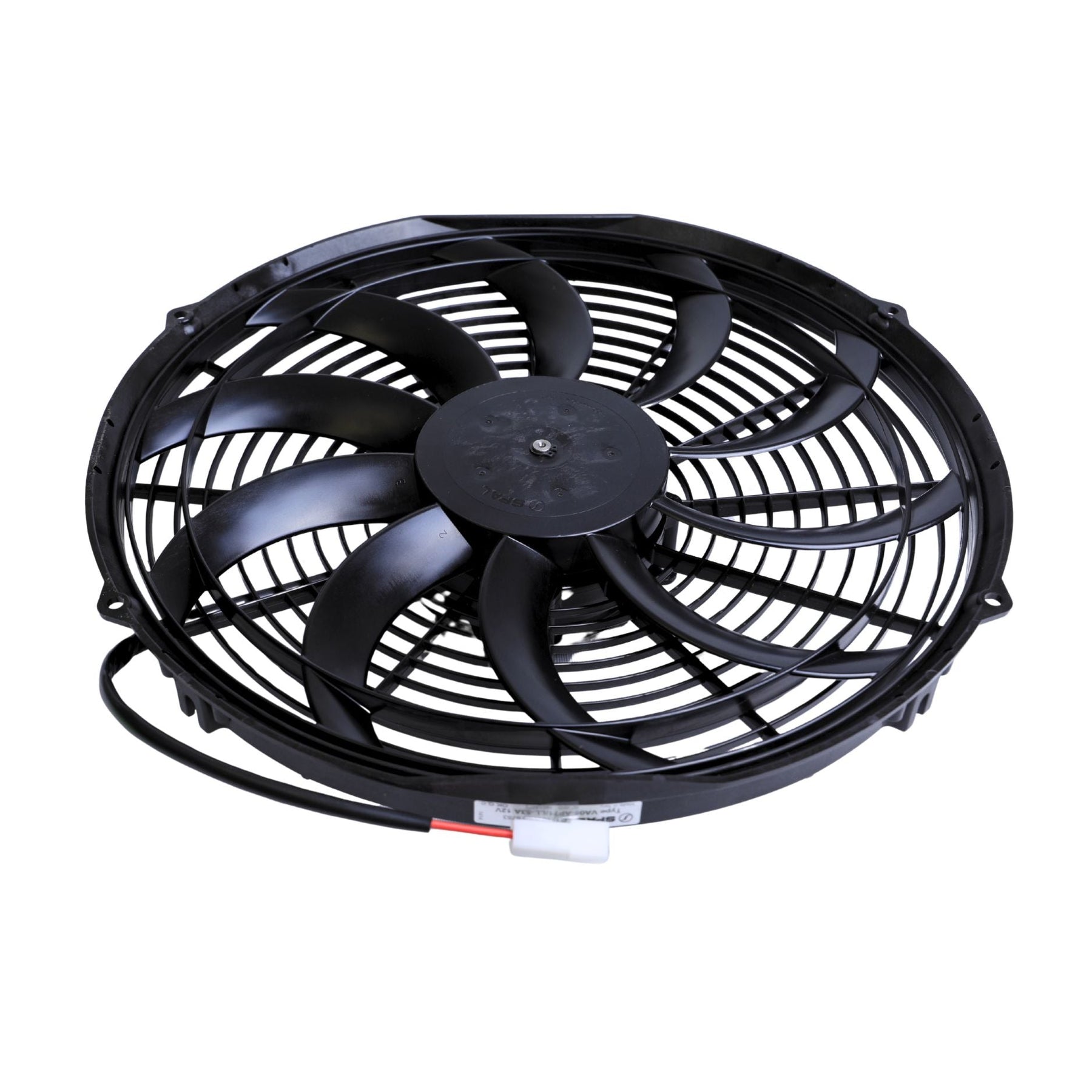

Built with SPAL’s patented motor design and curved blade technology, this fan provides high airflow while minimizing noise and improving efficiency. The sealed motor is rated to IP68 standards, making it waterproof and dustproof for dependable operation in extreme environments such as off-road racing, rock crawling, and high performance street builds.

Includes

  • (1) SPAL 14" Curved Blade Electric Puller Fan (P/N 30102042)
  • FRPT electrical connector

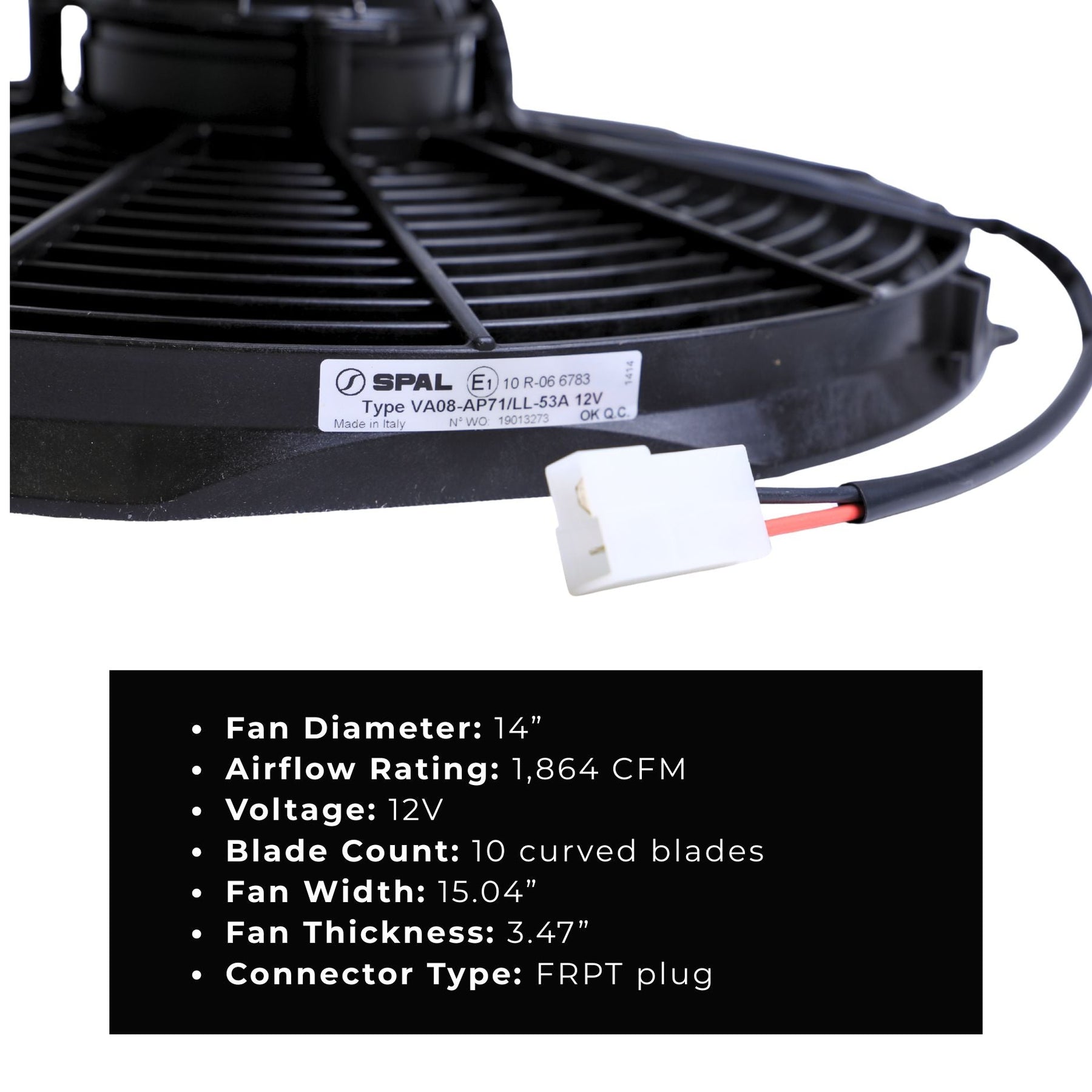

Specifications

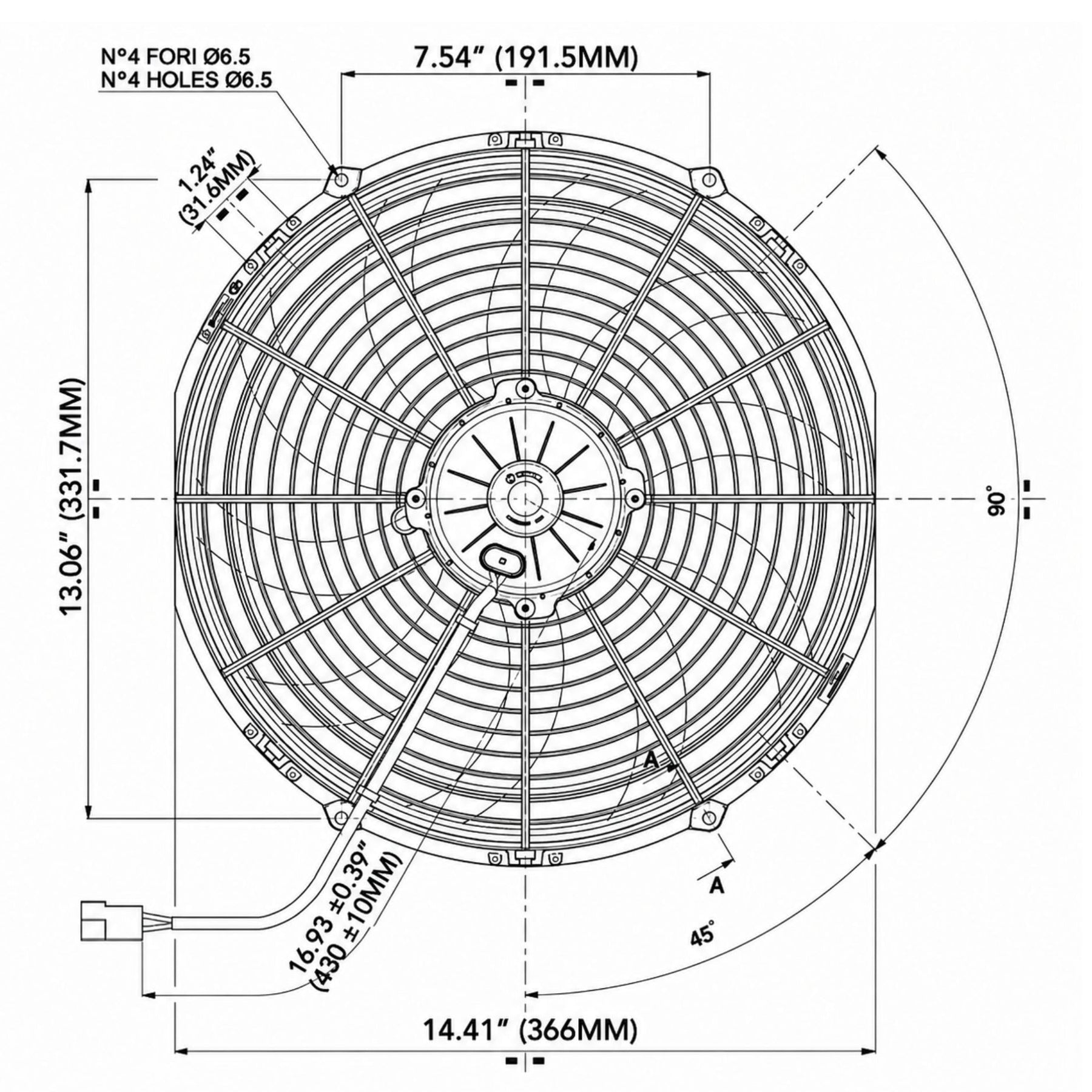

  • Fan Diameter: 14”
  • Airflow Rating: 1,864 CFM
  • Fan Type: Curved Blade Puller
  • Voltage: 12V
  • Motor Type: Sealed electric motor
  • Amp Draw: 19.5 amps
  • Static Pressure Rating: 1,864 CFM at 0 static pressure

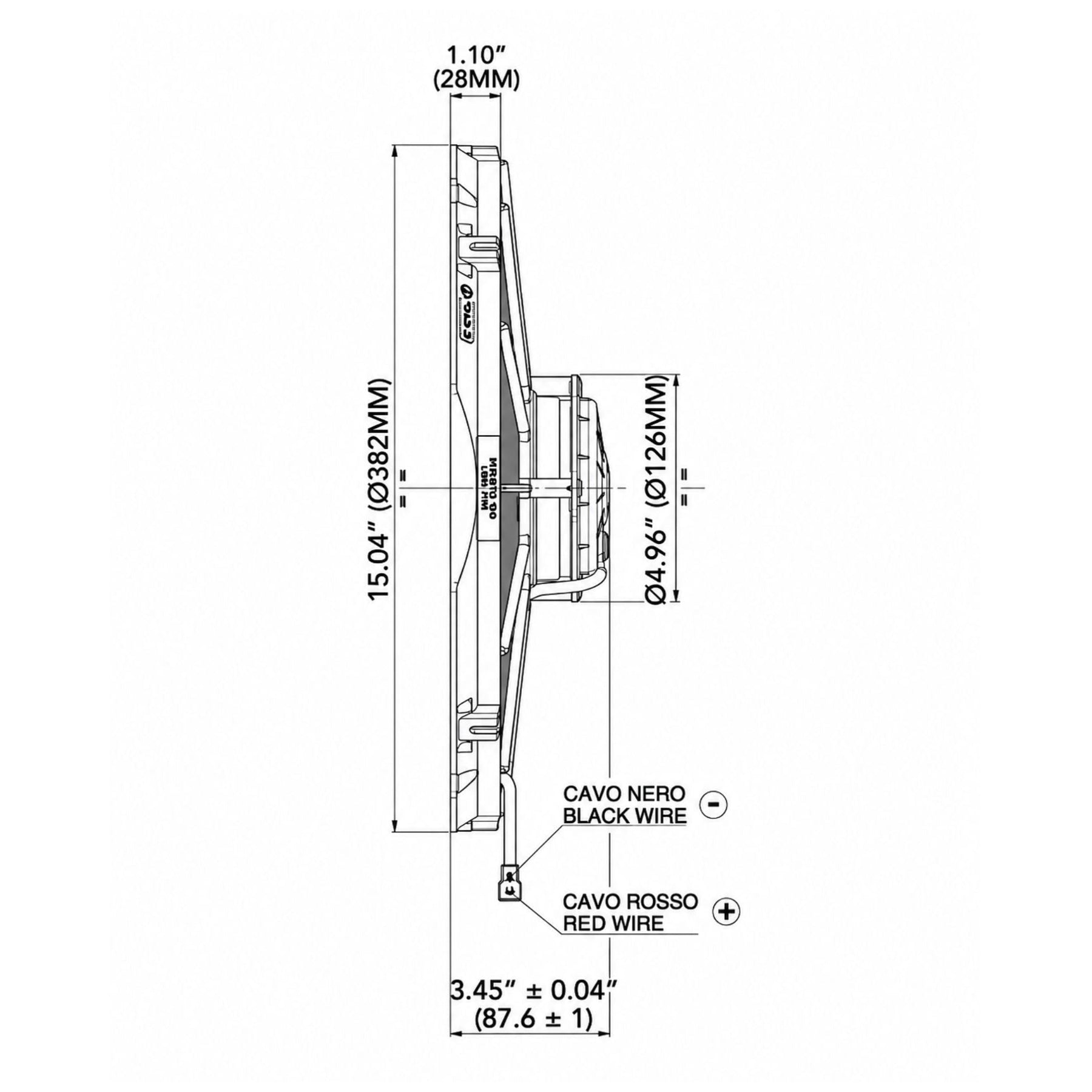

  • Fan Height: 15.04”
  • Fan Width: 15.04”
  • Fan Thickness: 3.47”
  • SPAL P/N: 30102042
  • Connector Type: FRPT plug
  • Waterproof Rating: IP68 sealed motor
  • Mounting Hardware Included: No
  • Mounting Brackets Included: No
  • Used in WOD 31" x 15.5" x 3" Dual Pass Radiator Combo packages
Fitment
  • Works well in off-road, racing, rock crawler, buggy, UTV, and high-performance street builds
  • Used by WOD in 31" x 15.5" x 3" Dual Pass Radiator Combo cooling packages
  • Compatible with WOD -16 AN LS/LT radiator combo applications
  • Mounting and wiring requirements may vary by application
  • Verify fan diameter, depth, airflow direction, shroud fitment, and available clearance before installation
  • Compatible with universal radiator mounting brackets and fan shrouds
Tech Insight

In a real cooling system, fan performance is about more than the advertised CFM number. Radiator core thickness, shroud design, blade efficiency, motor strength, and available airflow all affect how well a fan controls engine temperature under load.

This SPAL 14" curved blade puller fan has become our preferred fan after testing multiple options across the market. It has shown the best overall results in our WOD 31" x 15.5" x 3" Dual Pass Radiator Combo package, making it a strong choice for high-heat LS/LT swaps, rock crawlers, race vehicles, trail rigs, and custom off-road builds.
