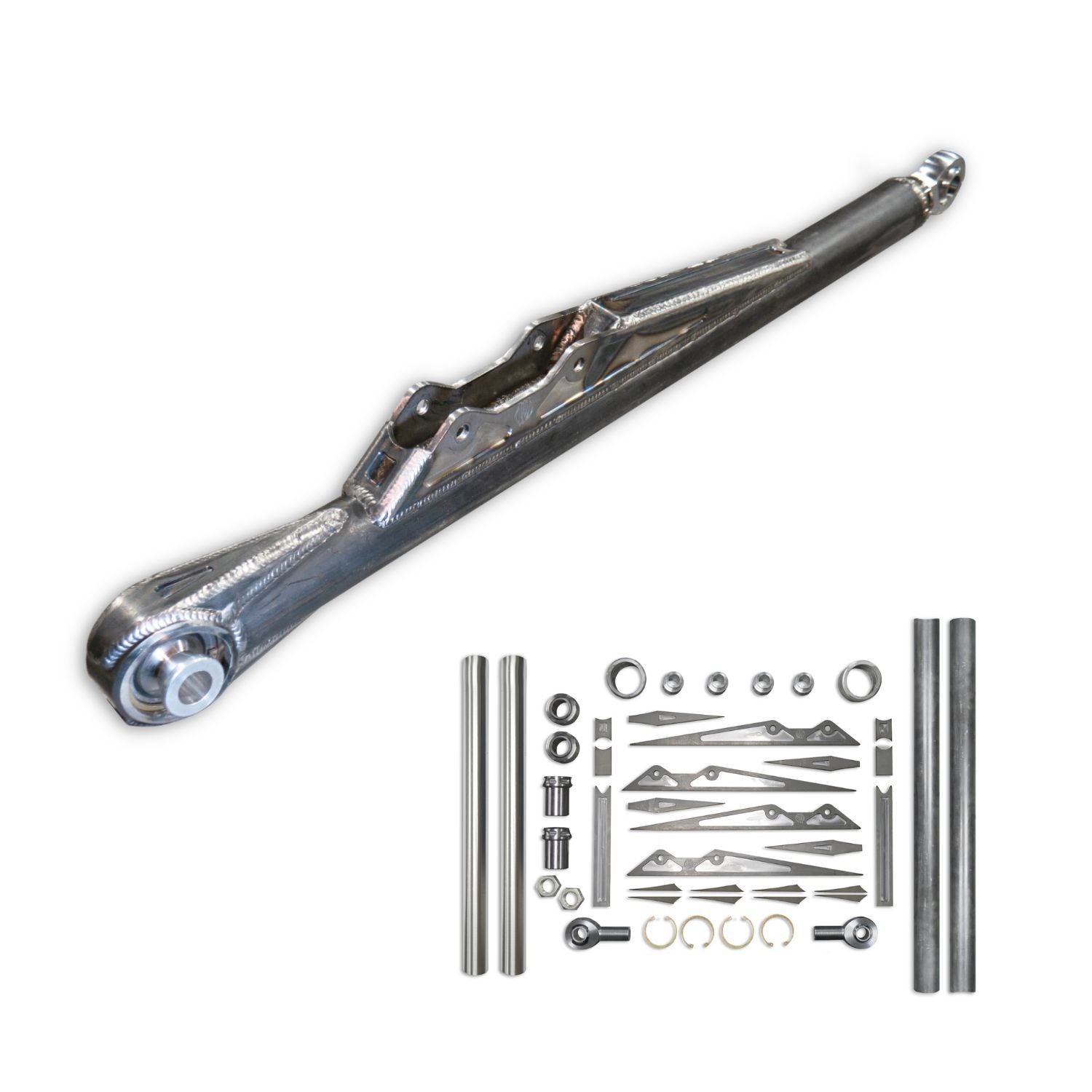

Detailed view of a 40-inch long travel trailing arm DIY kit with various components on a white background.
off-road trailing arm with 7075 aluminum insert on a white background

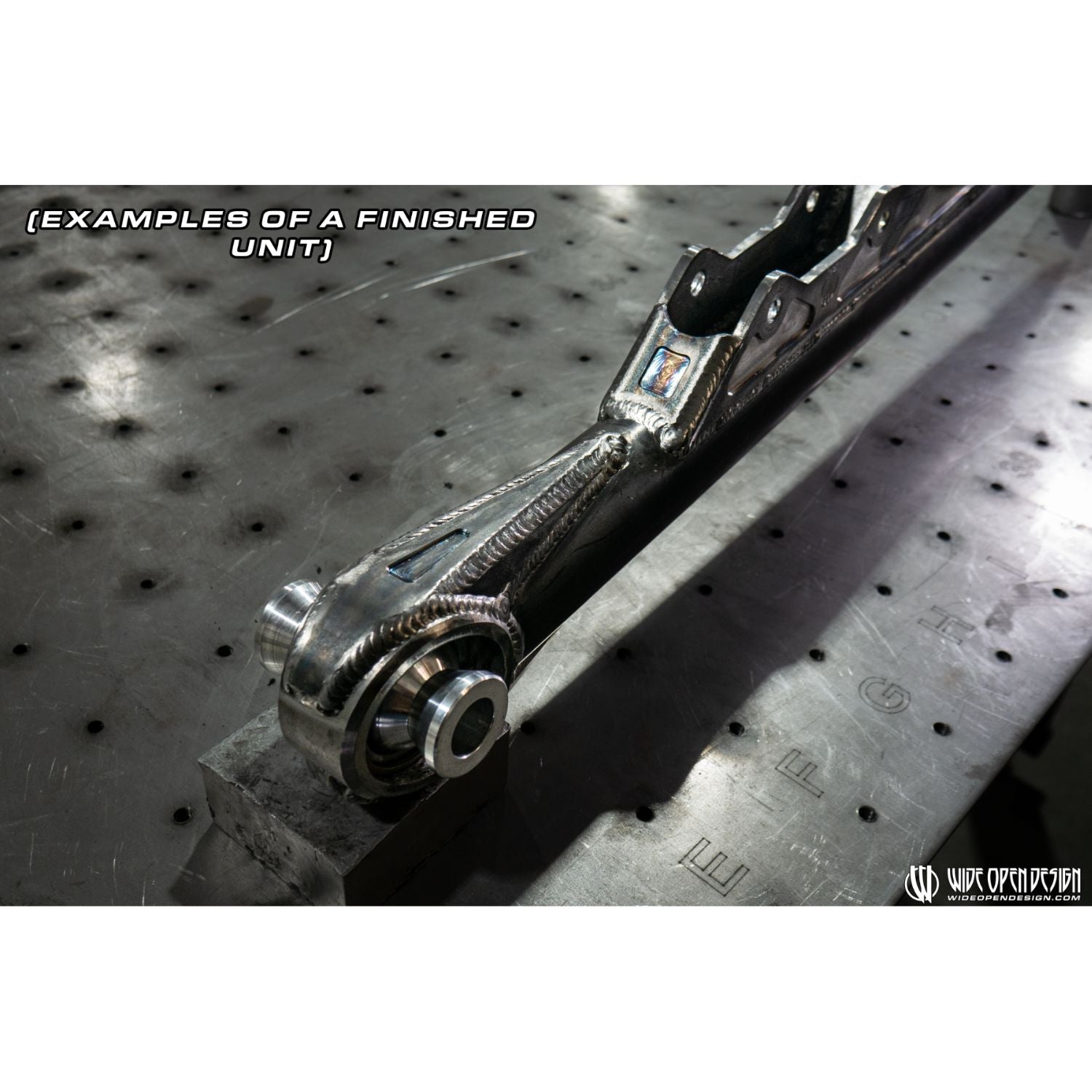

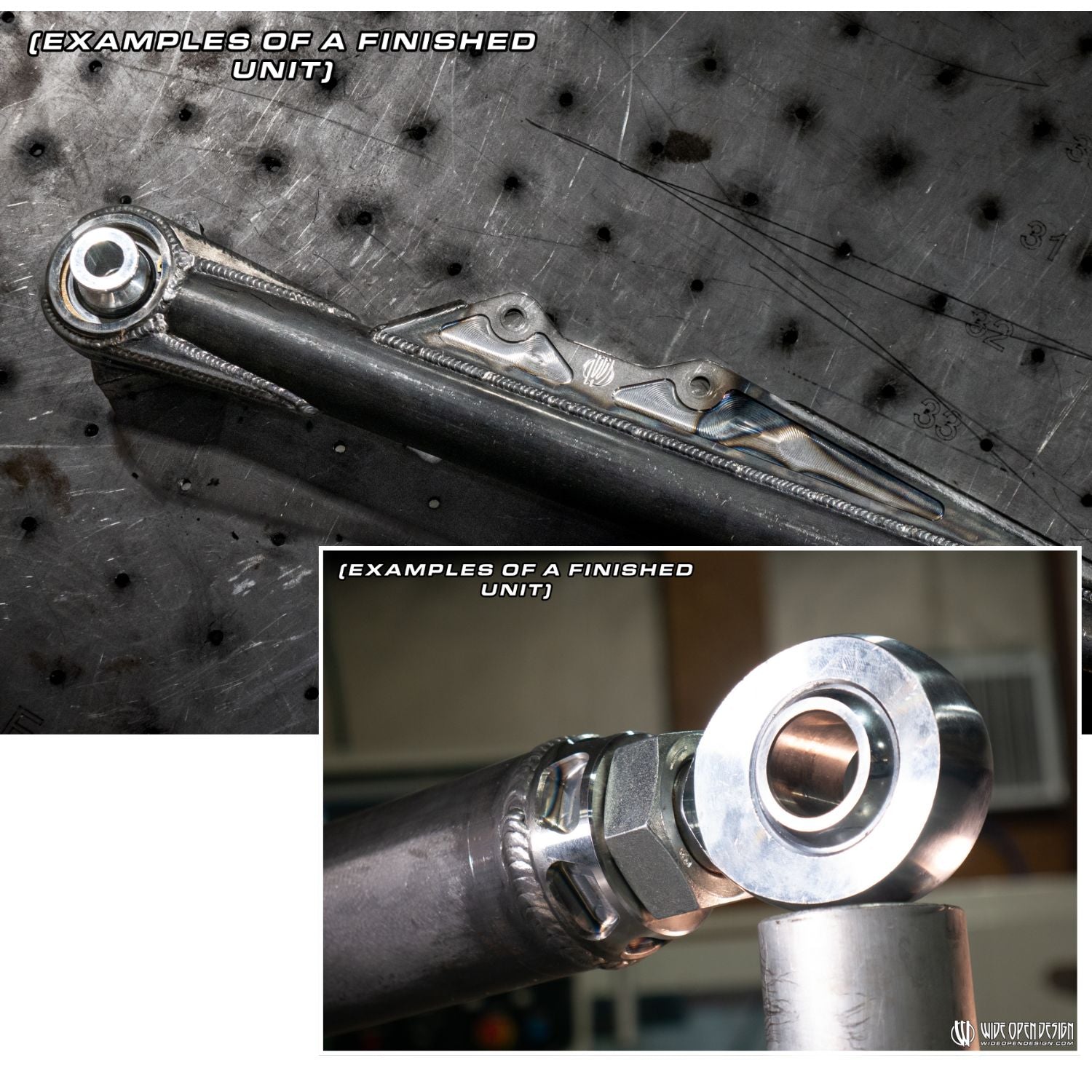

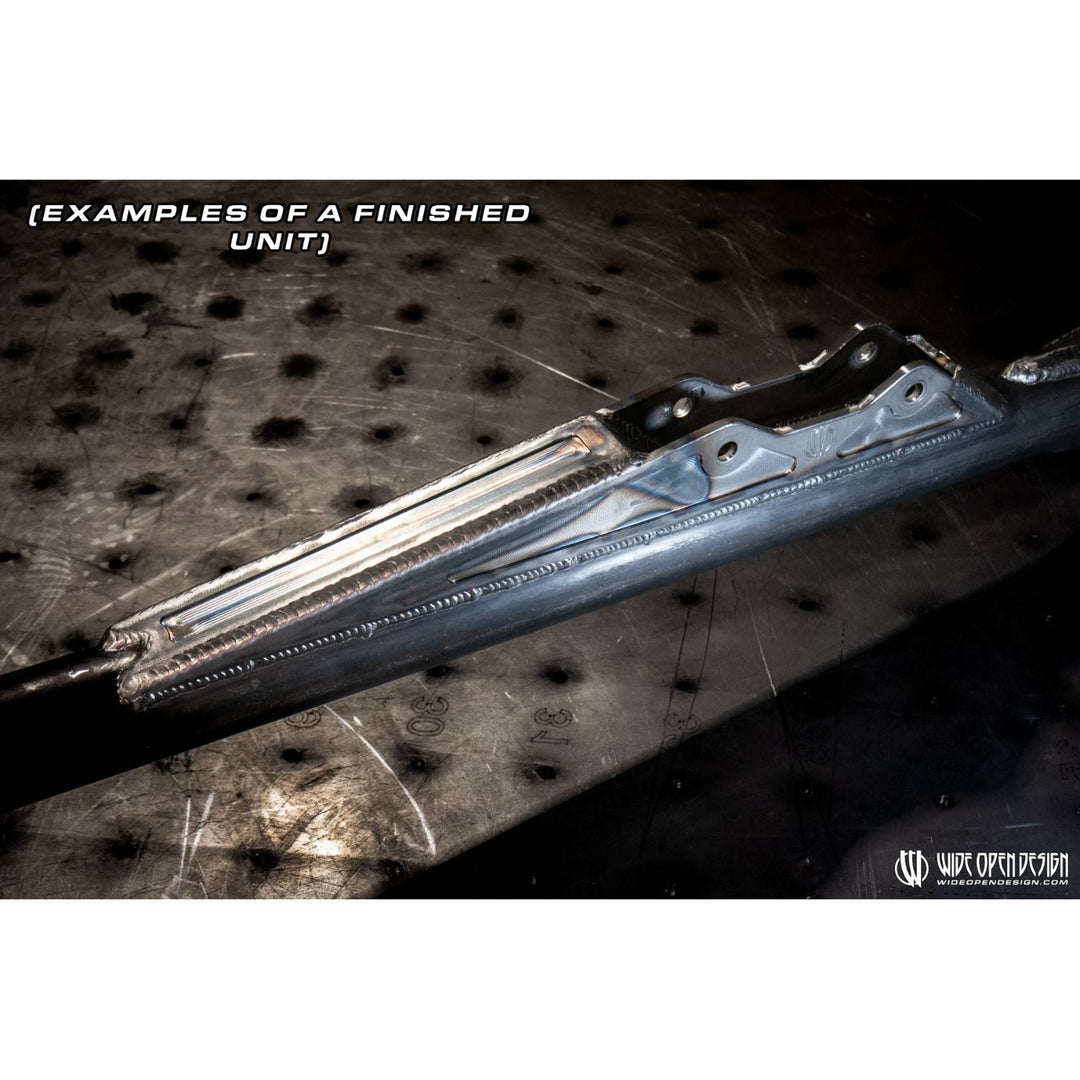

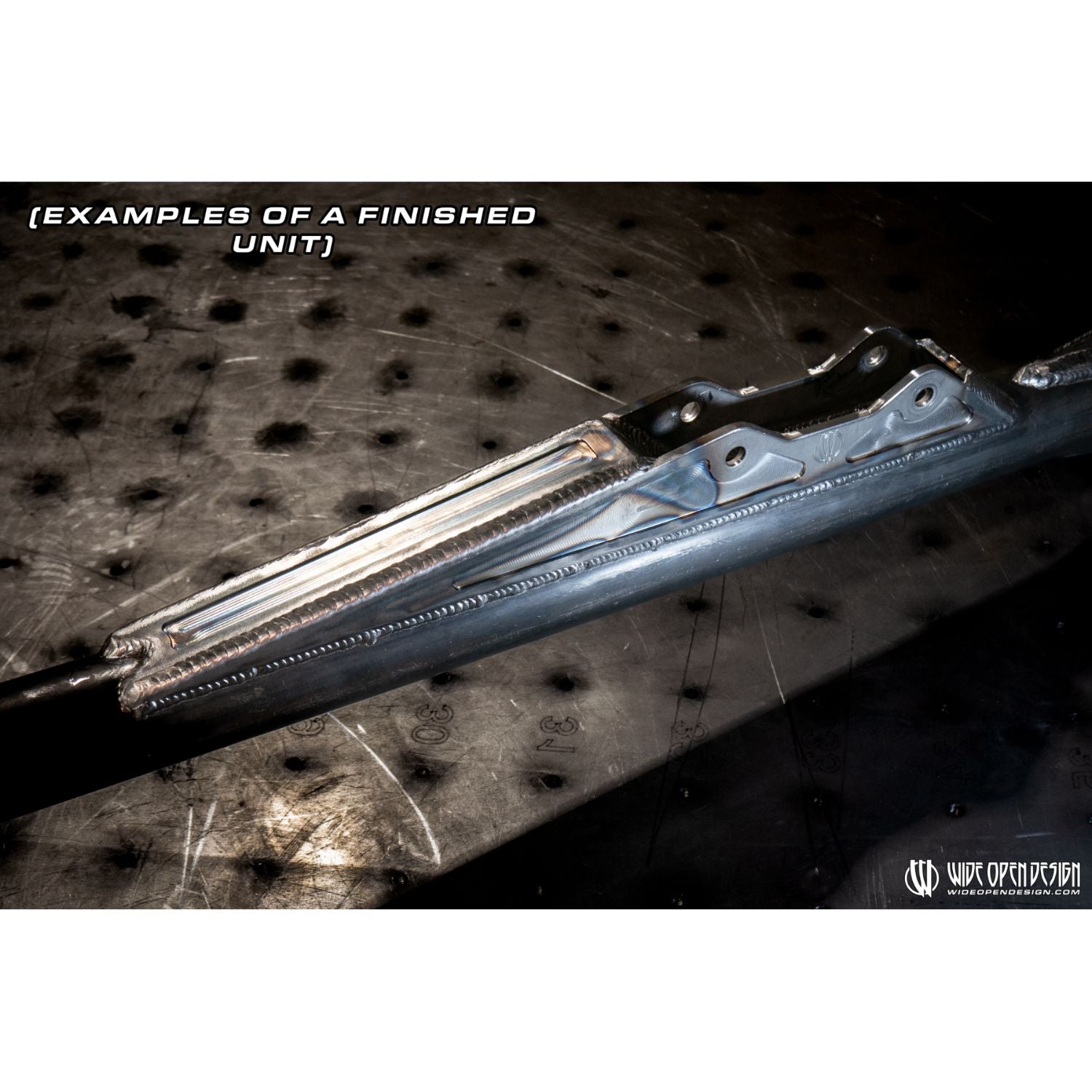

Close-up of rock crawler long travel trailing arm on a metal surface with text indicating examples of a finished unit.
WOD Tube Trailing Arm – 2.5" x 40" DOM (DIY Kit)
WOD Tube Trailing Arm – 2.5" x 40" DOM (DIY Kit)
2.5 inch DOM trailing arm 48 inch with additional components on a white background
Detailed view of a 40-inch long travel trailing arm DIY kit with various components on a white background.
off-road trailing arm with 7075 aluminum insert on a white background
Close-up of rock crawler long travel trailing arm on a metal surface with text indicating examples of a finished unit.
WOD Tube Trailing Arm – 2.5" x 40" DOM (DIY Kit)
WOD Tube Trailing Arm – 2.5" x 40" DOM (DIY Kit)

WOD Tube Trailing Arm – 2.5" x 40" DOM (DIY Kit)

WA01042-40

$1,499.99
/
Shipping calculated at checkout.

The Wide Open Design Tube Trailing Arm – 2.5" x 40" DOM is a rugged, versatile DIY trailing arm kit engineered for high performance off-road suspension systems. Built around a 2.5" O.D. x 0.25" wall DOM steel tube and paired with a precision machined 7075 aluminum internal insert, this kit delivers exceptional strength, reduced weight, and maximum articulation.

Designed to work seamlessly with coil-over and bypass shock systems, the kit features premium suspension hardware: a 1.25" shank x 1" bolt rod end up front and a heavy duty chromoly bearing at the rear. Custom high misalignment spacers are included to unlock extreme articulation while maintaining durability and control.

THIS IS A DIY KIT — COMPONENTS DO NOT COME PRE-ASSEMBLED

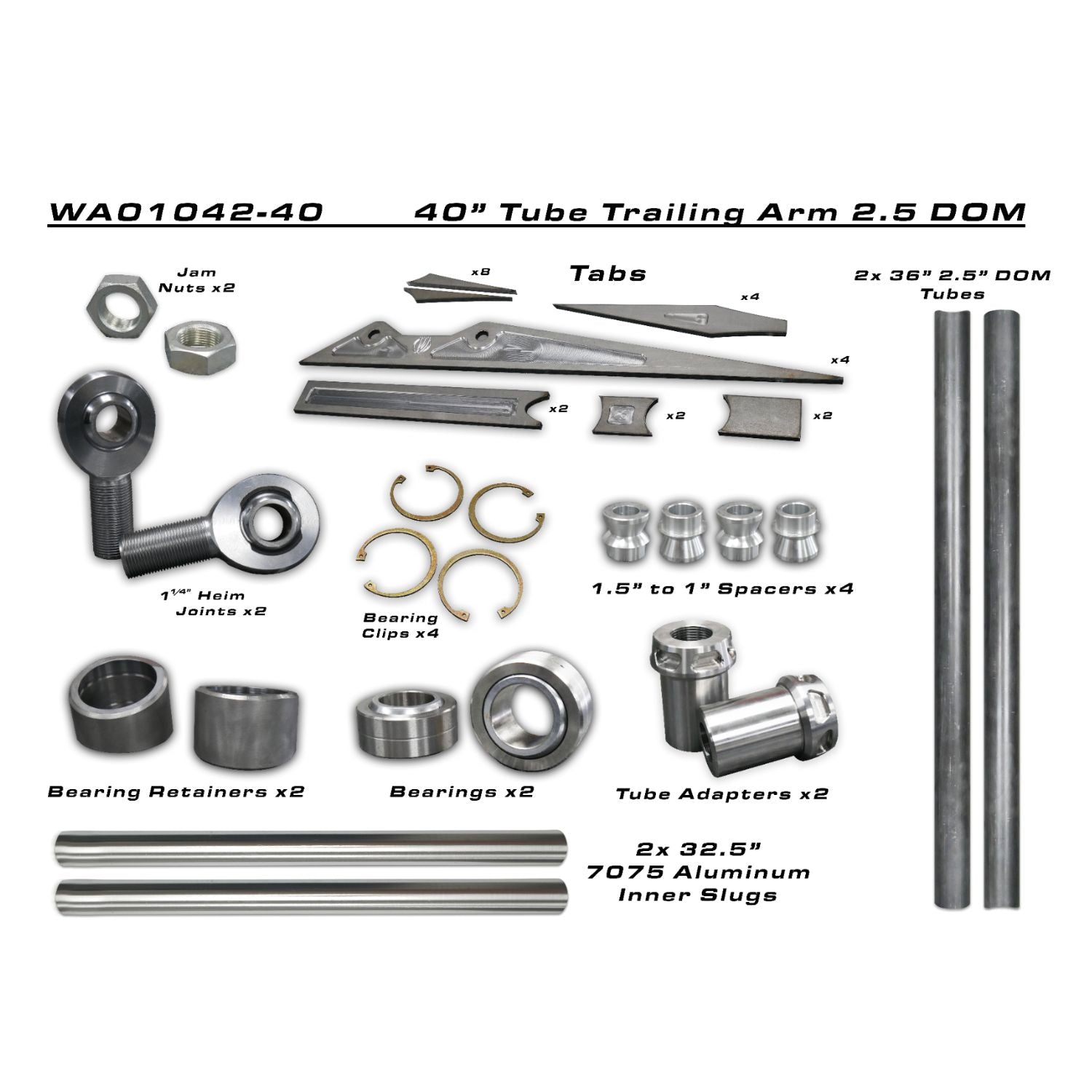

Includes:

  • 2.5" O.D. x 40" Length x 0.25" Wall DOM steel tube
  • Precision fit 7075 aluminum internal insert
  • Front rod end: 1.25" shank x 1" bolt
  • Rear bearing: Chromoly 2.75" O.D. x 1.5" I.D.
  • Custom high misalignment spacers (1" bolt compatible)
Specifications
  • Tube Material: DOM Steel
  • Tube OD: 2.5"
  • Wall Thickness: 0.25"
  • Length: 40"
  • Internal Insert: 7075 Aluminum, 2" diameter
  • Front Joint: 1.25" shank rod end, 1" bolt
  • Rear Joint: Chromoly bearing, 2.75" O.D. x 1.5" I.D.
  • Assembly: DIY / builder-welded
  • Application: Coil-over and bypass shock systems
Fitment
  • Universal off-road trailing arm applications
  • Rock crawlers, buggies, trail rigs, and race vehicles
  • Welding and fabrication required
Tech Insight

This trailing arm kit blends the brute strength of thick wall DOM tubing with the weight savings and rigidity of a 7075 aluminum insert. The result is a suspension arm that resists bending under extreme loads while remaining responsive over rough terrain. Dual mounting holes allow flexibility for shock and sway bar placement, and the premium rod end, chromoly bearing, and high misalignment spacers ensure smooth articulation without sacrificing reliability.
