Name: Chromoly Rod Ends - 3/4" Hole with 7/8"-14 Shank
Brand: Wide Open Design
SKU: XMR12-14
Price: 19.3 USD
Availability: InStock

Chromoly Rod Ends - 3/4" Hole with 7/8"-14 Shank

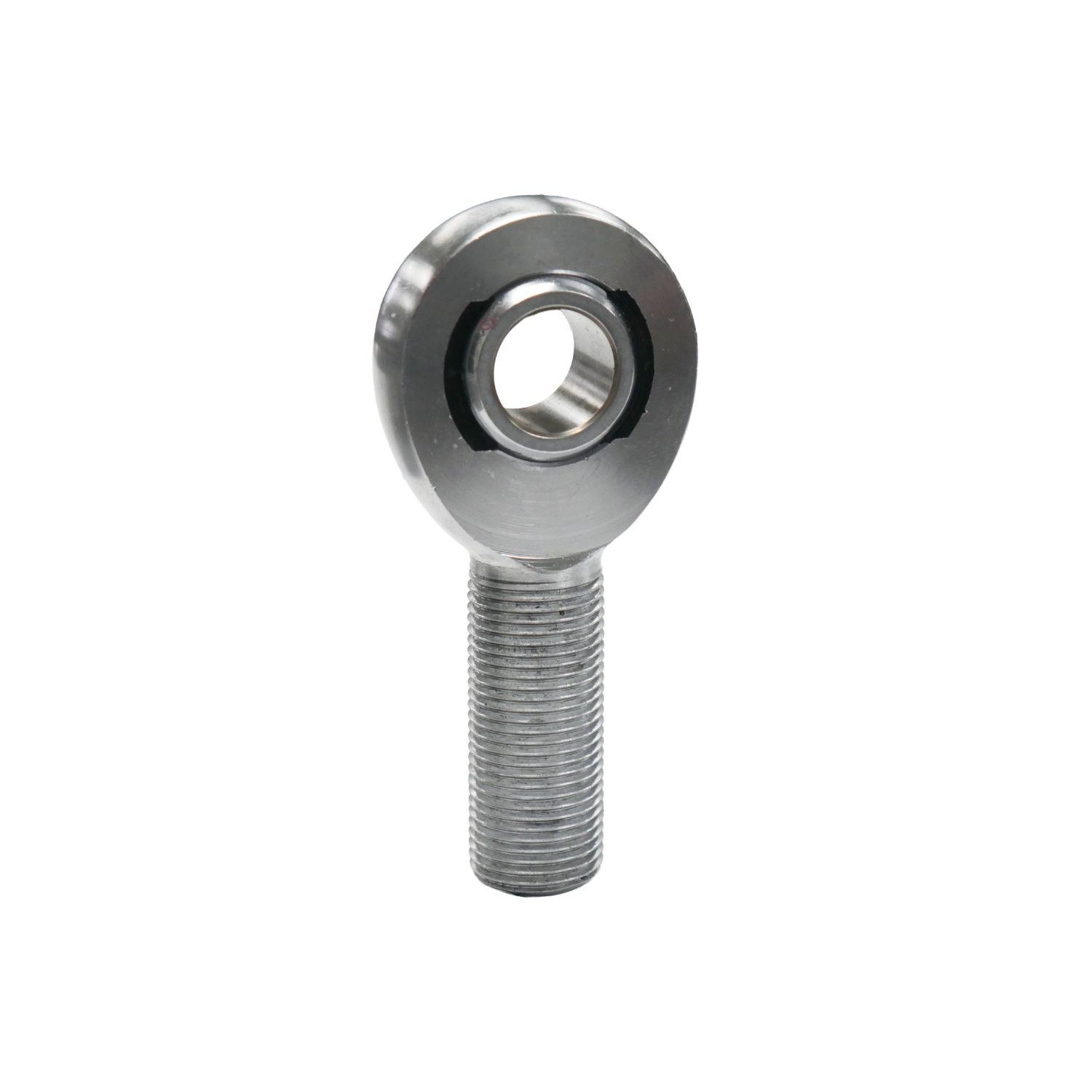

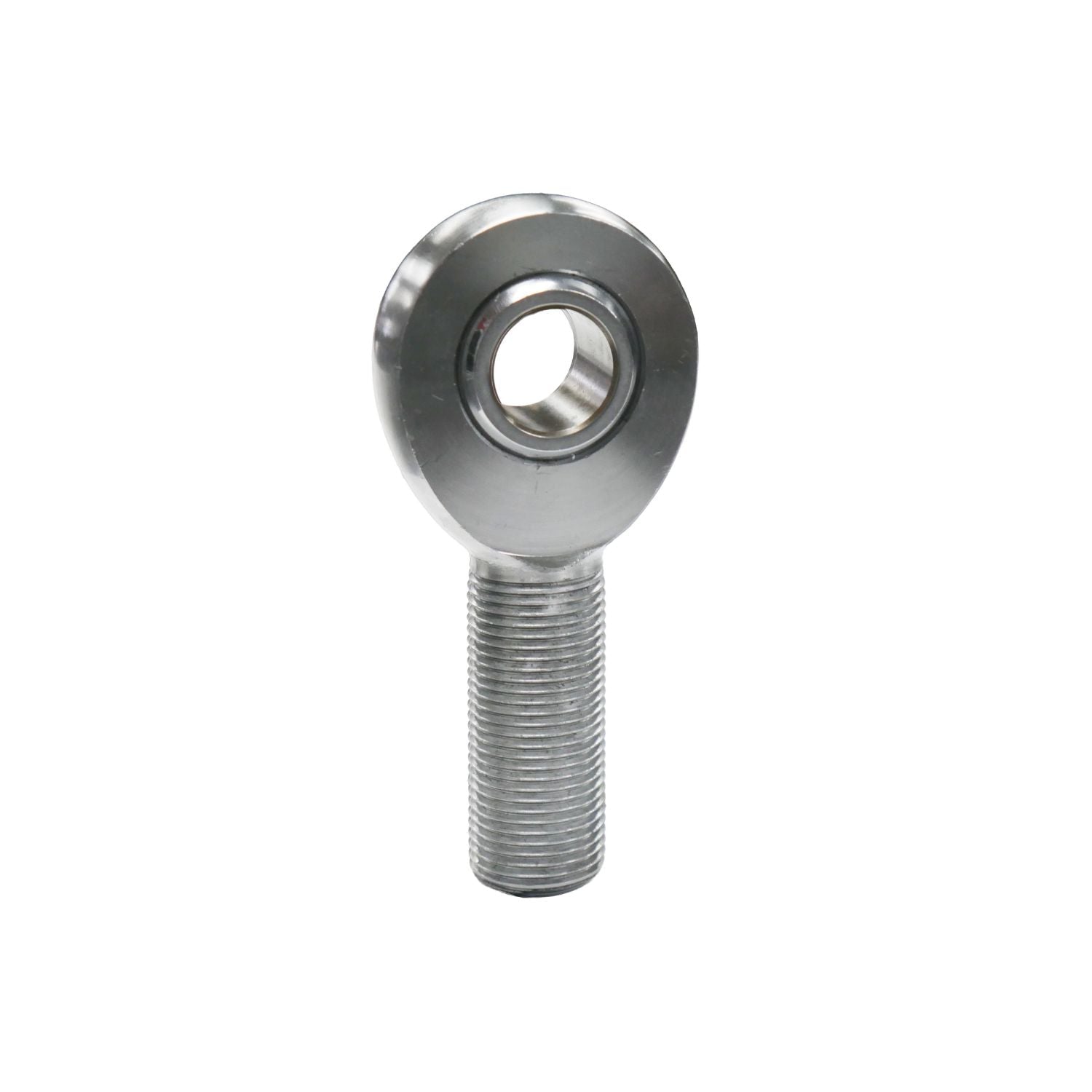

Chromoly rod ends with threaded shaft on a white background

$19.30

Shipping calculated at checkout.

Quantity

For the ultimate in performance rod ends, look no further than these Chromoly Steel Series male rod ends. Built for strength, durability, and long service life, these heavy duty rod ends are commonly used in four-link and ladder bar applications where reliability under load is critical.

These rod ends feature a self sealing, self-lubricating Nylon/PTFE injection molded race that keeps dirt and debris out while providing smooth, consistent articulation. This design reduces wear and maintenance compared to traditional metal-on-metal rod ends, making them ideal for demanding off-road and performance environments.

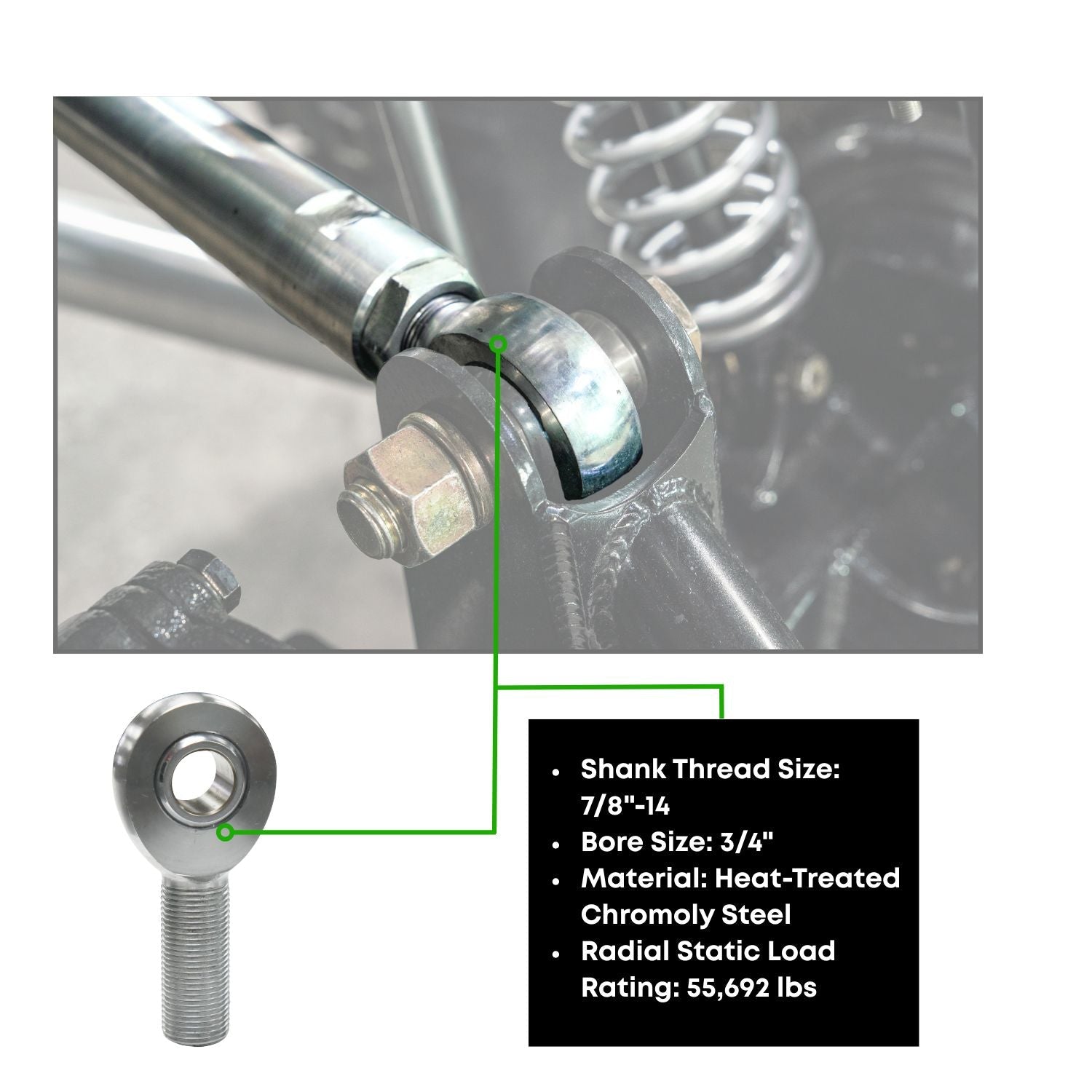

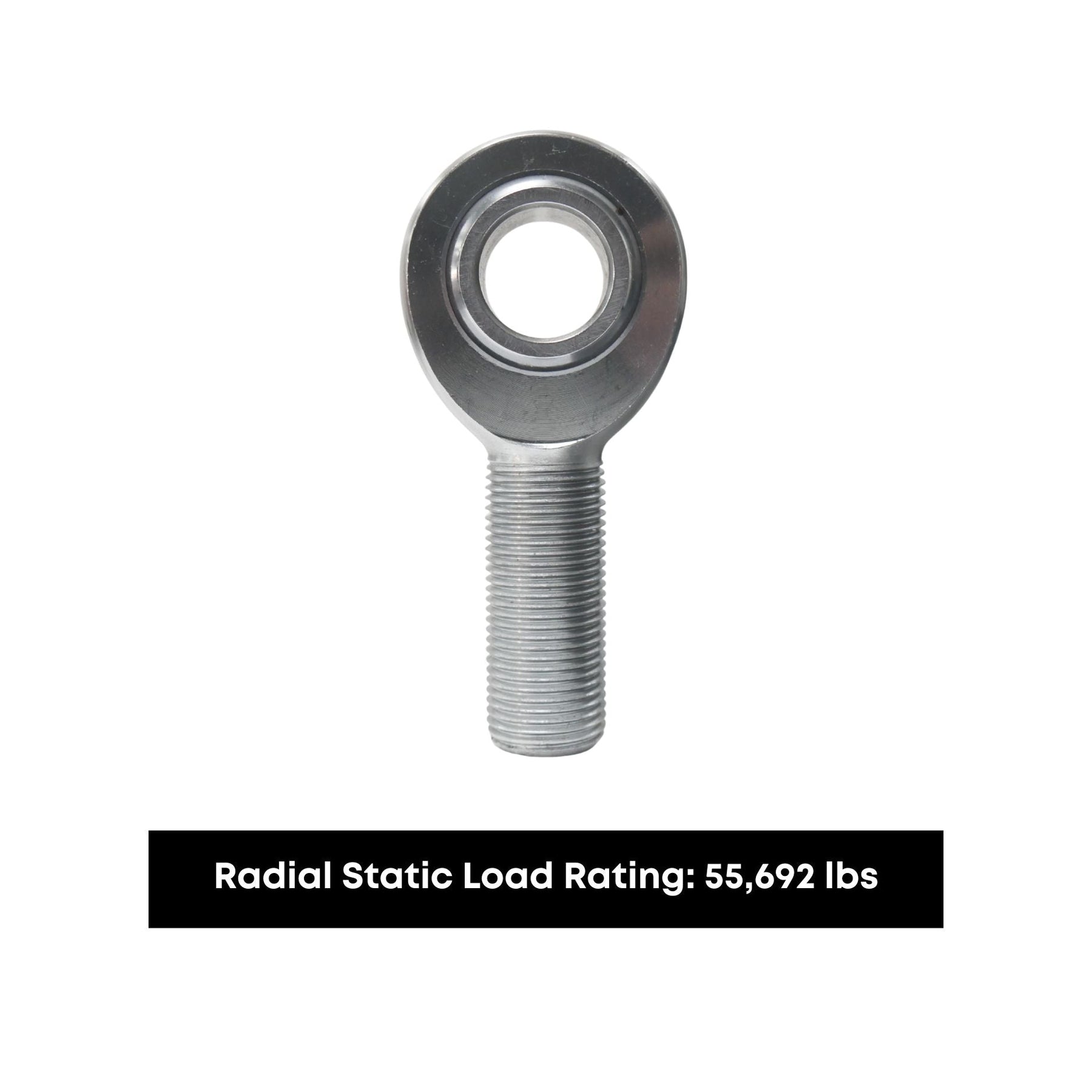

Radial Static Load Rating: 55,692 lbs

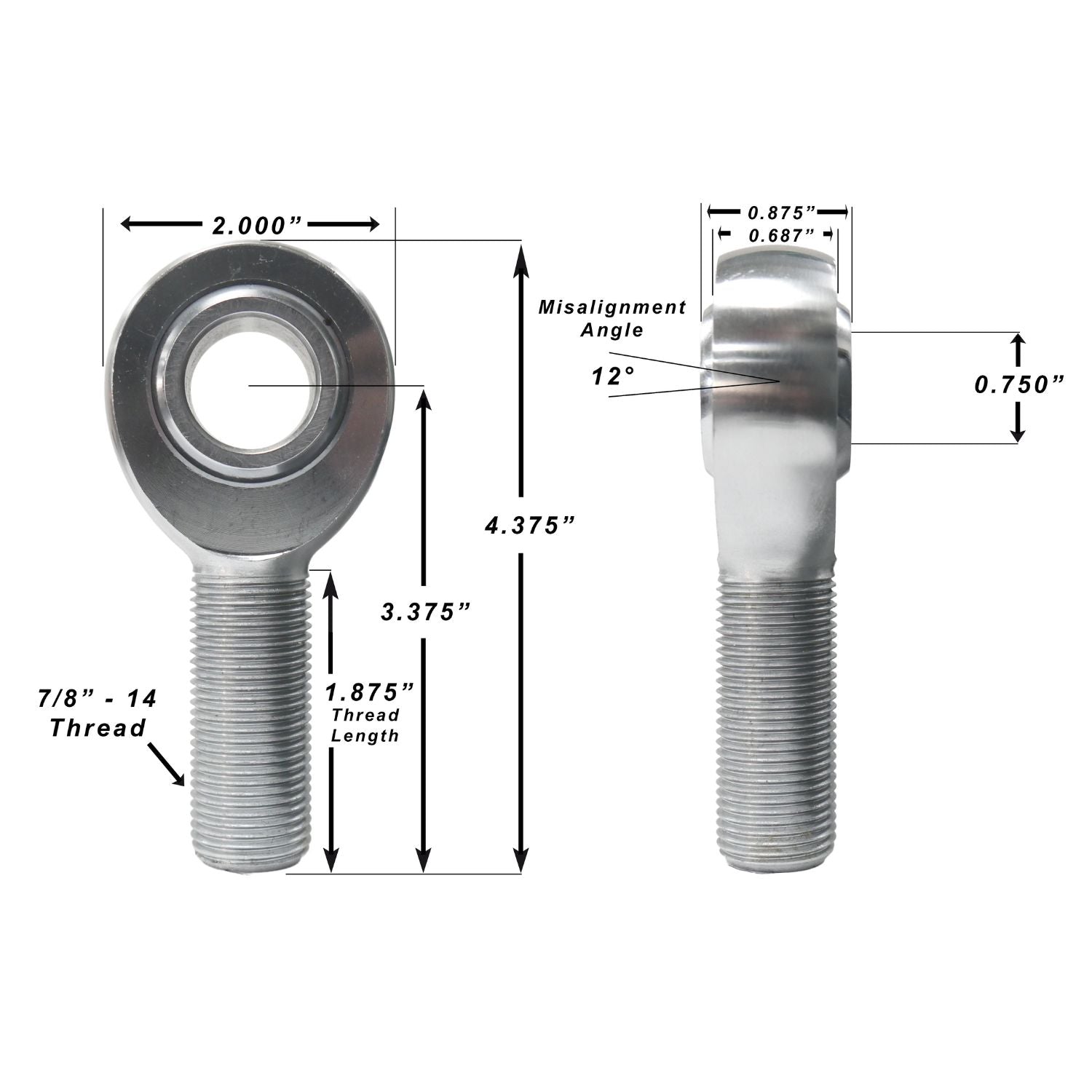

Shank Thread Size: 7/8"-14
Bore Size: 3/4"
Body Material: Chromoly Steel (Heat Treated)
Ball Material: 52100 Bearing Steel (Heat Treated)
Ball Finish: Hard Chrome Plated, Precision Ground
Race Material: Nylon/PTFE (Self-Lubricating & Self-Sealing)
Corrosion Resistance: Protective Coating
Radial Static Load Rating: 55,692 lbs

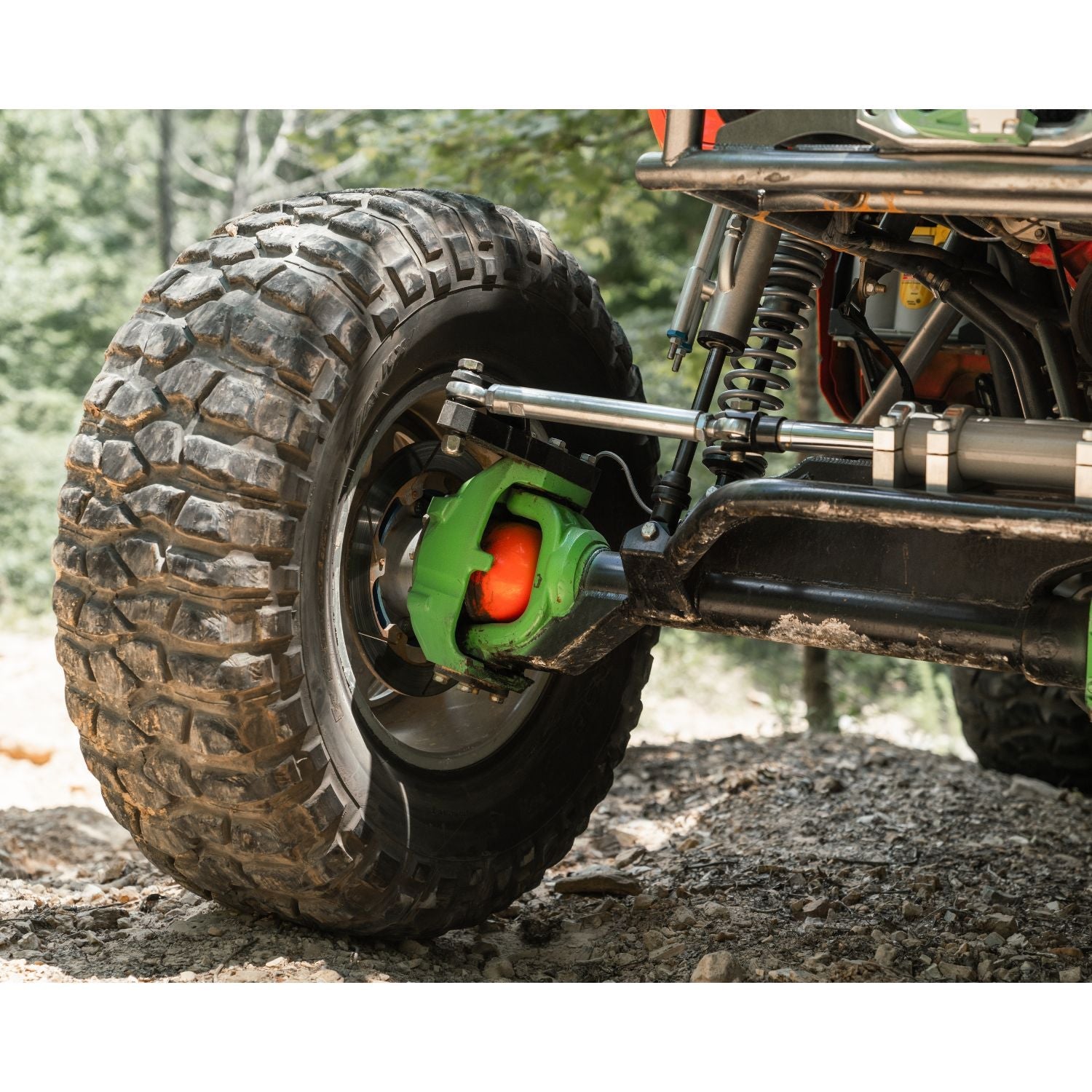

Four-link suspension systems
Ladder bars
Custom suspension and chassis fabrication
Off-road, performance, and race applications

Running a 7/8-14 shank with a 3/4 bore is a go to upgrade for builders who want increased strength and fatigue resistance while keeping common 3/4 mounting hardware. These rod ends are designed with metal-to-metal support to handle heavy shock loads, and the increased cross-sectional thickness boosts tensile strength for high abuse suspension setups.

The sealed Nylon/PTFE race keeps articulation smooth and helps extend service life in harsh environments where dirt, water, and debris are part of the game.
