WA01007

$1,599.99
/
Shipping calculated at checkout.

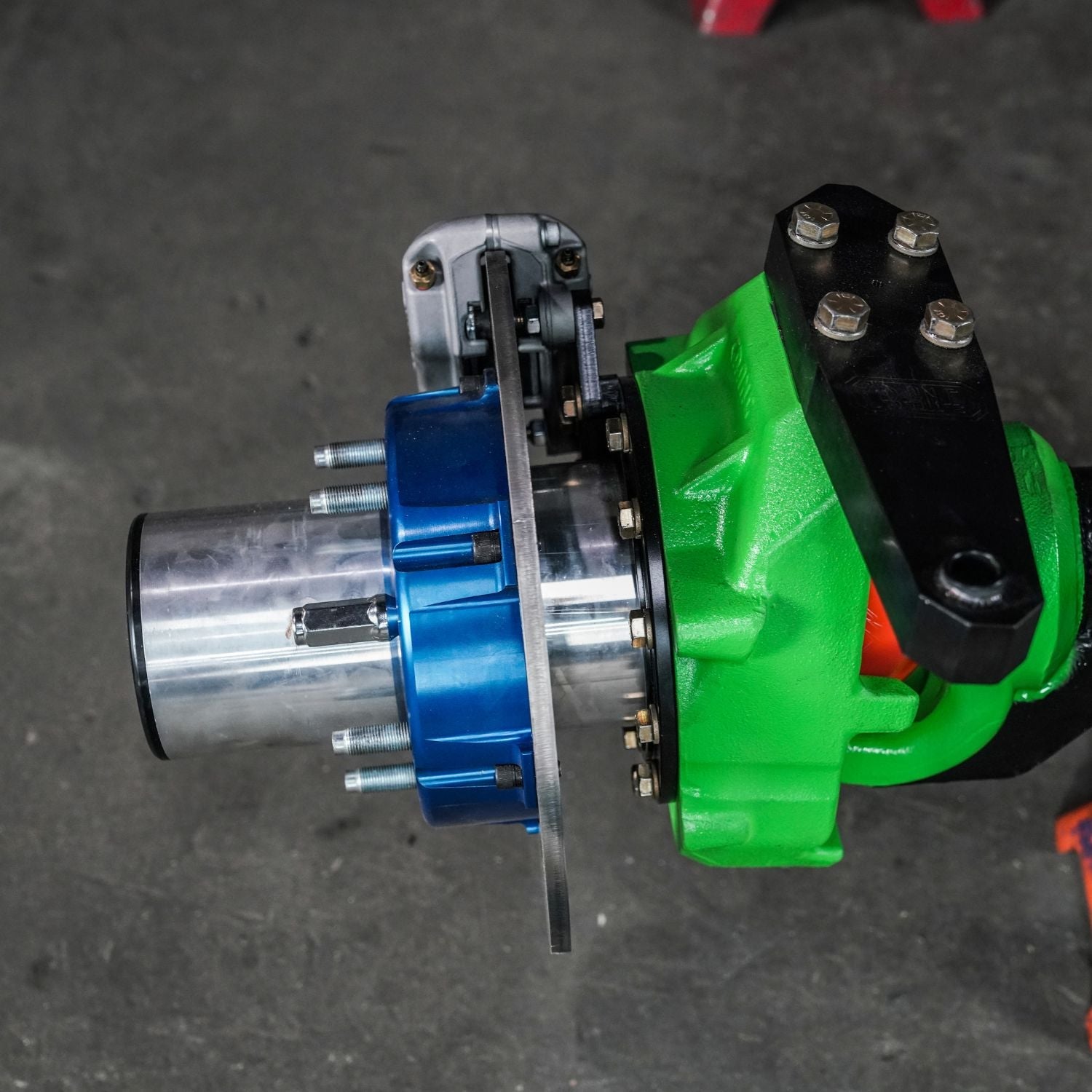

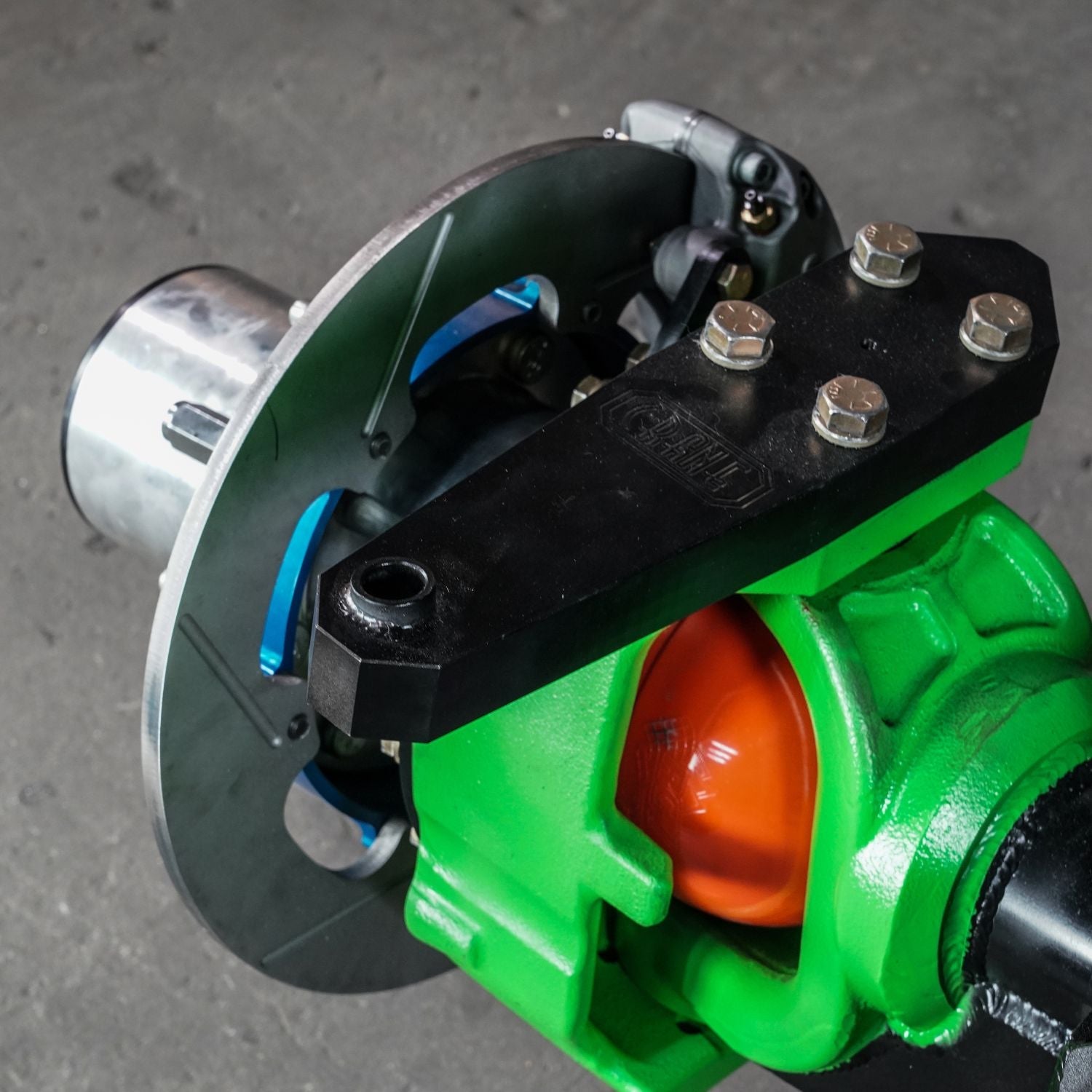

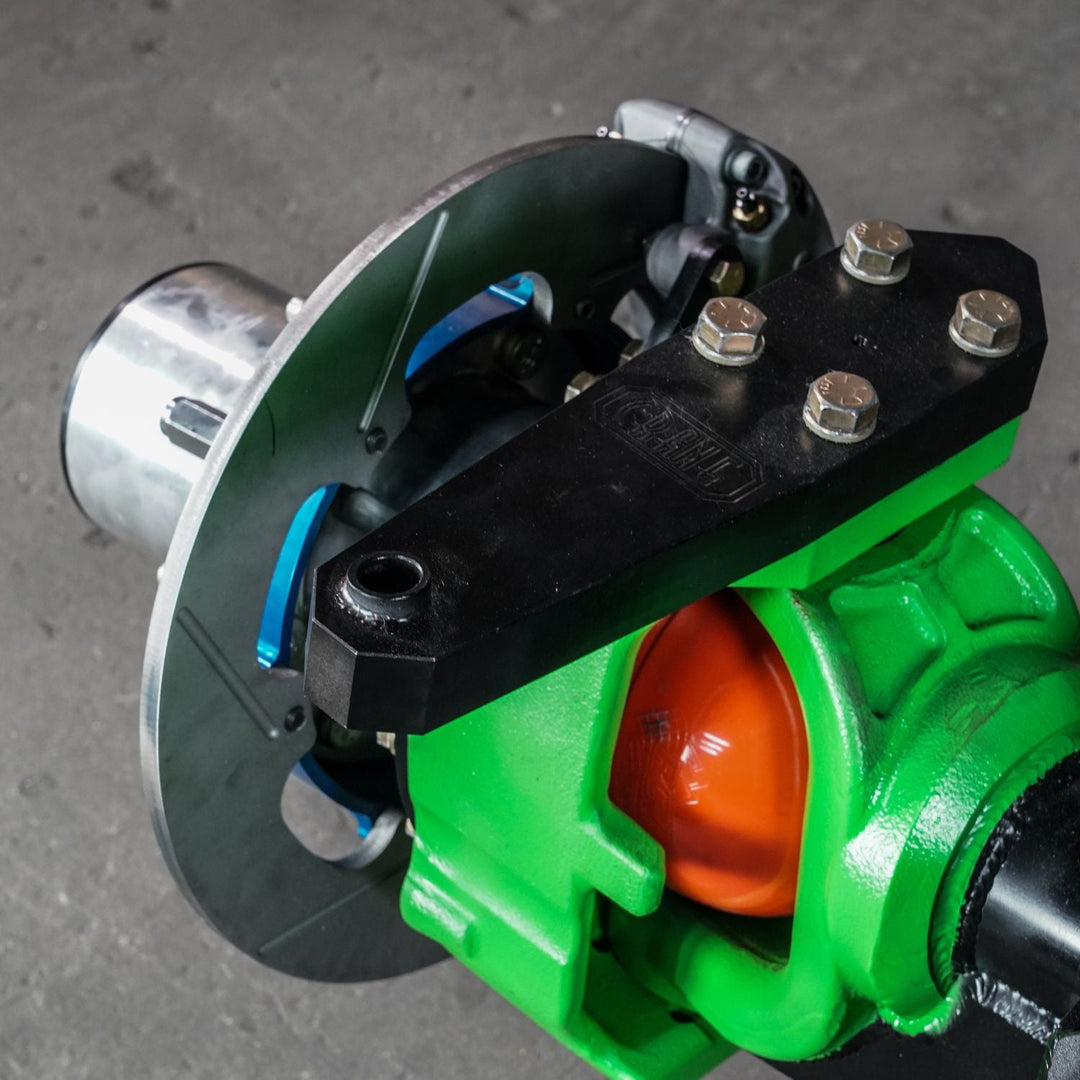

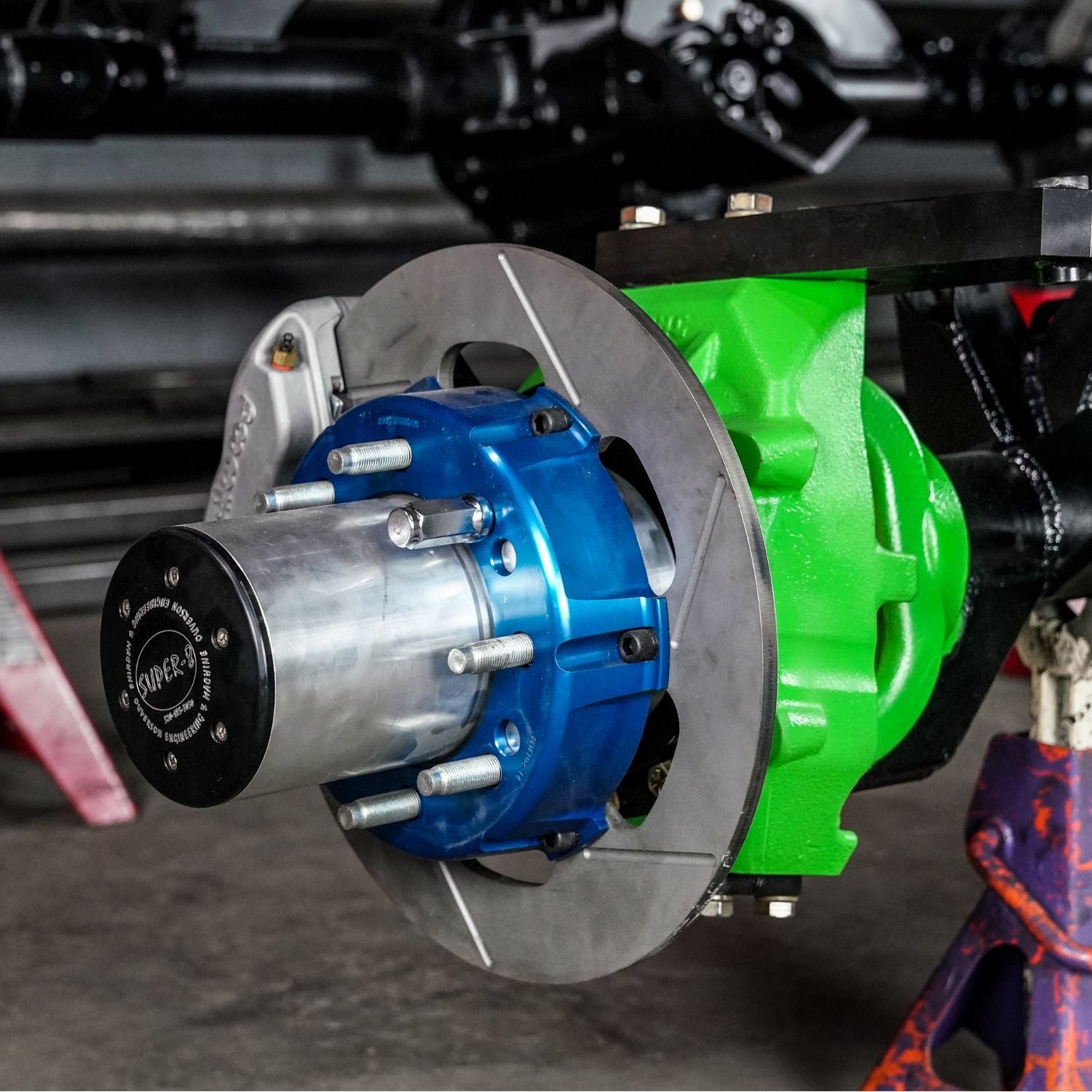

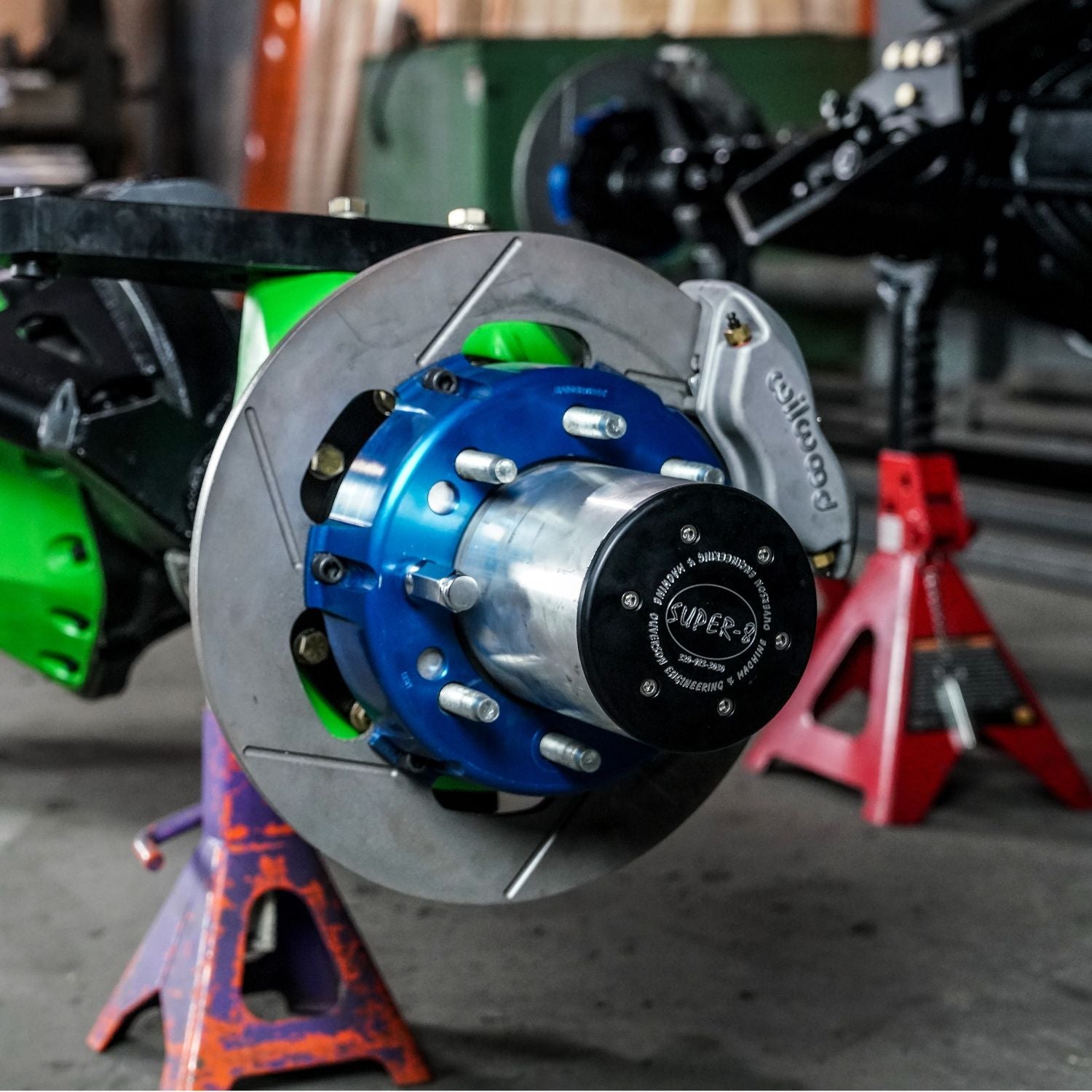

The Magnum Knuckle Light Weight Brake Kit is engineered for serious off-road performance. Designed to work with any knuckle using a 2.5 Ton Spindle and Ouverson Super 8 Wheel Hub, this kit uses 14" slip-on rotors for increased braking leverage and features Wilwood 4-piston calipers for maximum clamping pressure. This setup saves significant weight versus OE iron rotors and dramatically improves ride quality and braking capability.

This kit removes 36.5 lbs compared to a 3/4-ton brake conversion. Lower unsprung weight improves suspension response and overall ride quality. Wilwood’s 4-piston calipers apply hydraulic force evenly from both sides of the rotor, delivering stronger, more consistent braking. Once the pedal is pressed, all four pistons drive the pads into the rotor, maximizing friction and stopping power.

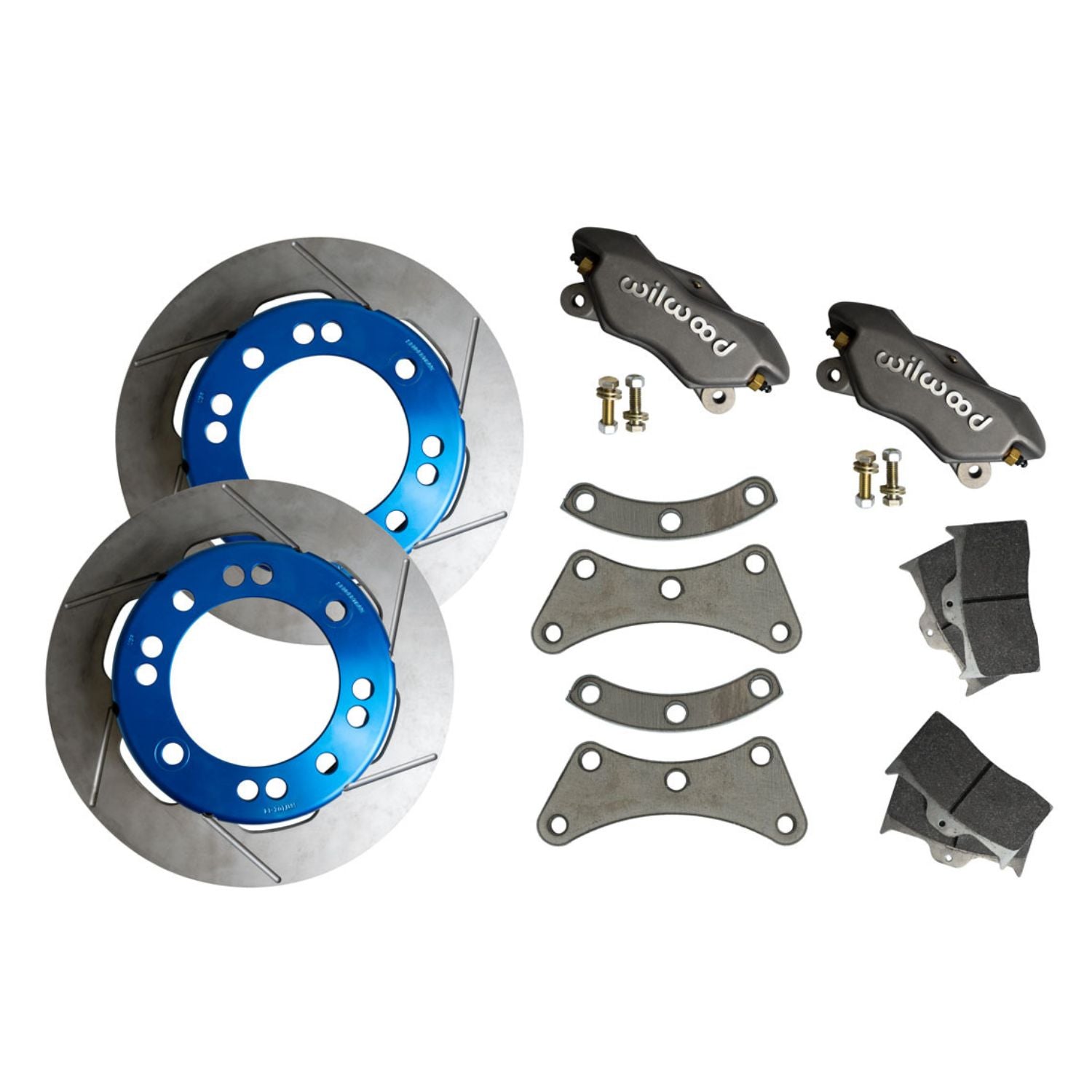

Includes:

  • (2) Bolt-On Caliper Brackets & Spacers
  • (2) Wilwood 4-Piston Calipers
  • (2) 14" Wilwood Rotors with Aluminum Hats
  • (1) Set of Wilwood Brake Pads
  • Caliper Hardware
Specifications
  • Fits knuckles using 2.5 Ton Spindles
  • For Ouverson Super 8 Wheel Hubs
  • 14" slip-on rotors
  • Wilwood 4-piston calipers
  • Saves 36.5 lbs vs. 3/4-ton brake conversion
  • Bolt-on caliper brackets
  • Laser-cut high strength steel brackets
Fitment
  • Any knuckle using a 2.5 Ton Spindle
  • Designed for Ouverson Super 8 Hubs
  • Works with Magnum Knuckles and other 2.5-ton spindle applications
Tech Insight

This brake kit is built for demanding rock bouncers, crawlers, and high speed off-road rigs running 2.5-ton hardware. The large 14" rotor increases leverage at the wheel, giving the caliper more stopping power with less pedal effort. Combining lightweight components with Wilwood’s proven 4-piston design results in a brake system that performs reliably under heat, load, and abuse.

Bolt-On Installation
The caliper brackets are precision laser-cut from high strength plate steel for consistency and durability. Designed as bolt-on brackets, installation is straightforward with no custom fabrication required.
