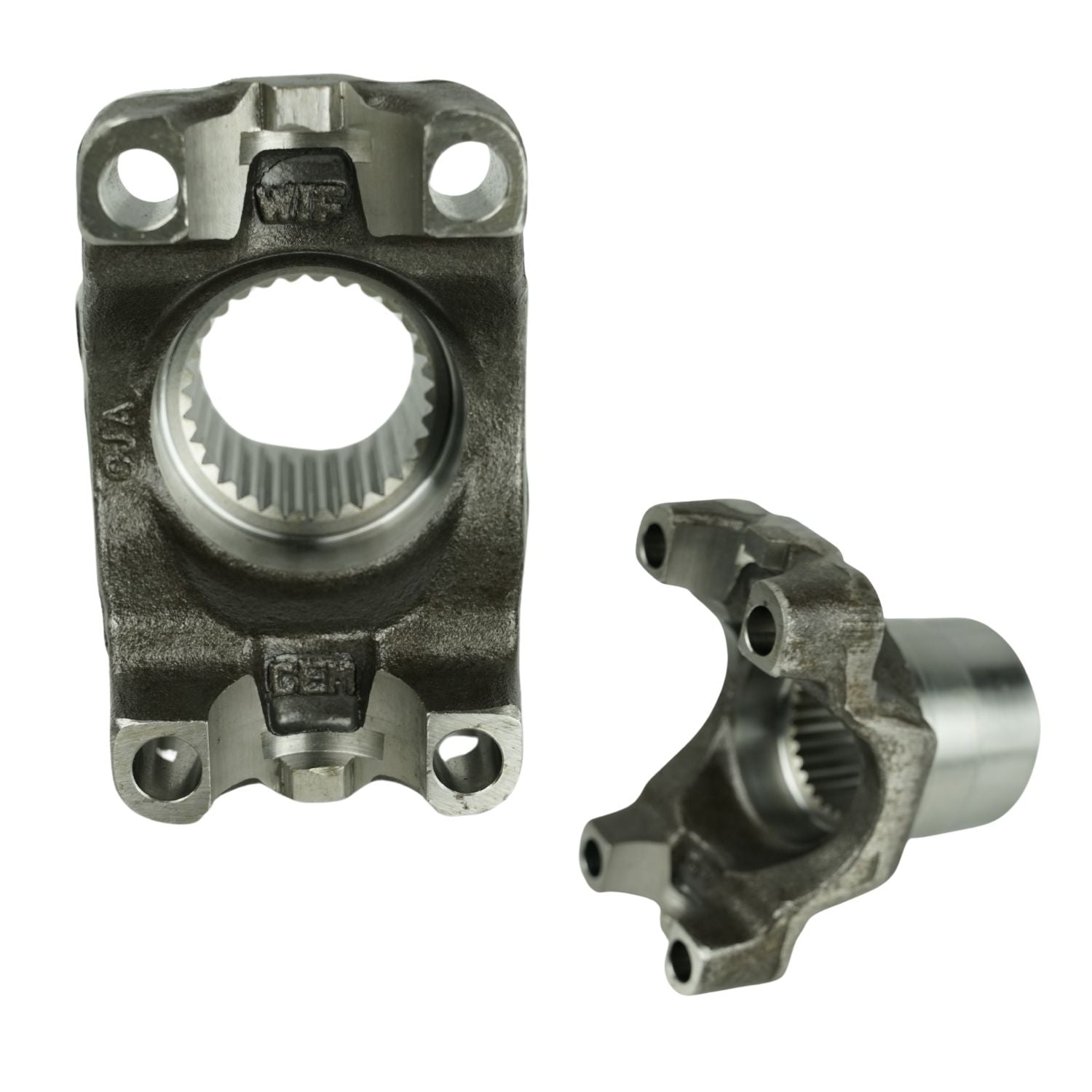

1350 GM 14-Bolt Forged U-Bolt Yoke

00117

$136.39
/
Shipping calculated at checkout.

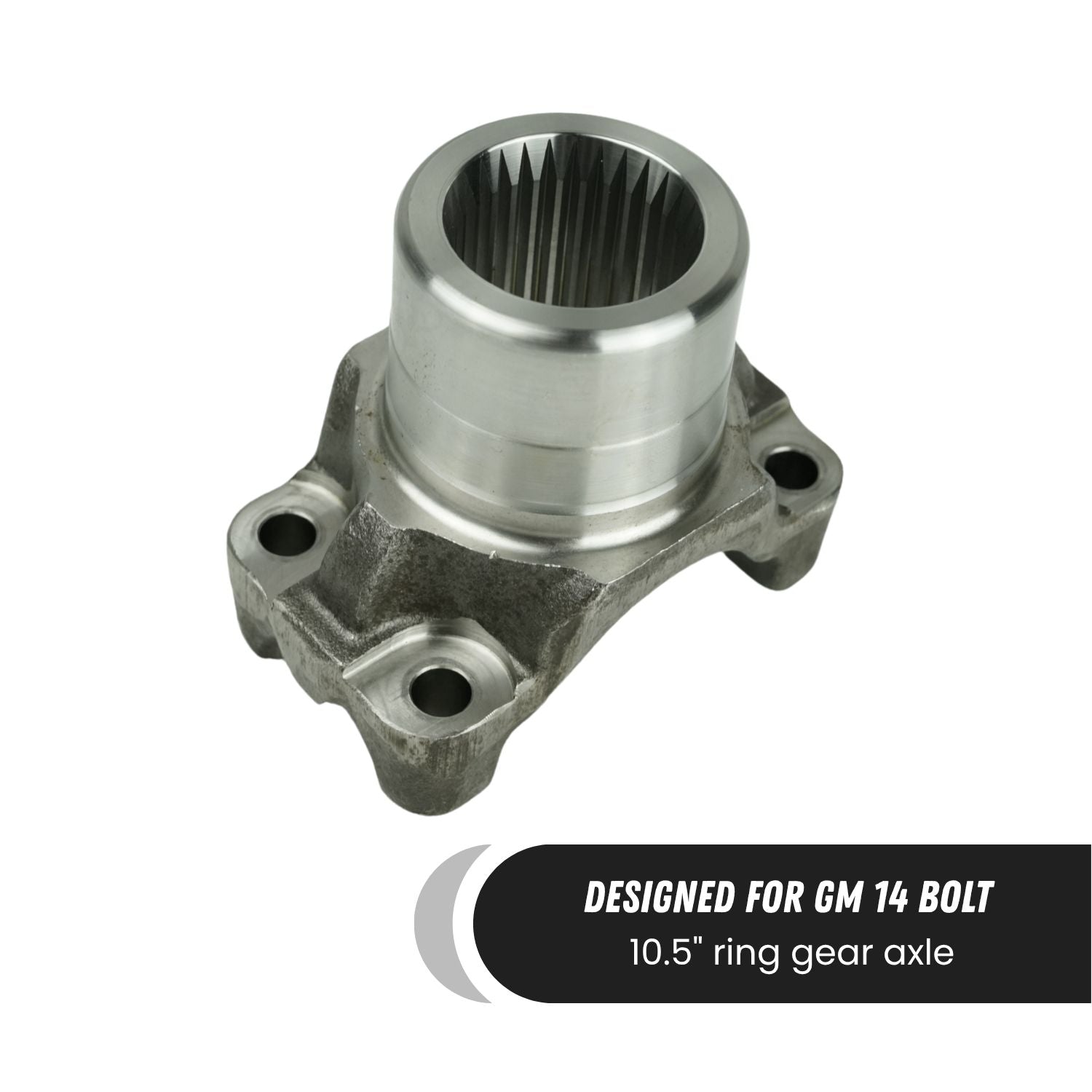

The 1350 GM 14-Bolt Forged U-Bolt Yoke is designed for GM 14-Bolt 10.5" axle applications requiring improved driveline strength, serviceability, and long-term durability under heavy load. Built for off-road vehicles, towing applications, rock crawlers, and high-horsepower drivetrain setups, this forged yoke provides a stronger and more reliable connection between the driveshaft and pinion assembly.

Unlike traditional strap-style yokes, the U-bolt retention design simplifies U-joint service by eliminating small retaining bolts that commonly break or seize during heavy use. In off-road environments where driveline maintenance may need to happen quickly on the trail, the ability to replace a U-joint without drilling broken hardware significantly improves serviceability and reduces downtime.

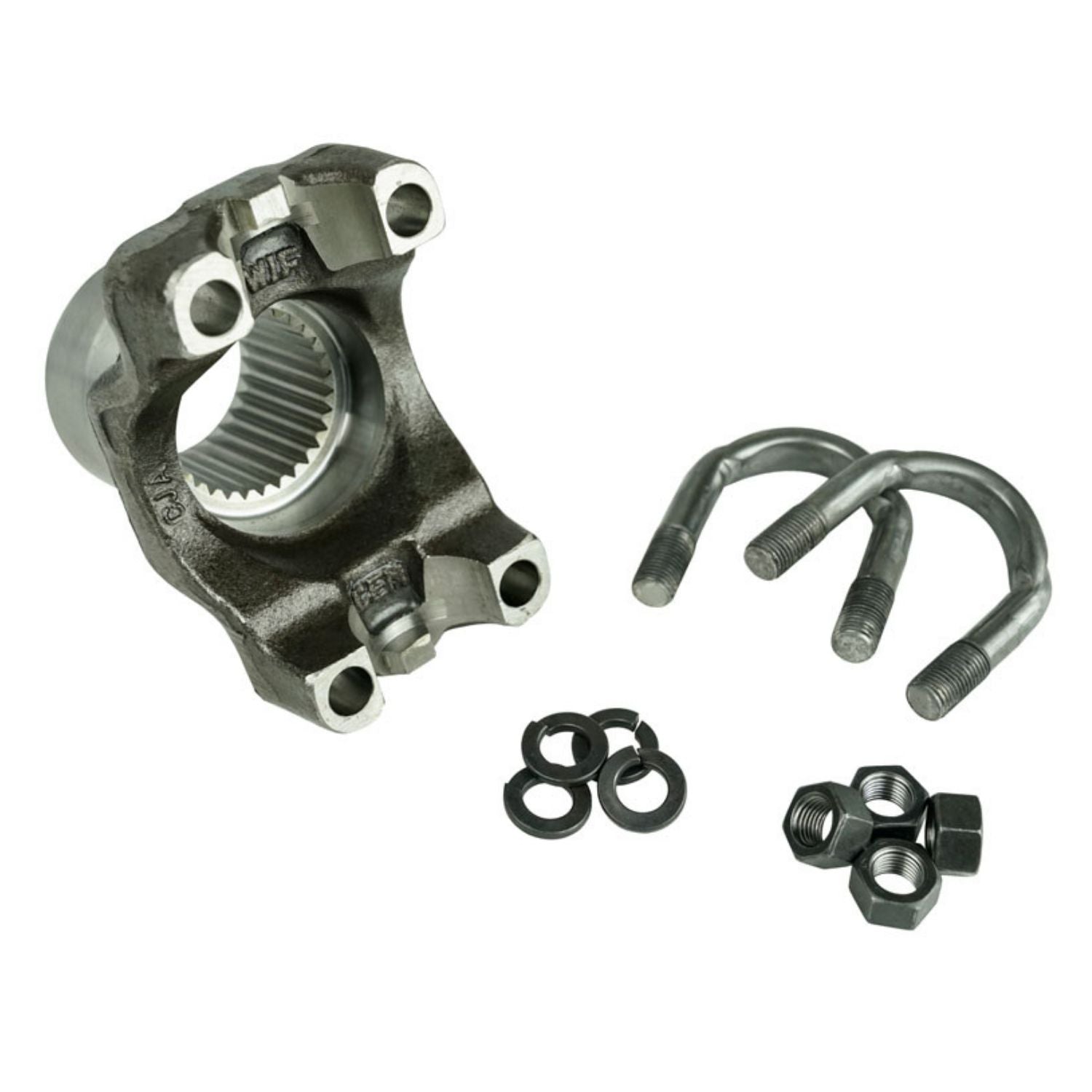

Includes:

  • (1) 1350 GM 14-Bolt Forged U-Bolt Yoke
  • (2) U-Bolts with Nuts and Lock Washers

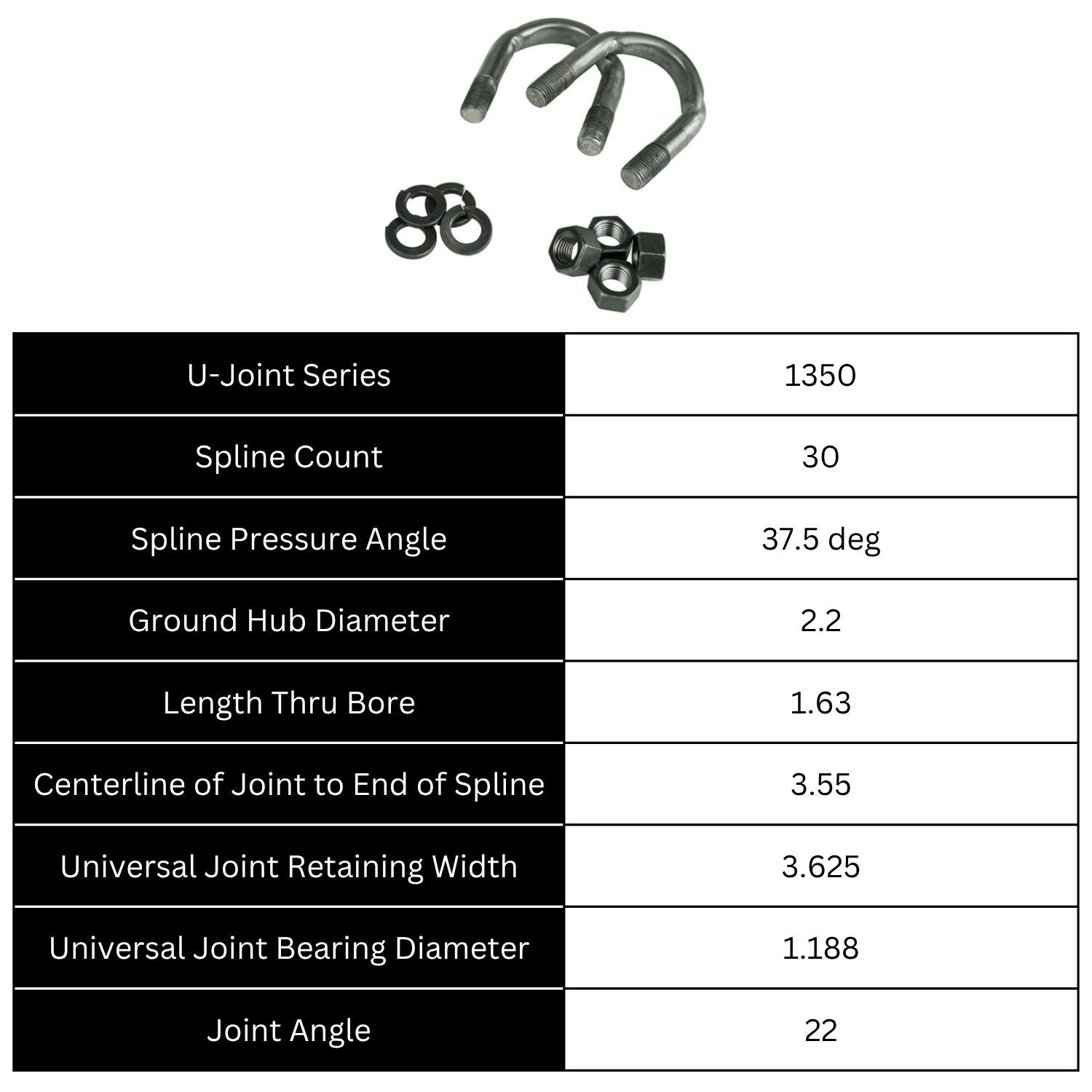

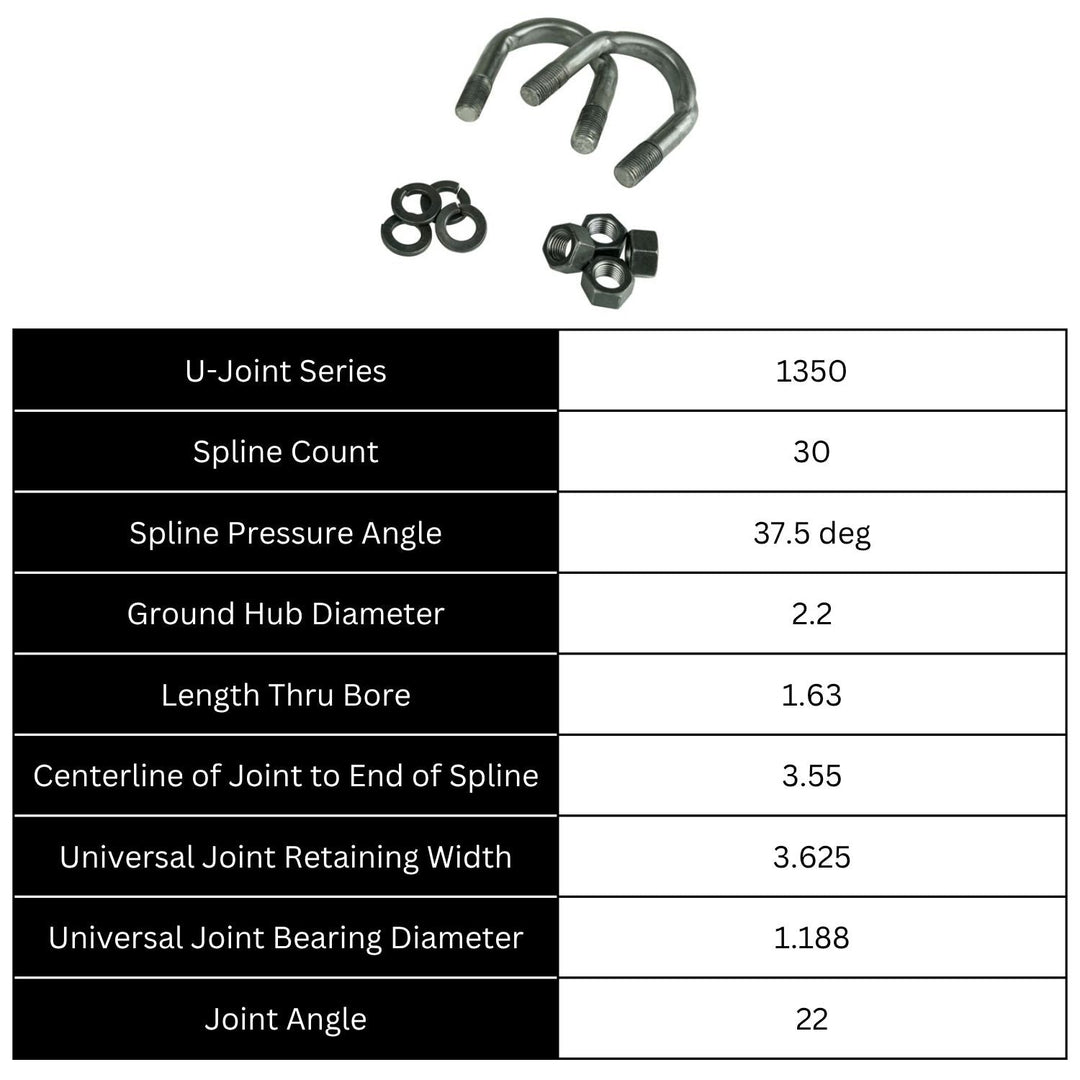

Specifications
Specification Details
U-Joint Series 1350
Spline Count 30
Spline Pressure Angle 37.5°
Ground Hub Diameter 2.200"
Length Through Bore 1.630"
Centerline of Joint to End of Spline 3.550"
Universal Joint Retaining Width 3.625"
Universal Joint Bearing Diameter 1.188"
Maximum Joint Angle 22°
Fitment
Make Model Year Range Axle Application
GM 14-Bolt 10.5" Axle Applications -- Rear Differential Pinion Yoke
Chevrolet Heavy Duty Truck Applications -- GM 14-Bolt Rear Axle
GMC Heavy Duty Truck Applications -- GM 14-Bolt Rear Axle

Fitment Notes:

  • Fits GM 14-Bolt 10.5" rear axle applications
  • Designed for 30 spline pinion shafts
  • Uses 1350 series universal joints
  • Intended for heavy-duty and off-road driveline setups
Tech Insight

Pinion yokes are subjected to extreme torsional shock loads during off-road use, especially in vehicles running large tires, low gearing, and high-horsepower drivetrains. Forged yokes provide improved grain structure and resistance to twisting compared to cast alternatives, helping maintain spline integrity under repeated impact loading.

The 37.5-degree spline pressure angle increases spline tooth contact area between the yoke and pinion shaft, improving torque distribution and reducing localized spline wear. Combined with the U-bolt retention design, this setup improves both driveline durability and field serviceability in demanding off-road environments.
