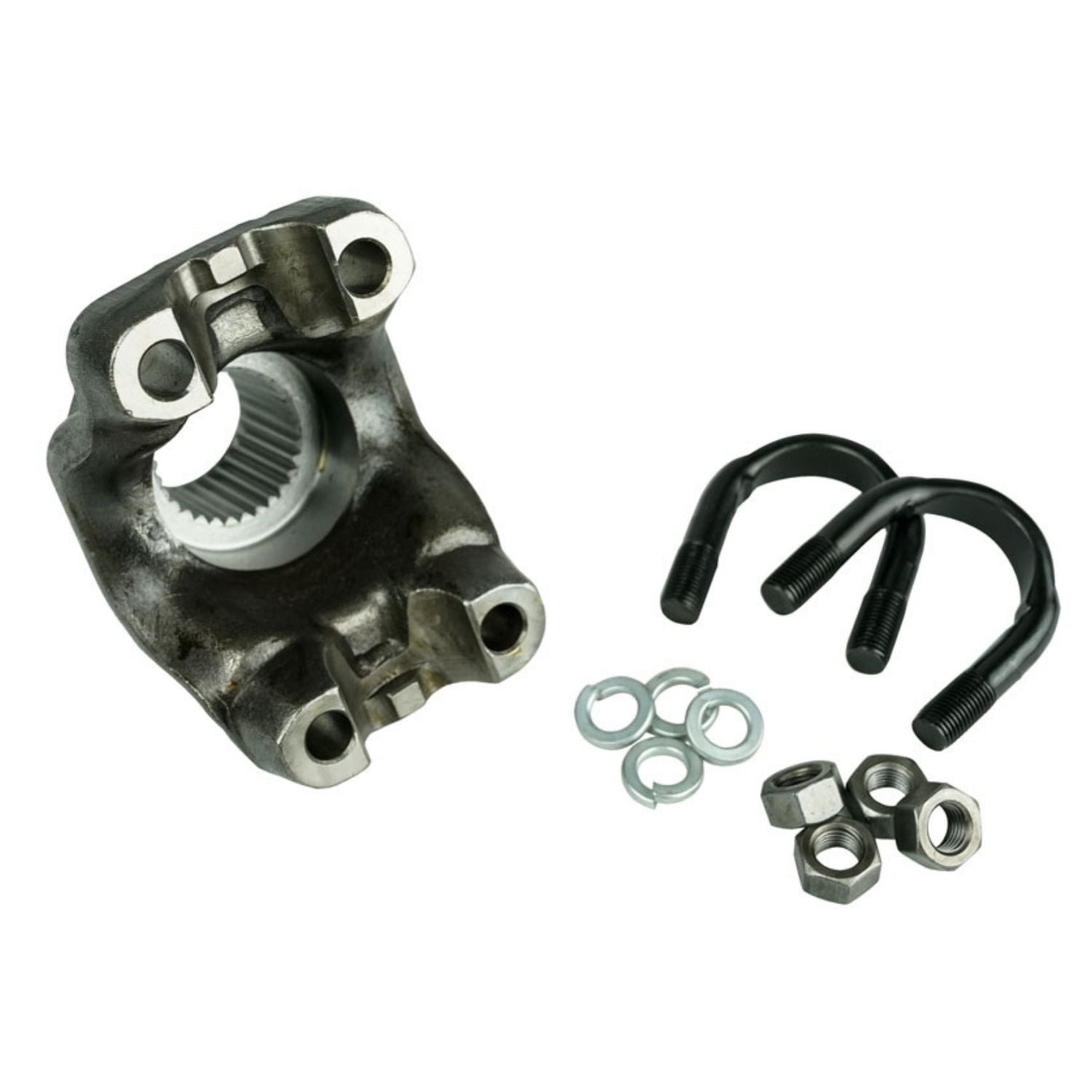

1480 GM 14 Bolt U-Bolt Yoke and washers on a white background

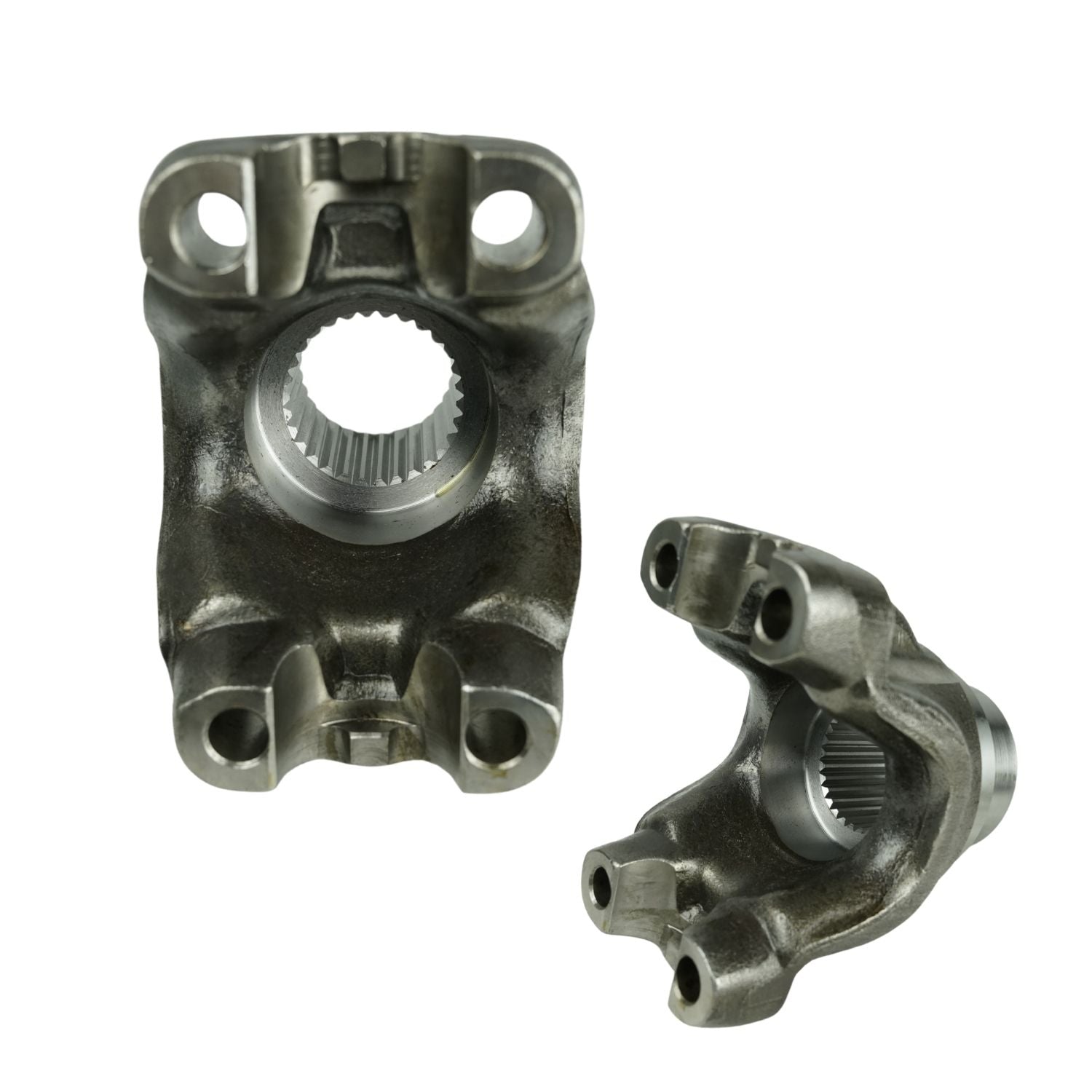

Two Forged U-Bolt Yoke for AAM 11.5 axle on a white background

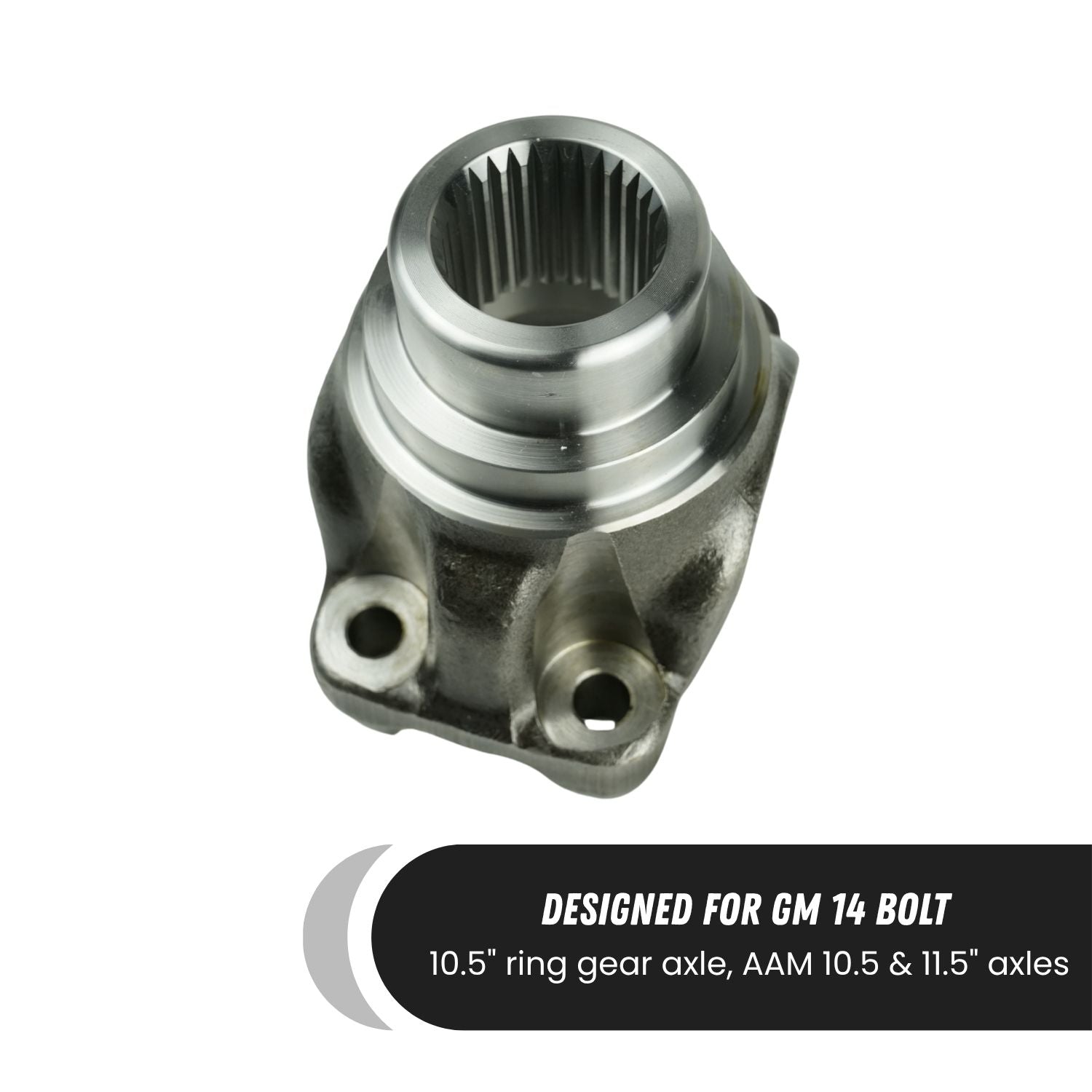

Heavy duty 1480 U-joint yoke GM 14 bolt on a white background with text indicating compatibility with 10.5" ring gear.

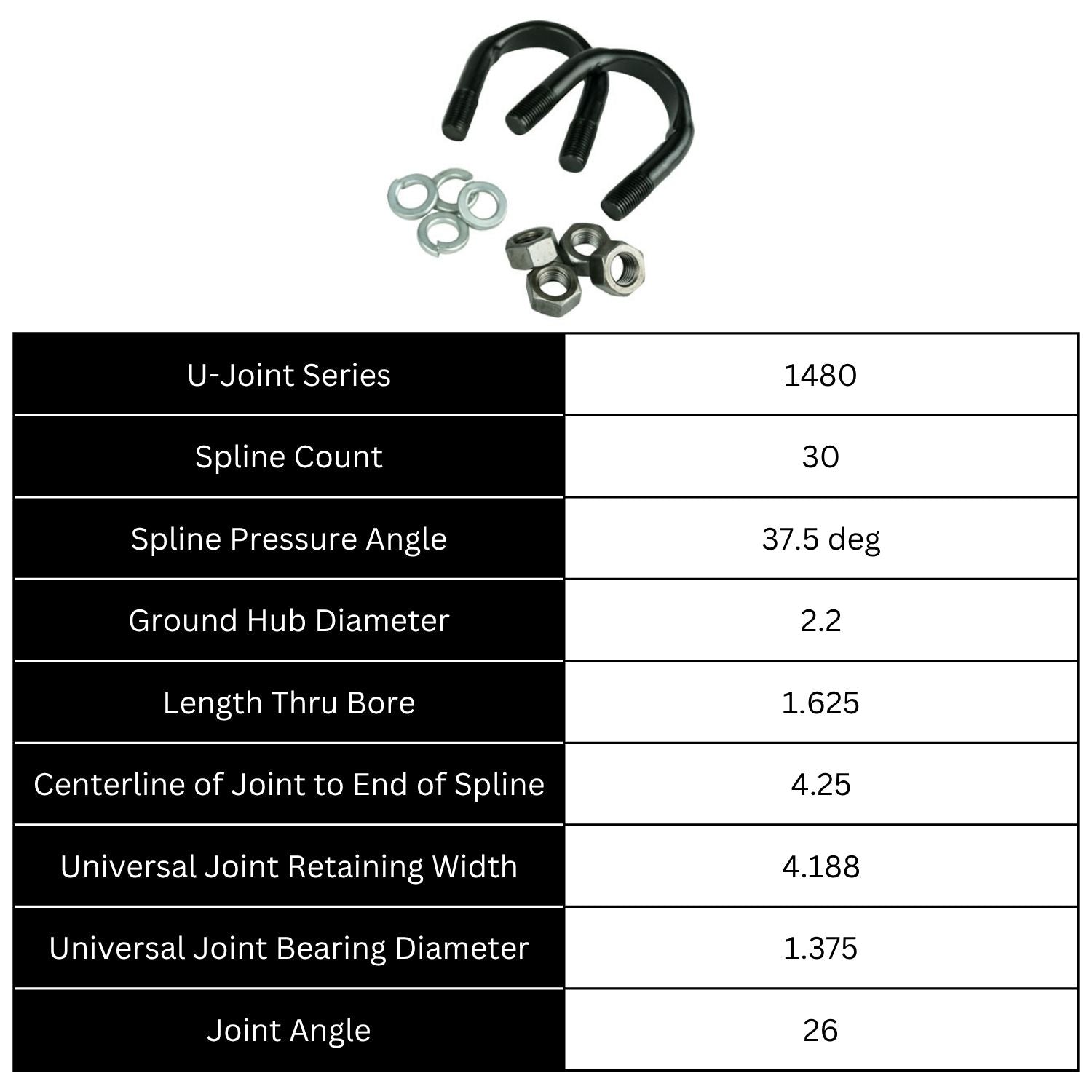

Technical specifications of a GM 14 bolt 10.5 yoke upgrade on a white background
1480 GM 14 Bolt U-Bolt Yoke and washers on a white background
Two Forged U-Bolt Yoke for AAM 11.5 axle on a white background
Heavy duty 1480 U-joint yoke GM 14 bolt on a white background with text indicating compatibility with 10.5" ring gear.
Technical specifications of a GM 14 bolt 10.5 yoke upgrade on a white background

1480 GM 14-Bolt Forged U-Bolt Yoke

00107

$202.76
/
Shipping calculated at checkout.

Designed for the GM 14 Bolt 10.5" ring gear axle and compatible with AAM 10.5" and 11.5" axles, this 1480 GM 14 Bolt Forged U-Bolt Yoke delivers unmatched durability and ease of service. Unlike strap-style yokes, which can create major headaches when bolts snap off inside the yoke, this design uses U-bolts—making maintenance and repairs quick and simple.

Includes:

  • (1) 1480 GM 14 Bolt Forged U-Bolt Yoke
  • (2) U-Bolts (with Nuts and Lock Washers)
Specifications
Specification Detail
U-Joint Series 1480
Spline Count 30
Spline Pressure Angle 37.5°
Ground Hub Diameter 2.200
Length Thru Bore 1.625
Centerline of Joint to End of Spline 4.250
Universal Joint Retaining Width 4.188
Universal Joint Bearing Diameter 1.375
Joint Angle 26°
Fitment
  • GM 14 Bolt Axles (10.5 ring gear)
  • AAM 10.5 Axles
  • AAM 11.5 Axles
Tech Insight

Forged yokes provide superior strength and resilience compared to cast or billet options, thanks to their refined grain structure and reduced internal voids. The use of U-bolts ensures quick field serviceability—ideal for trail repairs, racing environments, and high-torque off-road applications where downtime isn’t an option. This yoke is built to withstand the extreme torsional loads encountered in heavy off-road use, making it a trusted choice for builders running large 1480 joints.
