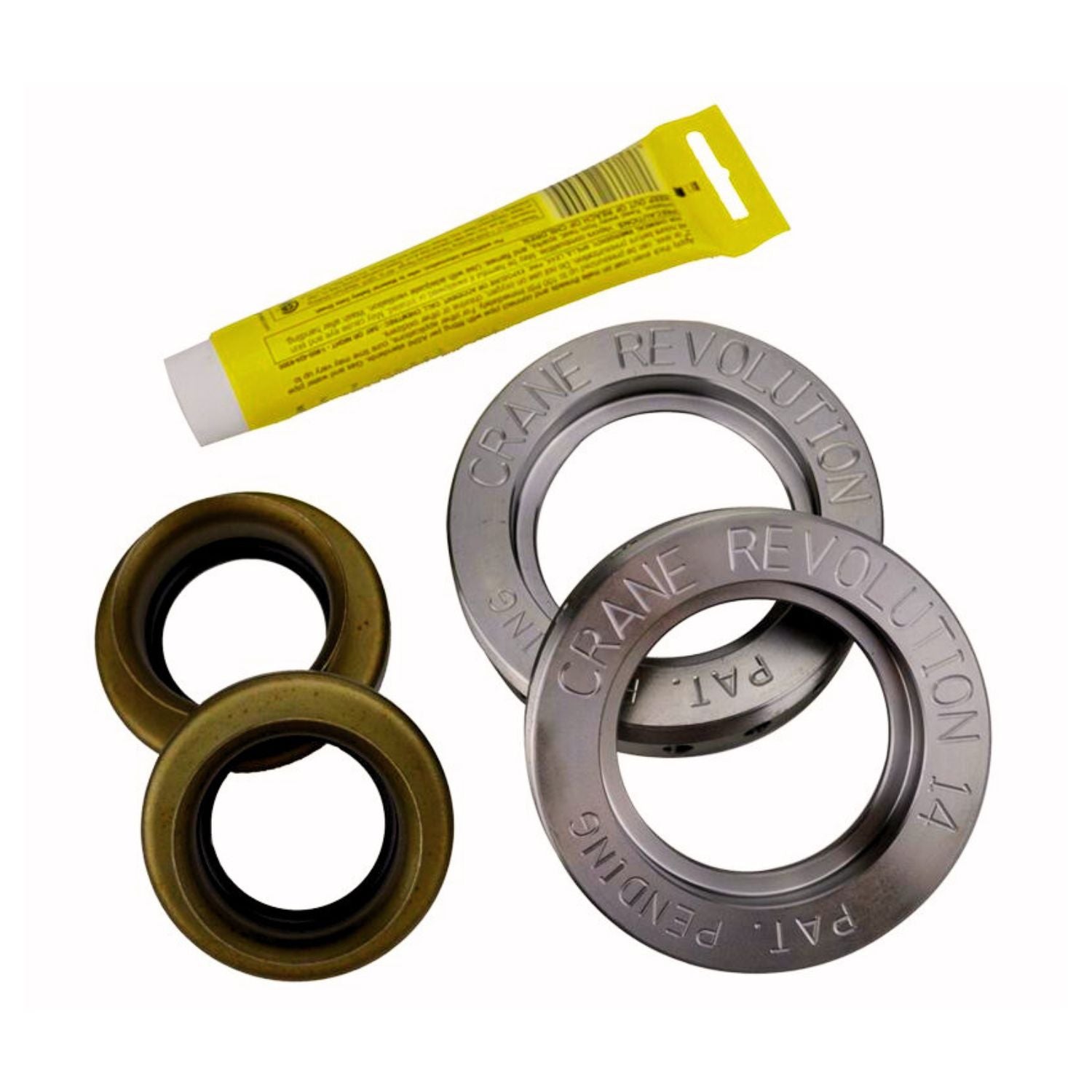

GM 14 Bolt inner seal kit and a yellow tube of thread sealant on a white background

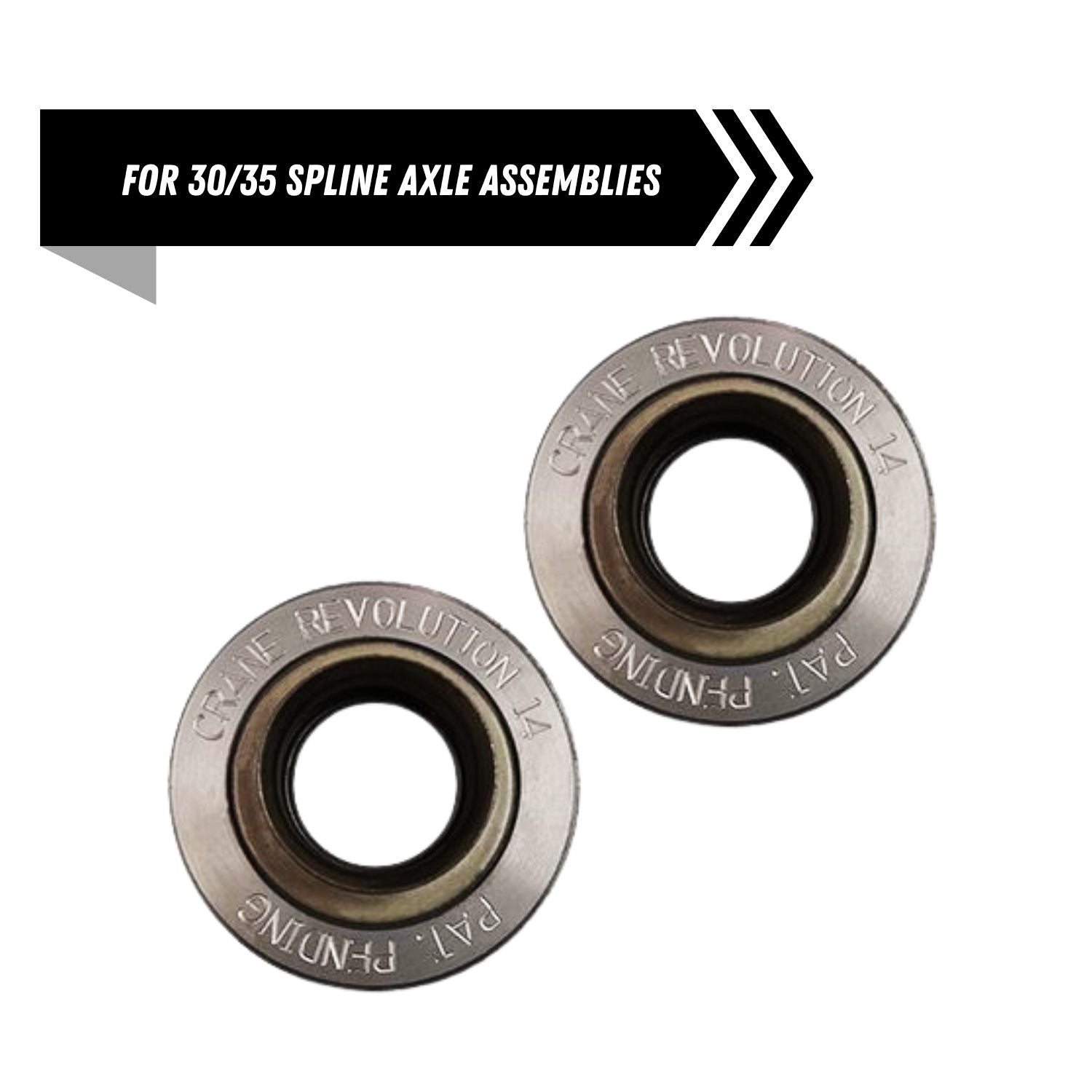

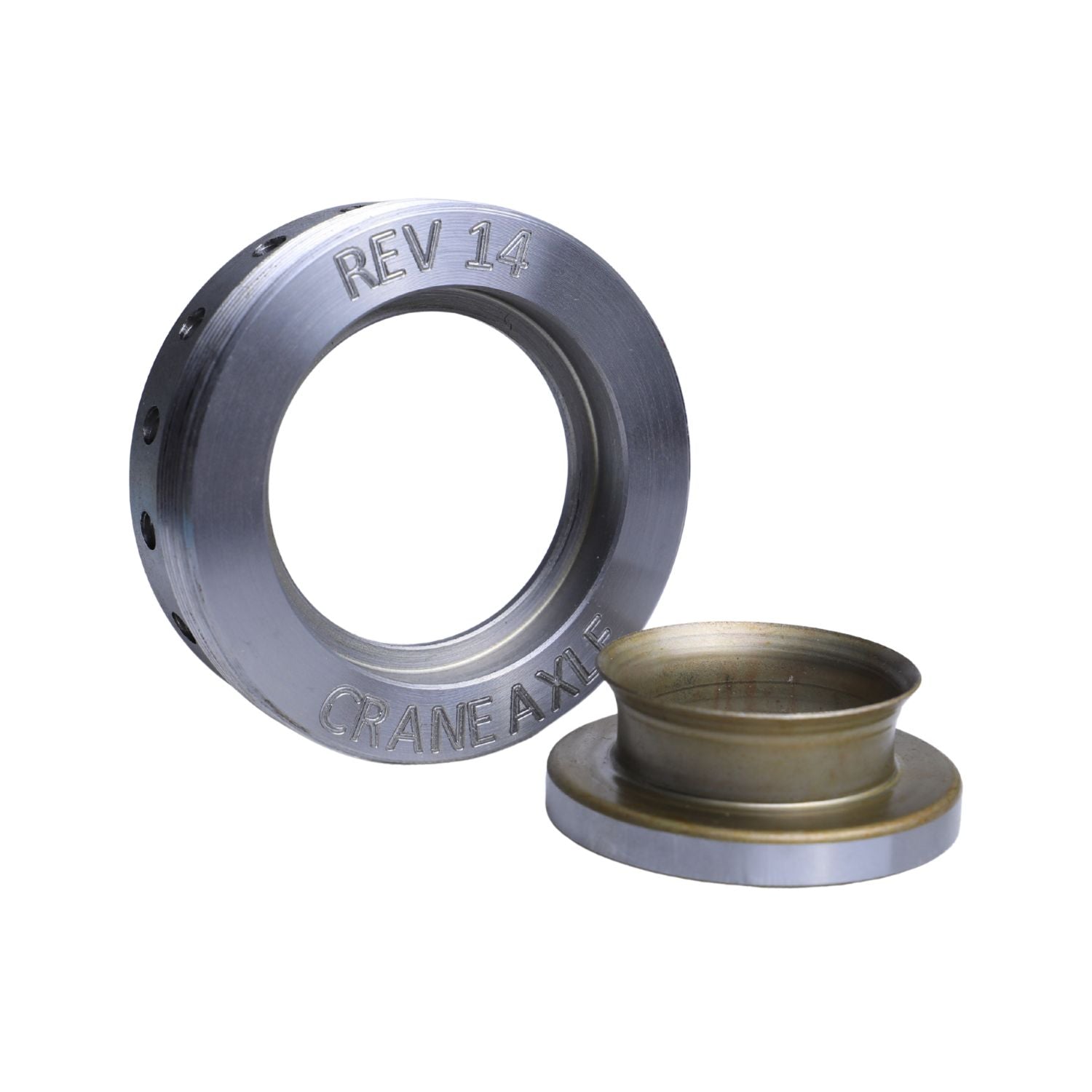

Revolution 14 bolt axle seal housing on a white background with text indicating compatibility for 30/35 spline axle assemblies.
Crane Axle Revolution GM 14-Bolt Inner Axle Seal Kit - 30/35 Spline
Crane Axle Revolution GM 14-Bolt Inner Axle Seal Kit - 30/35 Spline
Crane Axle Revolution GM 14-Bolt Inner Axle Seal Kit - 30/35 Spline
GM 14 Bolt inner seal kit and a yellow tube of thread sealant on a white background
Revolution 14 bolt axle seal housing on a white background with text indicating compatibility for 30/35 spline axle assemblies.
Crane Axle Revolution GM 14-Bolt Inner Axle Seal Kit - 30/35 Spline
Crane Axle Revolution GM 14-Bolt Inner Axle Seal Kit - 30/35 Spline
Crane Axle Revolution GM 14-Bolt Inner Axle Seal Kit - 30/35 Spline

Crane Axle Revolution GM 14-Bolt Inner Axle Seal Kit - 30/35 Spline

CAREV14

$190.00
/
Shipping calculated at checkout.

The Crane Axle Revolution GM 14-Bolt Inner Axle Seal Kit is designed to properly seal GM 14-Bolt steering axle assemblies using 30 spline or 35 spline axle shafts. This system replaces the factory carrier bearing preload spanners with precision-machined seal housings that integrate a common Dana 60 inner axle seal, creating a more stable and reliable sealing solution for front steer 14-Bolt applications.

By relocating the seal inward near the differential where axle shaft movement is minimized, the Revolution system improves long-term sealing performance and helps reduce fluid leakage and contamination entry. The use of a standard Dana 60 inner seal also simplifies future maintenance and replacement, making trail repairs and service easier compared to custom seal arrangements.

Includes:

  • Revolution 14 Seal Housing Spanners
  • Revolution 14 Inner Axle Seals
  • Thread Sealant
Specifications
  • Fits GM 14-Bolt steering axle applications
  • Designed for 30 spline and 35 spline axle assemblies
  • Machined from 1018 cold-rolled steel

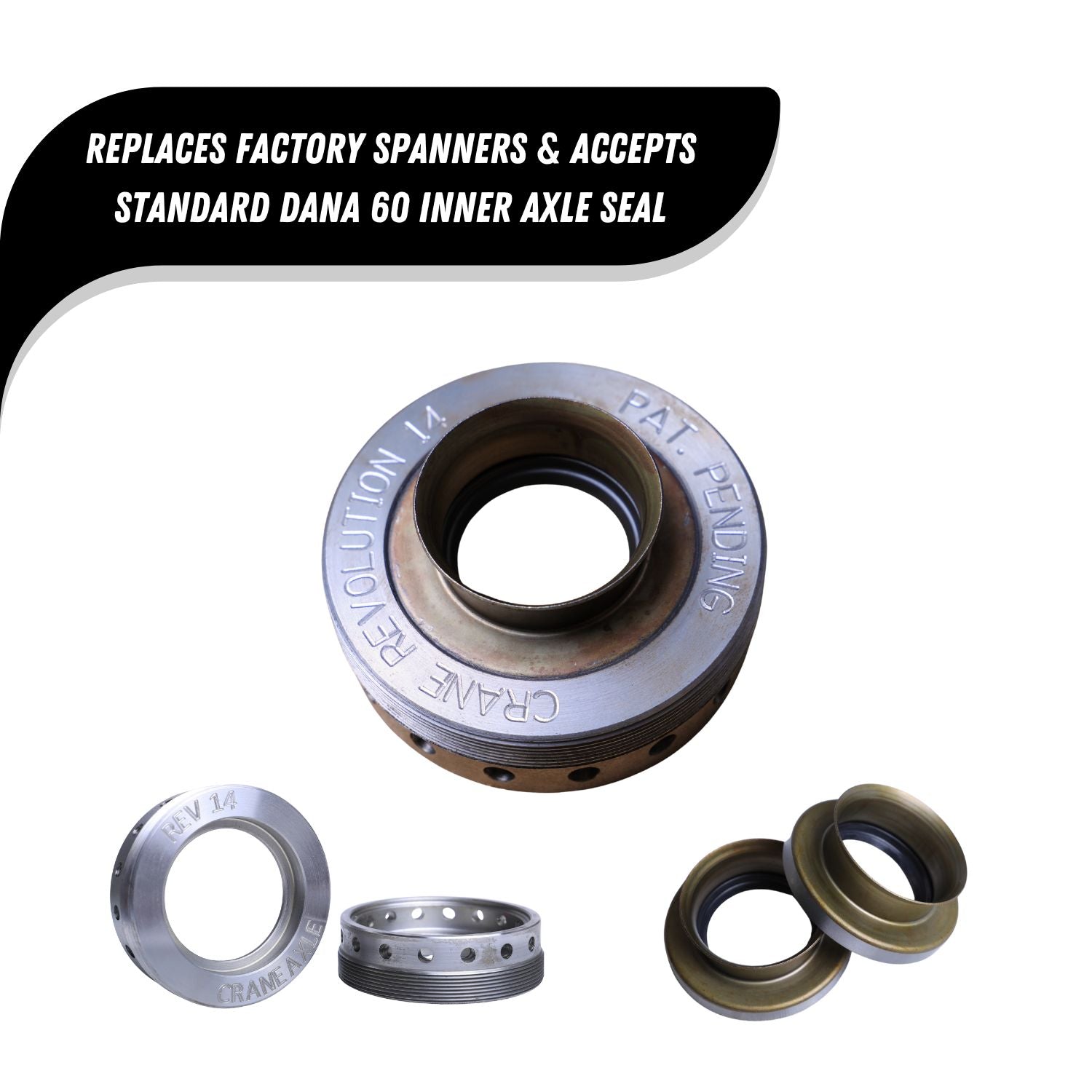

  • Uses standard Dana 60 inner axle seals
  • Replaces factory carrier bearing preload spanners
  • Internal seal positioning for improved shaft stability
  • Precision machined in the USA
Fitment
Make Model Year Range Axle Application
GM Custom Off-Road Applications Universal GM 14-Bolt Steering Axle
Chevrolet Custom Fabricated Axle Builds Universal GM 14-Bolt Steering Axle
GMC Custom Fabricated Axle Builds Universal GM 14-Bolt Steering Axle

Fitment Notes:

  • Designed specifically for 30 spline and 35 spline axle shafts
  • Intended for GM 14-Bolt front steering axle conversions
  • Replaces factory preload spanners
  • Compatible with Dana 60 style inner axle seals
  • 40 spline version sold separately
Tech Insight

Traditional GM 14-Bolt housings were not originally designed for steering axle use, which often creates sealing challenges once axle shafts begin cycling through large steering angles and suspension travel. Standard sealing methods can struggle with shaft movement and housing contamination in extreme off-road environments.

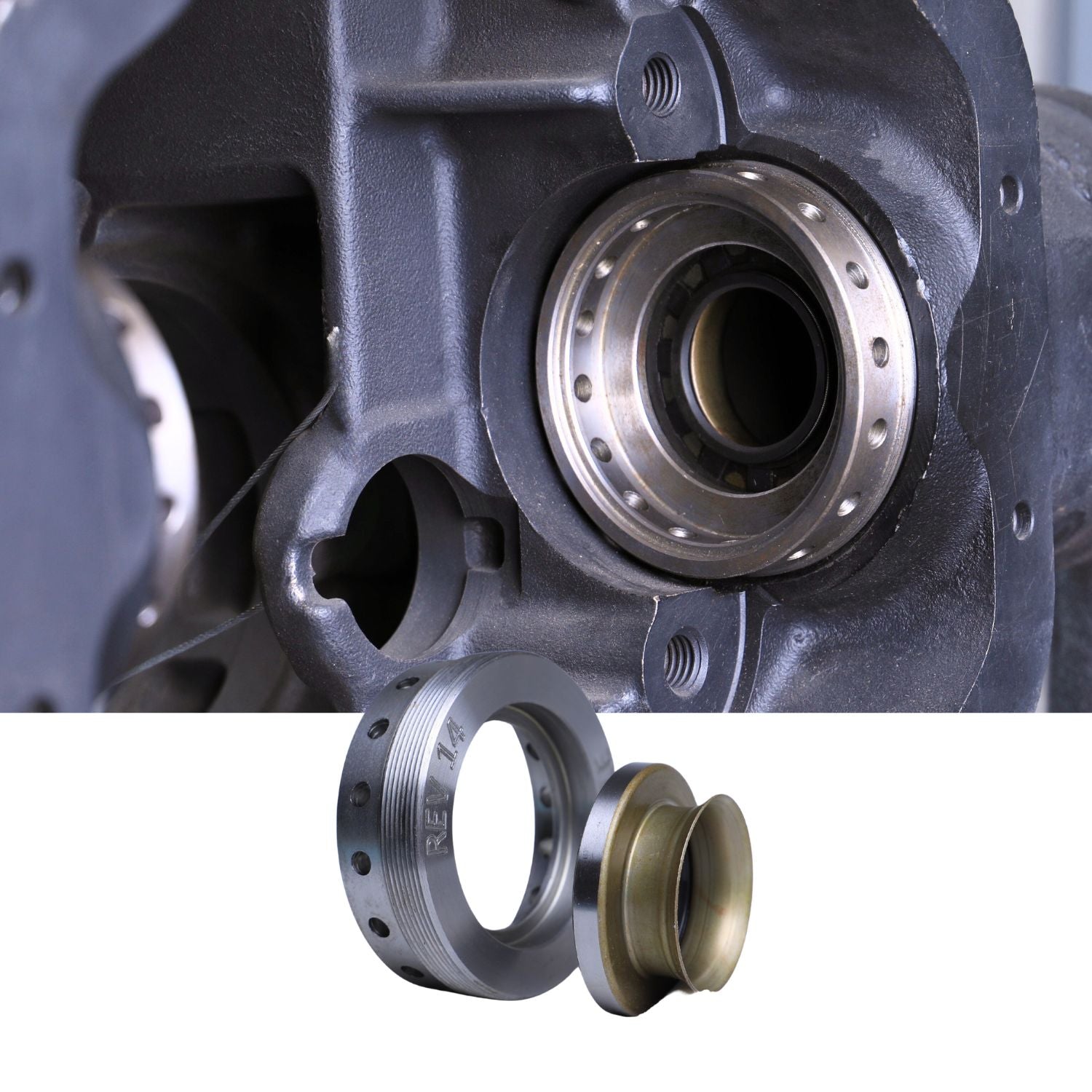

The Revolution system relocates the sealing surface inward near the carrier where shaft movement is significantly reduced. This creates a more stable sealing environment and improves long-term reliability in high-articulation steering axle applications. Using a common Dana 60 inner seal also improves serviceability by allowing replacements to be sourced easily when needed.
