WOD GM 14-Bolt Driver Drop Front Axle Truss
WF03013

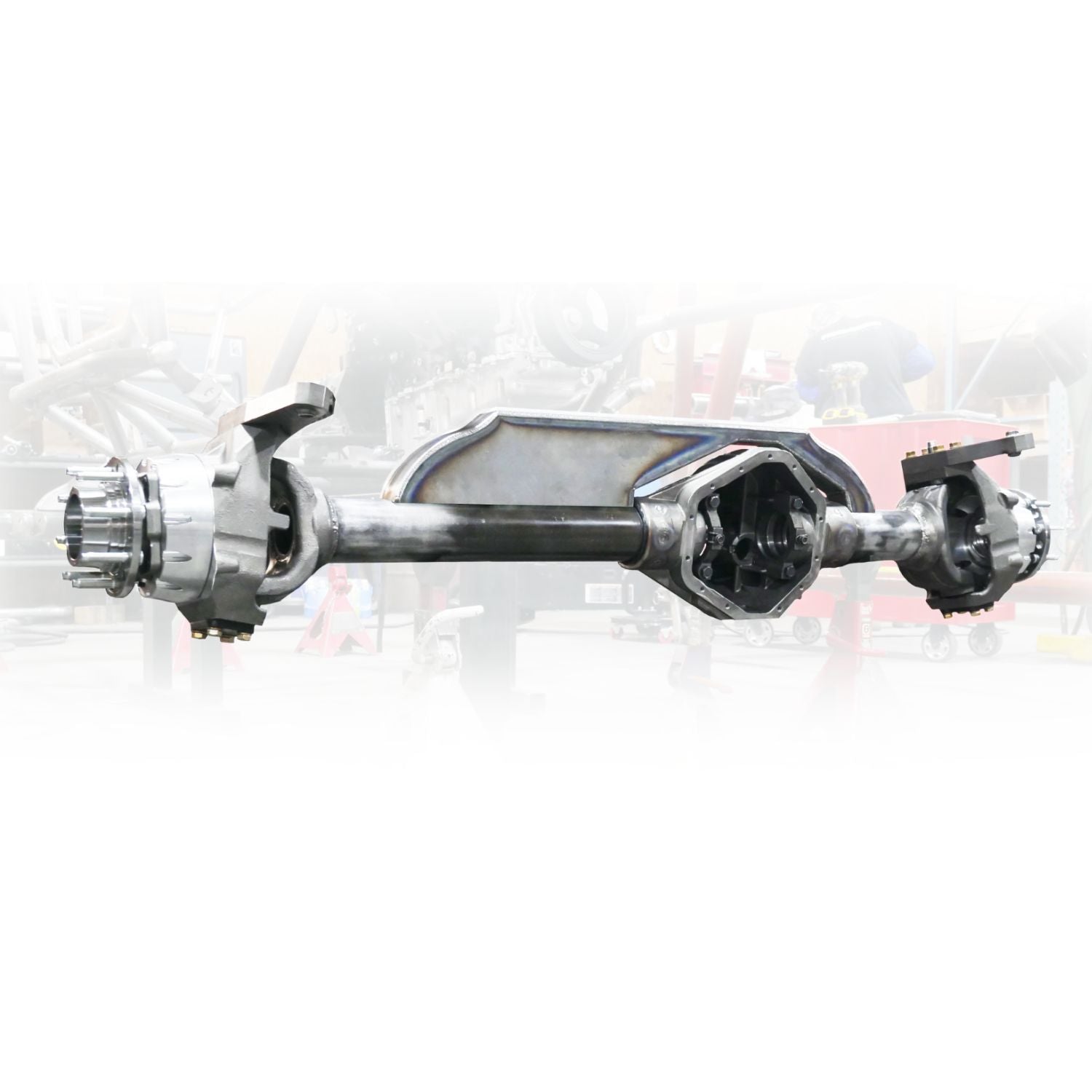

The Wide Open Design GM 14-Bolt Driver Drop Front Axle Truss reinforces driver-side drop 14-Bolt steering axle housings used in high-horsepower off-road and competition builds. Manufactured by Wide Open Design from 1/4" steel plate, the truss is precision cut and contoured around the differential housing to increase weld contact, strengthen the long-side tube area, and reduce housing movement under hard steering, suspension, and drivetrain loads.
Choose a fully welded, made-to-order truss or a flat plate kit for builders who prefer to assemble and weld the structure themselves. Optional suspension and steering tabs can be added to support custom link geometry, shock placement, and hydraulic steering layouts on rock crawlers, rock bouncers, Ultra4 cars, and fabricated tube-chassis vehicles.
Ordering Options:
- Fully Welded Truss – Made to Order
- Flat Plate Kit – DIY Weld-It-Yourself
Includes:
- (1) Wide Open Design 14-Bolt Driver Drop Front Axle Truss
Lead Time: Fully welded trusses are made to order and require approximately 2 business days before shipping.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Wide Open Design |
| Part Number | Not Provided |
| Product Type | Front Axle Truss |
| Axle Application | GM 14-Bolt Driver Drop Front Steering Axle |
| Material | 1/4" Steel Plate |
| Length | 41.451" |
| Height | 6.126" |
| Depth | 2.50" |
| Design | Precision Cut and Contoured for GM 14-Bolt Housing |
| Installation Options | Fully Welded or DIY Flat Plate Kit |
| Installation Type | Weld-On |
| Country of Origin | Made in the USA |
Fitment
| Application | Compatibility |
|---|---|
| Axle Platform | GM 14-Bolt Front Steering Axle |
| Differential Orientation | Driver-Side Drop |
| Vehicle Application | Universal Custom Off-Road Fabrication |
| Common Builds | Rock Crawlers, Rock Bouncers, Ultra4 Cars, and Competition Buggies |
Fitment Notes
- Designed specifically for driver-drop GM 14-Bolt front steering axle housings.
- Not intended for passenger-drop axle configurations without significant modification.
- The DIY flat plate version requires assembly, fitting, and welding.
- The fully welded option still requires final fitting and welding to the axle housing.
- Suspension brackets, steering mounts, pinion guards, and housing tie-ins are not included unless selected separately.
- Verify differential orientation, axle width, tube placement, suspension geometry, and steering clearance before installation.
- Professional axle setup and welding are recommended.
Tech Insight
What does a front axle truss do?
A front axle truss connects the differential housing and axle tubes into a more rigid structure. This helps reduce tube flex, housing distortion, and movement where the tubes enter the center section under steering, suspension, and drivetrain loads.
Why is the long side of a driver-drop axle vulnerable?
The longer axle tube has more leverage acting against it during hard landings, side loading, and hydraulic steering input. Reinforcing that area helps reduce bending and supports more consistent axle shaft and steering geometry.
What is the difference between the welded and flat plate options?
The fully welded option arrives assembled and ready for final fitting to the axle housing. The flat plate kit is supplied as individual components for builders who want to control assembly, weld sequence, and integration with their suspension mounts.
Should the truss be installed before suspension brackets?
In most custom builds, it is best to establish axle width, pinion angle, caster, steering placement, and suspension geometry before permanently welding the truss and related brackets. Planning the entire axle package together helps prevent clearance conflicts.
Should this truss be paired with a pinion guard or housing tie-in?
For extreme rock crawling and competition use, a pinion guard and center-section tie-in can provide additional protection and help distribute impact and suspension loads across more of the axle housing.
