Brake Plumbing Kit for Single Steer with 1/8" NPT Master Cylinder
SKU: WA01016
We’ve assembled a complete brake plumbing kit to make ordering your plumbing components simple and hassle free. Designed specifically for single-steer setups using 1/8" NPT master cylinders, this kit uses the same high quality Fragola components we run on all our Wide Open Design turn-key buggies.
Whether you're plumbing a fresh build or upgrading an existing setup, this kit delivers reliability, clean routing, and trail-proven durability.

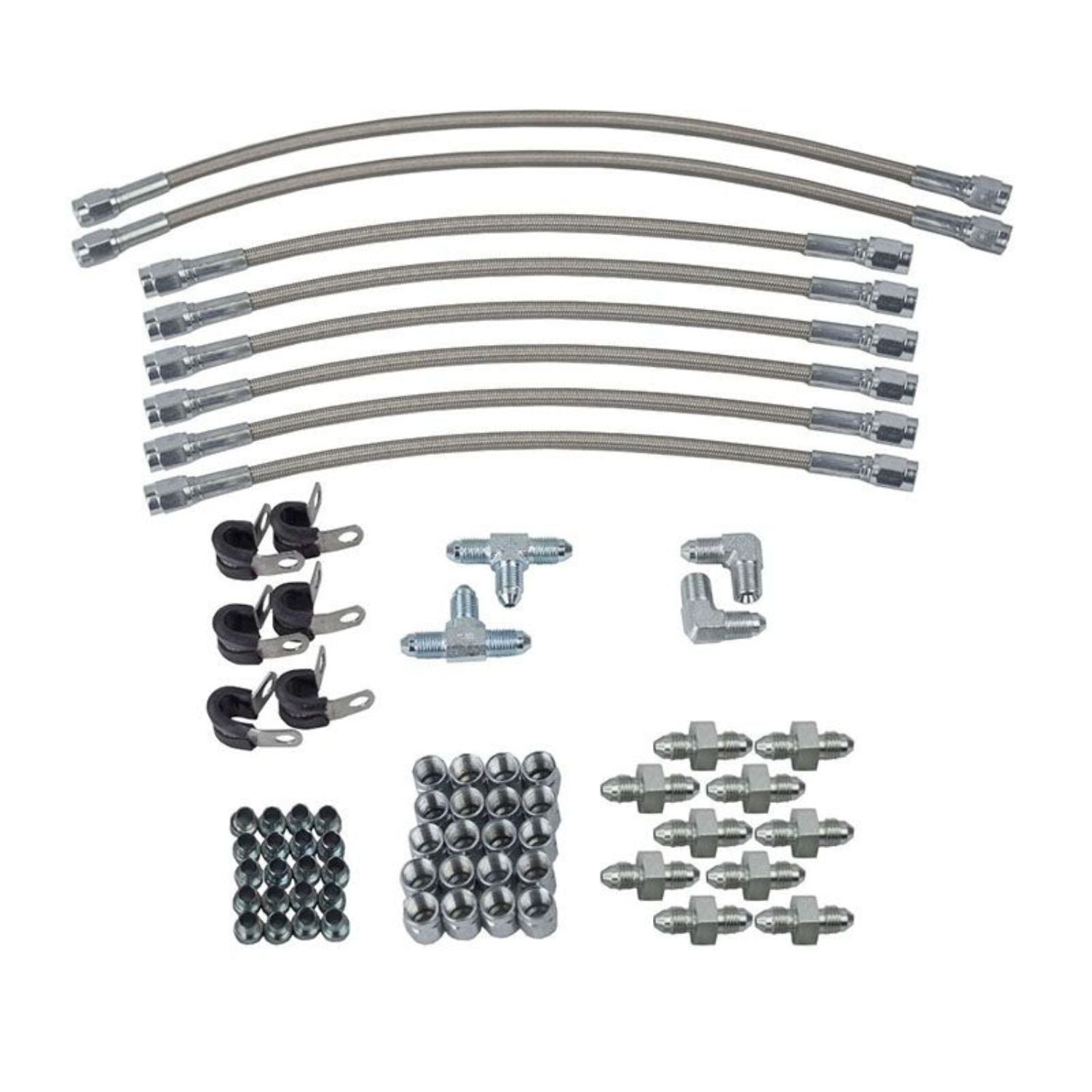

Includes:
- (6) 10" -3 Flex Lines
- (2) 14" -3 Flex Lines
- (2) -3 Tees
- (2) 1/8" NPT to -3 90° Fittings
- (10) -3 Unions
- (20) -3 Tube Nuts
- (20) -3 Tube Sleeves
- (6) 1/4" Stainless Cushion Clamps
Specifications
- Brand: Fragola Performance
- Plumbing Kit Type: Brake
- Steering Setup: Single Steer
- Master Cylinder Style: 1/8" NPT
- Line Size: -3 AN
- Clamp Size: 1/4" Stainless Cushion Clamps
- Flex Line Lengths: 10" & 14"
- Fitting Orientation: 90° NPT-to-AN Adapters
Fitment
- Single-steer vehicles using 1/8" NPT master cylinders
- Custom off-road buggies, crawlers, and rock bouncers
- Builds requiring high quality -3 AN plumbing components
Tech Insight
Brake plumbing is often one of the last steps in a build, but it’s also one of the most critical. We created this kit to eliminate guesswork and ensure builders get the exact components needed to properly plumb a single-steer buggy.
Every part in the kit is sourced from Fragola Performance, a trusted name in high quality AN fittings. The stainless cushion clamps keep your lines secure and protected, while the mix of flex line lengths and fittings gives you freedom to route your system cleanly and safely.
