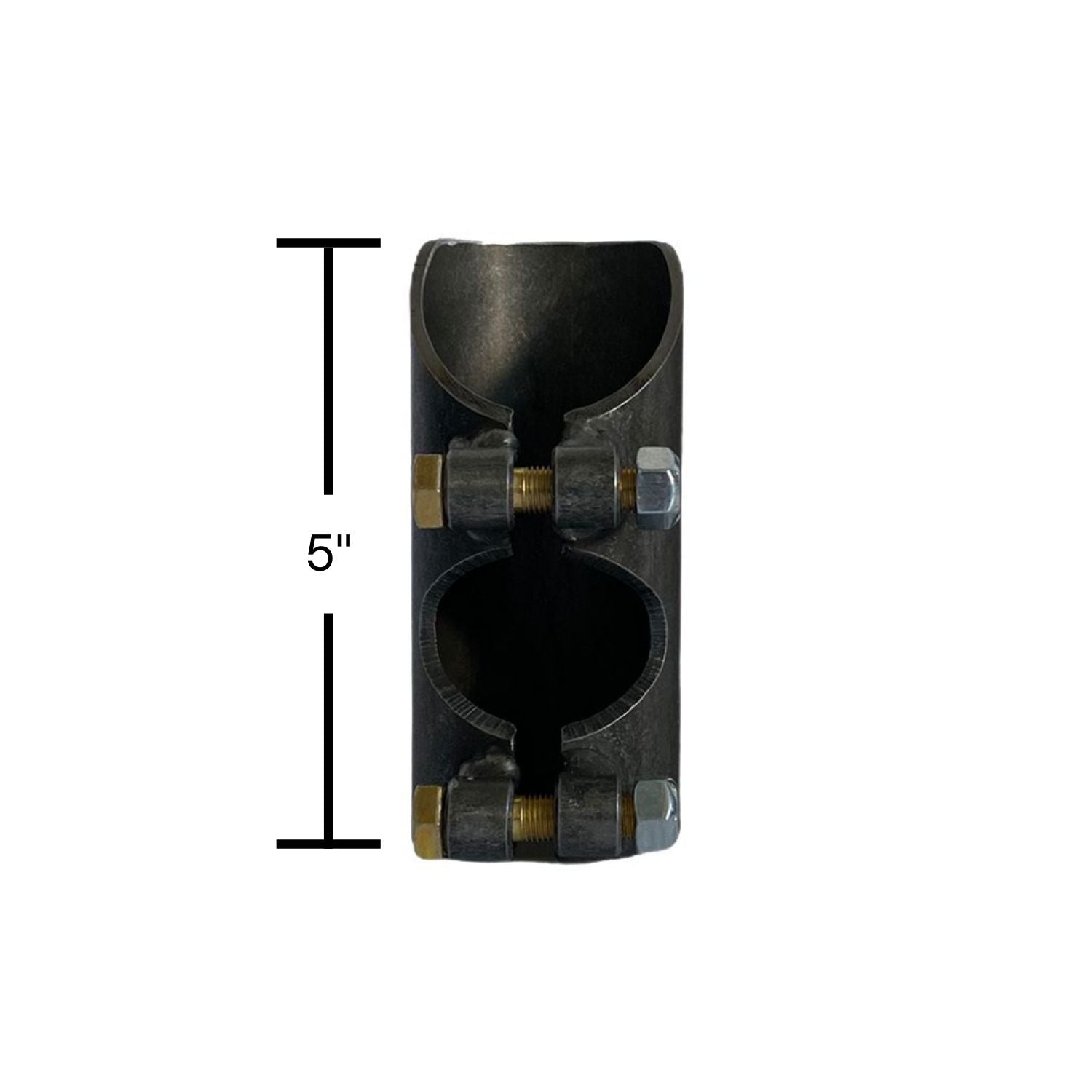

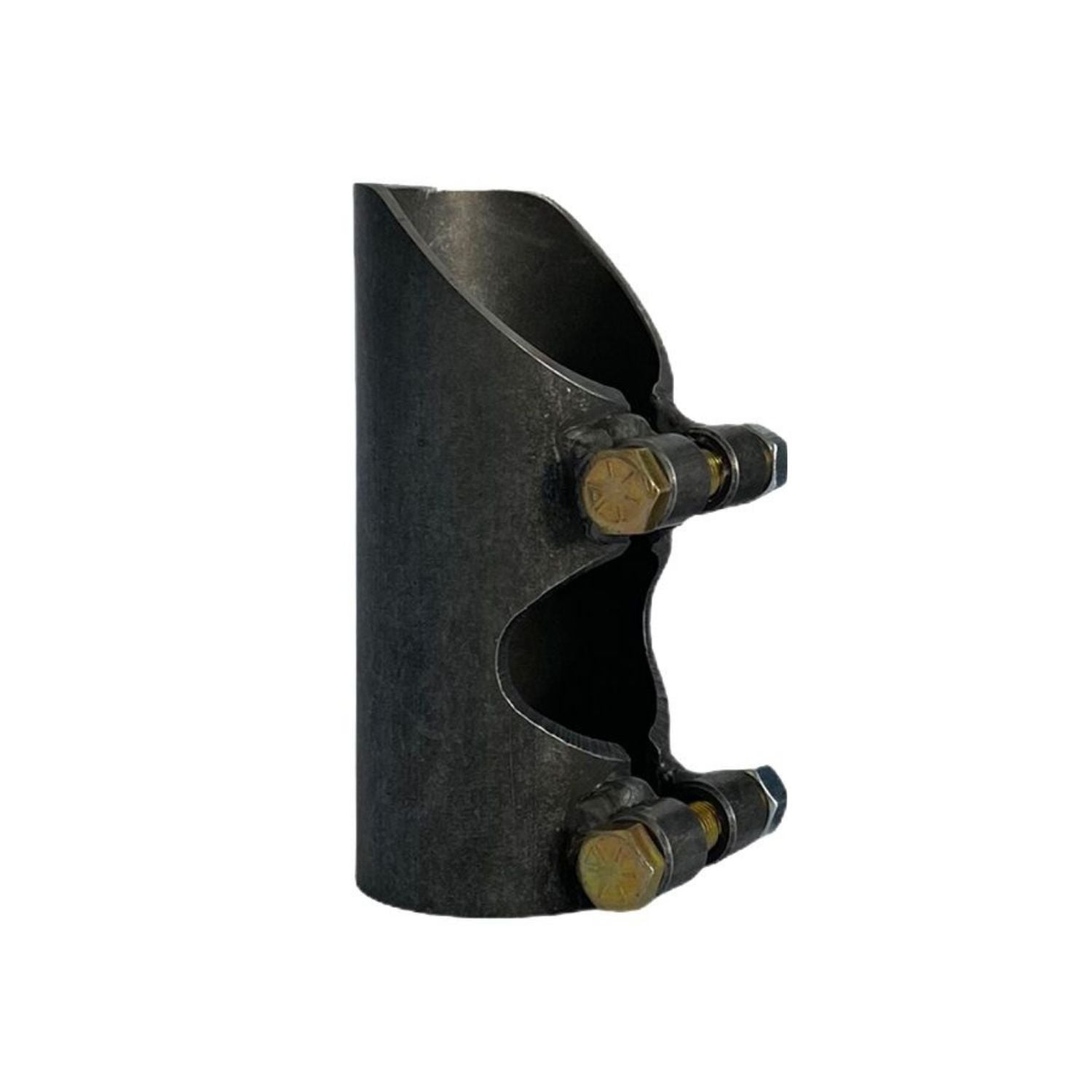

2" Bump Stop Can - Short - For 2" & 3" Travel
SKU: WA01041S
The 2" Short Bump Stop Can is a compact, weld-ready bump can designed specifically for 2" and 3" travel hydraulic or air bump stops. Made from precision laser cut DOM steel tubing, this shorter design is ideal for tight packaging areas where full length cans won’t fit.
Includes:
- (1) Short 2" Bump Stop Can
- Hardware
Specifications
- Material: DOM Steel Tubing
- Cutting Method: Precision laser cut
- Fitment: Fits most 2" diameter, 2" or 3" travel hydraulic/air bump stops
- Style: Short-length weld-on bump can
- Hardware: Includes high-quality bolts & nuts
- Condition: Weld/Fabrication ready
- Made in the USA
Fitment
Compatible with:

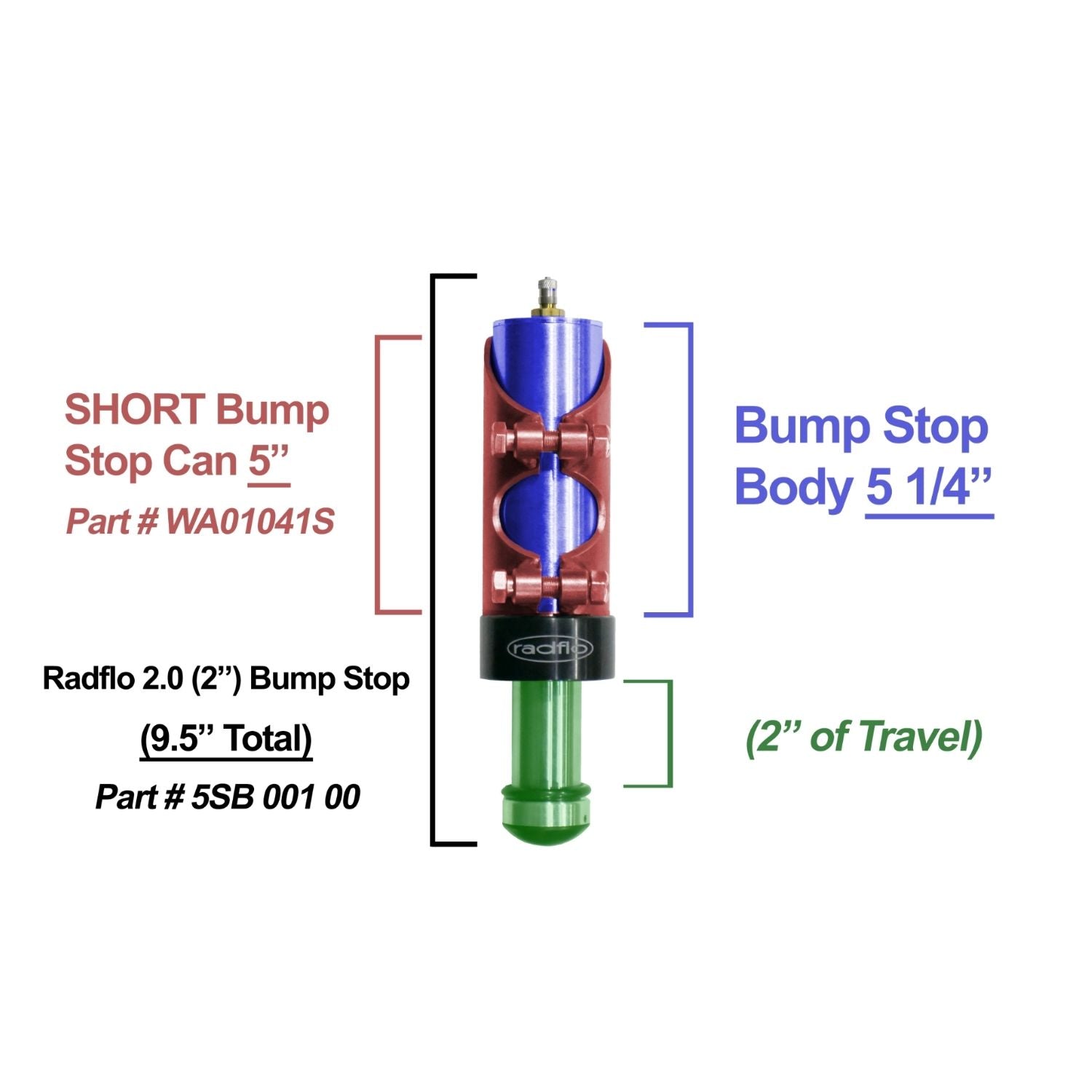

- Fox 2 bumps (2 & 3 travel)
- King 2.0 bumps
- Radflo 2 bumps
- ADS 2 bumps
- ORI 2 bump stops
- Other 2 hydraulic/air bump stops with 2–3 travel
Perfect for:
- Tight suspension packaging
- Front or rear bump stop mounts
- Rock crawlers & rock bouncers
- Ultra4 suspension setups
- Custom chassis fabrication
Tech Insight
Short bump cans are essential for builds where space is limited—especially around coilover towers, truss areas, and upper link mounts. Using laser-cut DOM tubing ensures consistent inner diameter, allowing the bump stop to slide smoothly and seat correctly. Proper bump alignment is critical to suspension performance and preventing harsh bottom-outs.
This shorter can is ideal when you don’t need the length of a standard 4–5 can.

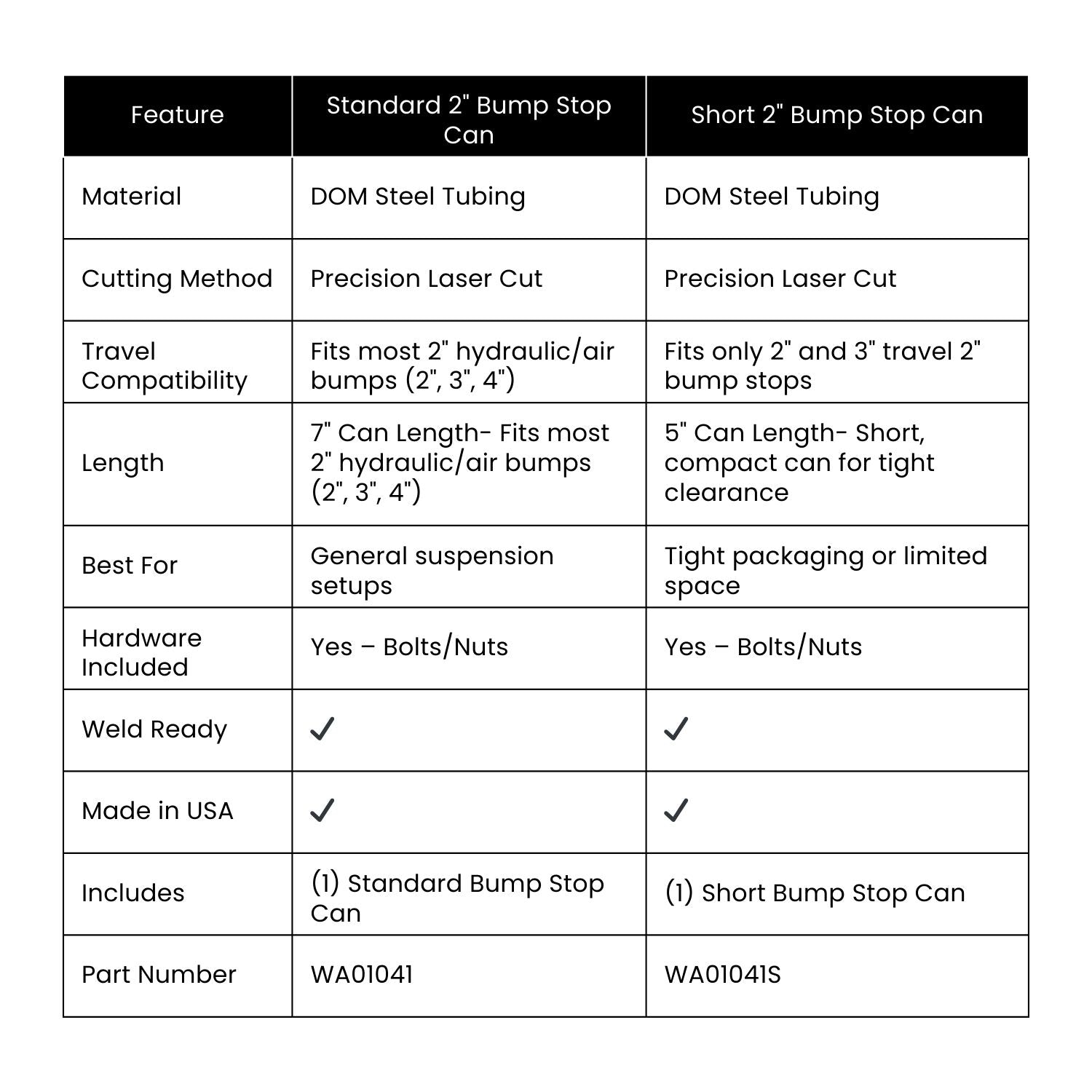

| Feature | Standard 2 Bump Stop Can | Short 2 Bump Stop Can |
|---|---|---|
| Material | DOM Steel Tubing | DOM Steel Tubing |
| Cutting Method | Precision Laser Cut | Precision Laser Cut |
| Travel Compatibility | Fits most 2 hydraulic/air bumps (2, 3, 4) | Fits only 2 and 3 travel 2 bump stops |
| Length | Standard full-length can | Short, compact can for tight clearance |
| Best For | General suspension setups | Tight packaging or limited space |
| Hardware Included | Yes – Bolts/Nuts | Yes – Bolts/Nuts |
| Weld Ready | ✔️ | ✔️ |
| Made in USA | ✔️ | ✔️ |
| Includes | (1) Standard Bump Stop Can | (1) Short Bump Stop Can |
| Part Number | WA01041 | WA01041S |
