NMO-RACE-7C
The Rugged Radios RACE SERIES Antenna Coax Cable & NMO Mount Kit connects a mobile radio to an NMO antenna in a race, prerunner, or trail vehicle. The available 7-, 9-, and 12-foot lengths let a builder choose a route around the cage, dash, and bodywork without buying a cable solely by the distance measured in a straight line.
The X1C cable uses triple shielding and a nickel-plated NMO mount, with a standard PL-259 radio connection. Mounting-hole diameter and panel thickness matter when adding the base to a fabricated tab or roof panel. Plan a protected cable path with room at both connections, and choose the antenna separately for the radio band; this listing supplies the selected-length cable and mount assembly.
Includes:
| Part Number | NMO-RACE-7C NMO-RACE-9C NMO-RACE-12C |
|---|---|
| Product Type | Coaxial Cables |
| Primary Application | Radio-to-antenna coax routing in race and trail vehicles; NMO base installation on suitable panels or tabs |
| Manufacturer / brand | Rugged Radios |
| Lengths | 7, 9, or 12 feet |
| Shielding | Triple-shielded |

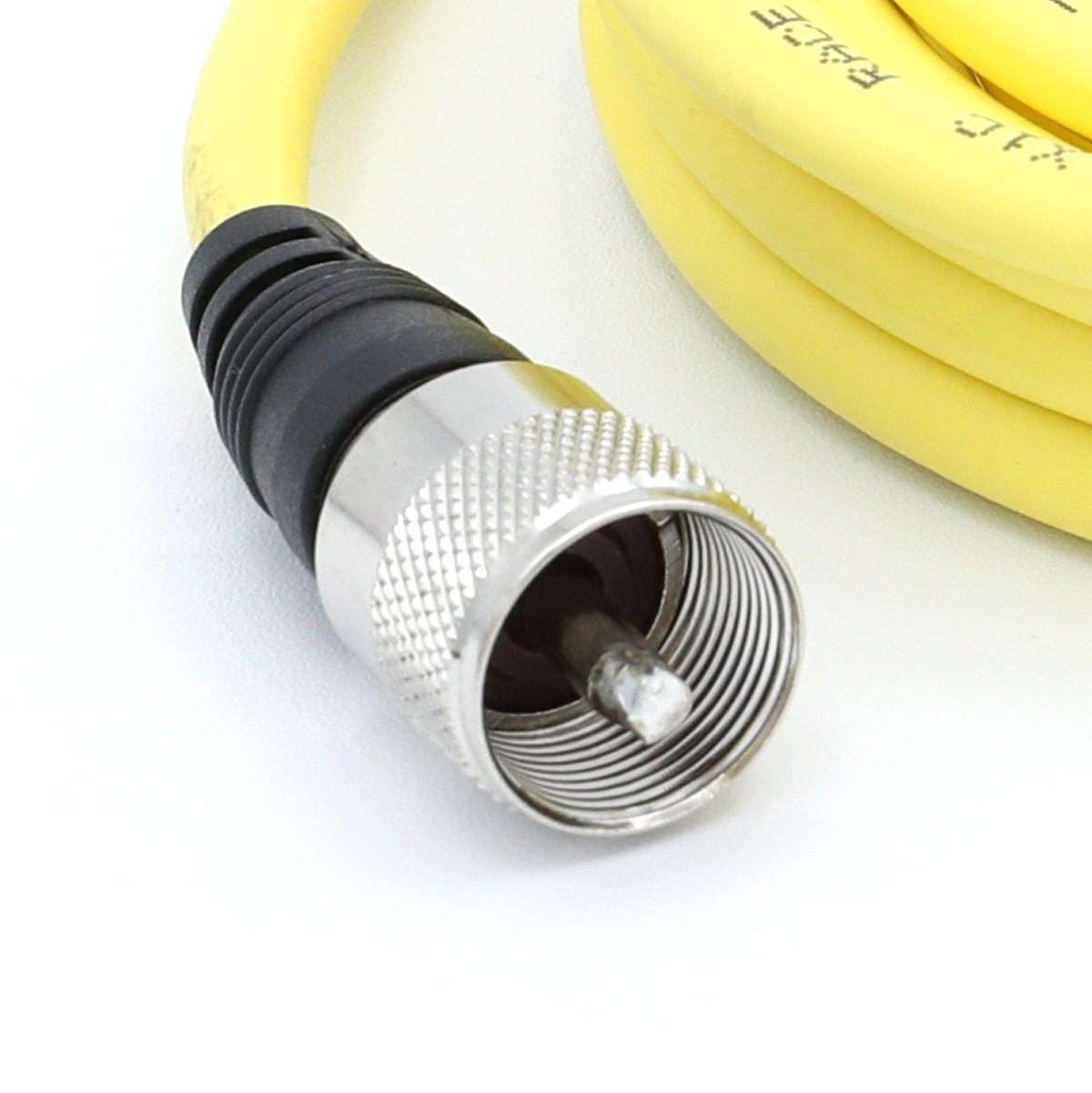

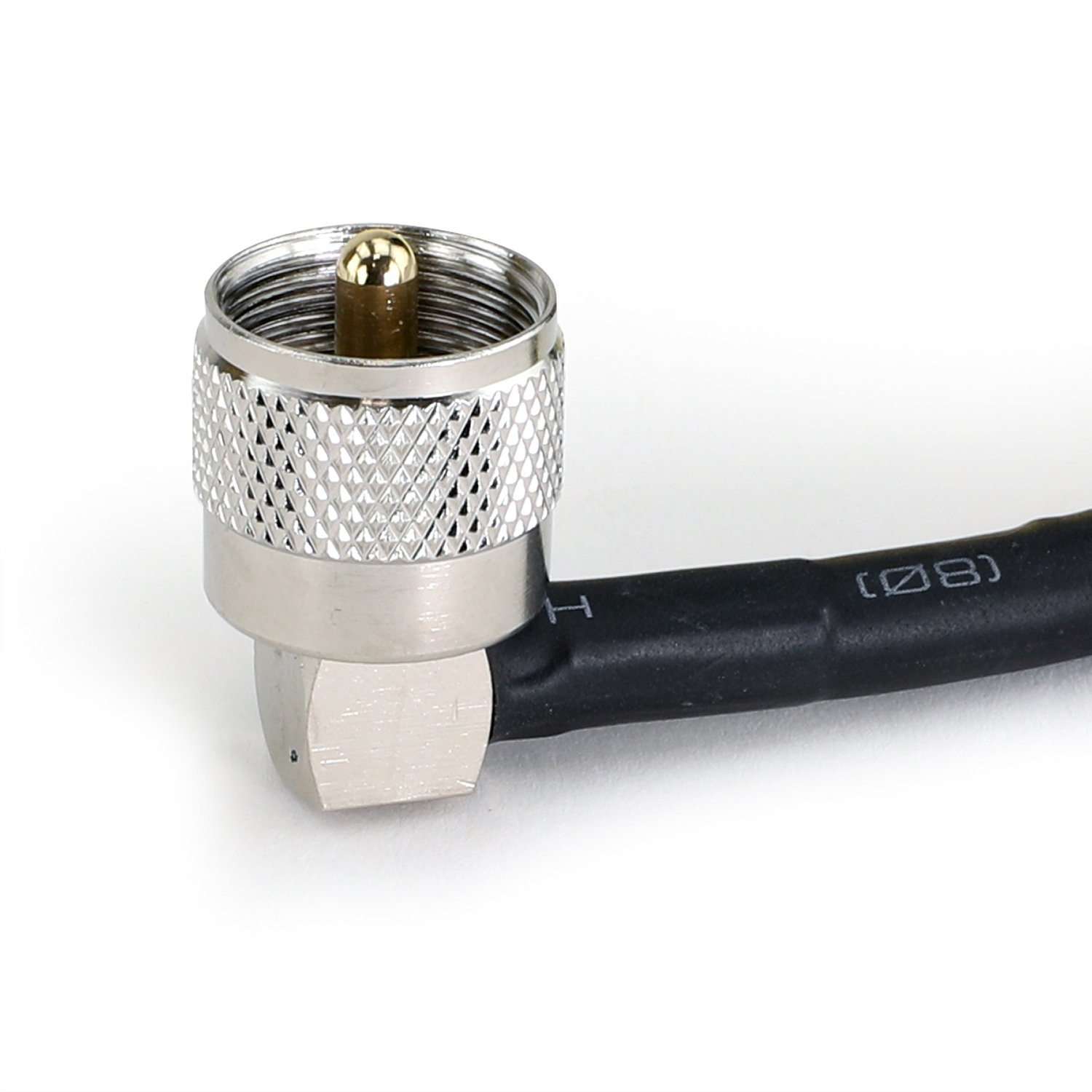

| Radio connector | PL-259 UHF |

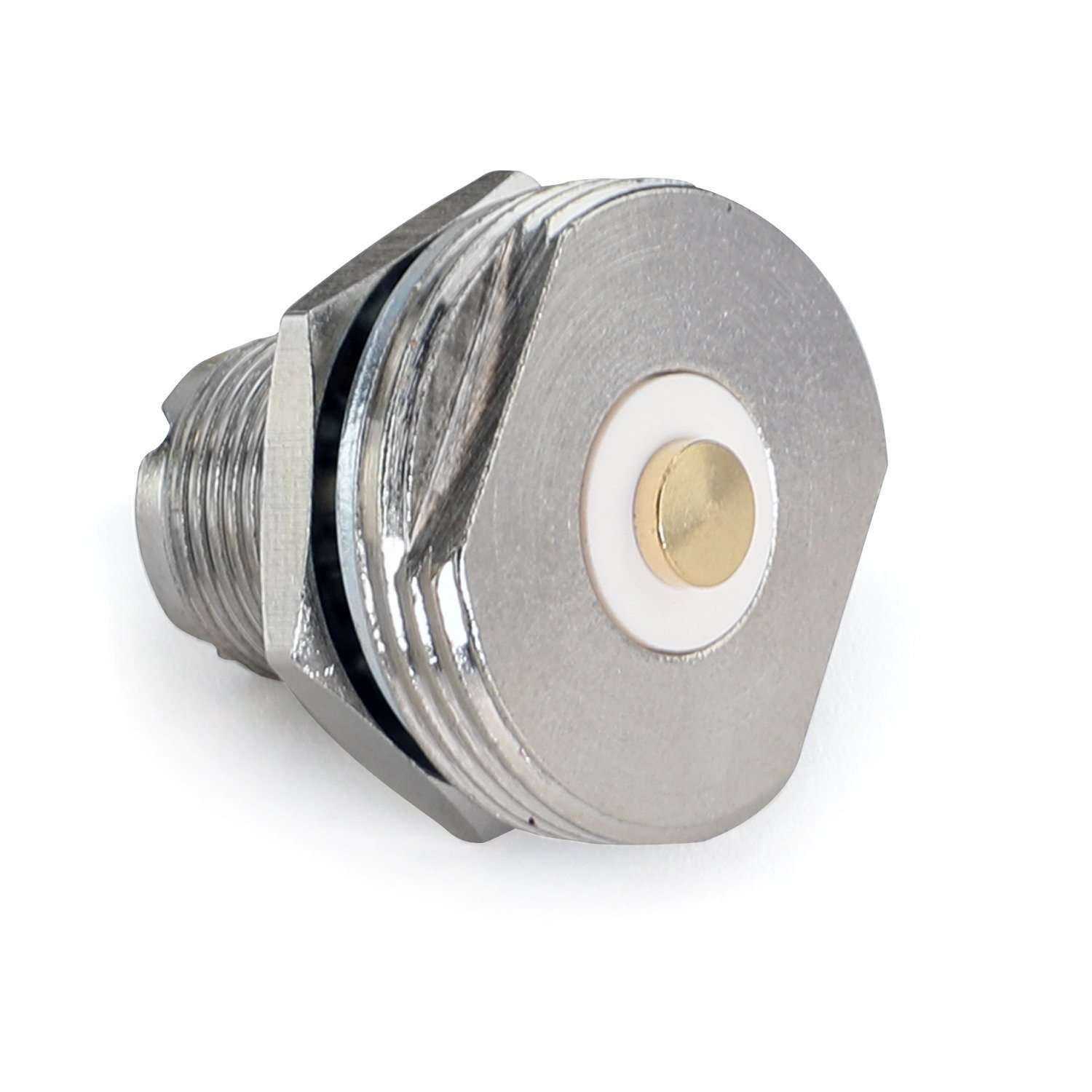

| Mounting hole | 5/8 inch |
| Maximum mounting thickness | 7/16 inch |
| Select Your Size | 7 Foot; 9 Foot; 12 Foot |
Common Uses:
Fitment Notes:
Compatible mobile radios using a standard PL-259 connection, with an NMO antenna. Antenna is separate.
Choose the 7-, 9-, or 12-foot variant; one cable assembly is supplied in that selected length.
The source specifies a 5/8-inch mounting hole and a maximum mounting-surface thickness of 7/16 inch.
No antenna is identified in the confirmed contents. Choose the antenna separately for the intended radio band.
Compatible mobile radios using a standard PL-259 connection, with an NMO antenna. Antenna is separate.

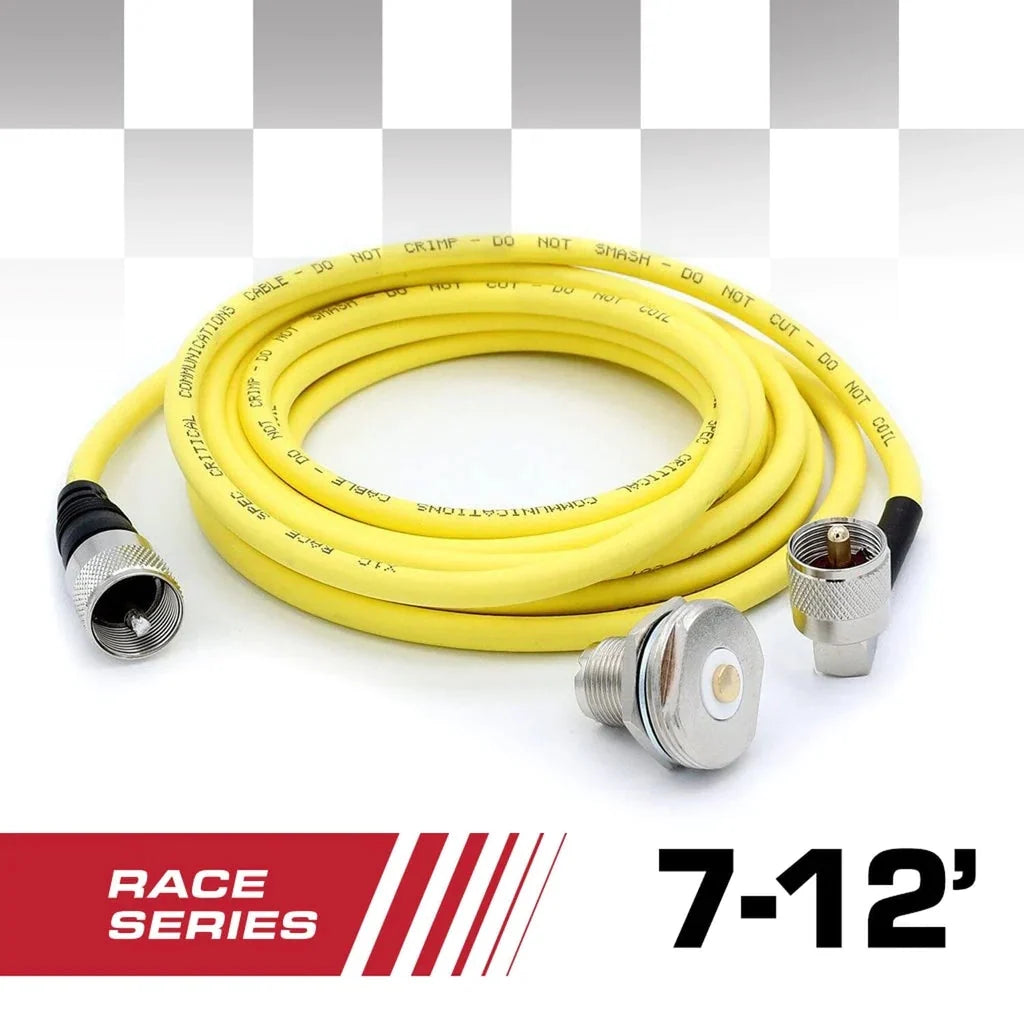

Selected-length X1C coax cable with NMO antenna mount and PL-259 connector.
