STEALTH-UHF

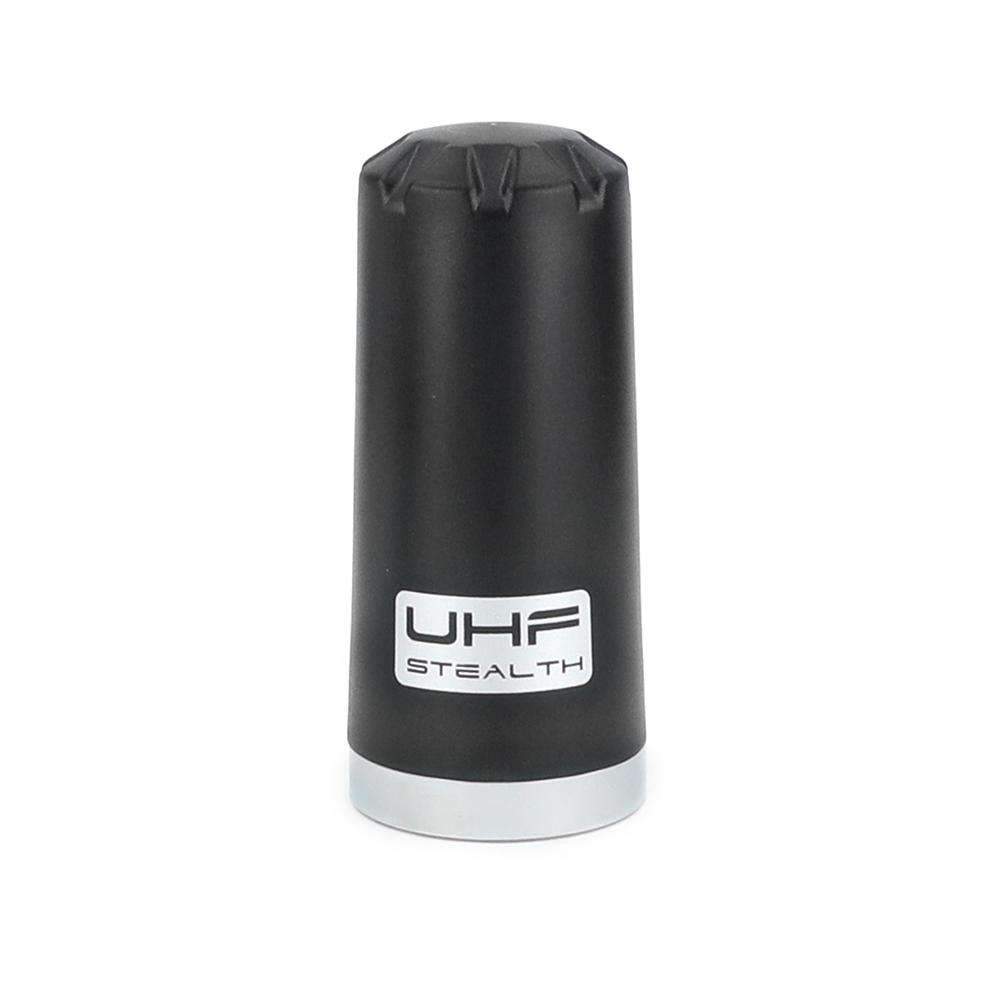

The Rugged Radios Stealth Low-Profile GMRS / UHF Antenna provides a short GMRS/UHF antenna for a vehicle that needs clearance under a toy-hauler roof, garage opening, or low trail branches. Its 3.25-inch height is useful when a taller whip would regularly need to be removed for storage or transport.
The antenna uses an NMO mount and is tuned for the stated 450-480 MHz range. Select the version for the mounting location: the ground-plane model is intended for a suitable metal surface, while the no-ground-plane model is for the specified plastic-roof, cage-tab, fender, or mirror-bracket arrangements. The low profile changes packaging, not the need to match the antenna band and mounting style to the radio installation.
Includes:
| Part Number | STEALTH-UHF STEALTH-UHF-GP |
|---|---|
| Product Type | Mobile Radio Antennas |
| Primary Application | Low-clearance vehicle storage and transport; GMRS/UHF antenna layouts using the correct ground-plane version |
| Manufacturer / brand | Rugged Radios |
| Height | 3.25 inches |
| Frequency | 450-480 MHz |
| Gain | 2.0 dBi |
| Mount | NMO |
| Select Your Option | Non-Ground Plane; Ground Plane |
Common Uses:
Fitment Notes:
Ground-plane version for suitable metal roof surfaces; no-ground-plane version for plastic roofs, tabs, and similar mounting arrangements.

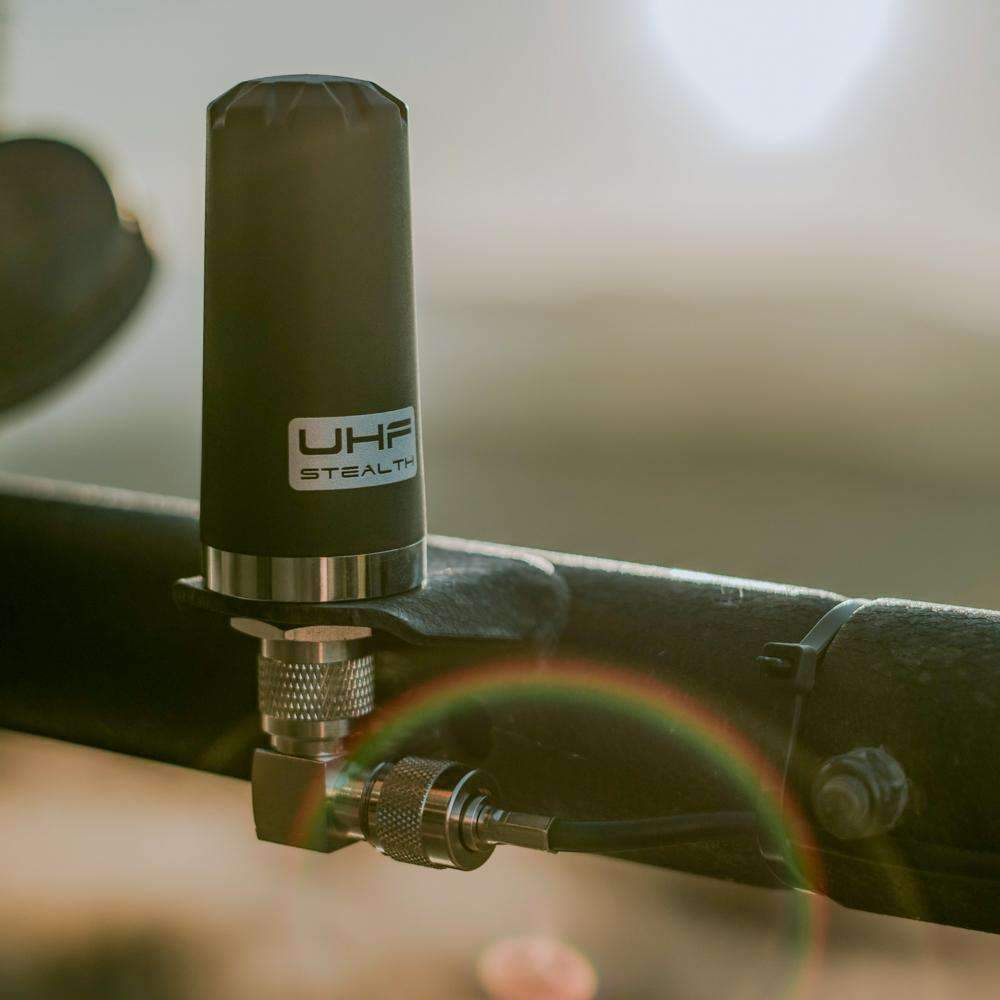

The source specifies the no-ground-plane option for tab, cage, fender, or mirror-bracket mounting.
The supplier states a 3.25-inch overall height for the Stealth antenna.
No. The listed Stealth version is tuned for GMRS/UHF at 450-480 MHz, not the VHF band of the M1 race-radio kit.
Ground-plane version for suitable metal roof surfaces; no-ground-plane version for plastic roofs, tabs, and similar mounting arrangements.
Selected ground-plane or no-ground-plane Stealth antenna.
