30102042
The SPAL 14" Electric Radiator Puller Fan delivers high airflow and reliable cooling performance for demanding automotive, racing, and off-road applications. Producing up to 1,864 CFM, this 12-volt curved-blade puller fan is well suited for radiators, oil coolers, heat exchangers, and compact cooling packages where consistent airflow is critical to controlling engine temperature.
After testing multiple electric fans across the market, this SPAL 14" puller fan delivered the best overall results we have seen in this size. Because of that real-world performance, it is the fan used in the WOD 31" x 15.5" x 3" Dual Pass Radiator Combo for LS and LT cooling systems, including -16 AN radiator applications.
SPAL's curved-blade design helps provide strong airflow with reduced operating noise, while the sealed IP68-rated motor protects against dust and water intrusion. This makes the fan a dependable choice for rock crawlers, Ultra4 cars, race vehicles, trail rigs, and high-performance street builds exposed to heat, dirt, moisture, and vibration.

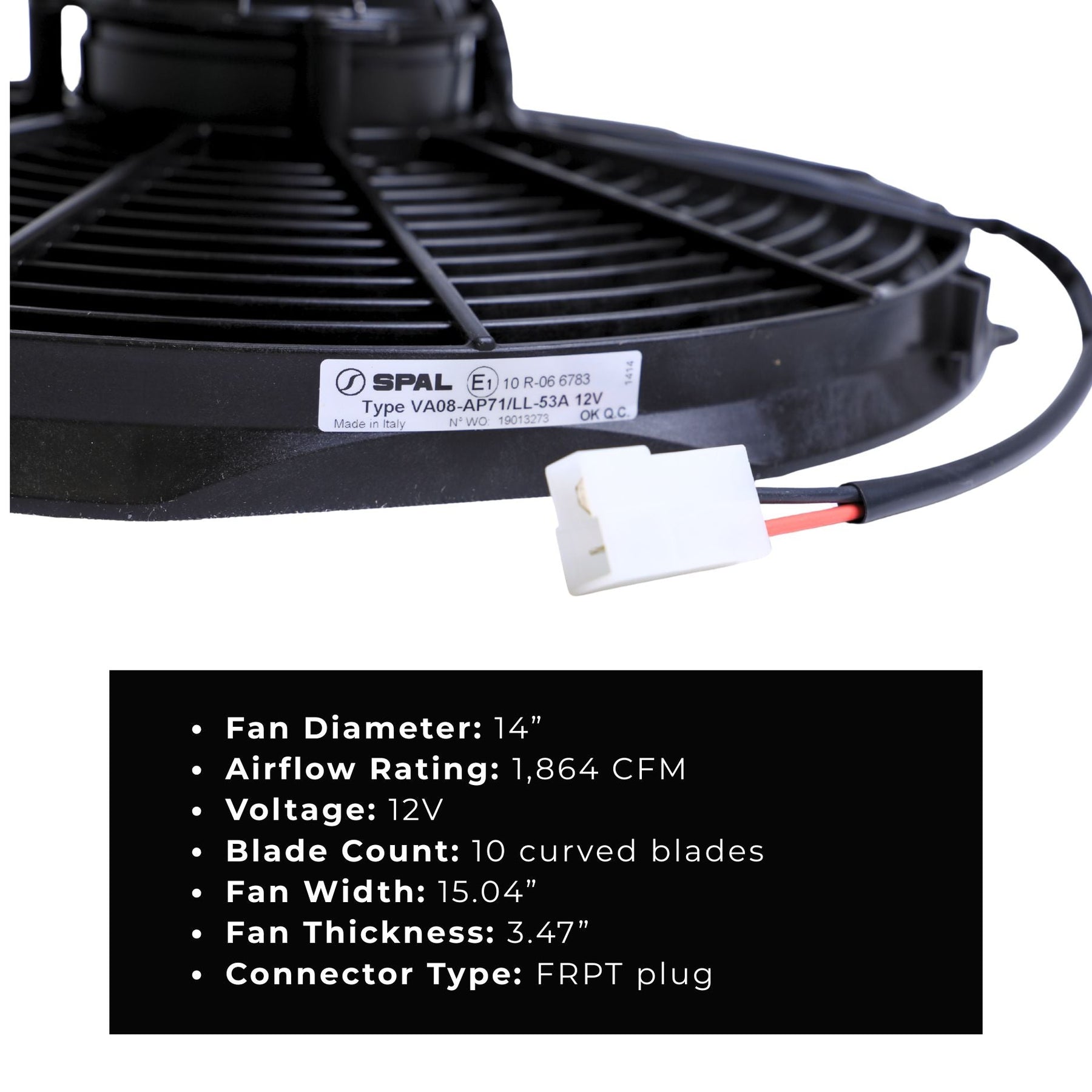

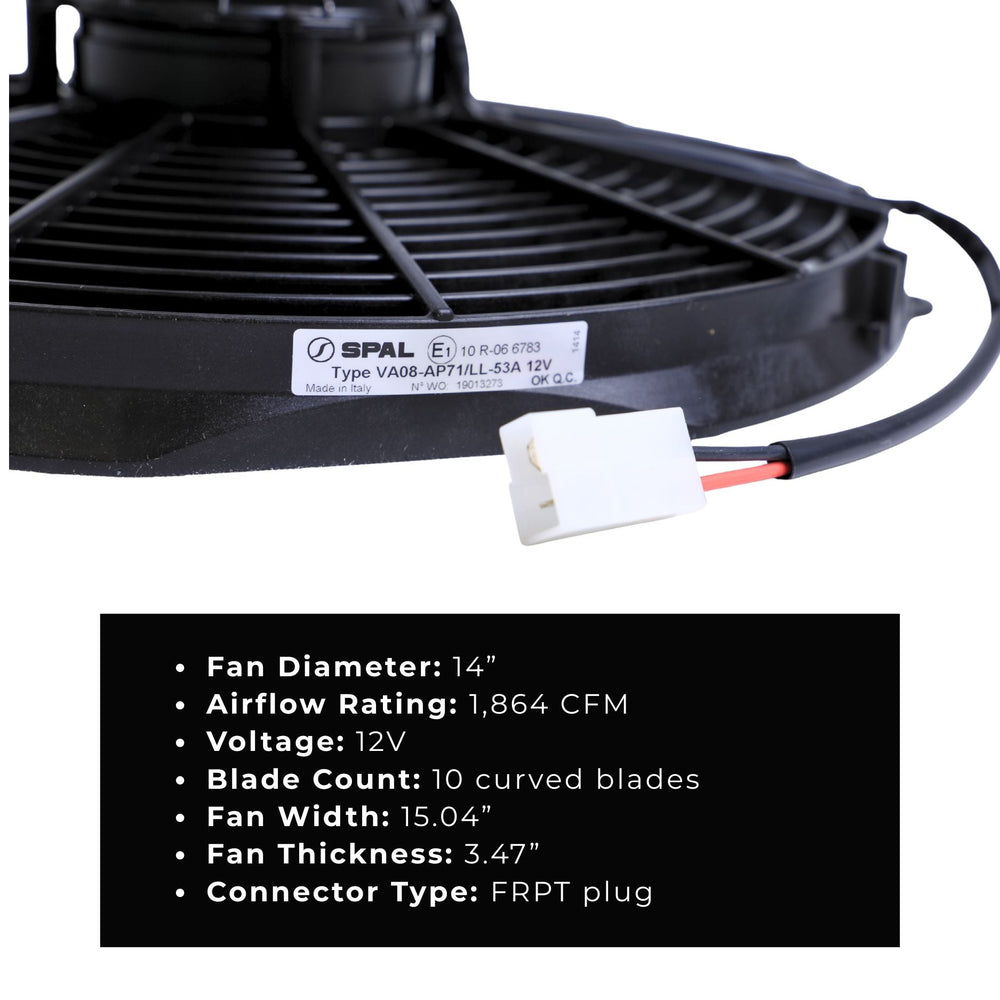

| Specification | Details |
|---|---|
| Manufacturer | SPAL |
| Part Number | 30102042 |
| Product Type | Electric Radiator Puller Fan |
| Fan Diameter | 14" |
| Fan Style | Curved Blade |
| Airflow | 1,864 CFM at 0 Static Pressure |
| Voltage | 12V |
| Current Draw | 19.5 Amps |

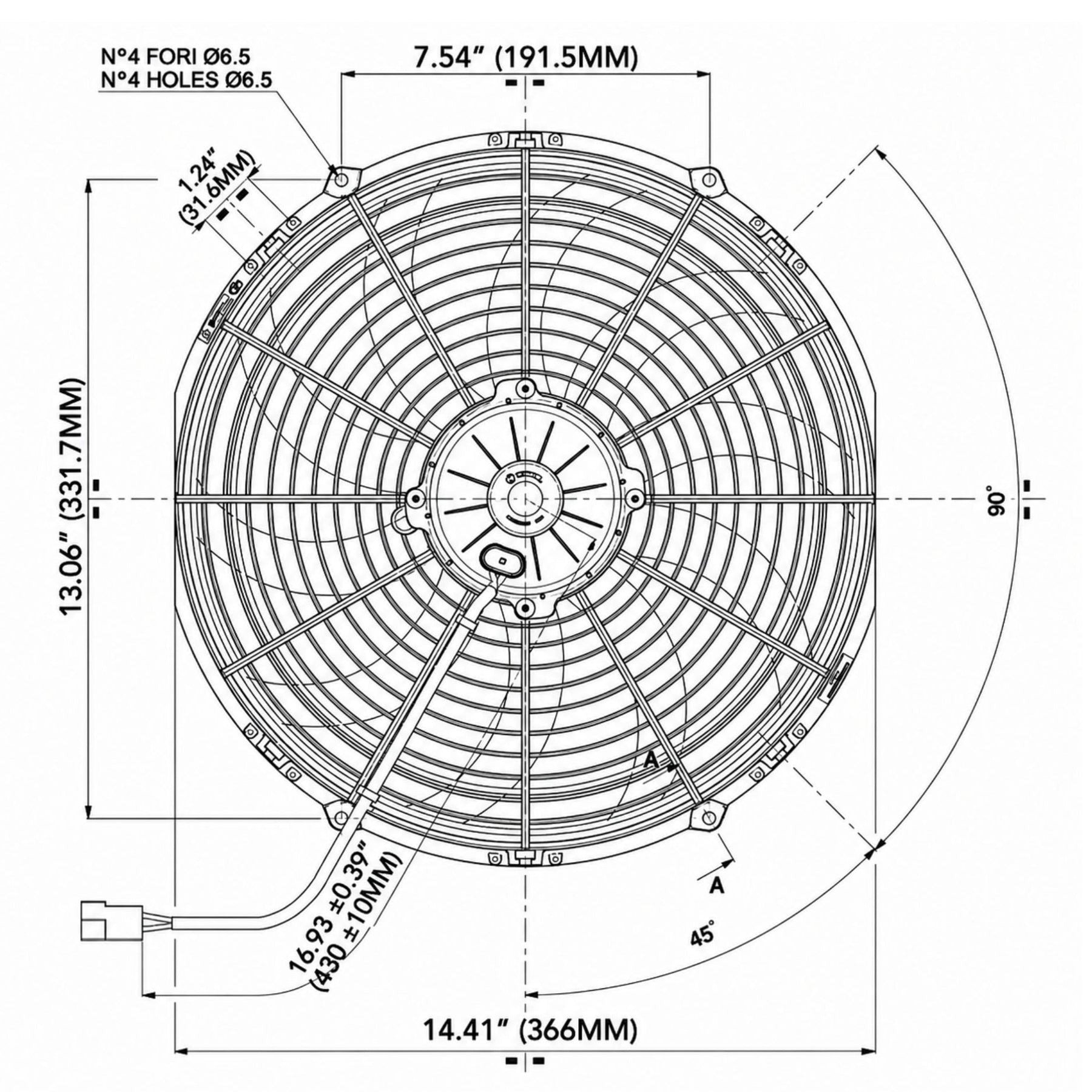

| Overall Height | 15.04" |
| Overall Width | 15.04" |
| Overall Thickness | 3.47" |
| Motor Type | Sealed Electric Motor |
| Water and Dust Rating | IP68 |
| Connector Type | FRPT Plug |
| Mounting Hardware Included | No |
| Mounting Brackets Included | No |
| WOD Cooling Package Compatibility | Used in WOD 31" x 15.5" x 3" Dual Pass Radiator Combo Packages |
Universal Puller Fan Application
Fitment Notes:
Electric fan performance depends on more than the advertised free-air CFM rating. Radiator core thickness, fin density, shroud coverage, fan depth, motor strength, and airflow restrictions all affect how much air the fan can pull through the cooling system under real operating conditions.
This SPAL 14" curved-blade puller fan became our preferred option after testing multiple fans in comparable cooling packages. It delivered the best overall results in the WOD 31" x 15.5" x 3" Dual Pass Radiator Combo, making it a strong choice for high-heat LS and LT swaps, off-road vehicles, race cars, and custom builds where dependable low-speed airflow matters.
A puller fan mounted behind the radiator generally moves air more efficiently because it draws air through the entire core and works with natural airflow at vehicle speed. Proper shroud design is still important for maximizing core coverage.
A well-designed shroud helps the fan pull air through a larger portion of the radiator instead of only through the area directly in front of the blades. Better core coverage improves cooling consistency at idle and low vehicle speed.
Yes. An IP68-rated motor is sealed against dust and water intrusion, which is especially valuable in mud, rain, water crossings, race conditions, and other harsh off-road environments.
