1.5" Tube Flange Set
SKU: F021002

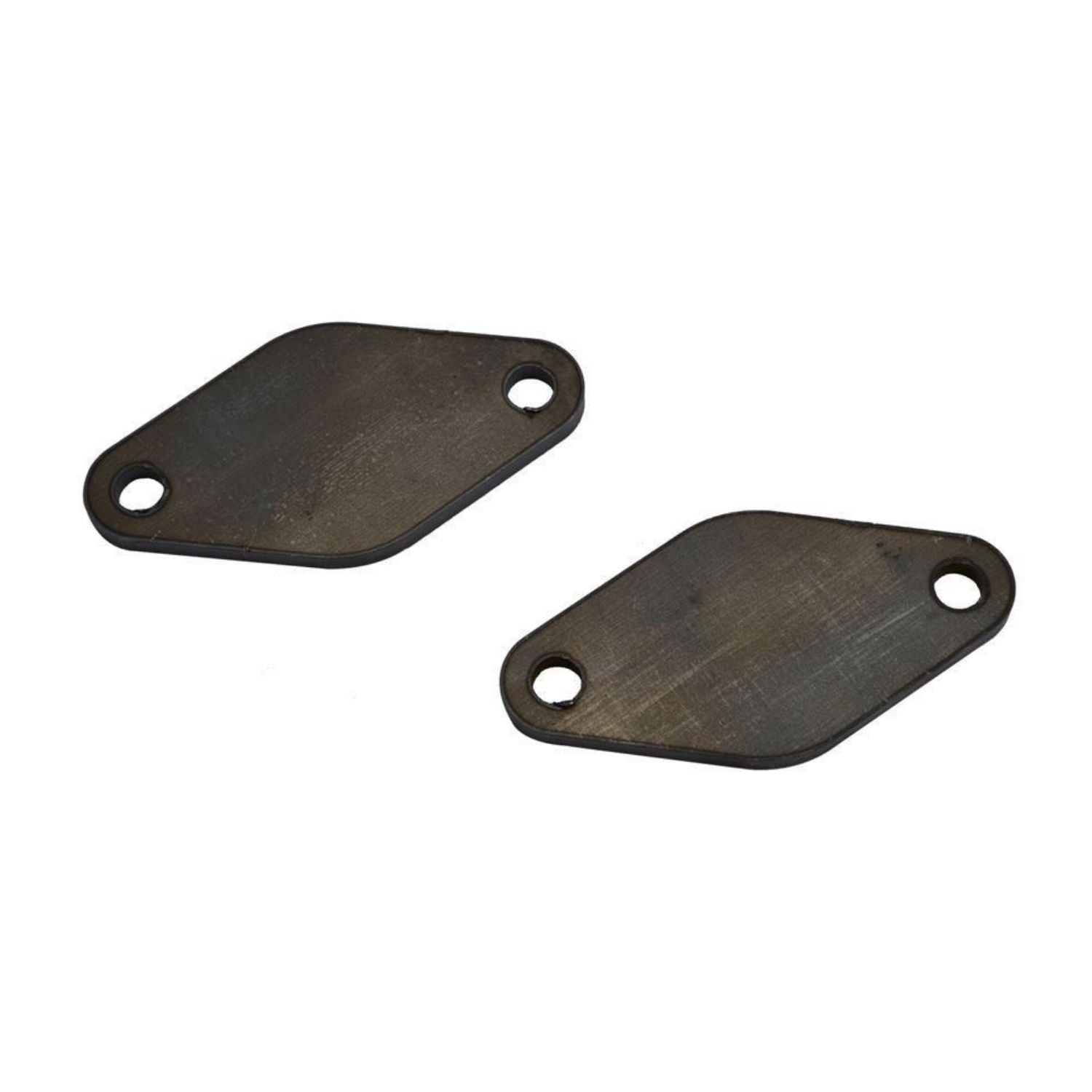

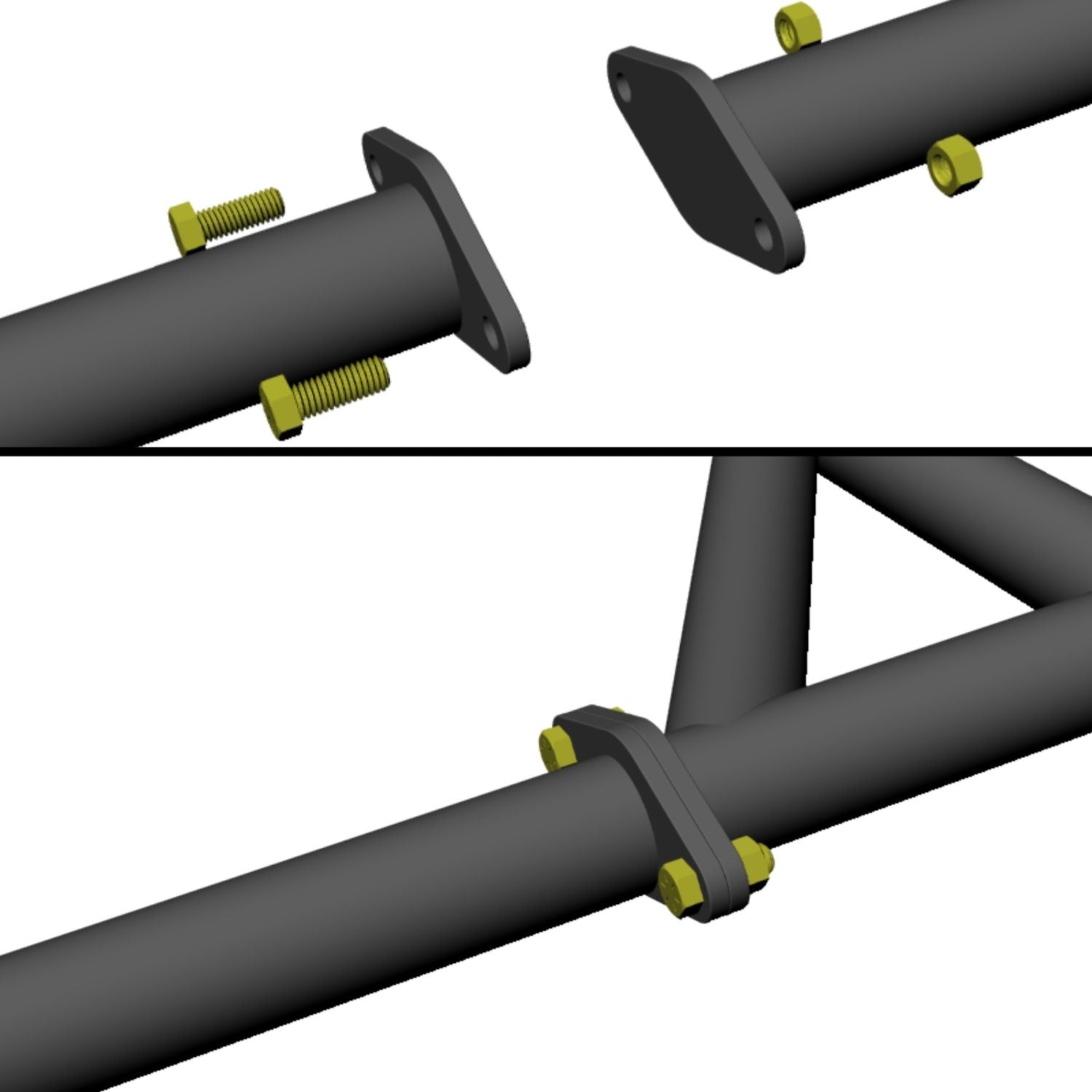

The 1.50" Tube Disconnect Flange Set allows you to build removable sections into your tube chassis—perfect for engine cages, cooler racks, spare tire carriers, rear chassis sections, and any tube structure requiring service access. These flanges create a strong bolt-together connection that can be mounted anywhere on your roll cage where disassembly is needed.
Each flange is precision laser cut from 1/4" high-strength plate steel for consistent fitment and clean weld prep. This set eliminates the hassle of fabricating your own disconnects and provides a professional, durable solution for high-end off-road builds.
Includes:
- (2) 1.50" Tube Disconnect Flanges (one complete set)

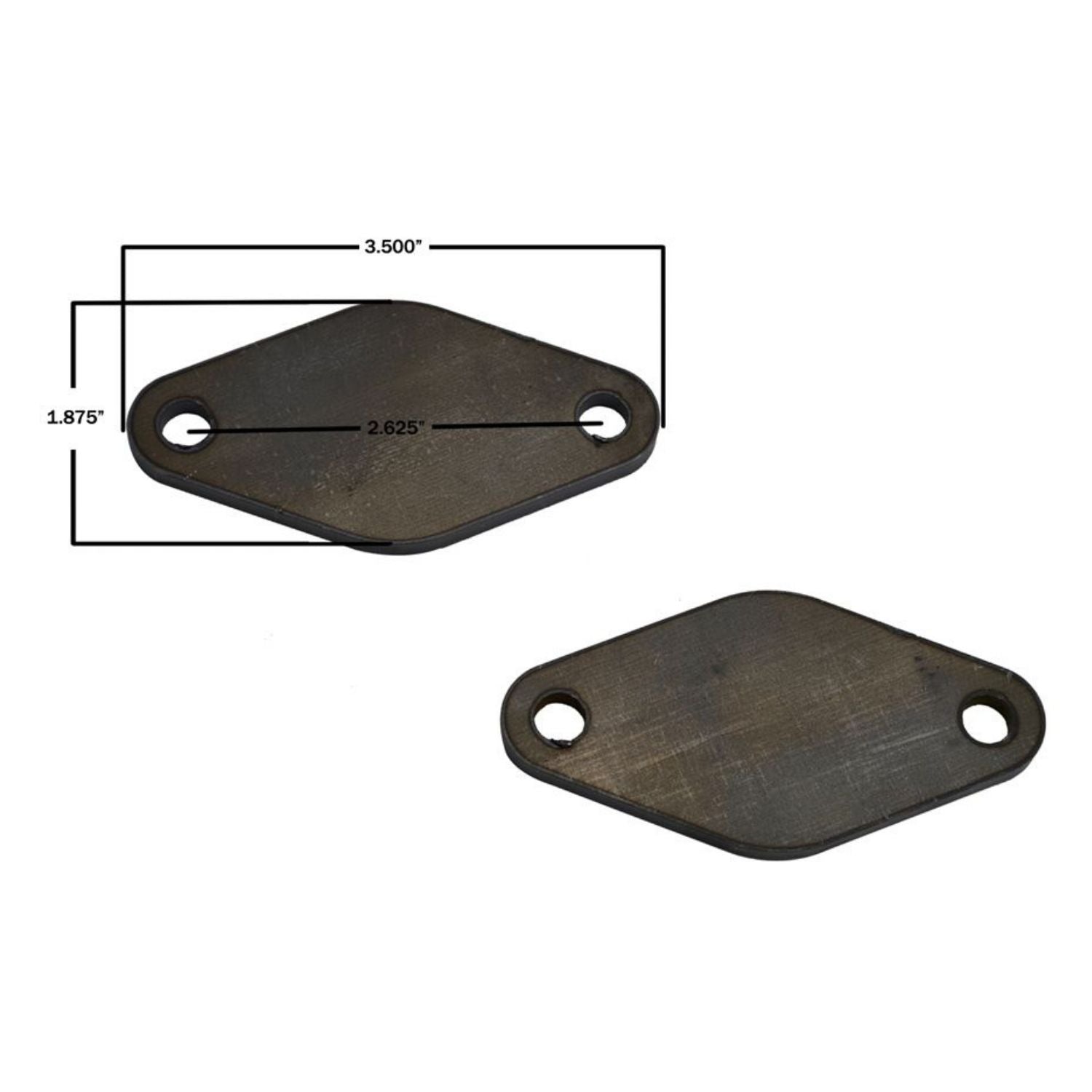

Specifications
- Material: 1/4" High Strength Plate Steel
- Overall Length: 3.500"
- Overall Height: 1.875"
- Hole Size: 3/8"
- Cutting Method: Precision laser cut
- Condition: Weld-ready
- Designed for: 1.50" tube connections
- Country of Origin: Made in the USA
Fitment
- Ideal for creating removable structures such as:
- Engine cages
- Cooler racks
- Spare tire carriers
- Rear chassis sections
- Upper shock mount crossbars
- Any service-access tube work
Tech Insight
Tube flanges are essential when a chassis component must be removable but still structurally strong. These flanges give builders the ability to bolt together sections without compromising rigidity. Precision-matched holes keep alignment true while welded tube ends provide long-term durability. Perfect for high-travel rigs, tight engine bays, and race chassis that require frequent servicing.

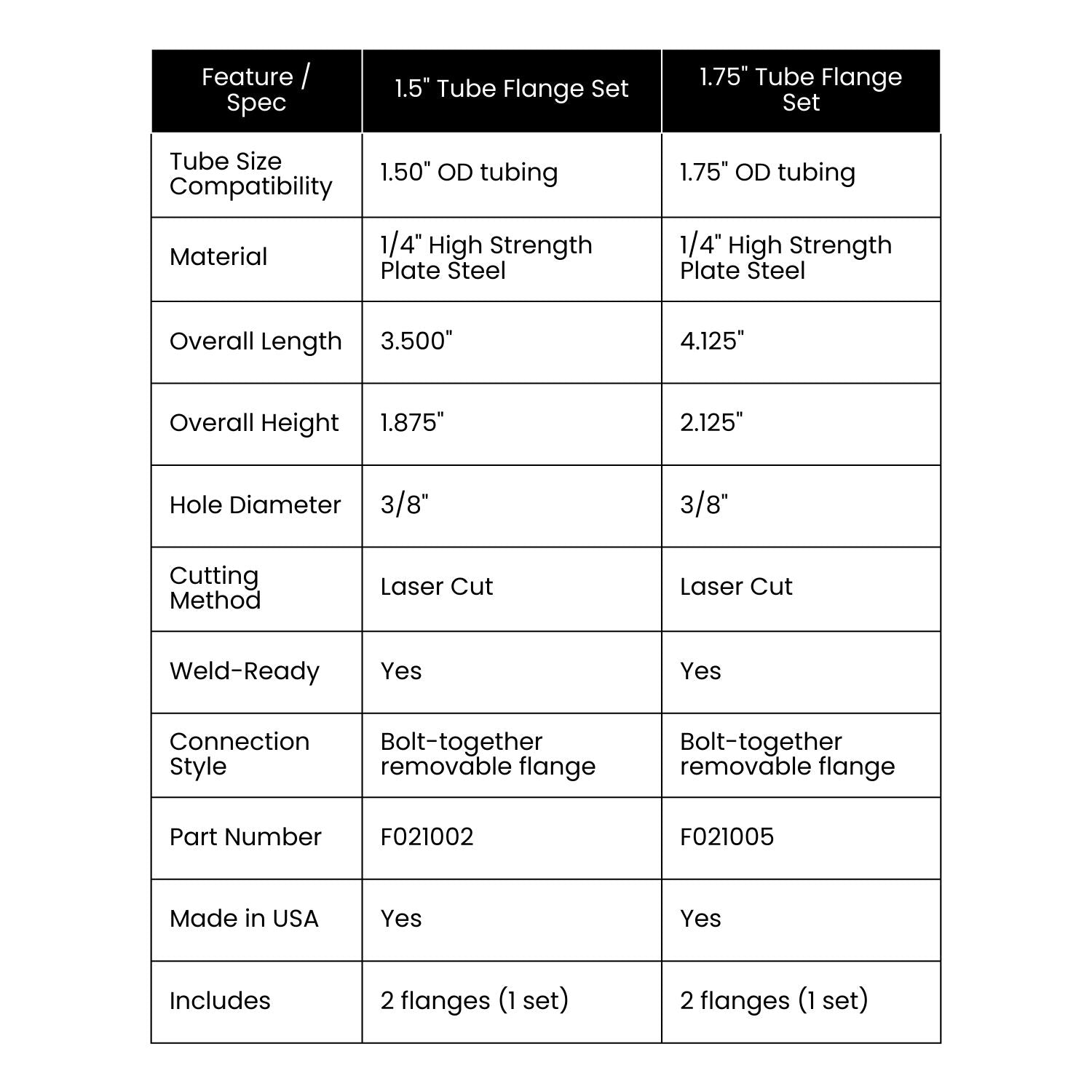

| Feature / Spec | 1.5" Tube Flange Set | 1.75" Tube Flange Set |
|---|---|---|
| Tube Size Compatibility | 1.50" OD tubing | 1.75" OD tubing |
| Material | 1/4" High Strength Plate Steel | 1/4" High Strength Plate Steel |
| Overall Length | 3.500" | 4.125" |
| Overall Height | 1.875" | 2.125" |
| Hole Diameter | 3/8" | 3/8" |
| Cutting Method | Laser Cut | Laser Cut |
| Weld-Ready | Yes | Yes |
| Connection Style | Bolt-together removable flange | Bolt-together removable flange |
| Part Number | F021002 | F021005 |
| Made in USA | Yes | Yes |
| Includes | 2 flanges (1 set) | 2 flanges (1 set) |
