Chromoly Interlocking Tube Disconnect – 1.75" OD x .120 Wall
SKU: WA01045

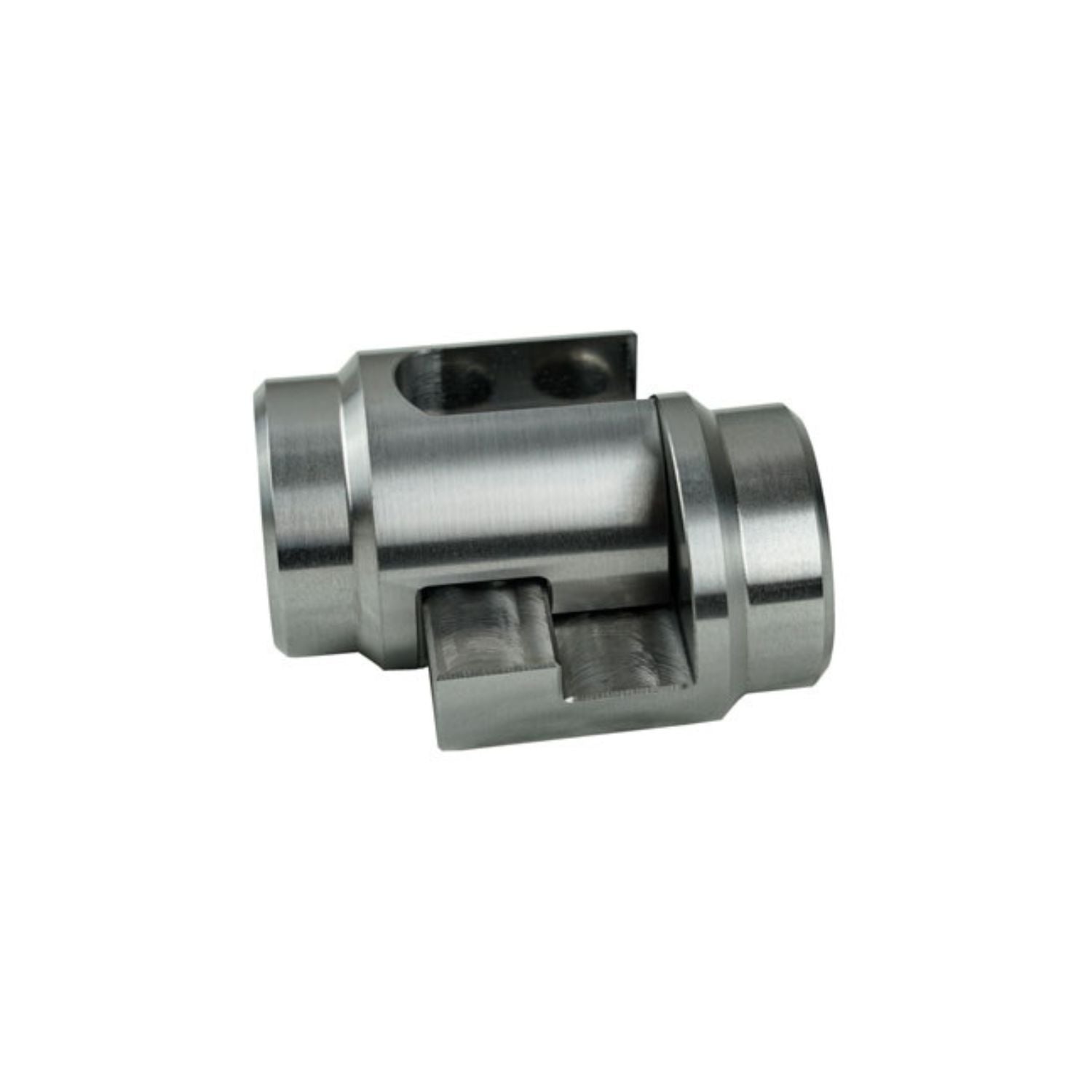

These Chromoly Interlocking Tube Disconnects are the ideal solution when you need a removable section of tube in your chassis for motor access, transmission removal, seat service, and modular fabrication. Each clamp is machined from 100% 4140 Chromoly, providing extreme strength, precision, and a zero-slop fit.

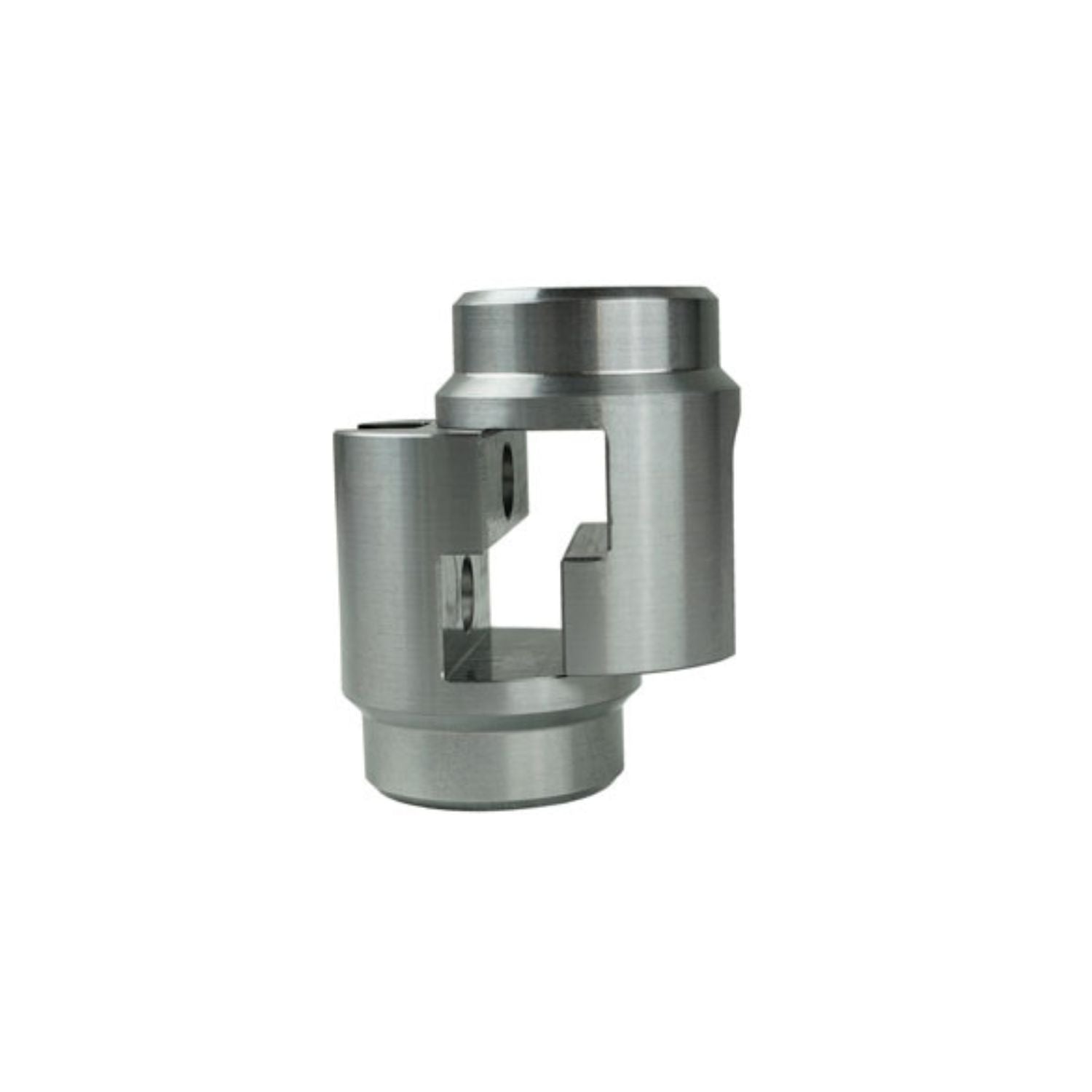

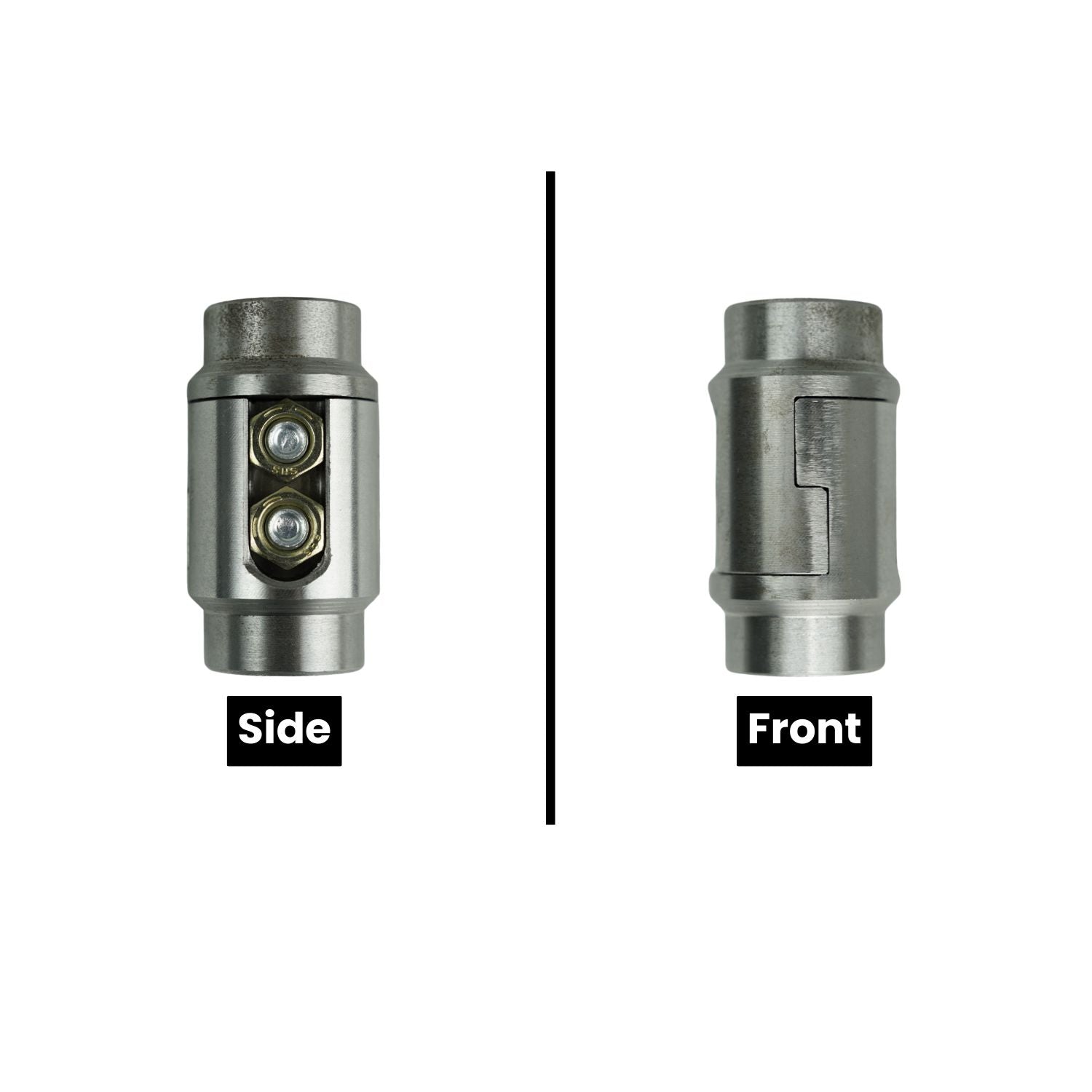

The interlocking male/female design ensures alignment under load, while the countersunk Allen bolts create a clean, low profile assembly. These are professional grade disconnect clamps built for serious off-road and race applications.

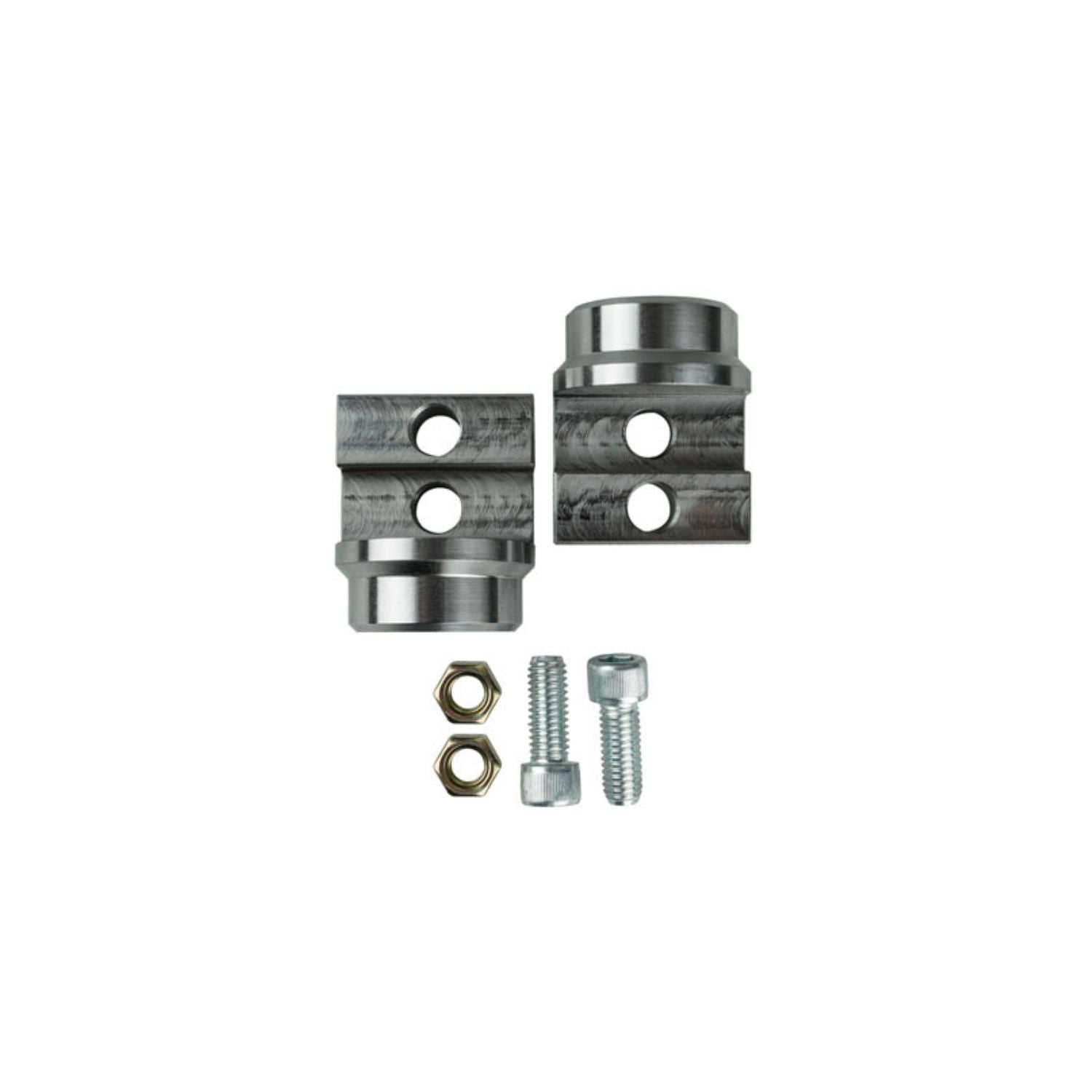

Includes:
- (1) Chromoly Interlocking Tube Disconnect
- (2) Countersunk Allen Head Bolts
Specifications
- Tube Size: Fits 1.75" OD x .120 wall tubing
- Material: 4140 Chromoly Steel
- Design: Precision interlocking disconnect
- Bolts: Countersunk Allen head bolts (included)
- Fit: Tight, zero-slop interface
- Condition: Weld-ready
Fitment

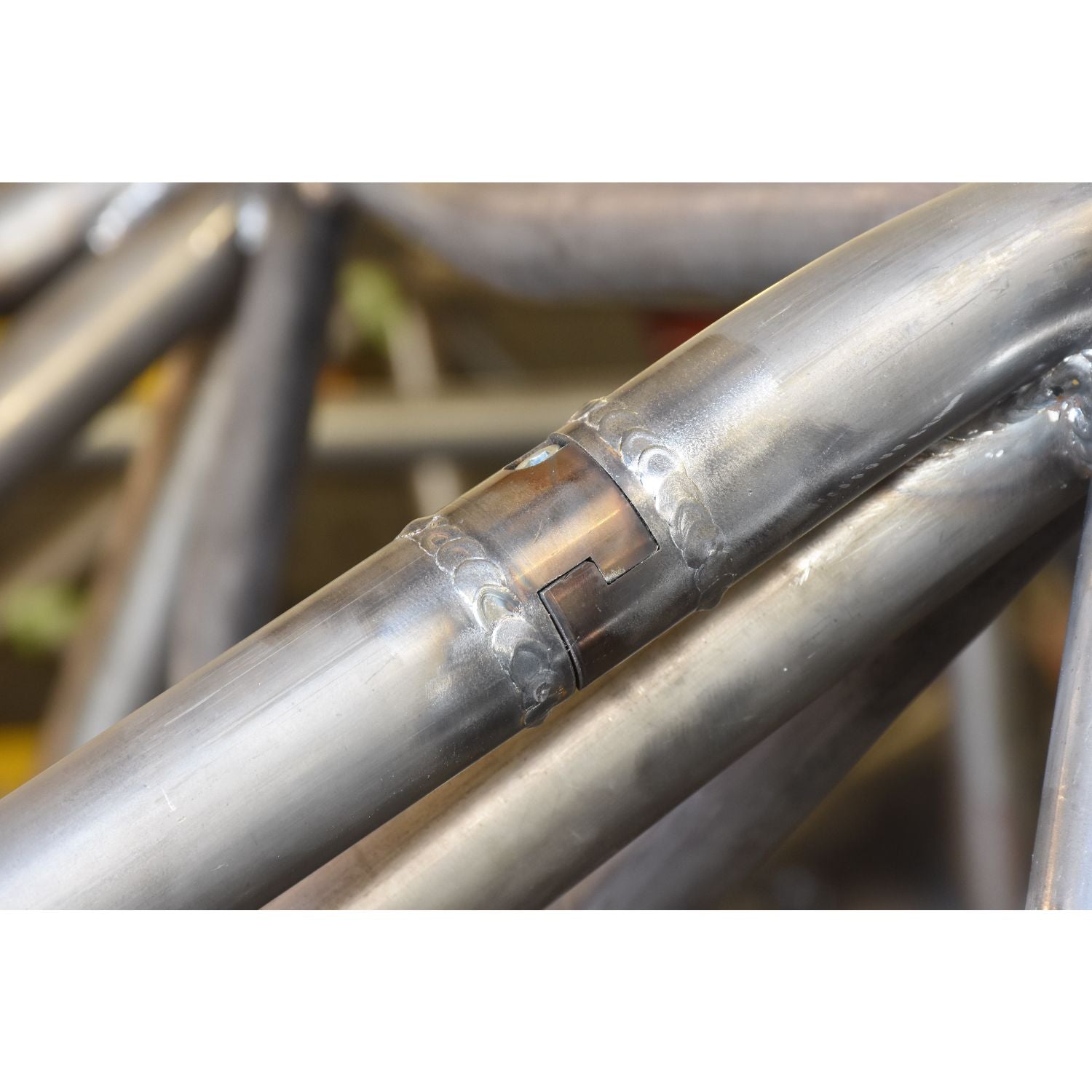

Perfect for creating removable sections in:
- Engine cages
- Transmission cross bars
- Upper shock tower bracing
- Removable rear chassis sections
- Cooler racks & spare tire carriers

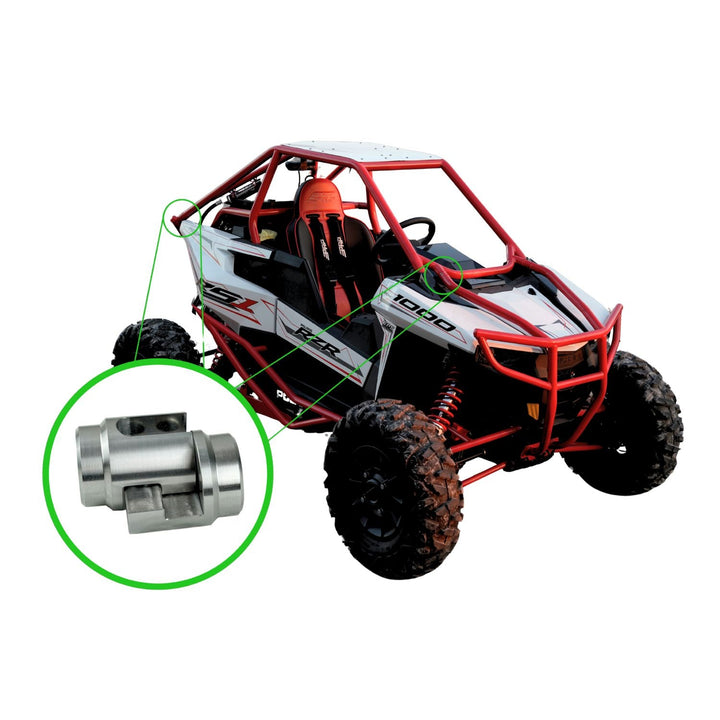

- High-maintenance or high-access areas in off-road vehicles
Tech Insight
The .120 wall version is the strongest in the 1.75 lineup, designed for areas with higher loads, twisting forces, or hard impacts. The thicker wall tube engages deeper into the Chromoly clamp and ensures the disconnect remains rigid, even under extreme off-road conditions like rock bouncing or Ultra4 racing.
| Feature / Spec | 1.75 x .095 Wall Clamp | 1.75 x .120 Wall Clamp |
|---|---|---|
| Tube Size | 1.75 OD x .095 wall | 1.75 OD x .120 wall |
| Material | 4140 Chromoly Steel | 4140 Chromoly Steel |
| Fit Precision | Zero-slop interlocking | Zero-slop interlocking |
| Strength Rating | Strong | Stronger (thicker wall tube) |
| Best Use | Standard tube structures | High-load / high-impact structures |
| Ideal Areas | Engine cages, removable bars | Main chassis tubes, shock tower braces |
| Fasteners | Countersunk Allen bolts | Countersunk Allen bolts |
| Part Number | WA01046 | WA01045 |
| Includes | 1 clamp + bolts | 1 clamp + bolts |
| Made in USA | Yes | Yes |
