WOD 2.5" Driveshaft DOM Tubing- 1350, 1410, or 1480 - .250" Wall
WF010001350-1
The Wide Open Design 2.5" DOM Driveshaft Tubing is the same heavy-wall steel tubing specification used in our in-house off-road builds. Made from 2.5" outside diameter DOM steel with a .250" wall thickness, this tubing provides the strength and durability needed for custom rock crawler, trail buggy, and heavy-duty off-road driveshaft fabrication. The thick wall helps resist denting and deformation when the driveshaft contacts rocks, ledges, and other trail obstacles.

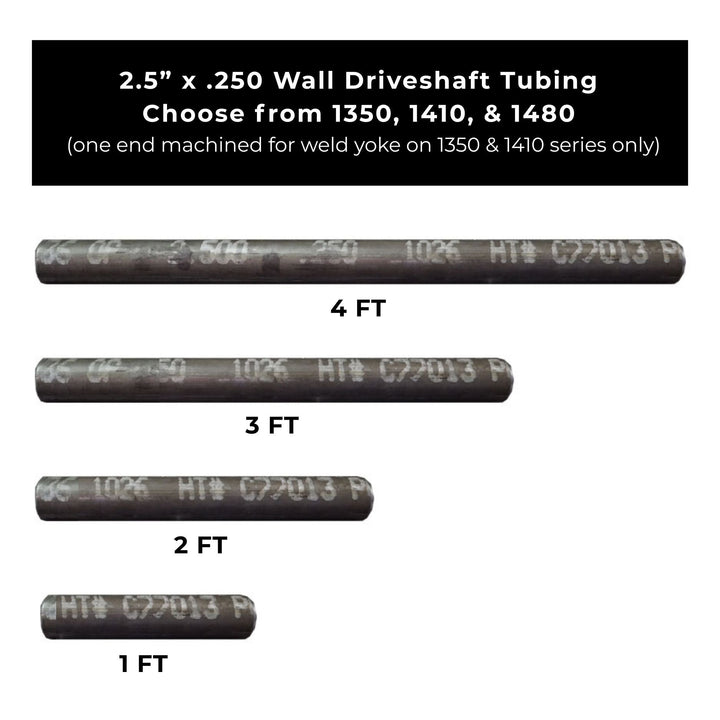

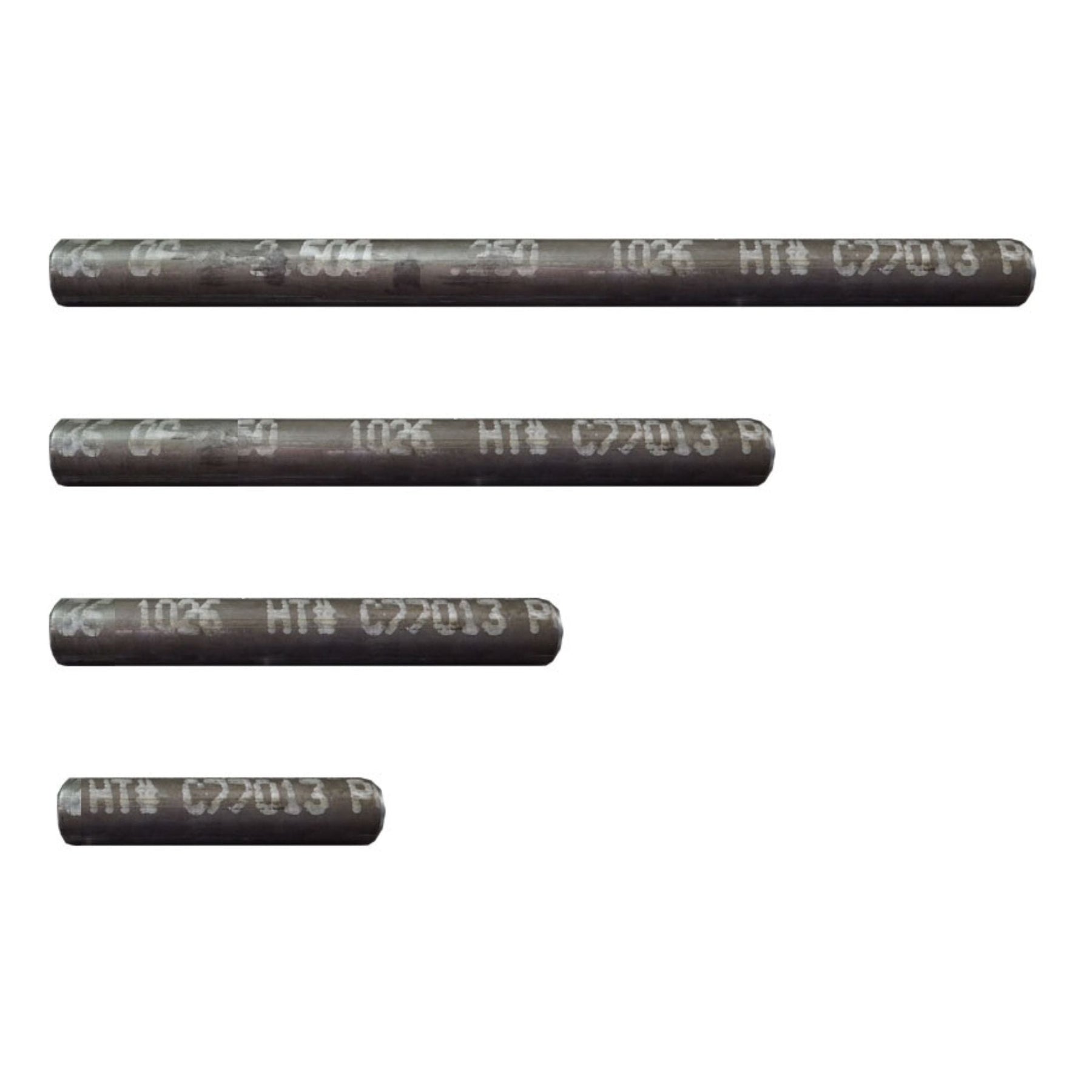

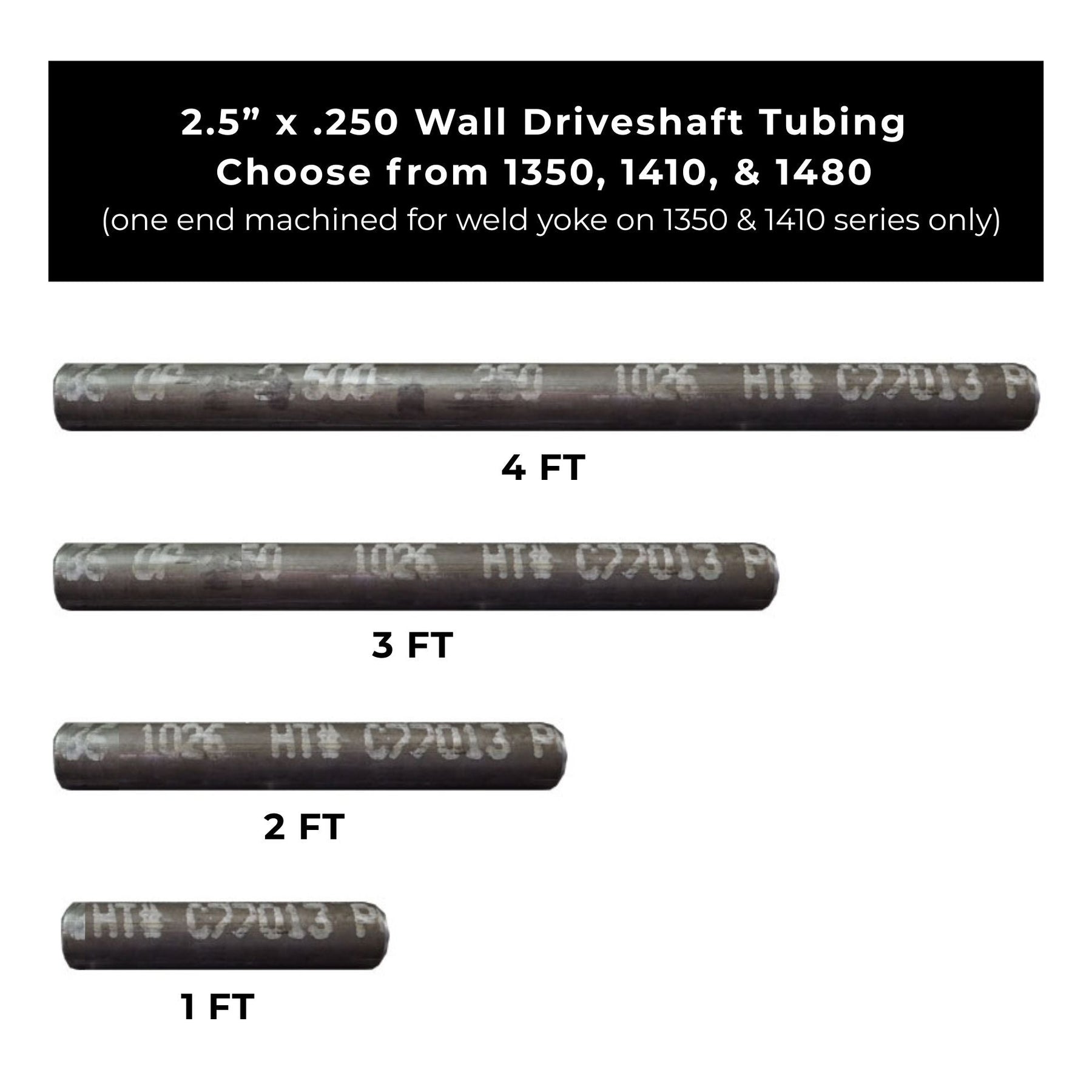

Available in 1, 2, 3, and 4-foot lengths, this tubing gives fabricators the flexibility to build a driveshaft around their specific wheelbase, drivetrain, and suspension configuration. Choose from 1350, 1410, or 1480-series applications. The 1350 and 1410 options have one end machined to accept the corresponding weld yoke, while the 1480 option is supplied without a machined end. Whether you're replacing a damaged driveshaft or building a custom driveline from scratch, this is the tubing we trust in our own buggies.
Includes:
- (1) Section of 2.5" OD x .250" Wall DOM Steel Driveshaft Tubing
- Customer-Selected Length: 1 ft, 2 ft, 3 ft, or 4 ft
- 1350 & 1410 Options: One End Machined for the Corresponding Weld Yoke
- 1480 Option: Supplied Without a Machined End
Important: This listing is for driveshaft tubing only. Weld yokes, U-joints, slip assemblies, and other driveshaft components are not included. Final cutting, fitting, welding, and balancing are required to complete a driveshaft assembly.
Specifications
Driveshaft Tubing Specifications
| Manufacturer | Wide Open Design |
|---|---|
| Product Type | Custom Driveshaft Builder Tubing |
| Material | DOM (Drawn Over Mandrel) Steel Tubing |
| Outside Diameter | 2.5" |
| Wall Thickness | .250" (1/4") |
| Nominal Inside Diameter | 2.0" |
| Available Lengths | 1 ft, 2 ft, 3 ft, 4 ft |
| Driveshaft Series Options | 1350, 1410, 1480 |
| 1350 Tube Preparation | One End Machined for Corresponding Weld Yoke |
| 1410 Tube Preparation | One End Machined for Corresponding Weld Yoke |
| 1480 Tube Preparation | Supplied Without a Machined End |
| Construction | Heavy-Wall Steel Tubing |
| Weldable | Yes – Proper Driveshaft Fabrication Procedures Required |
| Application | Custom Off-Road Driveshaft Fabrication |
| Common Vehicles | Rock Crawlers, Trail Buggies, Jeeps & Custom Off-Road Builds |
| WOD Application | Same Tubing Specification Used in Wide Open Design In-House Builds |
Available Tubing Configurations
| Driveshaft Series | Tube Preparation | Available Lengths |
|---|---|---|
| 1350 | One End Machined for Weld Yoke | 1–4 ft |
| 1410 | One End Machined for Weld Yoke | 1–4 ft |
| 1480 | No End Machining Included | 1–4 ft |
Dimensions Note: Nominal inside diameter is calculated from the outside diameter and wall thickness. Actual tubing dimensions and weld-yoke fitment should be verified before final assembly.
Fitment
Universal Application for Custom Driveshaft Fabrication
This tubing is intended for custom-built driveshaft assemblies using compatible 1350, 1410, or 1480-series driveline components. It is not a direct-fit replacement driveshaft.
Common Applications:
- Custom Rock Crawler & Trail Buggy Driveshafts
- Jeep & Tube-Chassis Off-Road Builds
- 1350-Series Driveshaft Builder Kits
- 1410-Series Driveshaft Builder Kits
- 1480-Series Driveshaft Builder Kits
- Heavy-Duty Custom Driveline Fabrication
Fitment & Fabrication Notes:
- Select the tubing length and driveline series that match your driveshaft build.
- 1350 and 1410 tubing options have one end machined for the corresponding weld yoke.
- 1480 tubing is supplied without end machining and requires additional preparation.
- Verify weld-yoke dimensions and tube fit before welding.
- Measure the driveline at ride height and throughout suspension compression and droop.
- Confirm adequate driveshaft clearance around suspension links, skid plates, crossmembers, and chassis components.
- Check slip travel, U-joint operating angles, and driveshaft length before final assembly.
- Use appropriate driveshaft welding, alignment, and balancing procedures.
- Longer driveshafts and high operating speeds require additional consideration of critical shaft speed and vibration.
Fitment Note: Driveshaft tubing compatibility is determined by the selected weld yokes, shaft dimensions, and driveline design rather than vehicle make or model alone.
FAQ
Why use 2.5" x .250" wall DOM tubing for driveshafts?
The heavy .250" wall provides additional resistance to denting and deformation when the driveshaft contacts rocks or other obstacles. This tubing specification is used in Wide Open Design's in-house off-road builds and is a practical choice for custom rock crawler and trail buggy driveshaft fabrication.
What U-joint sizes does this tubing support?
This tubing is offered for 1350, 1410, and 1480-series driveshaft applications. The selected driveline series determines the required weld yoke and tube preparation. Verify the dimensions of your specific components before assembly.
Does the tubing come machined for a weld yoke?
The 1350 and 1410 options have one end machined for the corresponding weld yoke. The 1480 option does not include a machined end and requires additional preparation before assembly.
What lengths are available?
The tubing is available in 1-foot, 2-foot, 3-foot, and 4-foot lengths. Select the length needed for your custom driveshaft build.

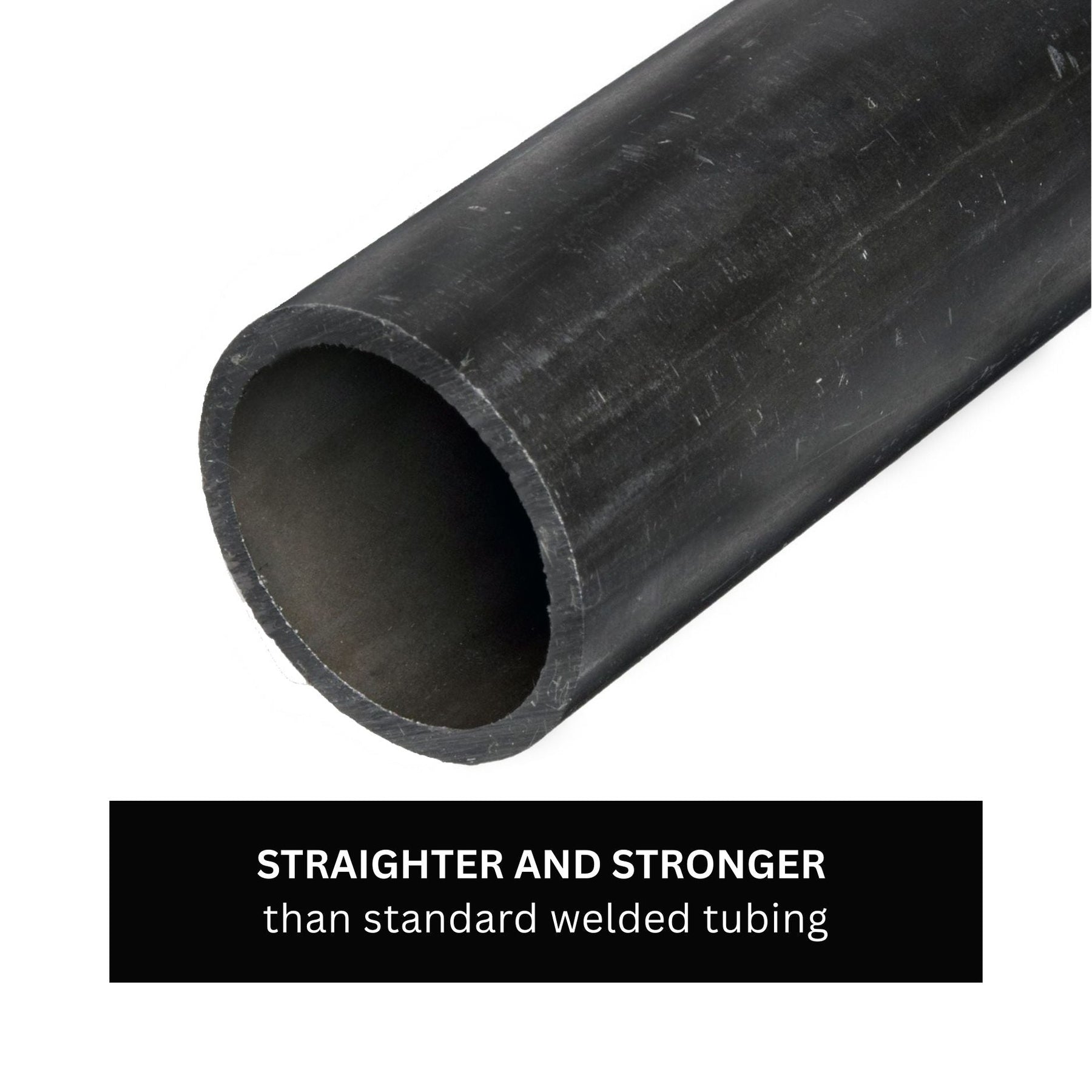

What is the difference between DOM tubing and standard steel tubing?
DOM stands for Drawn Over Mandrel. This manufacturing process produces tubing with controlled dimensions and a consistent wall profile, making it suitable for precision fabrication applications where fit and weld-yoke alignment matter.
Why choose raw tubing instead of a complete driveshaft?
Raw driveshaft tubing allows fabricators to build a shaft around their specific drivetrain layout, wheelbase, and suspension travel. This is especially useful for custom buggies and modified Jeeps where standard driveshaft lengths may not fit.
Does this listing include weld yokes or U-joints?
No. This listing includes the selected length of DOM driveshaft tubing only. Weld yokes, U-joints, slip assemblies, and other driveshaft components must be purchased separately.
Can this tubing be used in high-horsepower off-road builds?
Yes, this tubing specification is used in Wide Open Design's off-road builds. However, the suitability of a completed driveshaft depends on shaft length, torque, operating RPM, weld quality, yoke selection, and overall driveline design.
Does a custom driveshaft need to be balanced?
A completed driveshaft should be checked for alignment and balanced as appropriate for its operating speed and intended application. Proper balancing helps reduce vibration and wear on U-joints, bearings, and connected drivetrain components.
How do I determine the correct driveshaft tubing length?
Measure the required driveshaft assembly length based on your transfer case, axle yoke, slip assembly, and suspension geometry. Account for suspension compression and droop before cutting the tubing to its final length.
