WOD 1410 Carrier Bearing Shaft Builder Kit
WF03006
The WOD 1410 Carrier Bearing Shaft Builder Kit provides everything needed to build a heavy-duty intermediate shaft for multi-piece driveshaft systems, custom chassis builds, and long-wheelbase off-road vehicles. Built around the proven WOD Single Ended Carrier Bearing and genuine Spicer 1410 driveline components, this kit is designed for builders who need increased strength over a traditional 1350 driveline while maintaining excellent driveline angles and articulation.
Carrier bearing systems are commonly used when driveshaft length, suspension travel, or chassis layout make a traditional one-piece driveshaft impractical. The 1410 series is often considered the ideal driveline platform for serious off-road vehicles because it bridges the gap between 1350 and 1480 components. It offers a substantial increase in torque capacity over a 1350 driveline while maintaining excellent articulation and driveline angle capability. For many one-ton Jeeps, trail buggies, rock crawlers, and Ultra4 race cars, the 1410 series delivers the best overall balance of strength, durability, weight, and serviceability.

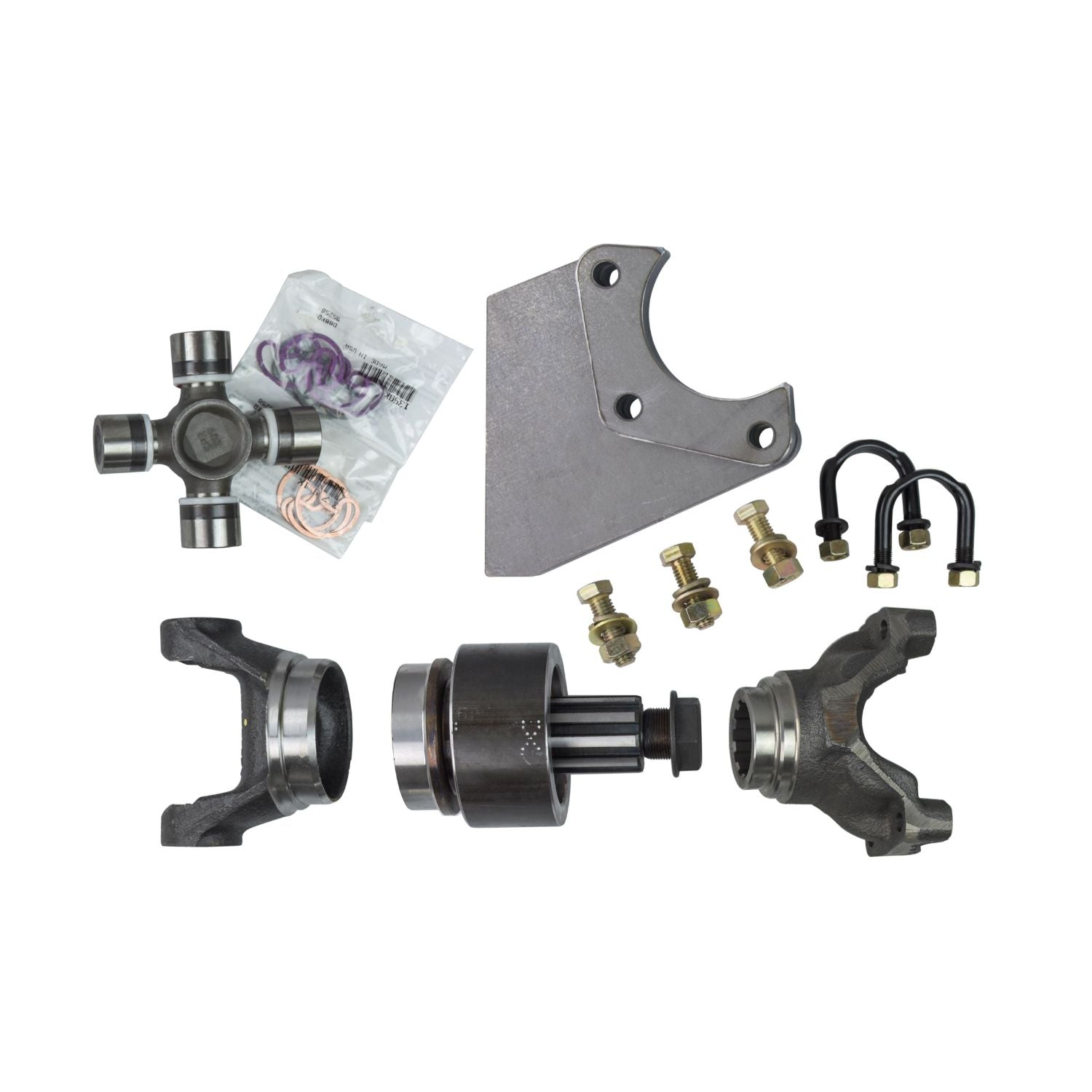

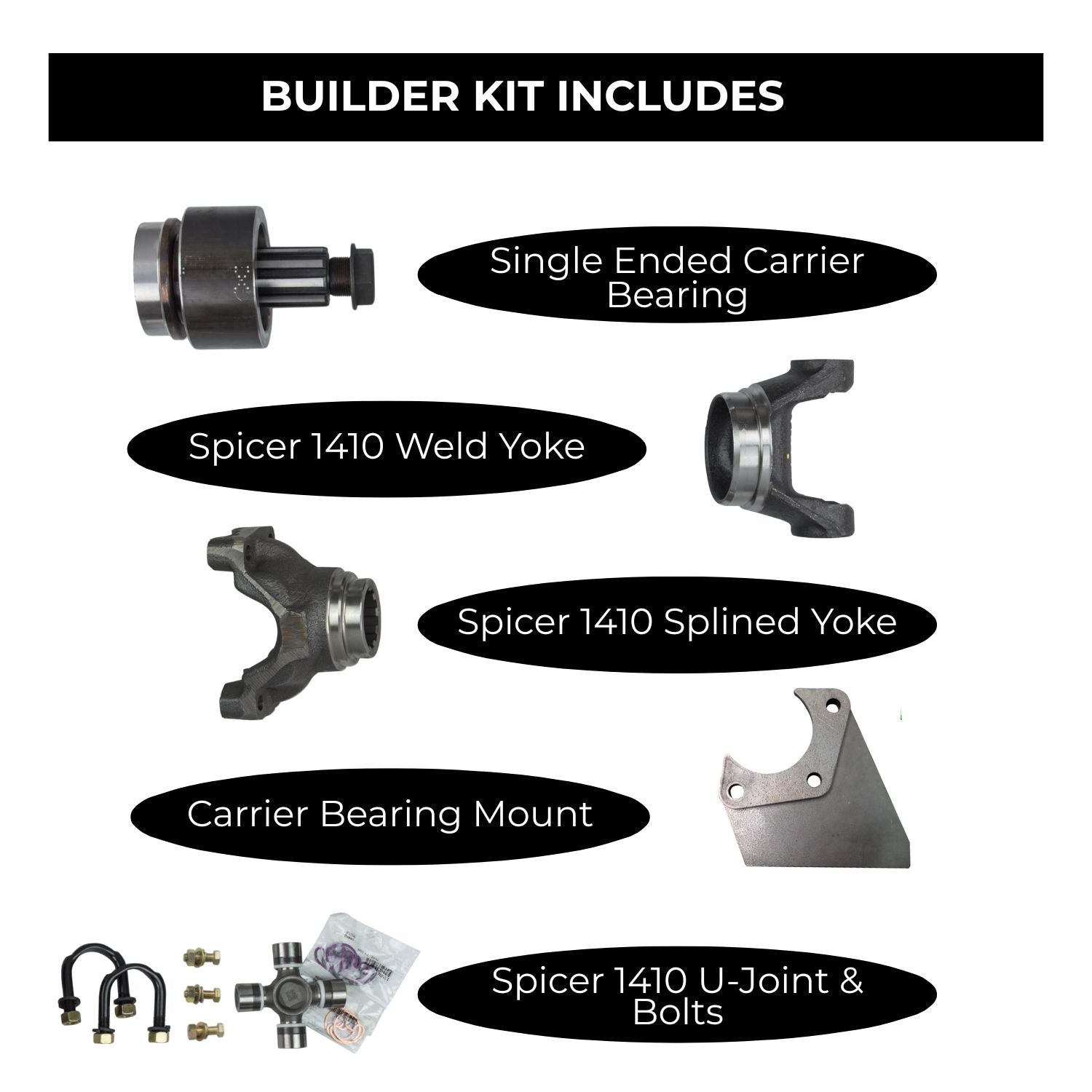

Includes
- (1) WOD Single Ended Carrier Bearing
- (1) Carrier Bearing Mount
- (1) Spicer 1410 Carrier Bearing Yoke
- (1) Spicer 1410 Weld Yoke
- (1) Spicer 1410 Universal Joint
- (1) Spicer 1410 U-Bolt Kit
DOES NOT COME ASSEMBLED – This is a DIY builder kit requiring welding and final assembly.
Specifications
|
Specification |
Value |
|
U-Joint Series |
1410 |
|
Carrier Bearing Style |
Single Ended |
|
Shaft Type |
Intermediate Shaft |
|
Application |
Heavy-Duty Off-Road & Competition Use |
|
Assembly Required |
Yes |
|
Installation |
Builder Installed |
|
Driveline Configuration |
Multi-Piece Driveshaft Systems |
Driveshaft Series Comparison
|
Specification |
1350 Series |
1410 Series |
1480 Series |
|
Common Use |
Jeeps, Trail Rigs, Lightweight Buggies |
Rock Crawlers, Ultra4 Cars, One-Ton Builds |
Extreme Horsepower Buggies, Mega Trucks |
|
Bearing Cap Diameter |
1.188" |
1.188" |
1.375" |
|
U-Joint Width |
3.625" |
4.188" |
4.188" |
|
Relative Strength |
Good |
Better |
Best |
|
Driveline Shock Load Capacity |
Moderate |
High |
Extreme |
|
Common Tire Sizes |
Up to 40" |
40"-43" |
43"+ |
|
Typical Horsepower Range* |
Up to 600 HP |
600-900 HP |
900+ HP |
|
Articulation Capability |
Excellent |
Excellent |
Good |
|
Weight |
Lightest |
Moderate |
Heaviest |
*Actual capacity depends on vehicle weight, gearing, tire size, driving style, and overall driveline design.
Fitment
Recommended Vehicle Applications
|
Vehicle Type |
Recommended Series |
|
Jeep TJ on One-Tons |
1410 |
|
Jeep LJ on One-Tons |
1410 |
|
Jeep JK on 40s |
1410 |
|
Jeep JL on 40s |
1410 |
|
Rock Crawler |
1410 |
|
Trail Buggy |
1410 |
|
Ultra4 Sportsman Car |
1410 |
|
Ultra4 Unlimited Car |
1410 or 1480 |
|
Rock Bouncer |
1410 or 1480 |
|
High Horsepower Trail Rig |
1410 |
|
Competition Crawler |
1410 |
|
One-Ton Axle Build |
1410 |
Common Applications
- Intermediate Shaft Assemblies
- Carrier Bearing Driveshaft Systems
- Multi-Piece Driveshaft Systems
- Long Wheelbase Vehicles
- One-Ton Jeep Builds
- Rock Crawlers
- Trail Buggies
- Ultra4 Race Cars
- Custom Chassis Vehicles
Tech Insight
What is a carrier bearing used for?

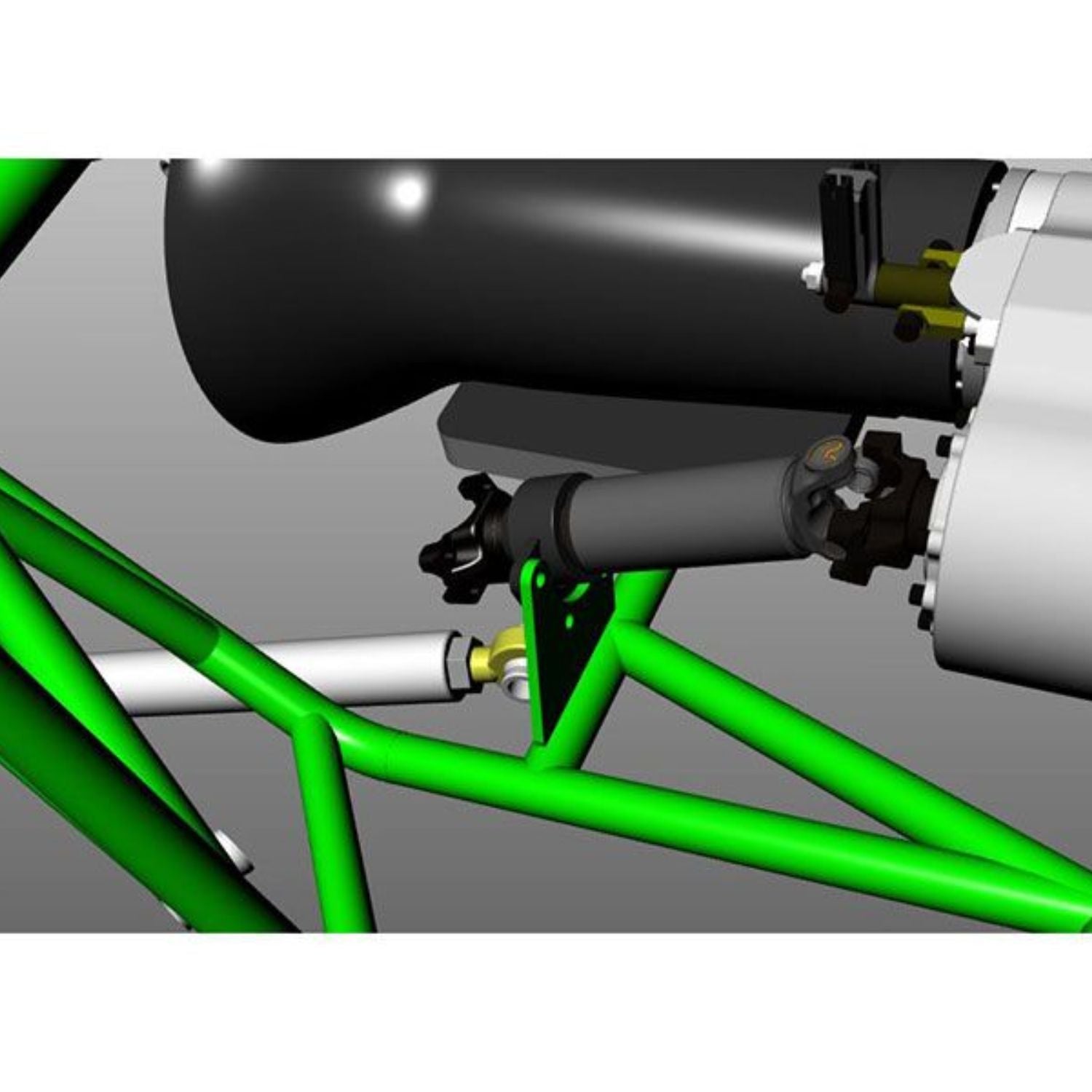

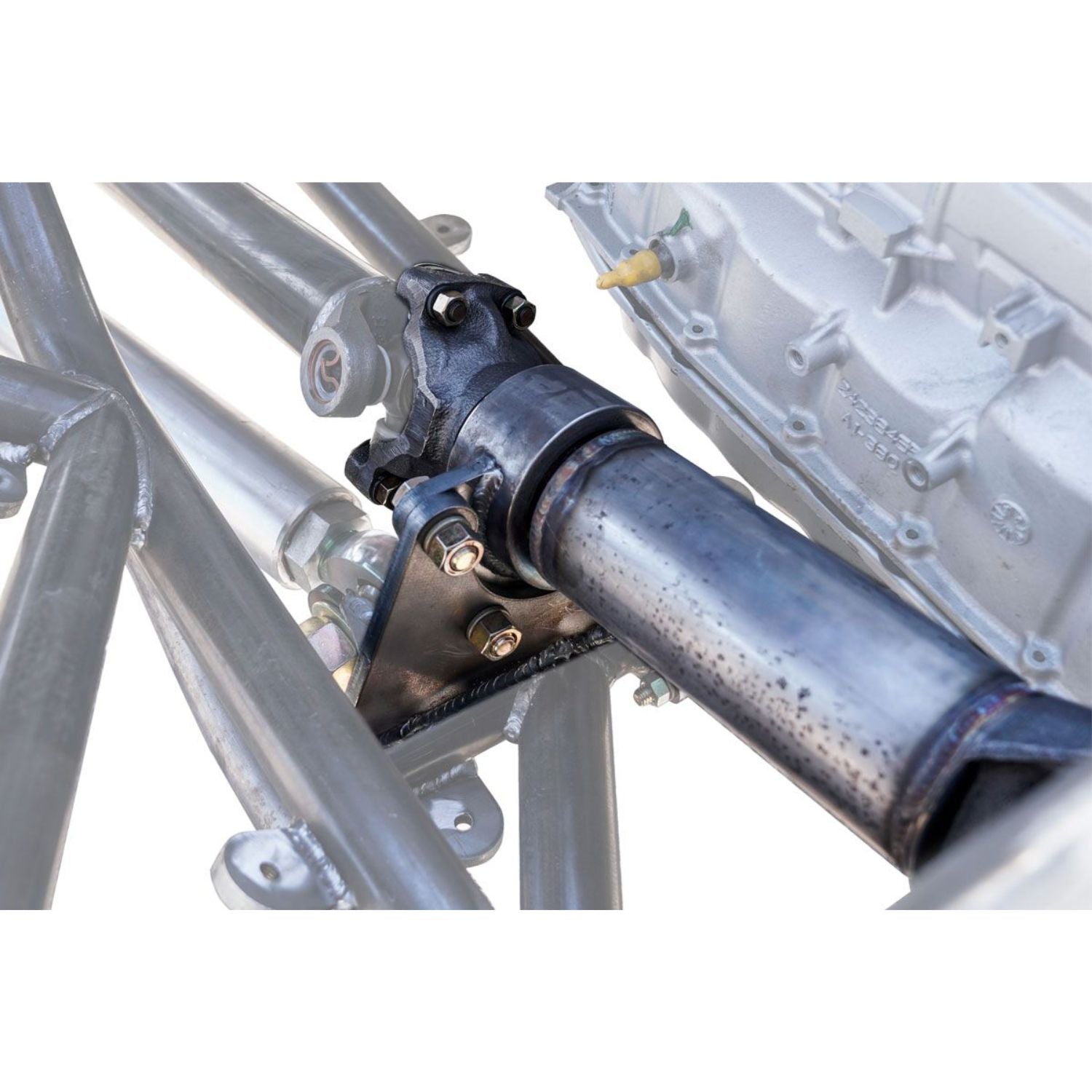

A carrier bearing supports intermediate driveshaft sections in multi-piece driveline systems. It helps reduce shaft whip, control vibration, and improve driveline stability.
When do I need a carrier bearing system?
Carrier bearings are commonly used in long wheelbase vehicles, custom chassis builds, rear-engine vehicles, Ultra4 cars, and driveline systems where a single-piece driveshaft is not practical.
Why choose a 1410 carrier bearing system?
The 1410 series offers an excellent balance of strength, driveline angle capability, and serviceability. It is often considered the ideal choice for one-ton Jeeps, rock crawlers, trail buggies, and Ultra4 race cars.
What driveshaft components work with this kit?
This kit is designed to work with WOD 1410 Driveshaft Builder Kits, Spicer 1410 Universal Joint & U-Bolt Kit, Spicer 1410 Yoke 1.5" x 10 Spline, and other 1410 driveline components.
Is this kit assembled and ready to install?
No. This is a DIY builder kit intended for experienced fabricators. Welding, tube cutting, fitment, assembly, and final installation are required.
Can I upgrade from a 1350 carrier bearing system?
Yes. Many builders upgrade to a 1410 system when increasing tire size, horsepower, vehicle weight, or overall driveline load.
