Sanderson LT Block Hugger Shorty Headers – Raw Steel
CC1LT158-P

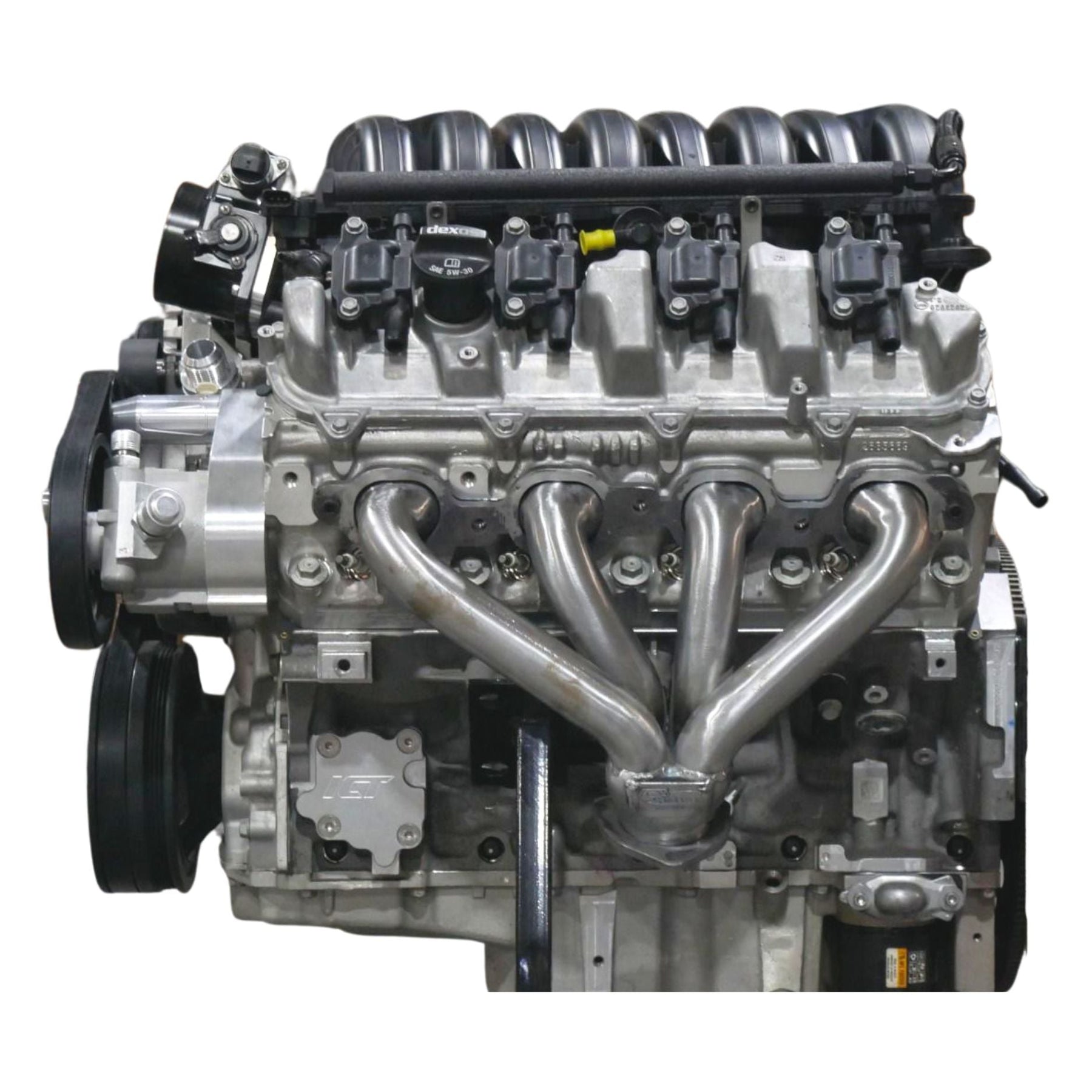

The Sanderson LT Block Hugger Shorty Headers are designed specifically for GM LT engine swaps where frame, suspension, steering, or chassis clearance is limited. Their compact block-hugger layout keeps the primary tubes tight to the engine, making them a strong solution for Jeep swaps, custom chassis, off-road vehicles, and other applications where conventional long-tube or generic swap headers may not fit.

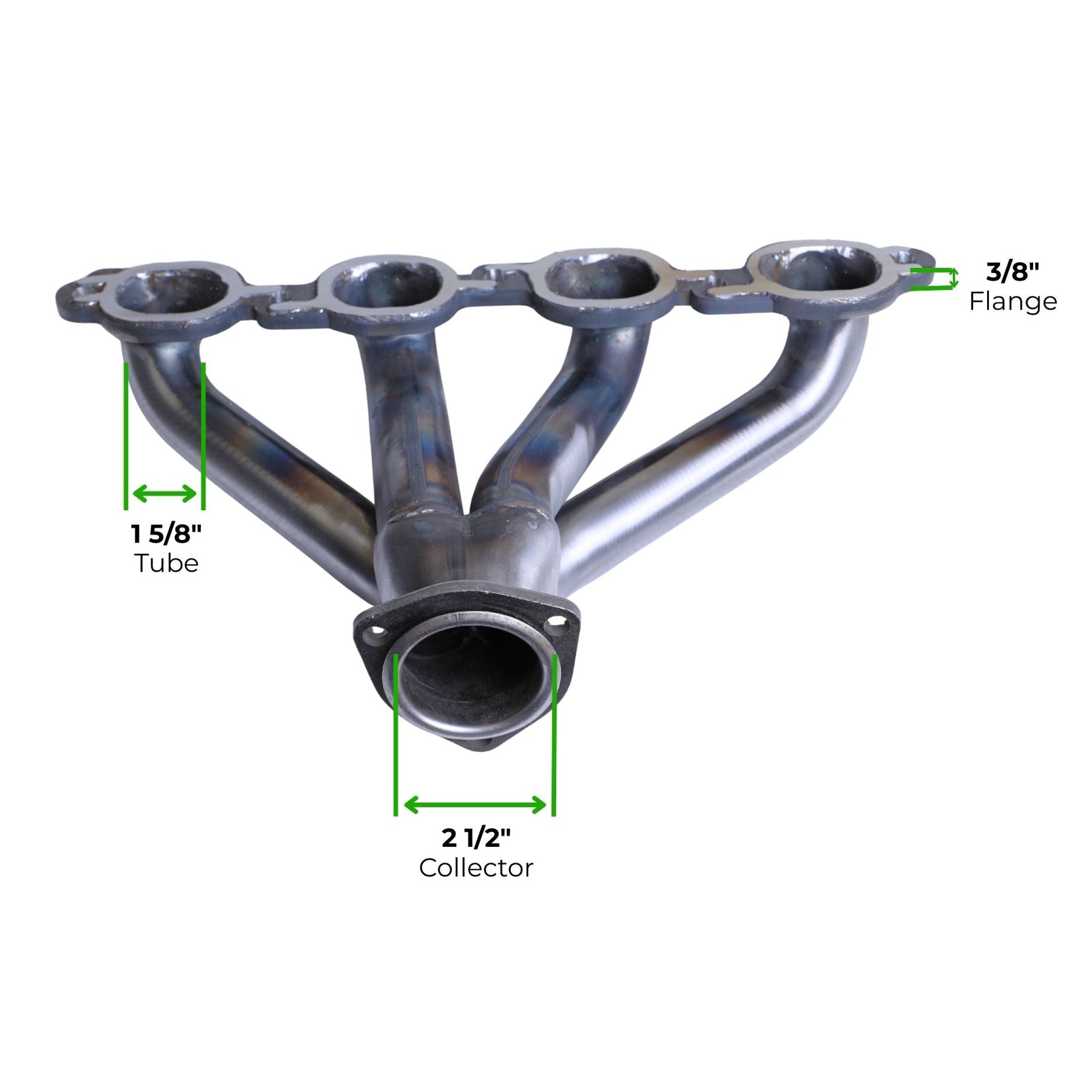

Built with 1-5/8" primary tubes, these shorty headers support strong exhaust velocity, responsive torque, and efficient flow for most street, trail, and performance LT builds. 3/8" flanges help maintain a flat sealing surface through repeated heat cycles, while the raw steel construction allows the headers to be ceramic coated, painted, or finished to match the rest of the exhaust system.

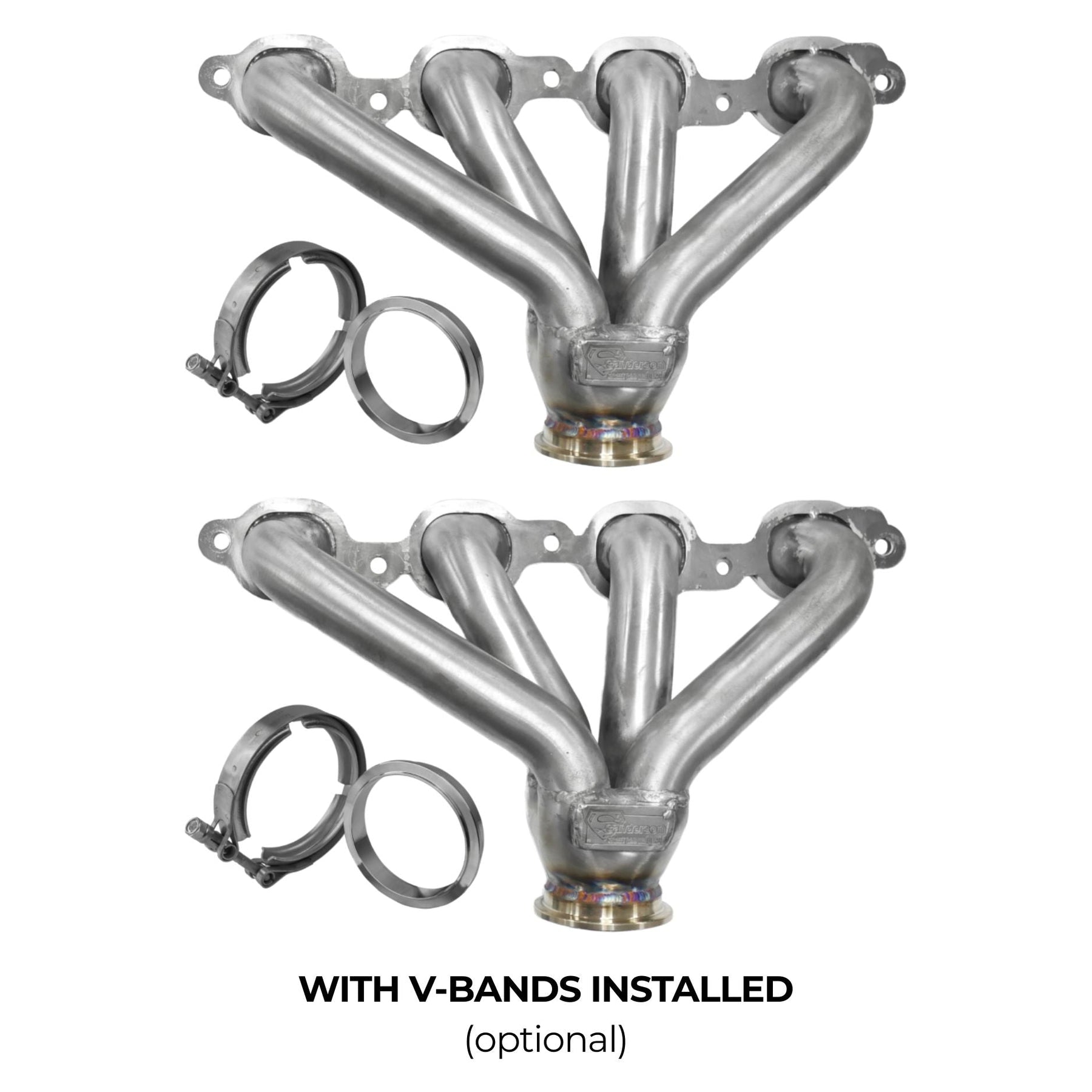

An optional professionally TIG-welded V-band upgrade is available for builders who want a cleaner exhaust connection, easier service, and improved sealing at the collector.
Includes:
- (1) Pair of Sanderson LT Block Hugger Shorty Headers
- (1) Collector Reducer Set
- Required Installation Hardware
Optional Upgrade: Professionally TIG-welded V-band connections.
Note: Headers are supplied in raw, uncoated steel and should be protected with a suitable high-temperature finish before regular use.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Sanderson Headers |
| Product Type | Block Hugger Shorty Header Set |
| Engine Platform | GM LT |
| Compatible Engines | LT1, LT4, and Similar GM LT-Based Engines |
| Header Style | Short Tube / Block Hugger |
| Primary Tube Diameter | 1-5/8" |
| Flange Thickness | 3/8" |
| Flange Finish | Precision Ground Flat |
| Material | Steel |
| Finish | Raw / Uncoated |
| Collector Reducers Included | Yes |
| Installation Hardware Included | Yes |
| V-Band Upgrade | Optional |
| Country of Origin | Made in the USA |
Fitment
Compatible Engine Platforms:
- GM LT1
- GM LT4
- Similar GM LT-based engine platforms
Common Applications:
- LT engine swaps
- Jeep LT swaps
- Rock crawlers and trail rigs
- Off-road buggies
- Custom tube chassis builds
- Hot rods and restomods
- Tight engine bay installations
- Motorsports and performance vehicles
Fitment Notes:
- Designed for applications requiring a compact block-hugger header layout.
- Vehicle-specific fitment may vary based on engine position, frame width, motor mounts, steering shaft location, suspension links, starter, and transmission tunnel clearance.
- Mock up the engine, mounts, steering, and surrounding chassis components before completing the exhaust system.
- Verify collector location and exhaust routing before ordering optional V-band connections.
- Custom exhaust fabrication may be required.
- Raw steel should be coated or otherwise protected to reduce corrosion.
FAQ
What makes these headers different from generic LT swap headers?
These headers are designed around a true block-hugger layout, keeping the tubes close to the engine to maximize clearance around the frame, suspension, steering shaft, and chassis. That compact shape is especially valuable in swaps where standard long-tube or wider shorty headers create interference.
Are 1-5/8" primary tubes a good choice for an LT swap?
For most naturally aspirated street, trail, and off-road LT builds, 1-5/8" primaries provide a strong balance of exhaust velocity, throttle response, torque, and overall flow. Very high-horsepower or highly modified engines may require a different primary size depending on the complete engine combination.
Why are 3/8" flanges important?
Thicker flanges are more resistant to warping during repeated heat cycles. Precision grinding the flange surface helps create consistent contact against the cylinder head, reducing the likelihood of exhaust leaks.
What is the advantage of the optional V-band upgrade?
V-band connections provide a compact, serviceable joint that is easy to remove and reinstall. They also eliminate traditional collector flange gaskets and can create a cleaner exhaust layout in tight chassis applications.
Should raw steel headers be coated?
Yes. Raw steel can corrode when exposed to moisture, mud, road spray, and heat cycles. Ceramic coating is a popular option because it can improve corrosion resistance and help manage under-hood heat, while high-temperature paint provides a more budget-friendly finish.
Will these headers fit every LT swap?
No universal swap header can guarantee clearance in every chassis. Engine placement, motor mounts, frame rails, steering components, suspension links, and transmission position all affect final fitment. The compact block-hugger design improves packaging, but the complete installation should still be mocked up before final exhaust fabrication.
