Sanderson GM LS Block Hugger Headers – Raw Steel
CC1LS158-P
The Sanderson GM LS Block Hugger Headers are designed specifically for LS swap applications where steering shafts, frame rails, suspension components, and limited engine bay space make exhaust routing a challenge. Their compact block-hugger design makes them one of the most popular header choices for hot rods, classic trucks, Jeeps, off-road vehicles, and custom chassis running GM LS engines.

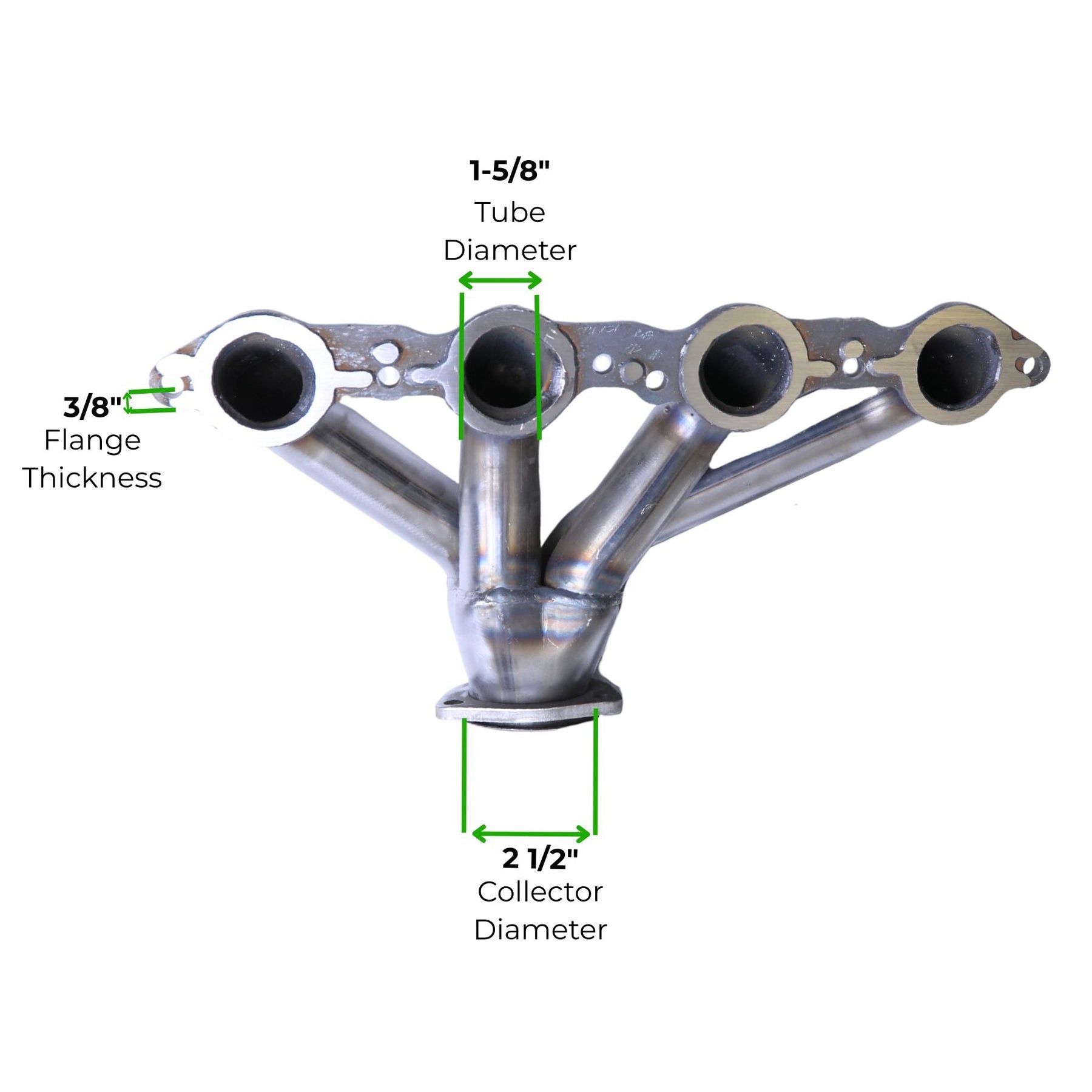

Constructed from 16-gauge steel tubing with 1-5/8" primary tubes and 2-1/2" collectors, these headers provide excellent exhaust flow while maintaining an extremely compact profile. Measuring only 7-3/4" from the center of the flange to the bottom of the collector, they offer outstanding ground clearance and installation flexibility in tight chassis.
Sanderson's patented 3/8" gasketless flange design seals directly against the cylinder head, eliminating traditional header gaskets and reducing one of the most common causes of exhaust leaks. For builders wanting an even cleaner exhaust system, professionally TIG-welded V-band collectors are available as an optional upgrade.
Includes:

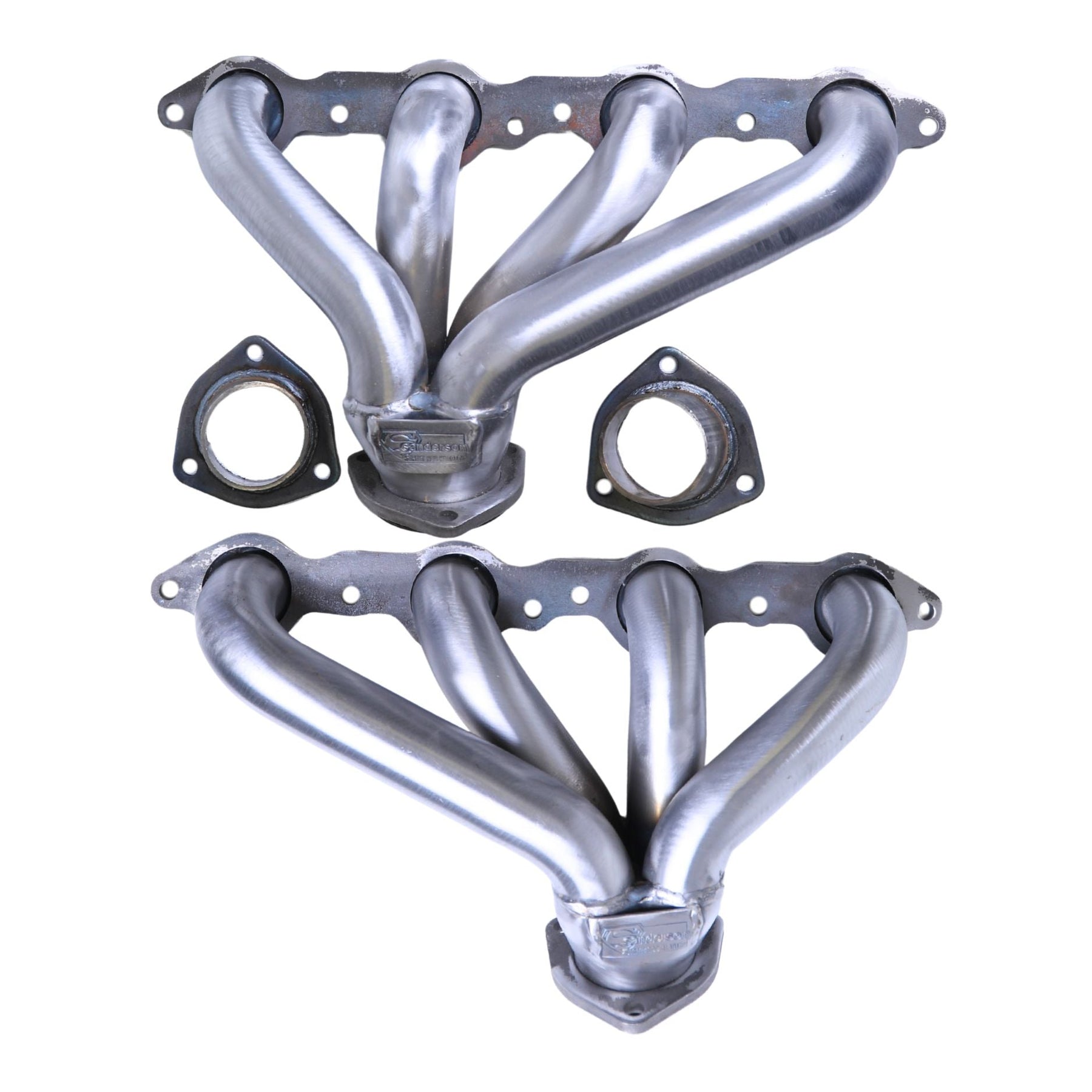

- (1) Pair of Sanderson GM LS Block Hugger Headers
- (1) Collector Reducer Set
- Required Installation Hardware

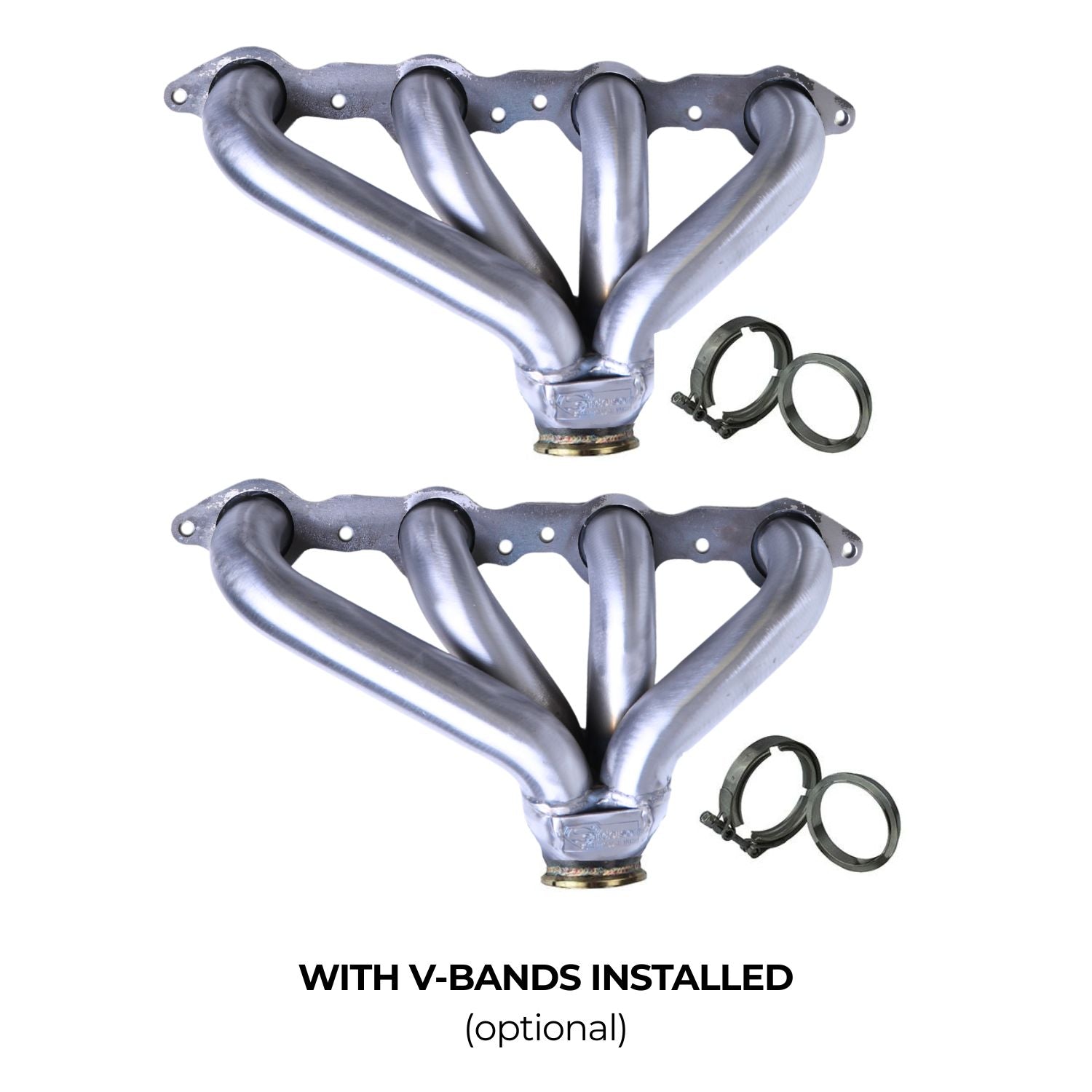

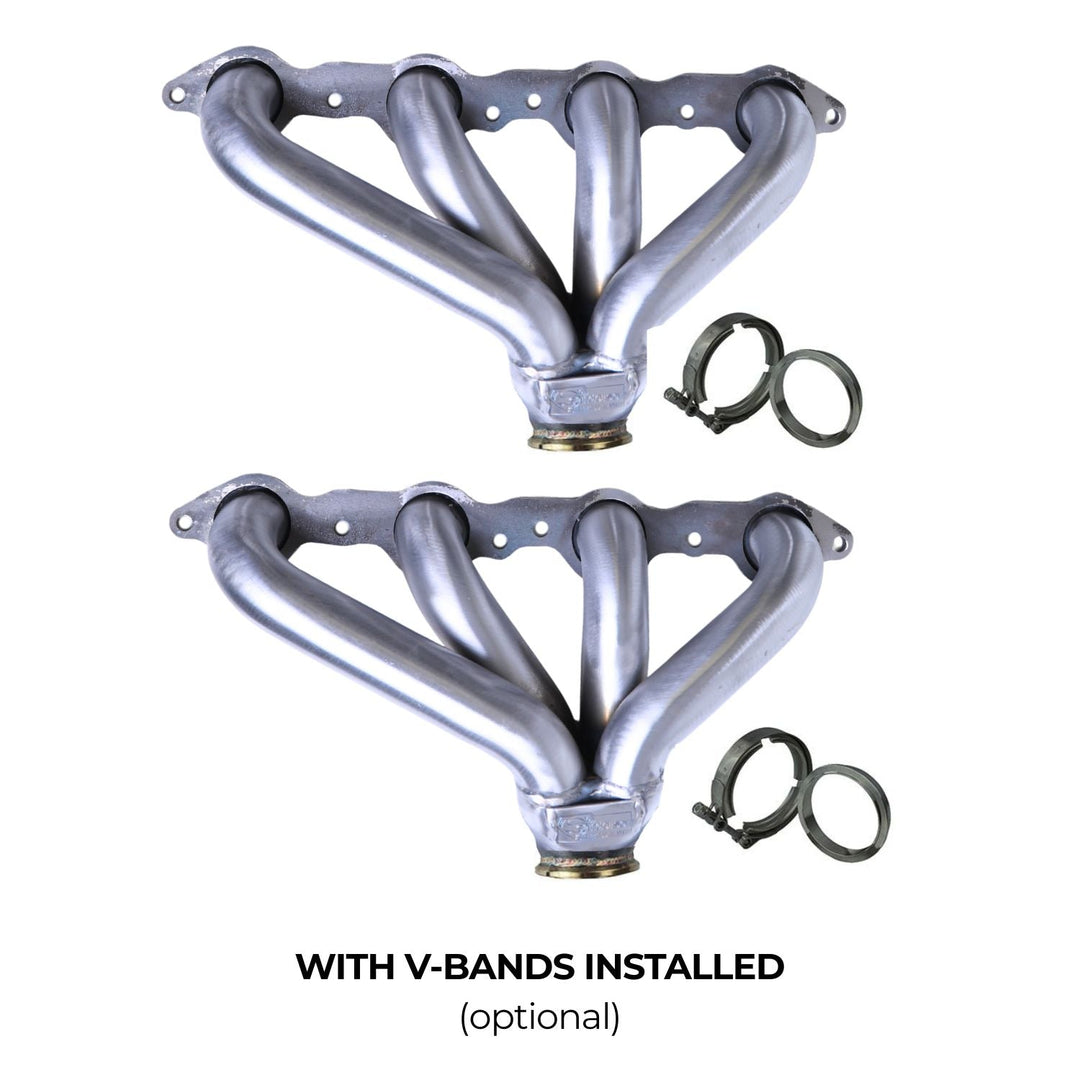

Optional Upgrade: Professionally TIG-welded V-band collector connections.
Note: Headers are supplied in raw, unfinished steel and should be ceramic coated, painted, or otherwise protected before regular use.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Sanderson Headers |
| Product Type | Block Hugger Shorty Header Set |
| Engine Platform | GM LS Series |
| Compatible Engines | LS1, LS2, LS3, LS4, LS6 & LS7 |
| Header Style | Short Tube / Block Hugger |
| Primary Tube Diameter | 1-5/8" |
| Collector Diameter | 2-1/2" |
| Primary Tube Thickness | 16 Gauge |
| Collector Thickness | 16 Gauge |
| Flange Thickness | 3/8" |
| Overall Drop | 7-3/4" From Flange Center to Bottom of Collector |
| Material | Steel |
| Finish | Raw / Uncoated |
| Header Gaskets Required | No, Per Sanderson Flange Design |
| V-Band Upgrade | Optional |
| Country of Origin | Made in the USA |
Fitment
Compatible Engine Platforms:
- GM LS1
- GM LS2
- GM LS3
- GM LS4
- GM LS6
- GM LS7
Common Applications:
- 1927-up cars and trucks
- Aftermarket chassis
- GM LS engine swaps
- Jeep LS conversions
- Hot rods and street rods
- Classic trucks
- Rock crawlers and off-road vehicles
- Custom tube chassis builds
- Tight engine bay applications
Fitment Notes:
- The compact design is intended to maximize clearance around steering shafts, frame rails, suspension components, and motor mounts.
- Off-center collector improves exhaust routing flexibility in many custom chassis.
- Engine position, frame design, steering geometry, transmission, starter location, and motor mounts all affect final fitment.
- Custom exhaust fabrication may be required.
- Verify collector position before ordering optional V-band connections.
- Raw steel should be coated or otherwise protected before regular use.
- Mock up the complete drivetrain before final exhaust installation.
FAQ
Why are block hugger headers popular for LS swaps?
Most LS conversions are limited by steering shafts, frame rails, suspension links, and engine bay width. Block hugger headers keep the exhaust tucked close to the engine, making installation easier while providing additional clearance where it's needed most.
What makes these Sanderson LS headers different?
These headers feature an extremely compact design with only 7-3/4" from the flange centerline to the bottom of the collector. Combined with an off-center collector, they offer excellent packaging flexibility for custom chassis, Jeeps, hot rods, and off-road builds.
Are 1-5/8" primary tubes a good size for an LS engine?
Yes. For most naturally aspirated LS engines, 1-5/8" primary tubes provide an excellent balance of exhaust velocity, throttle response, low-end torque, and overall horsepower, making them well suited for street, trail, and performance applications.
How does the gasketless flange design work?
Sanderson's patented 3/8" flange seals directly against the cylinder head without traditional header gaskets. Eliminating the gasket removes a common leak point while providing a durable sealing surface, provided the cylinder head is clean and flat.
Why choose optional V-band collectors?
V-band connections create a compact, leak-resistant collector that can be removed quickly for maintenance or drivetrain service. They're especially beneficial in tight engine bays where conventional collector hardware is difficult to access.
Should raw steel headers be coated?
Yes. Raw steel will naturally develop surface rust if left unprotected. Ceramic coating provides the best corrosion resistance and heat management, while high-temperature paint offers an economical alternative.
Will these headers fit every LS swap?
No header can guarantee fitment in every custom build. While these are among the most compact LS swap headers available, final fitment depends on engine placement, steering, frame design, suspension, transmission, motor mounts, and other chassis components. Always perform a complete mockup before final exhaust fabrication.
