Sanderson Small Block Chevy Block Hugger Headers – Raw Steel
CC158-P

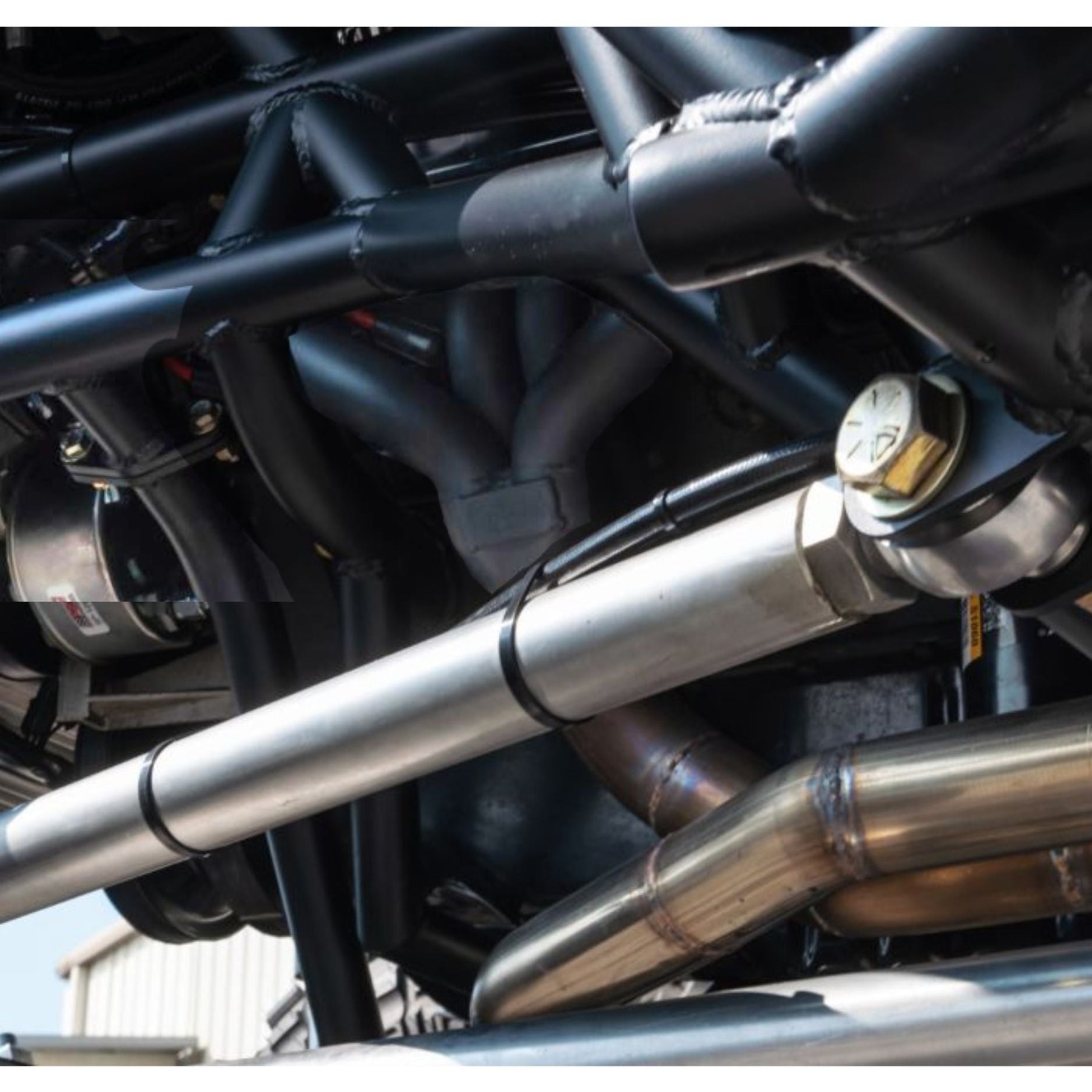

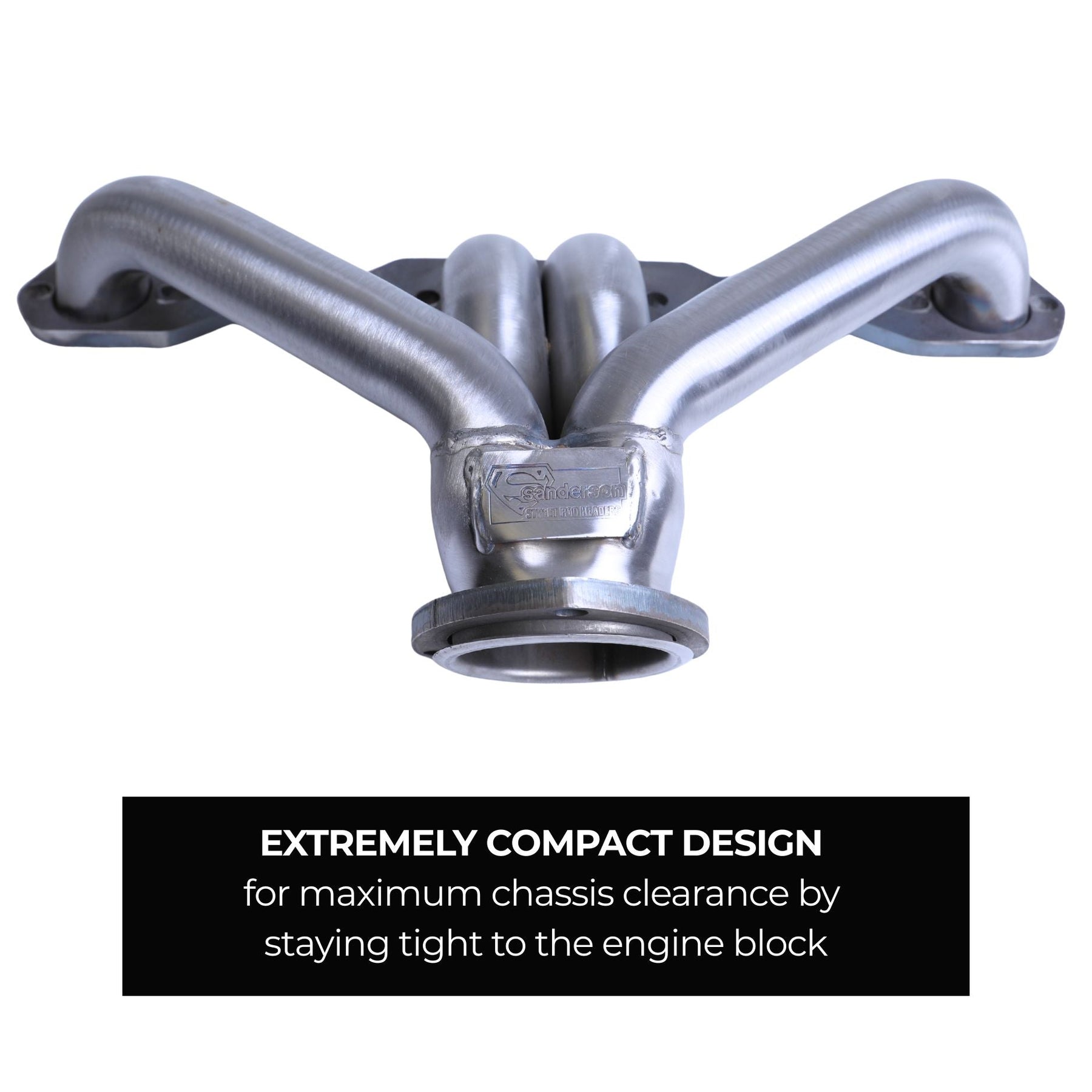

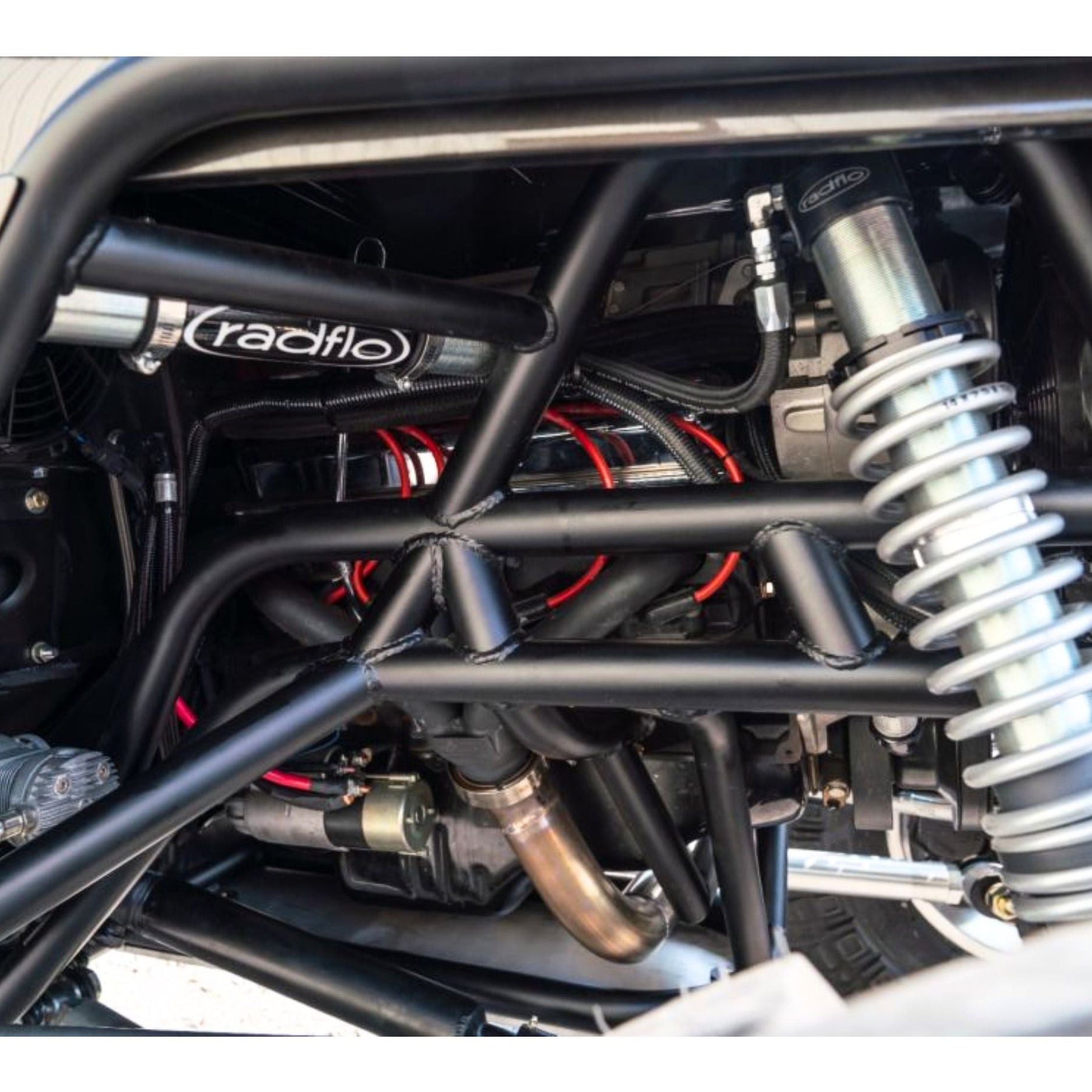

The Sanderson Small Block Chevy Block Hugger Headers are designed for custom builds where frame rails, steering components, suspension, and engine bay space leave little room for a conventional exhaust system. Their compact block-hugger layout keeps the primary tubes close to the engine, making them a strong choice for street rods, classic trucks, off-road vehicles, engine swaps, and custom chassis applications.

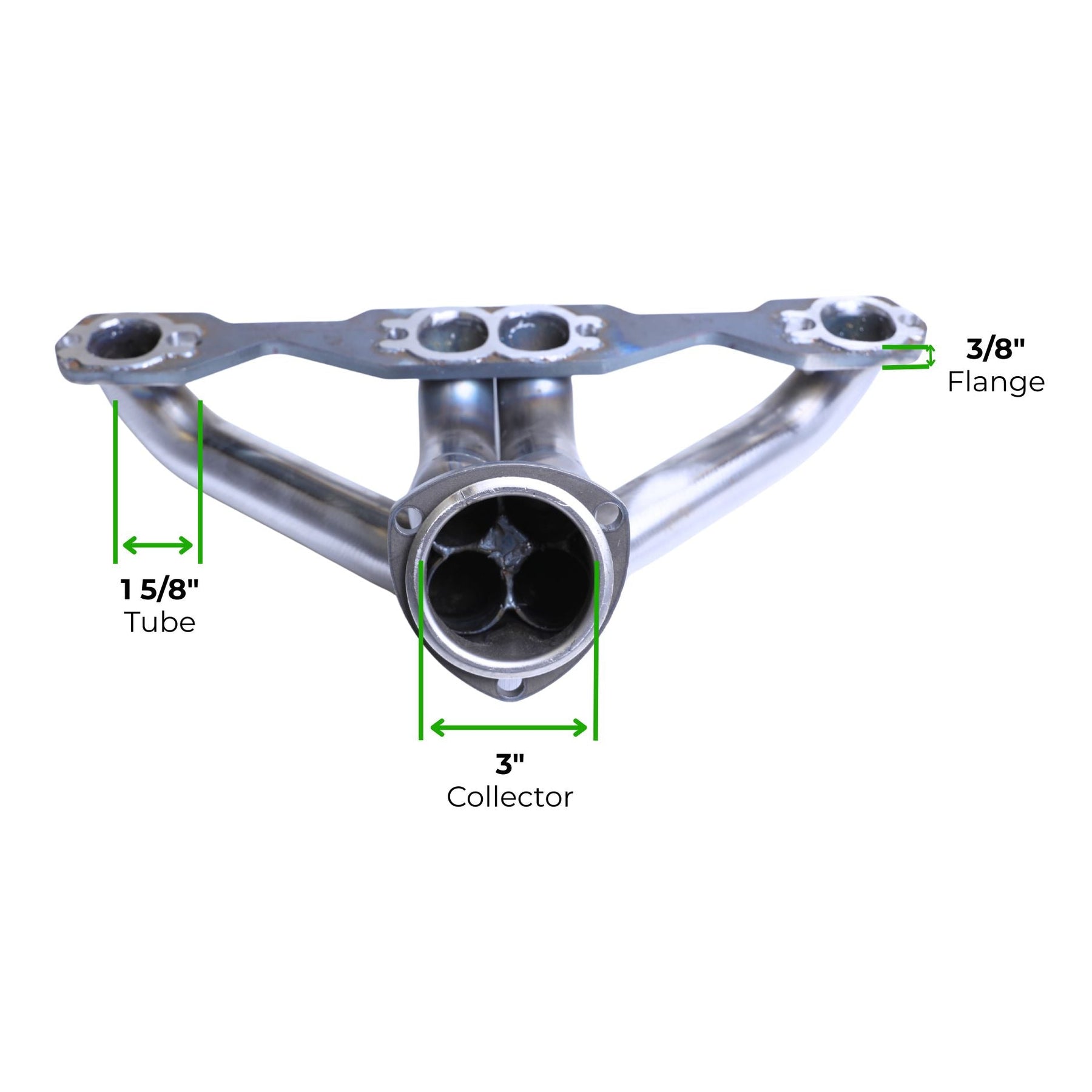

Constructed from 16-gauge steel tubing, these headers use 1-5/8" primary tubes and 3" collectors to provide a strong balance of exhaust velocity, torque, and overall flow for Small Block Chevy engines ranging from 265 to 400 cubic inches. Sanderson's 3/8" patented flange design is built to seal directly against the cylinder head without traditional header gaskets, helping reduce leak points and simplify installation.

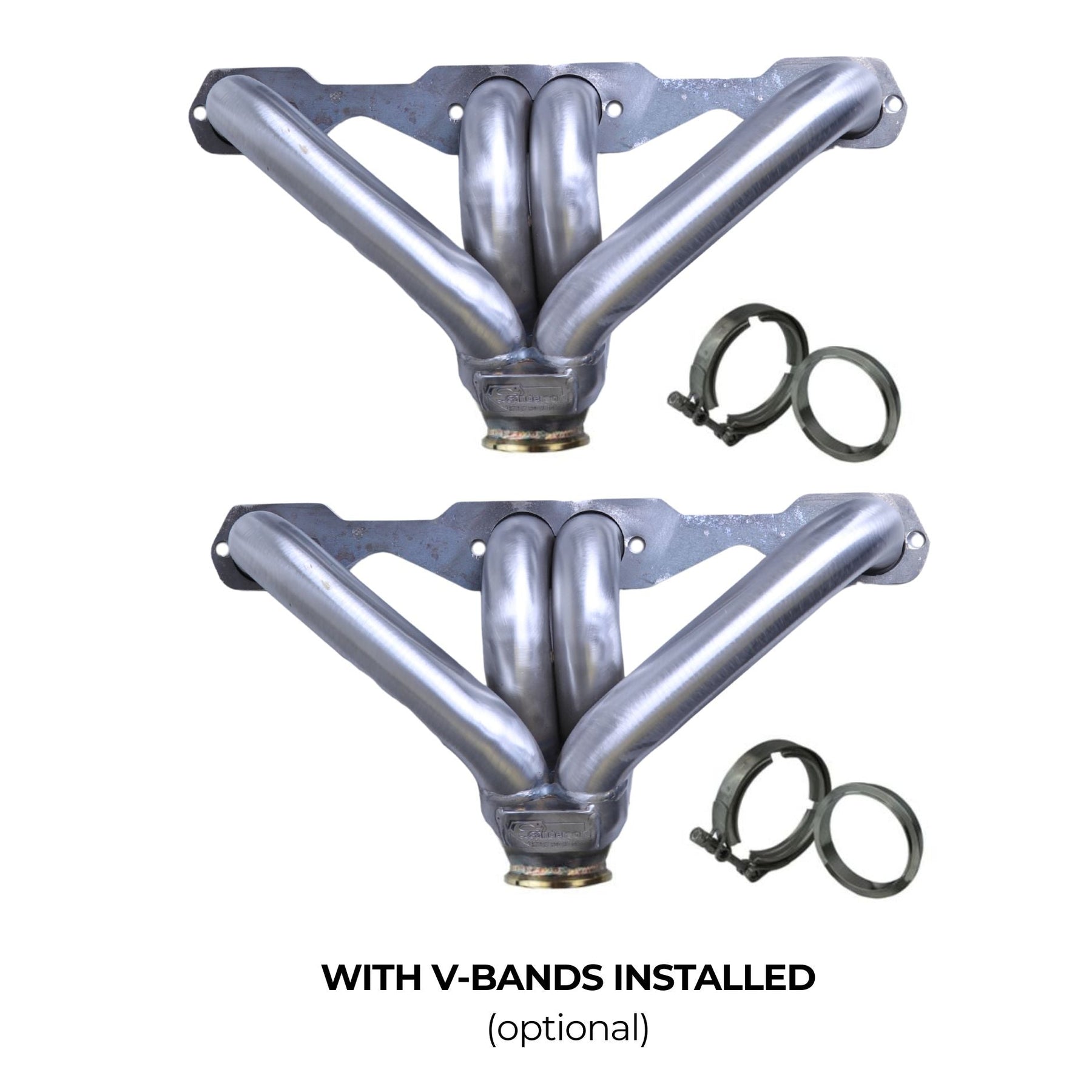

An optional professionally TIG-welded V-band upgrade is available for builders who want a cleaner, more serviceable collector connection with improved sealing and easier exhaust removal.
Includes:

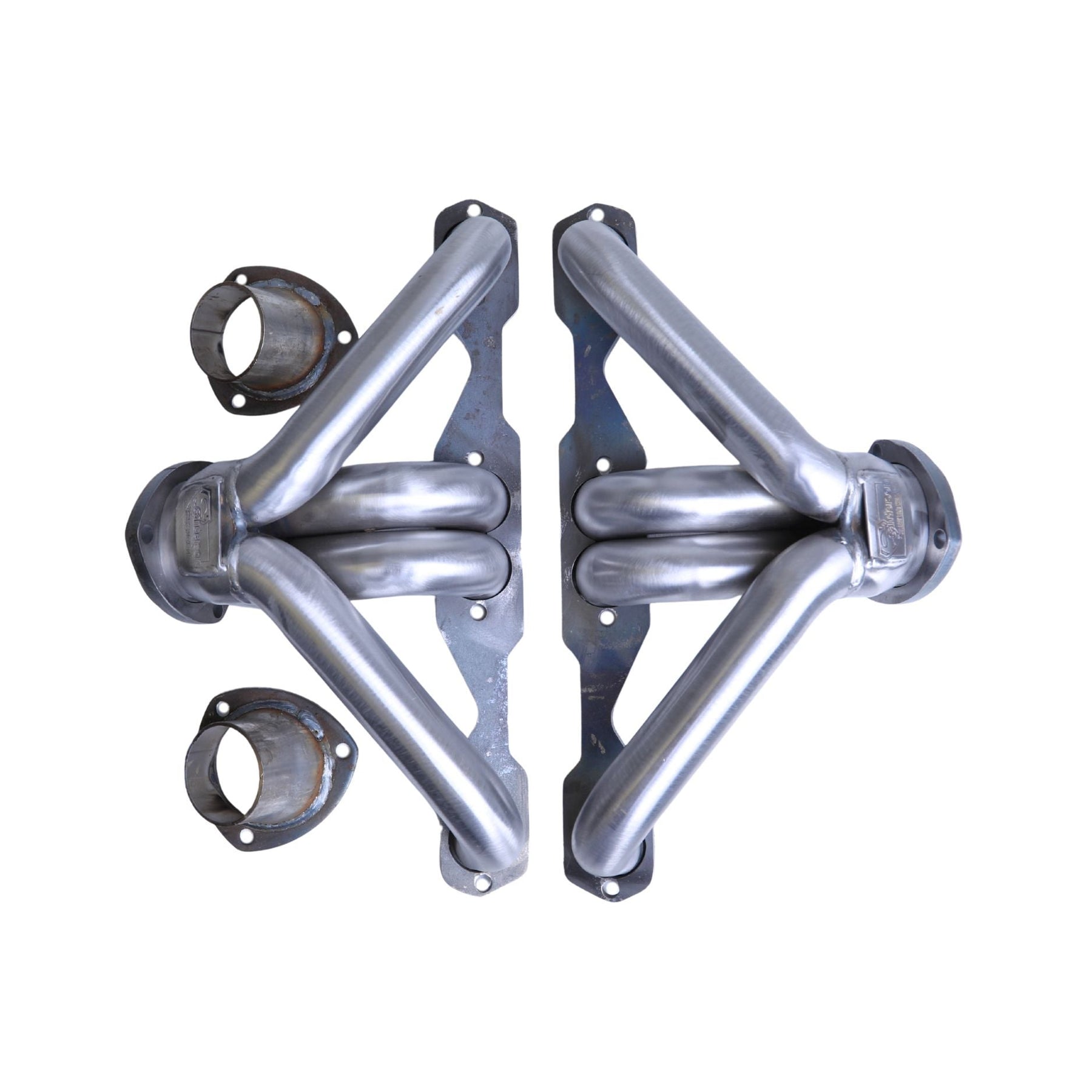

- (1) Pair of Sanderson Small Block Chevy Block Hugger Headers
- (1) Header Bolt Set
- (1) Collector Reducer Set
- Required Installation Hardware
Optional Upgrade: Professionally TIG-welded V-band collector connections.
Note: Headers are supplied in raw, unfinished steel and should be protected with a suitable high-temperature finish before regular use.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Sanderson Headers |
| Product Type | Block Hugger Shorty Header Set |
| Engine Platform | Small Block Chevrolet |
| Compatible Engine Sizes | 265, 283, 305, 327, 350, 383 & 400 |
| Header Style | Short Tube / Block Hugger |
| Primary Tube Diameter | 1-5/8" |
| Collector Diameter | 3" |
| Primary Tube Thickness | 16 Gauge |
| Collector Thickness | 16 Gauge |
| Flange Thickness | 3/8" |
| Material | Steel |
| Finish | Raw / Uncoated |
| Header Gaskets Required | No, Per Sanderson Flange Design |
| V-Band Upgrade | Optional |
| Country of Origin | Made in the USA |
Fitment
Compatible Engine Platforms:
- Small Block Chevrolet 265
- Small Block Chevrolet 283
- Small Block Chevrolet 305
- Small Block Chevrolet 327
- Small Block Chevrolet 350
- Small Block Chevrolet 383
- Small Block Chevrolet 400
Common Applications:
- Street rods and hot rods
- Classic trucks
- Custom chassis builds
- Small Block Chevy engine swaps
- Rock crawlers and off-road vehicles
- Restomods and performance street builds
- Applications with limited steering or frame clearance
- Rack-and-pinion steering setups
Fitment Notes:
- Designed to provide clearance around many common motor mounts, tie rods, steering shafts, and rack-and-pinion systems.
- Compatible with many starter and transmission combinations, but final clearance depends on the complete build.
- Engine placement, motor mounts, frame width, steering location, starter position, suspension components, and transmission tunnel shape affect final fitment.
- The compact block-hugger design improves clearance but does not guarantee fitment in every custom chassis.
- Verify collector position and exhaust routing before ordering optional V-band connections.
- Custom exhaust fabrication may be required.
- Mock up the engine, mounts, steering, and surrounding chassis components before completing the exhaust system.
- Raw steel should be coated or otherwise protected before regular use.
FAQ
Why use block hugger headers on a Small Block Chevy?
Block hugger headers stay tight to the engine, creating additional clearance around narrow frame rails, steering components, suspension, and custom chassis structures. They are especially useful in swaps and street rod builds where conventional long-tube headers interfere with surrounding components.
Are 1-5/8" primary tubes a good choice for an SBC?
For most naturally aspirated street, trail, and performance Small Block Chevy combinations, 1-5/8" primaries provide a strong balance of exhaust velocity, low- and mid-range torque, and overall flow. Highly modified or very high-horsepower engines may require a different primary size based on the complete engine combination.
How does the gasketless flange design work?
Sanderson's thick 3/8" flange is designed to seal directly against the cylinder head without a conventional header gasket. Eliminating the gasket removes a common leak point, but the cylinder-head sealing surface must still be clean, flat, and in good condition.
What is the advantage of optional V-band collectors?
V-band connections provide a compact, serviceable exhaust joint that can be removed and reinstalled without traditional collector gaskets. They are especially useful in tight builds where access around the exhaust is limited.
Will these headers clear my steering and motor mounts?
The compact design is intended to clear many common steering shafts, tie rods, rack-and-pinion systems, motor mounts, starters, and transmissions. Final fitment still depends on engine position, frame design, mounts, steering geometry, and surrounding chassis components.
Should raw steel headers be coated?
Yes. Raw steel can rust when exposed to moisture, condensation, mud, road spray, and repeated heat cycles. Ceramic coating offers strong corrosion protection and heat management, while high-temperature paint provides a more economical finish.
Will these headers fit every Small Block Chevy swap?
No universal header can guarantee fitment in every custom vehicle. The compact Sanderson block-hugger design improves packaging, but the engine, steering, mounts, frame rails, starter, suspension, and transmission should all be mocked up before final exhaust fabrication.
