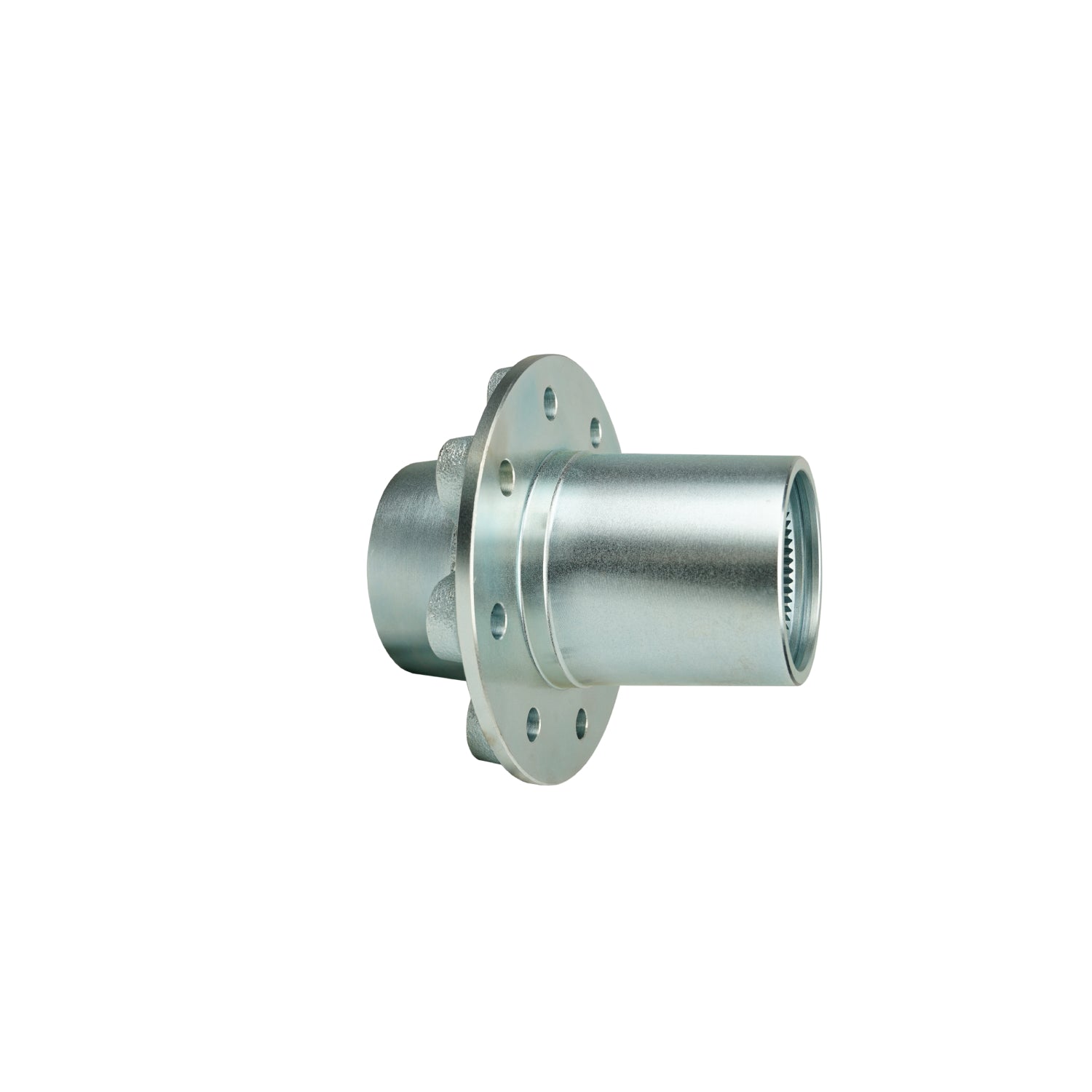

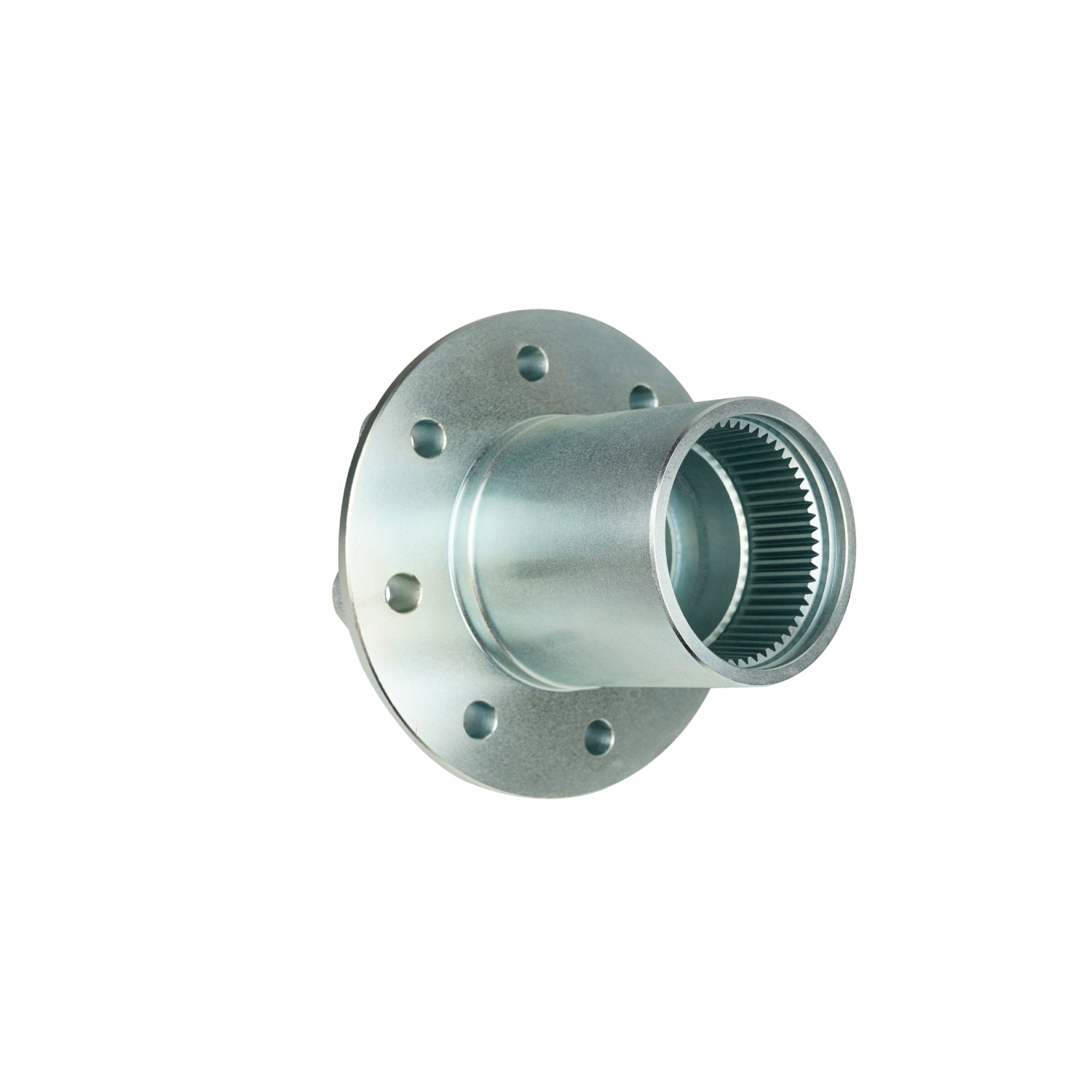

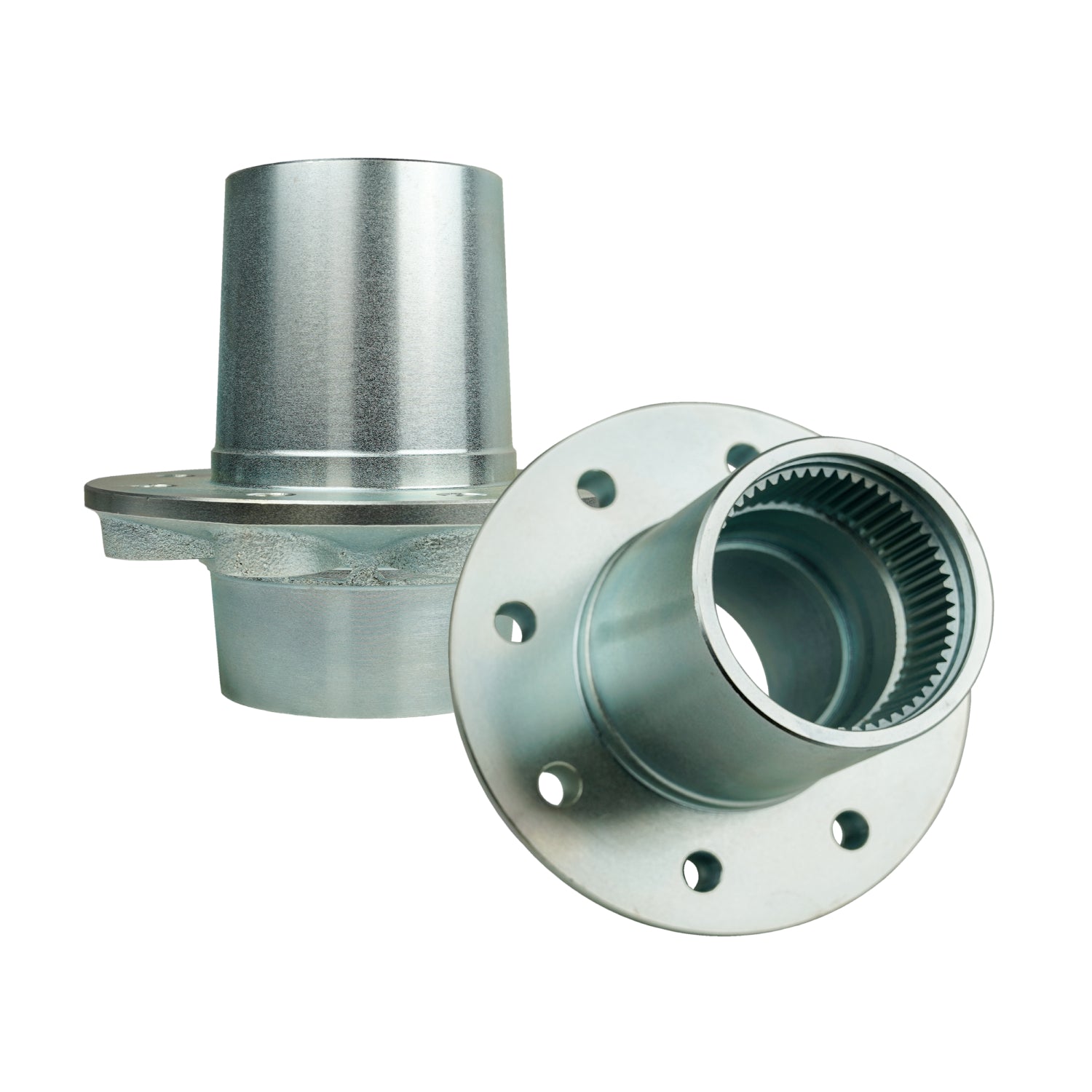

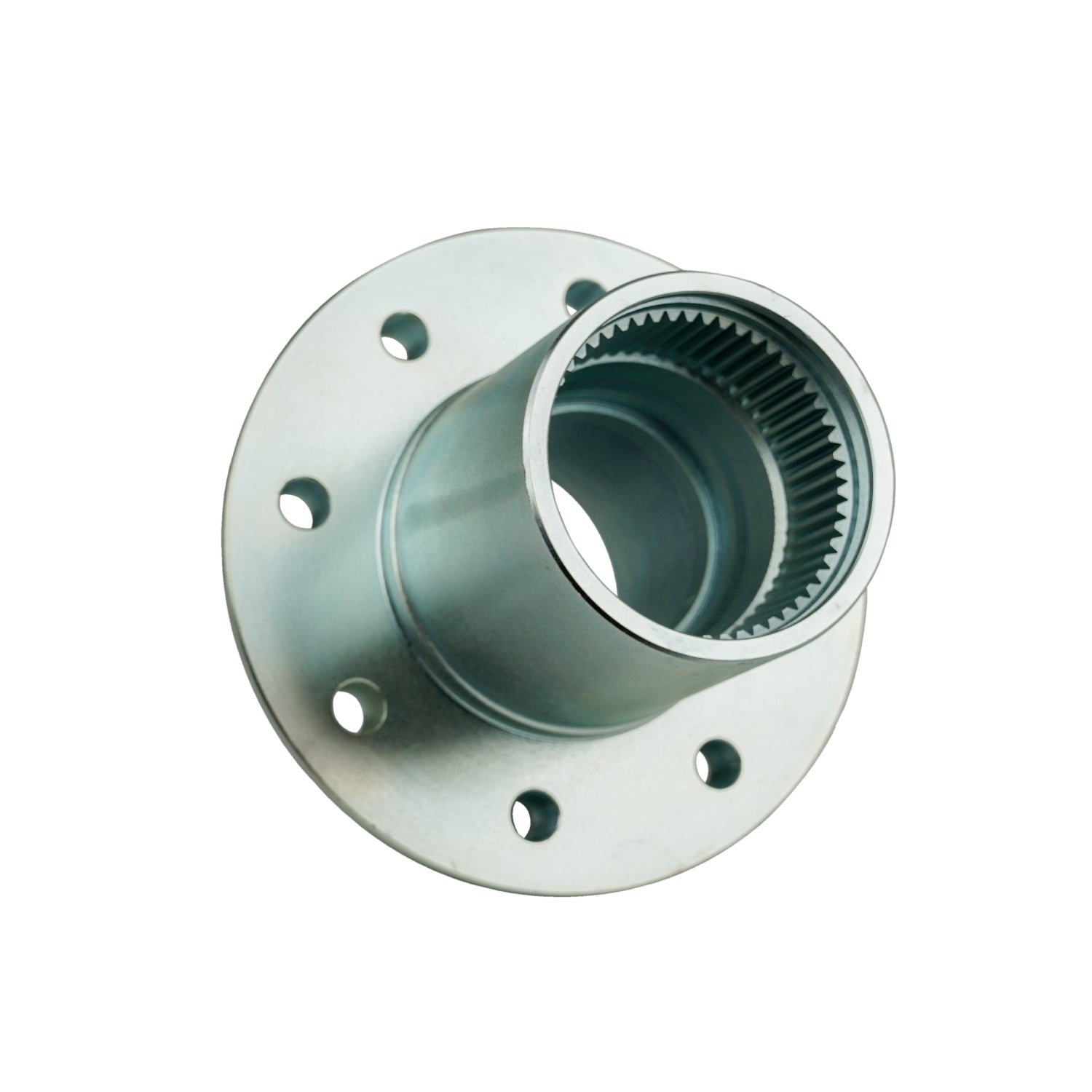

Yukon Dana 60 Locking Wheel Hub - 8" x 6.5" Bolt
SKU: YHC63629
This Yukon GM Dana 60 Wheel Hub is built for strength, longevity, and dependable performance in heavy duty applications. Designed to fit GM Dana Spicer 60 front axles with an 8" x 6.5" bolt pattern, this hub features premium construction and chromoly internal components for serious durability on and off the trail.
A low-profile steel bezel provides confident engagement while minimizing exposure to rocks and debris. These hubs default to the locked position under load, making them ideal for high torque environments. A proprietary friction reducing coating on the locking gears ensures smooth function and long service life.
Includes:
- (1) GM Dana 60 Wheel Hub
Specifications
- Fits: GM Dana 60 Front
- Bolt Pattern: 8" x 6.5"
- Construction: All steel with Chromoly internals
- Stud Hole Diameter: .622"
- Default Position: Locked
- Engagement: 1/3 turn, low-profile bezel
- Designed for internal style locking hubs
- Compatible with GM spindle
- SRW (Single Rear Wheel) applications
Fitment
Chevrolet
| Year | Model |
|---|---|
| 1977–1986 | K30 |
| 1971–1974 | K30 Pickup |
| 1987–1988 | V30 |
GMC
| Year | Model |
|---|---|
| 1977–1978 | K35 |
| 1971–1974 | K35 / K3500 Pickup |
| 1979–1986 | K3500 |
| 1987 | V3500 |
Dodge
| Year | Model |
|---|---|
| 1975–1980 | W200 |
| 1981–1993 | W250 |
| 1975–1980 | W300 |
| 1981–1993 | W350 |
Tech Insight
GM Dana 60 hubs in 8"x6.5" pattern remain a go-to solution for builders upgrading early GM, GMC, and Dodge one-ton front axles. Yukon’s YHC63629 hub design eliminates common failure points seen in cast factory hubs by moving to all-steel construction and heat-treated chromoly internals. The default-locked design ensures engagement under high shock loads—an advantage when rock crawling, towing, or running large tires. This hub pairs with standard internal-style locking hubs and GM-pattern spindles, making it a direct, reliable replacement for OEM components.
