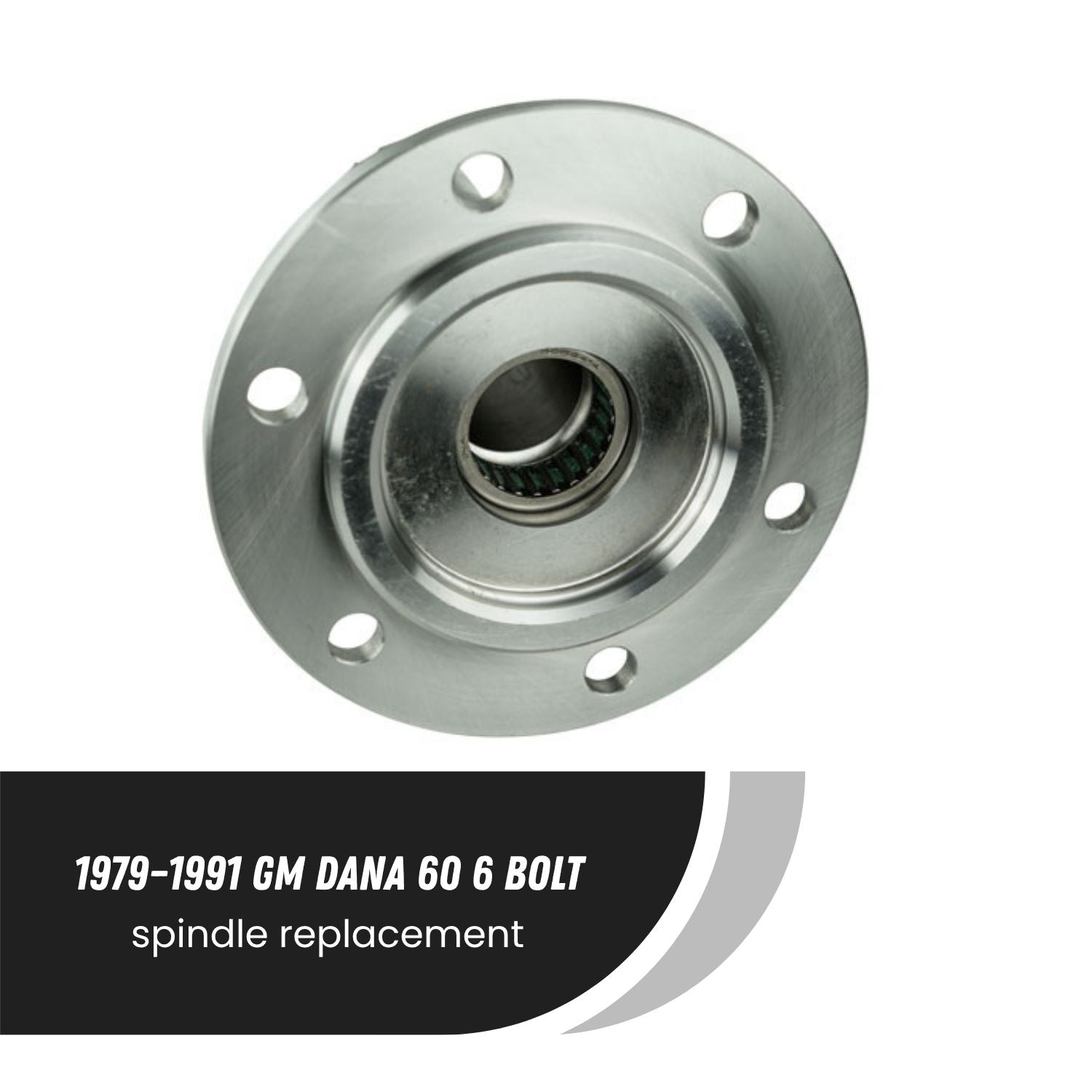

GM Dana 60 6-Bolt Front Spindle
SKU: YPSP700013
This GM Dana 60 6-Bolt Heavy Duty Replacement Spindle is built for strength and long term durability. Each spindle is precision machined from high quality steel, manufactured to tight tolerances, and features a deeper heat treat at the bearing journals than OEM spindles for added strength under heavy load.
Whether you're rebuilding a worn front axle or assembling a new GM Dana 60, this spindle provides the reliability and quality your build demands.

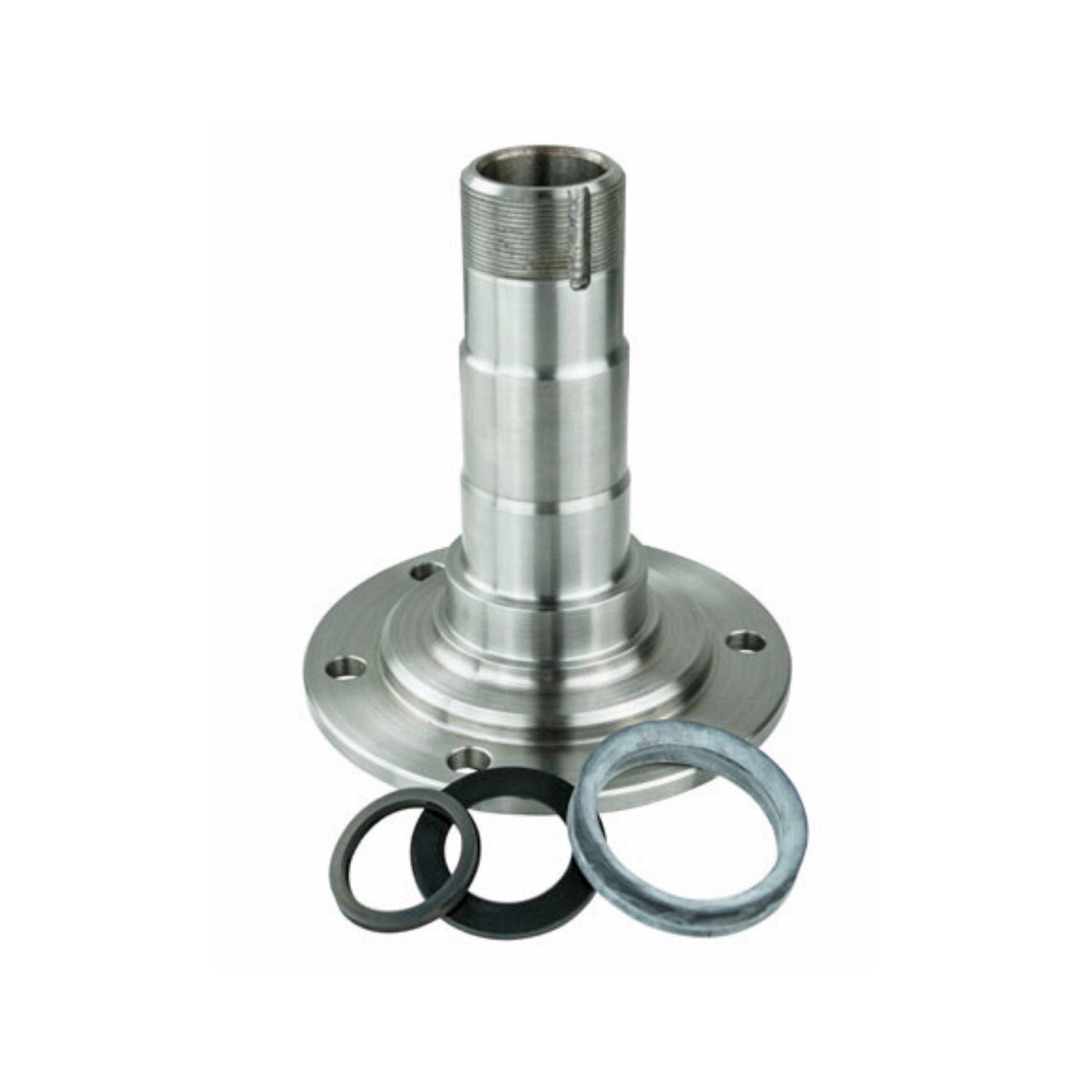

Includes:
- (1) GM Dana 60 6-Bolt Spindle
- (1) Seal Kit
Specifications
- Precision machined high quality steel construction
- Tight manufacturing tolerances
- Deeper heat-treat at bearing journals for added strength

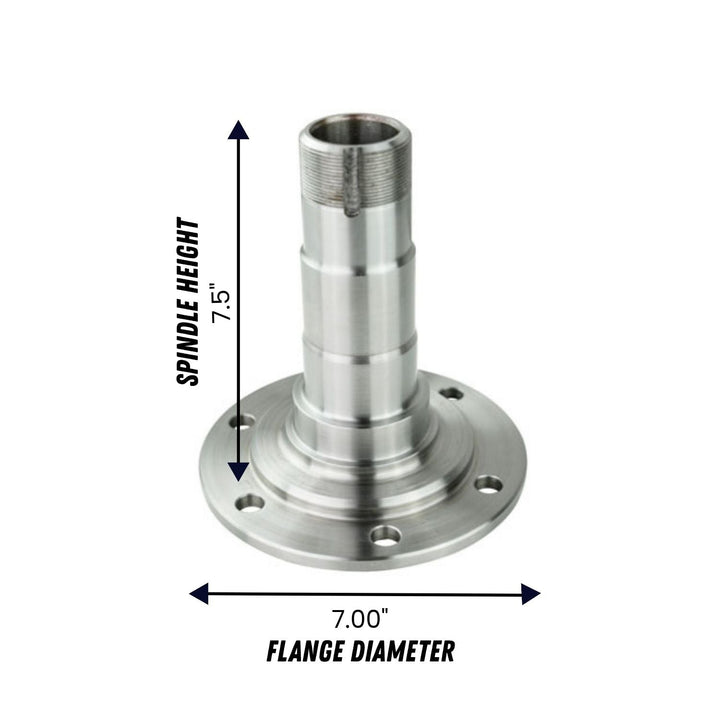

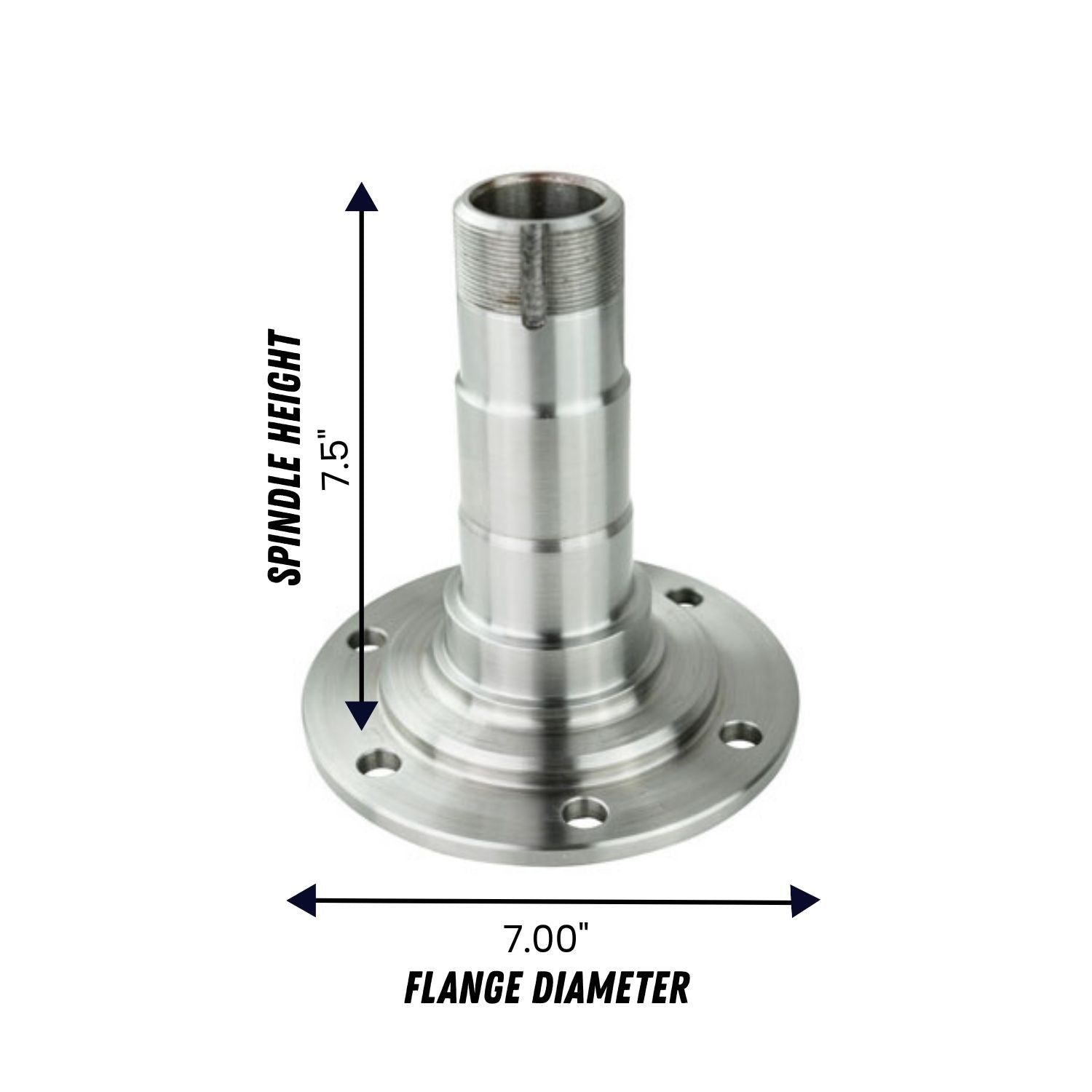

- Spindle Height: 7.5"
- Spindle Flange Diameter: 7.00
- Bolt Pattern: 6-Bolt
- Bearing Journals: 2.255 & 2.020
- Sold Individually
- Includes Seal Kit
Fitment
- GM Dana 60 Front Axles:
| Year | Make | Model |
|---|---|---|
| 1979–1986 | Chevrolet | K30 |
| 1987–1988 | Chevrolet | V30 |
| 1979–1986 | GMC | K3500 |
| 1987 | GMC | V3500 |
Tech Insight
Dana 60 front axles are known for their strength, but worn or OEM spindles can become a weak link, especially in off-road, high load, or high horsepower applications. This upgraded spindle uses a deeper heat treat at the bearing journals, helping prevent premature wear and increasing reliability under extreme off-road abuse. Tight machining tolerances ensure proper bearing fitment and smooth rotation, critical for long service life and consistent steering performance.
