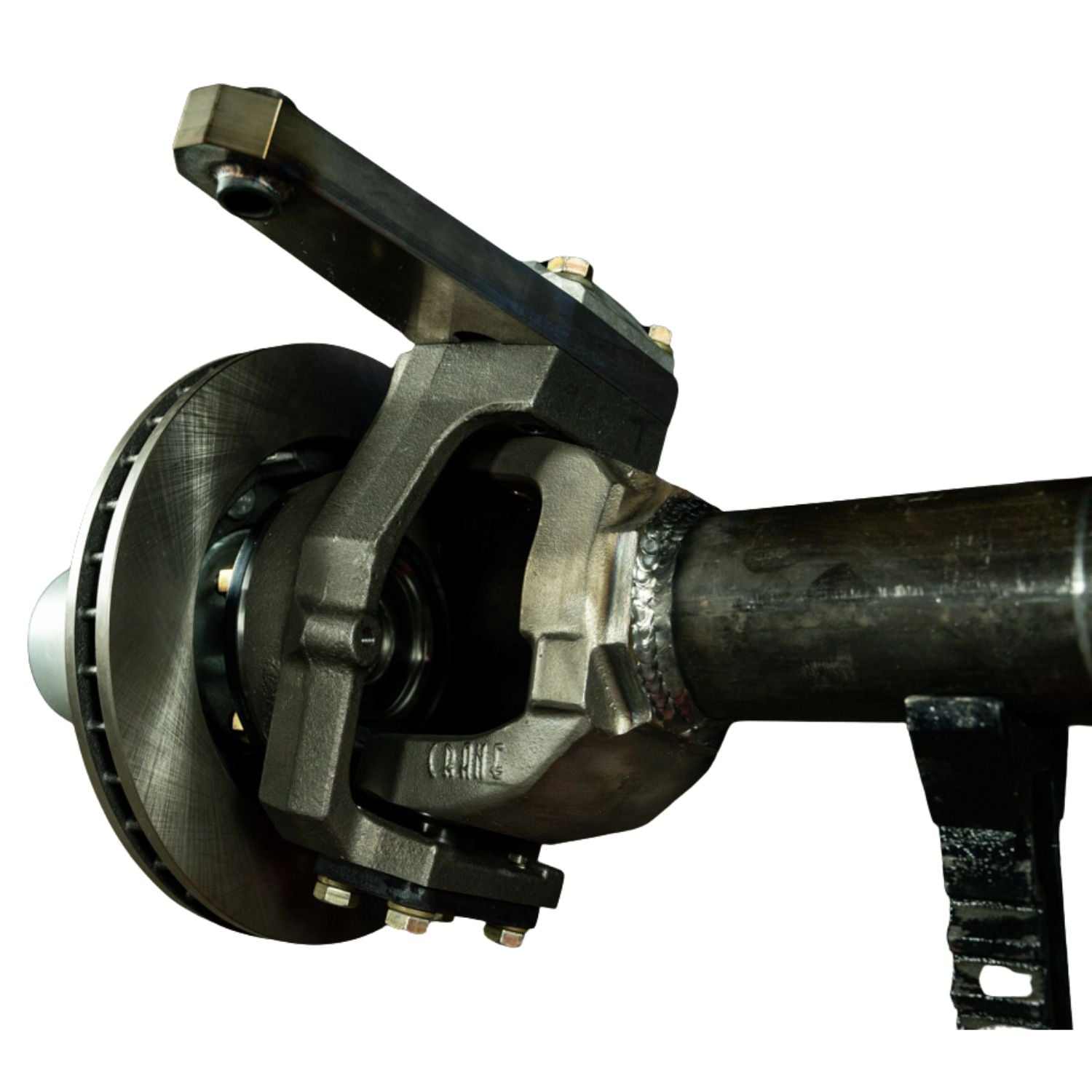

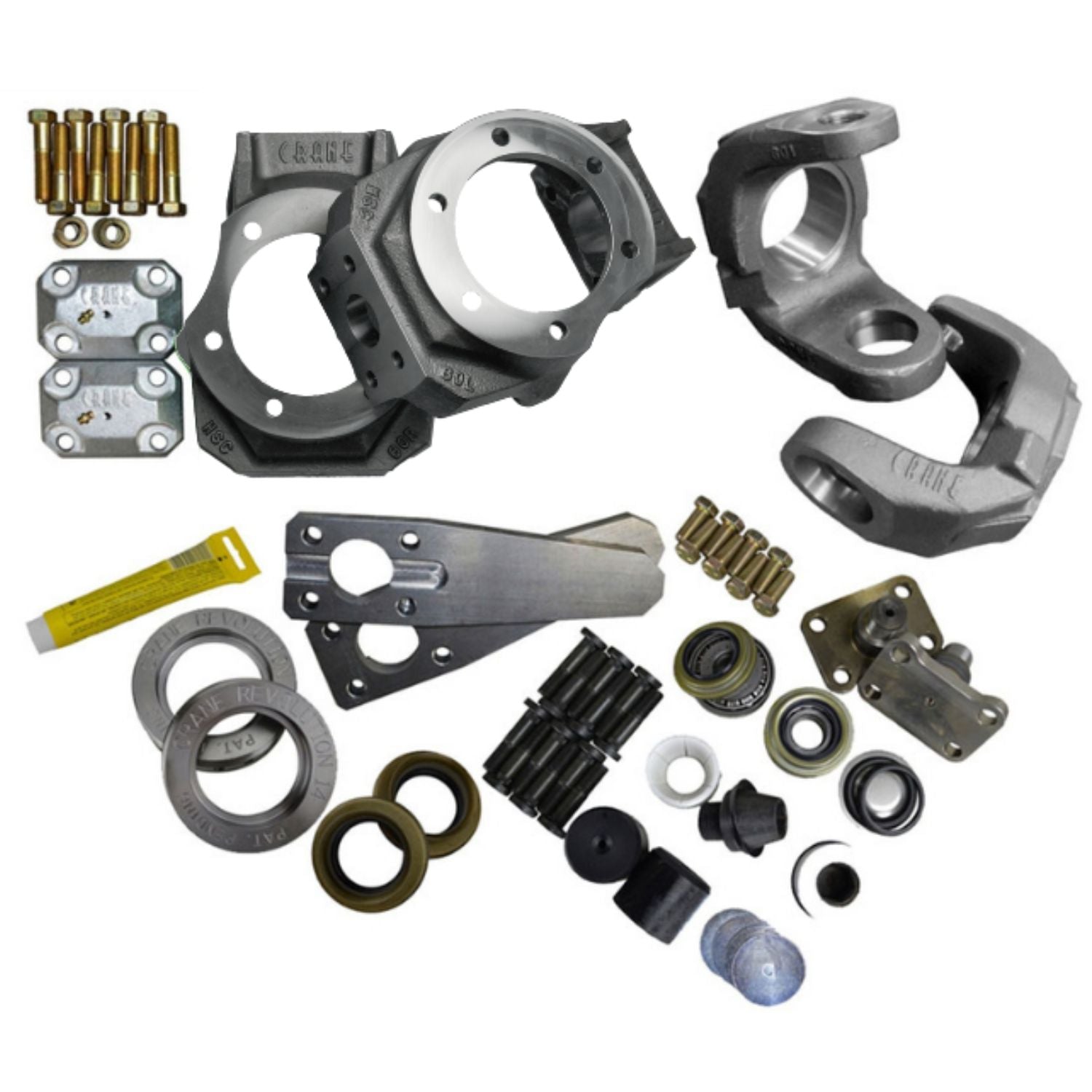

GM 14 Bolt front steer knuckle kit and hardware on a white background

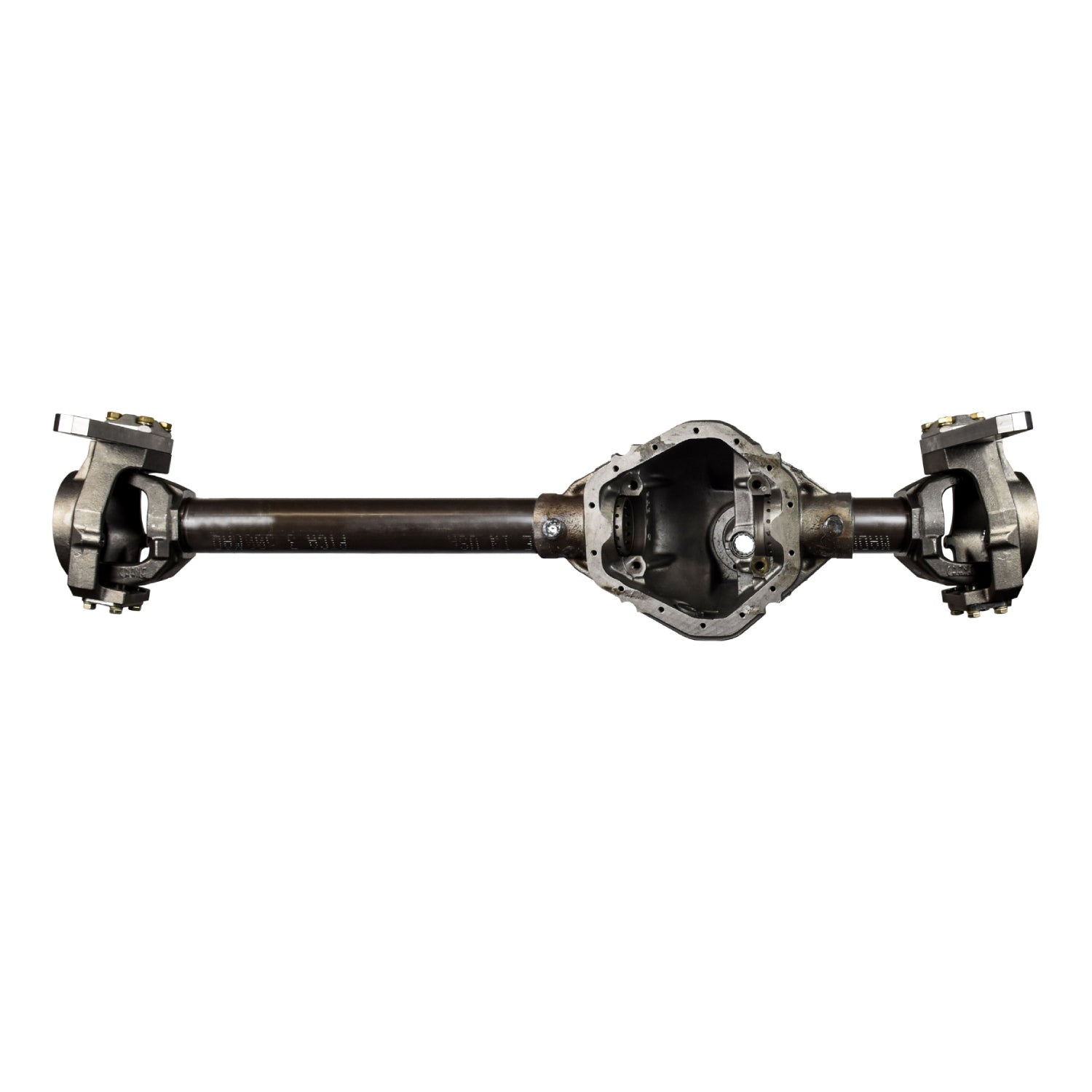

Dana 60 interlocking knuckle conversion on a white background

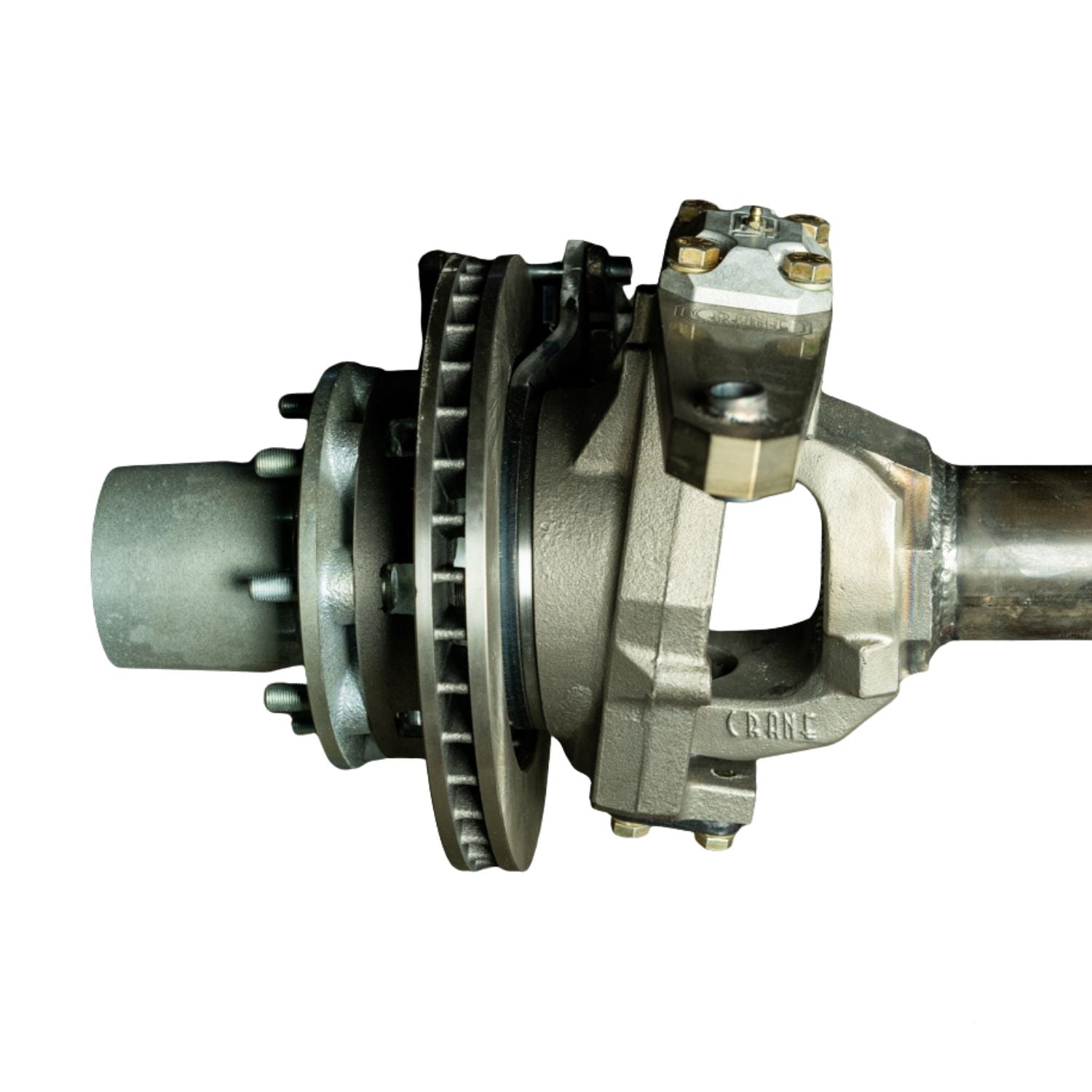

Off-road Dana 60 kingpin steering setup with crane axle knuckles on a white background
Crane Axle GM 14-Bolt Steering Knuckle Builder Kit with REV14 Seal System
Crane Axle GM 14-Bolt Steering Knuckle Builder Kit with REV14 Seal System
Crane Axle GM 14-Bolt Steering Knuckle Builder Kit with REV14 Seal System
GM 14 Bolt front steer knuckle kit and hardware on a white background
Dana 60 interlocking knuckle conversion on a white background
Off-road Dana 60 kingpin steering setup with crane axle knuckles on a white background
Crane Axle GM 14-Bolt Steering Knuckle Builder Kit with REV14 Seal System
Crane Axle GM 14-Bolt Steering Knuckle Builder Kit with REV14 Seal System
Crane Axle GM 14-Bolt Steering Knuckle Builder Kit with REV14 Seal System

Crane Axle GM 14-Bolt Steering Knuckle Builder Kit with REV14 Seal System

CA01026

$2,299.99
/
Shipping calculated at checkout.

The Crane Axle GM 14-Bolt Steering Knuckle Builder Kit is designed to convert a GM 14-Bolt axle into a front steering axle assembly using proven Dana 60 kingpin geometry combined with Crane Axle’s REV14 Seal System. This setup gives builders the strength of a 14-Bolt center section while adding front steering capability for custom crawlers, competition buggies, and extreme off-road applications.

The system combines interlocking Dana 60 outer knuckles, chromoly inner C’s, keyed high steer arms, and a complete kingpin assembly package into a single builder kit. The included REV14 Seal System allows the GM 14-Bolt housing to be properly sealed for steering axle use, helping prevent contamination and gear oil leakage common in traditional front-steer 14-Bolt conversions. All major components are cast and machined in the USA from 8620 chromoly steel for improved durability, weldability, and resistance to fatigue under extreme off-road use.

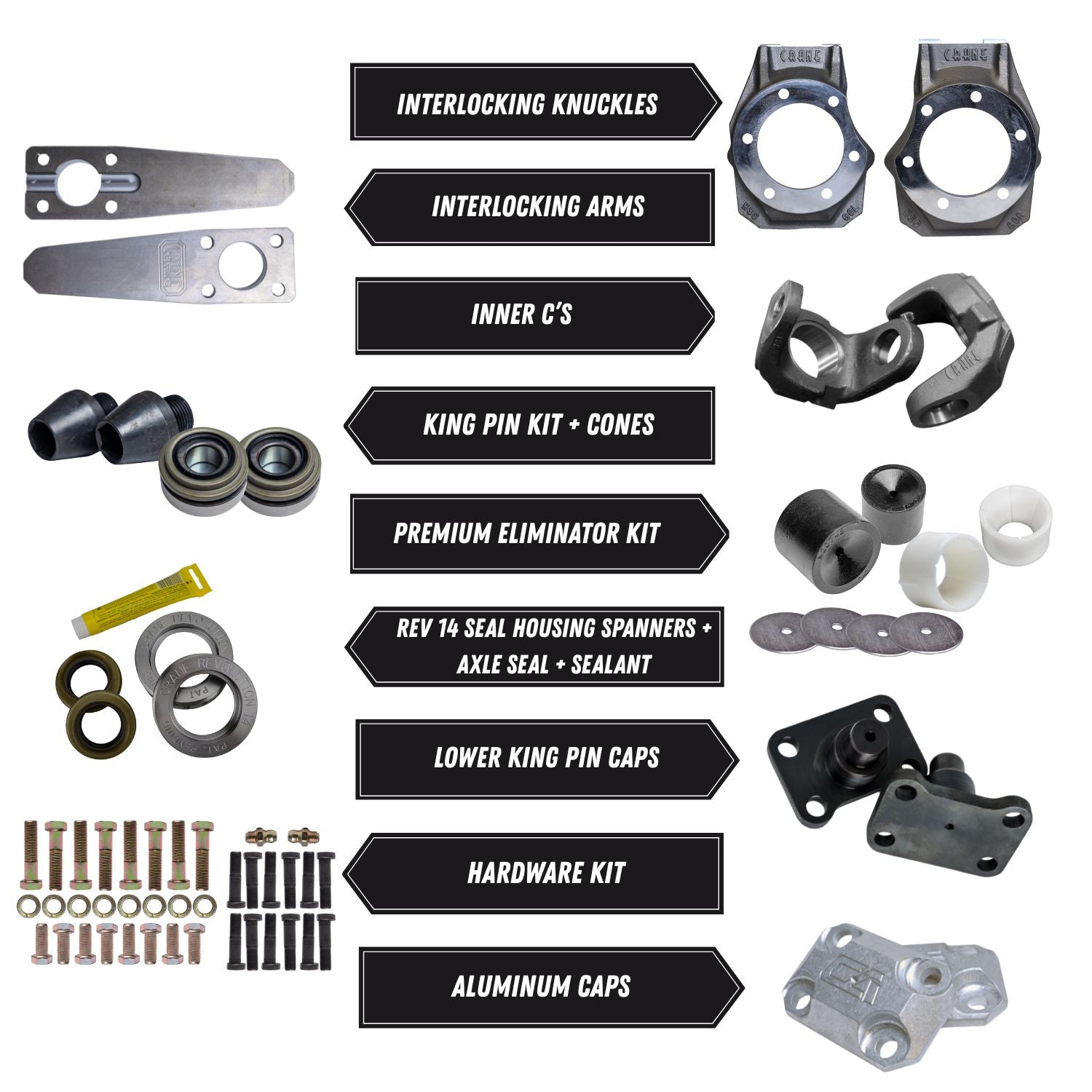

Includes:

  • (2) Chromoly Dana 60 Interlocking Outer Knuckles – Unfinished Steel
  • (2) Chromoly Dana 60 Inner C’s – 3" Standard Bore
  • (2) 1018 CR Steel Interlocking High Steer Arms
  • (2) Crane Kingpin Caps
  • (1) Crane Kingpin Components Kit
  • (1) REV14 Seal System
  • All Necessary Hardware
Specifications
  • Converts GM 14-Bolt axle to front steering axle configuration
  • Cast and machined from 8620 chromoly steel
  • 3.00" standard inner C bore
  • Inner C’s can be bored for up to 3.5" O.D. axle tube
  • Interlocking keyed high steer arm system
  • Uses Dana 60 kingpin geometry and service components
  • Includes REV14 internal seal system
  • Unfinished steel surface ready for coating or paint
  • Manufactured in the USA
Fitment
Make Model Year Range Axle Application
GM Custom Off-Road Applications Universal GM 14-Bolt Front Steering Conversion
Chevrolet Custom Fabricated Axle Builds Universal GM 14-Bolt Front Steering Conversion
GMC Custom Fabricated Axle Builds Universal GM 14-Bolt Front Steering Conversion

Fitment Notes:

  • Designed for GM 14-Bolt axle conversions
  • Uses Dana 60 kingpin outer components
  • Fits axle tubes with 3.00" standard bore
  • Inner C’s may be machined for up to 3.5" O.D. axle tube
  • Intended for custom fabricated and off-road axle builds
Tech Insight

GM 14-Bolt axles are known for their strength, but converting them into reliable steering axles has traditionally required significant fabrication and compromise. The Crane Axle system combines the proven serviceability and steering geometry of Dana 60 kingpin components with a purpose-built sealing system designed specifically for steering 14-Bolt applications.

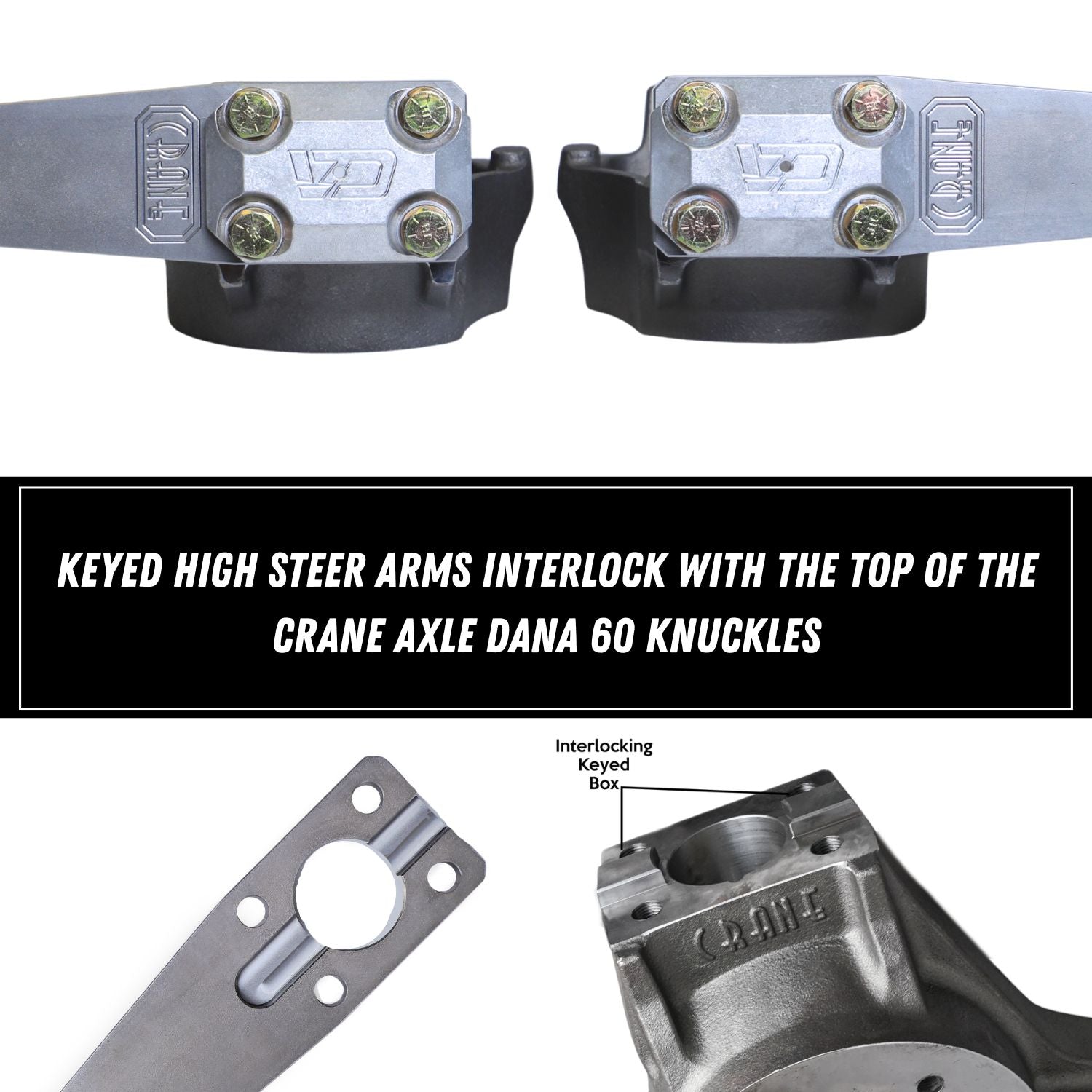

The keyed interlocking high steer arm design transfers steering force directly into the knuckle body instead of relying solely on fastener clamping force. This greatly reduces the risk of bolt movement or shear under large tire loads and hydraulic steering stress. Combined with the REV14 Seal System, the result is a more durable and serviceable front steering 14-Bolt platform built for high-articulation and high-horsepower off-road environments.
