GM Dana 60 Crossover Knuckle Kit - Crane Axle
CA01014B
The Crane Axle GM Dana 60 Crossover Knuckle Kit is designed for builders upgrading GM kingpin Dana 60 front axles to a crossover steering configuration for improved steering geometry, linkage clearance, and steering stability. The system combines Crane Axle 8620 chromoly outer knuckles with an interlocking high steer arm while retaining factory-style steering provisions for flexibility in custom off-road steering layouts.

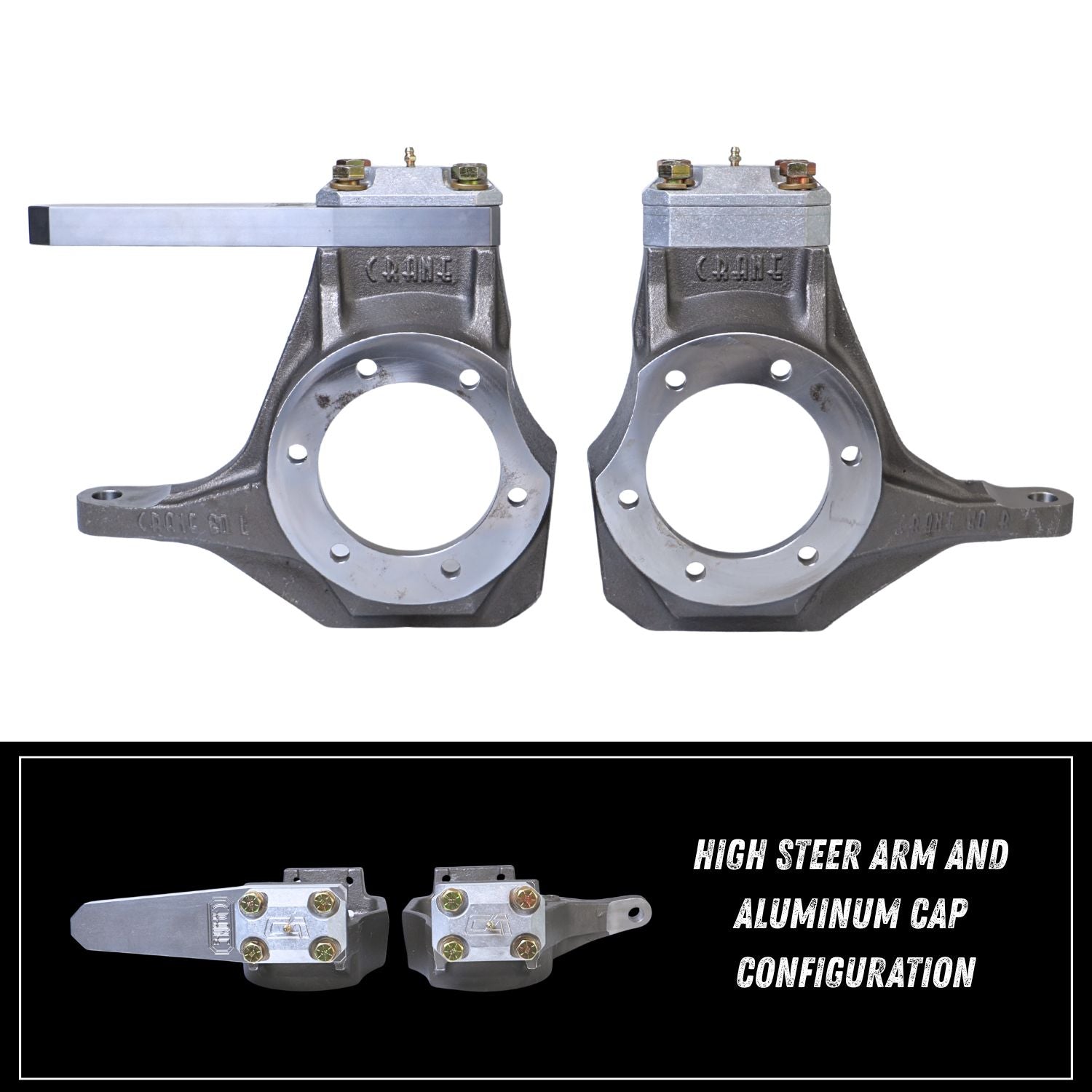

The keyed interlocking steering arm design mechanically transfers steering loads into the knuckle body instead of relying solely on mounting hardware clamping force. This helps reduce stress on steering arm fasteners and improves rigidity under large tires, hydraulic assist steering, and repeated off-road impacts common in rock crawling, trail rigs, and heavy-duty 4x4 applications.

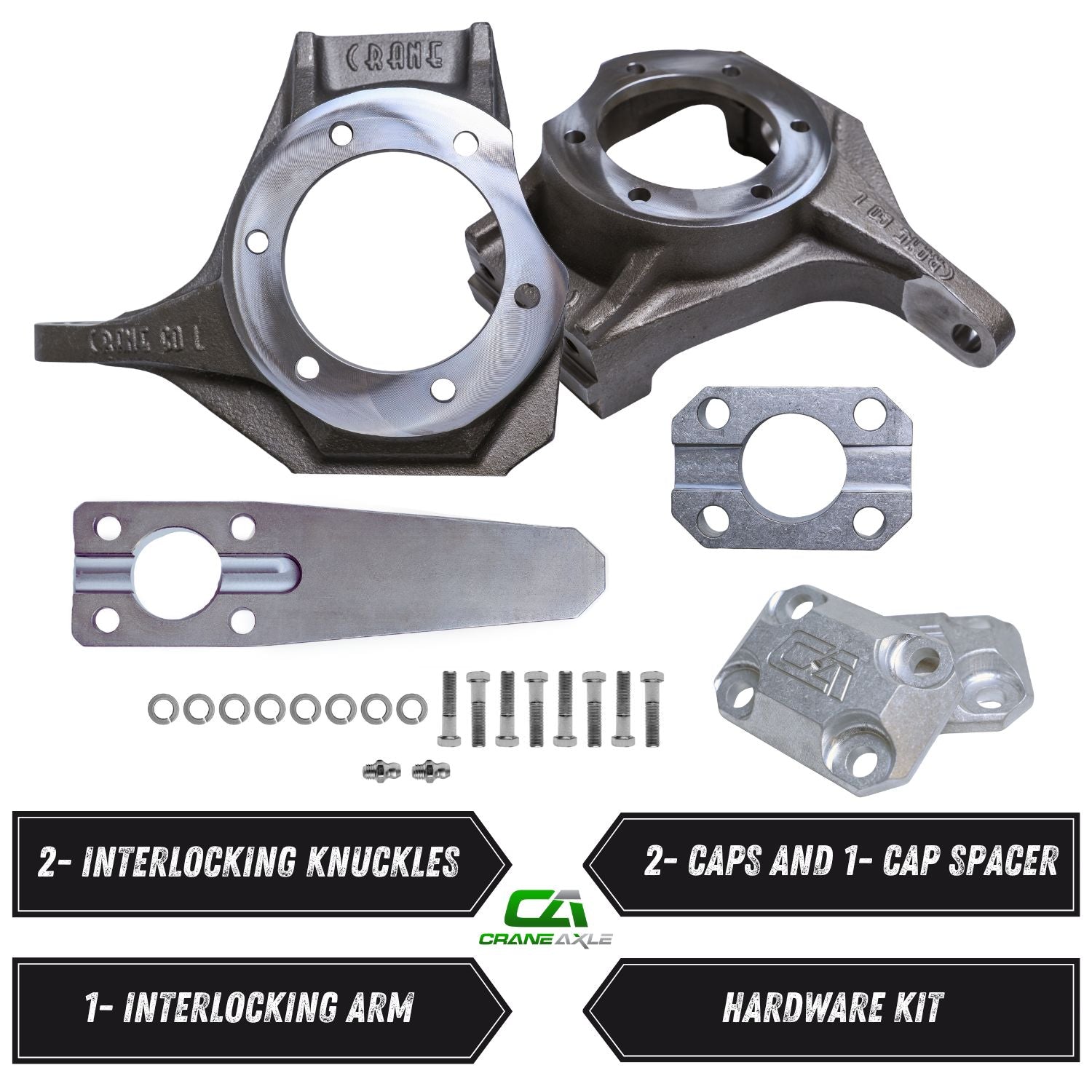

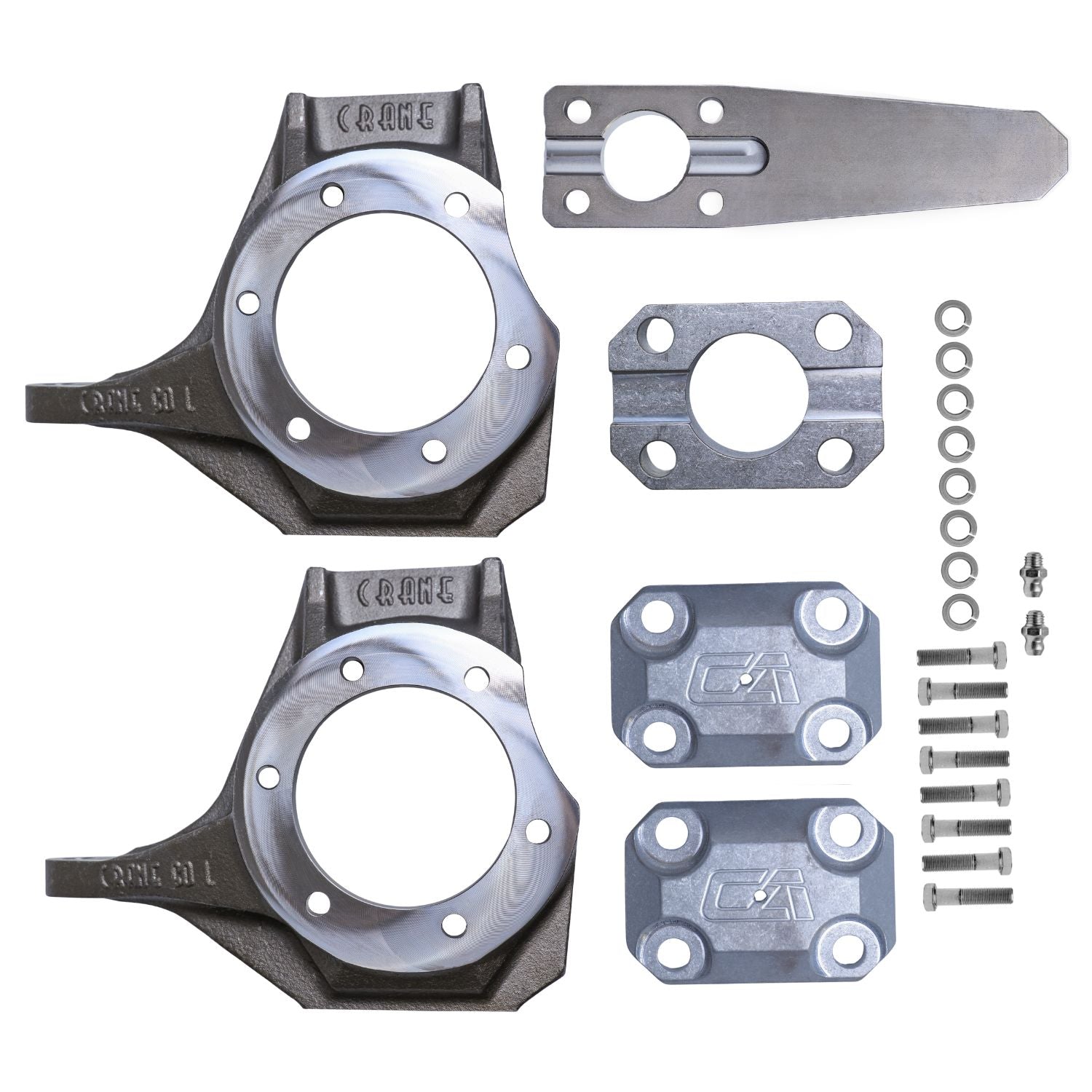

Includes:
- (2) GM Interlocking Outer Knuckles with Stock Steering Provisions
- (1) Crane Axle Interlocking High Steer Arm
- (2) Crane Axle Kingpin Caps
- (1) Crane Axle Kingpin Spacer
- Required Installation Hardware
Finish Note: Ships as unfinished steel, ready for paint or coating.
Specifications
| Specification | Details |
|---|---|
| Product Type | Crossover Steering Knuckle Kit |
| Axle Platform | GM Dana 60 Kingpin |
| Knuckle Material | 8620 Chromoly Steel |
| Steering Arm Design | Keyed Interlocking High Steer |
| Steering Configuration | Crossover Steering |
| Stock Steering Provisions | Retained |
| Spindle Mounting Pattern | Six-Bolt GM Dana 60 |
| Finish | Unfinished Steel |
| Manufacturing | Precision Cast & Machined in the USA |
| Intended Use | Rock Crawling, Trail & Heavy-Duty Off-Road Steering |

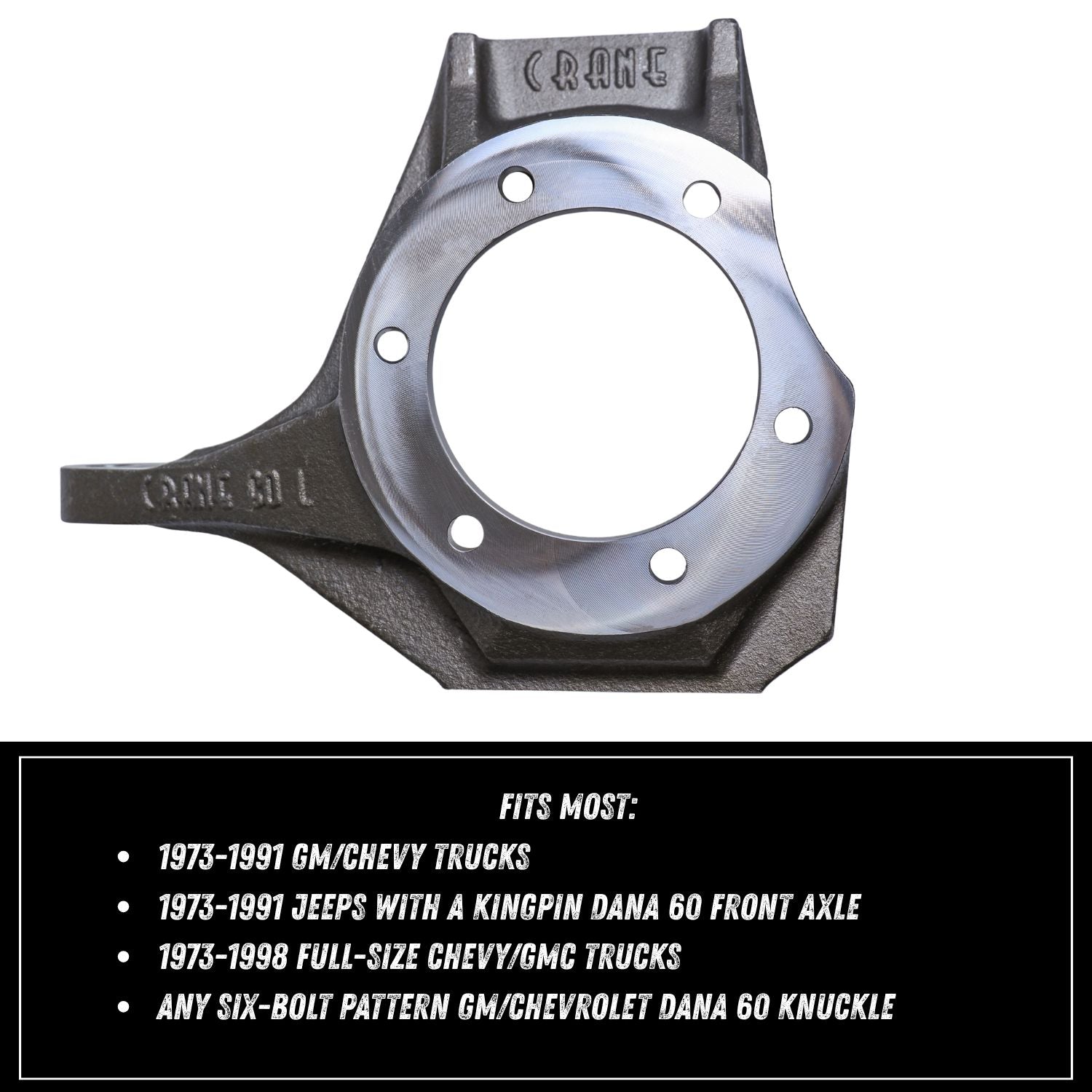

Fitment
| Make | Model | Year Range | Axle Application |
|---|---|---|---|
| Chevrolet | K30 / V30 4x4 | 1973–1991 | Dana 60 Front Kingpin Axle |
| GMC | Full Size 4x4 Trucks | 1973–1998 | Dana 60 Front Kingpin Axle |
| Jeep | Custom Dana 60 Swaps | 1973–1991 | Dana 60 Front Kingpin Axle |
| Custom | Six-Bolt GM Dana 60 Applications | — | Dana 60 Front Kingpin Axle |
Fitment Notes:
- Designed for six-bolt GM Dana 60 kingpin knuckle applications.
- Requires a kingpin-style Dana 60 front axle configuration.
- Supports crossover steering configurations while retaining stock steering provisions.
- Commonly used on lifted and custom off-road steering systems.
- Verify knuckle pattern, steering arm configuration, tie rod location, drag link geometry, and wheel clearance before ordering.
- Custom steering systems may require additional linkage, rod ends, steering arms, or fabrication depending on the vehicle.
FAQ

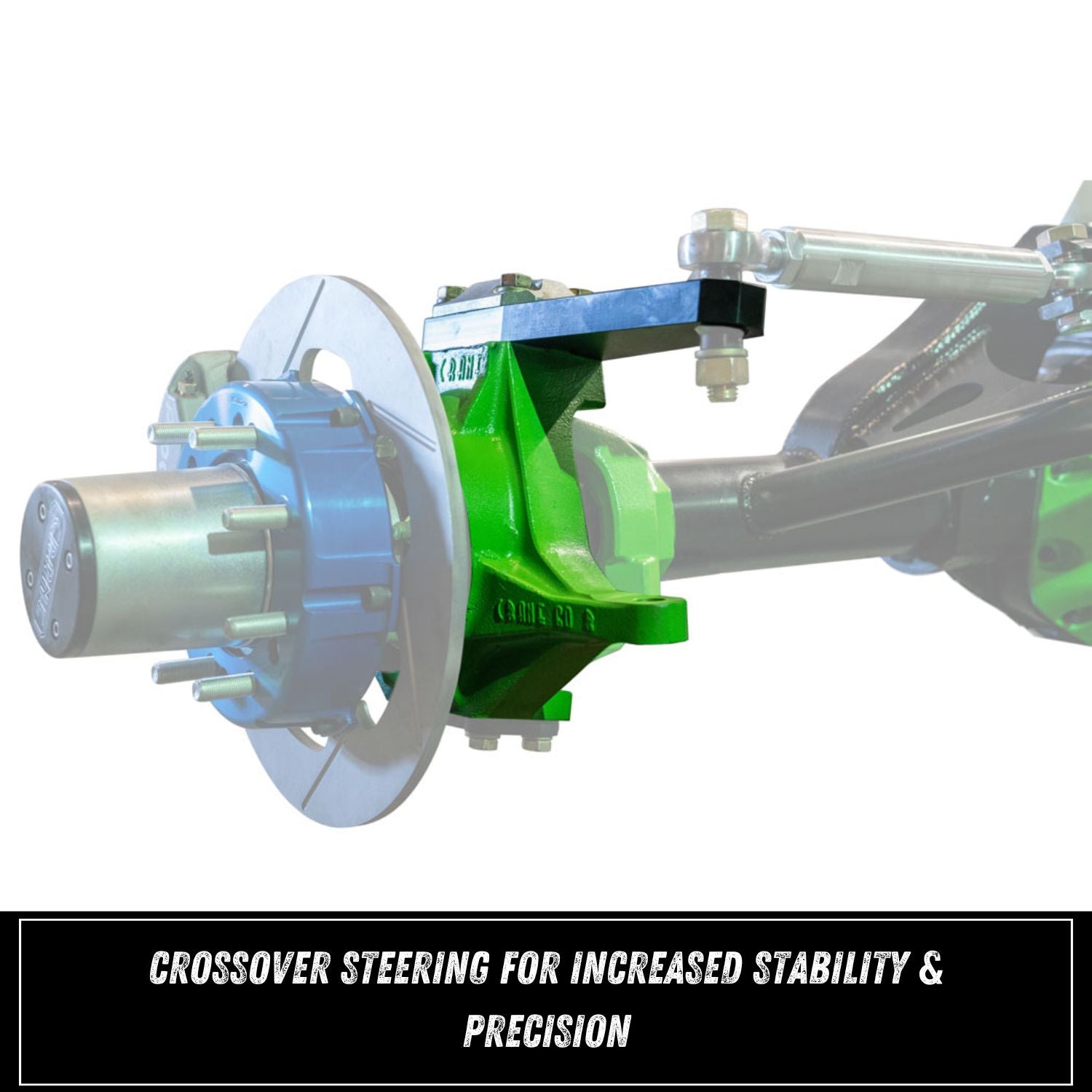

What is crossover steering on a Dana 60?
Crossover steering routes the drag link across the axle to the opposite steering knuckle. On lifted and custom off-road vehicles, this configuration can improve steering geometry and provide additional linkage clearance compared with some factory steering layouts.
What is the advantage of Crane Axle's interlocking high steer arm?
The keyed steering arm mechanically engages the knuckle so steering loads are transferred into the knuckle body instead of relying only on the clamping force of the mounting hardware. This helps improve rigidity and reduce fastener stress under high steering loads.
Does this kit retain the factory steering provisions?
Yes. The included GM-style outer knuckles retain stock steering provisions while adding the Crane Axle interlocking high steer system, giving builders more flexibility when designing the steering linkage.
Will this kit fit every Dana 60 front axle?
No. This kit is designed around six-bolt GM Dana 60 kingpin knuckle applications. Verify that your axle uses the correct kingpin configuration and knuckle pattern before ordering.
Why use 8620 chromoly knuckles on an off-road Dana 60?
Large tires, hydraulic assist, and aggressive terrain place substantial loads on steering knuckles. The Crane Axle knuckles are manufactured from 8620 chromoly steel to provide the strength and durability needed for severe-duty off-road steering applications.
