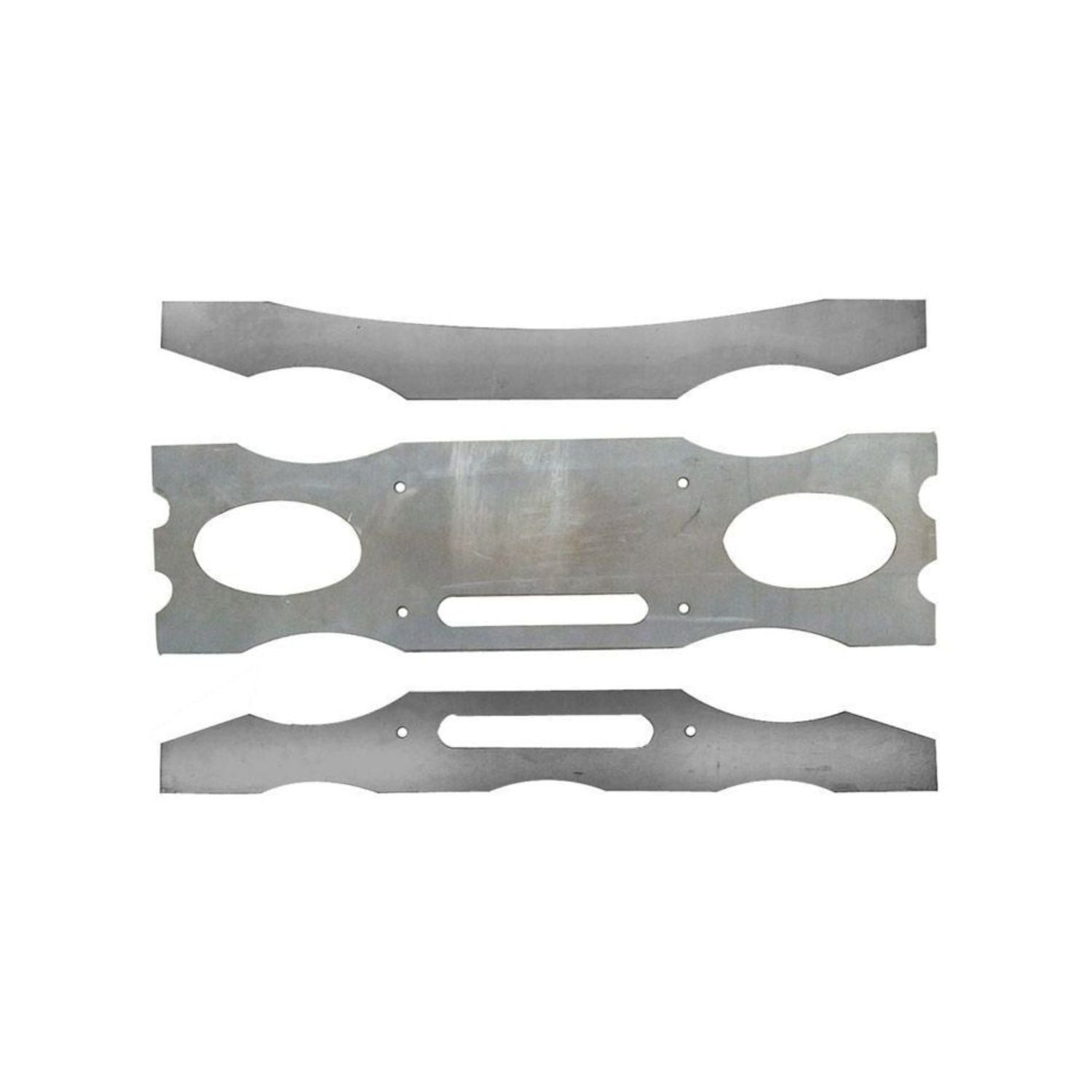

Revolution weld-on 4-Seat Winch Mount on a white background

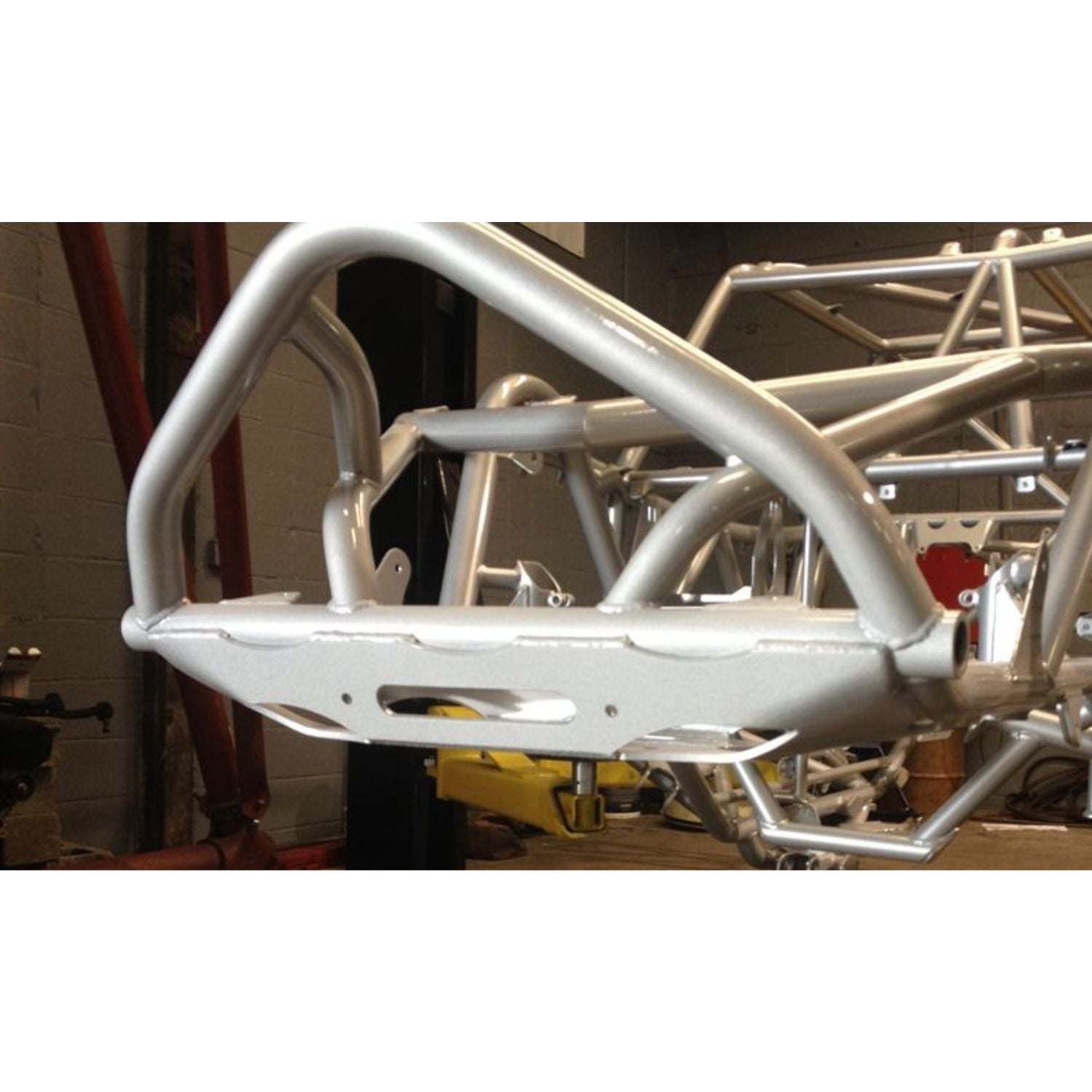

Heavy Duty Steel 4-Seat Winch Mount in use on a chassis

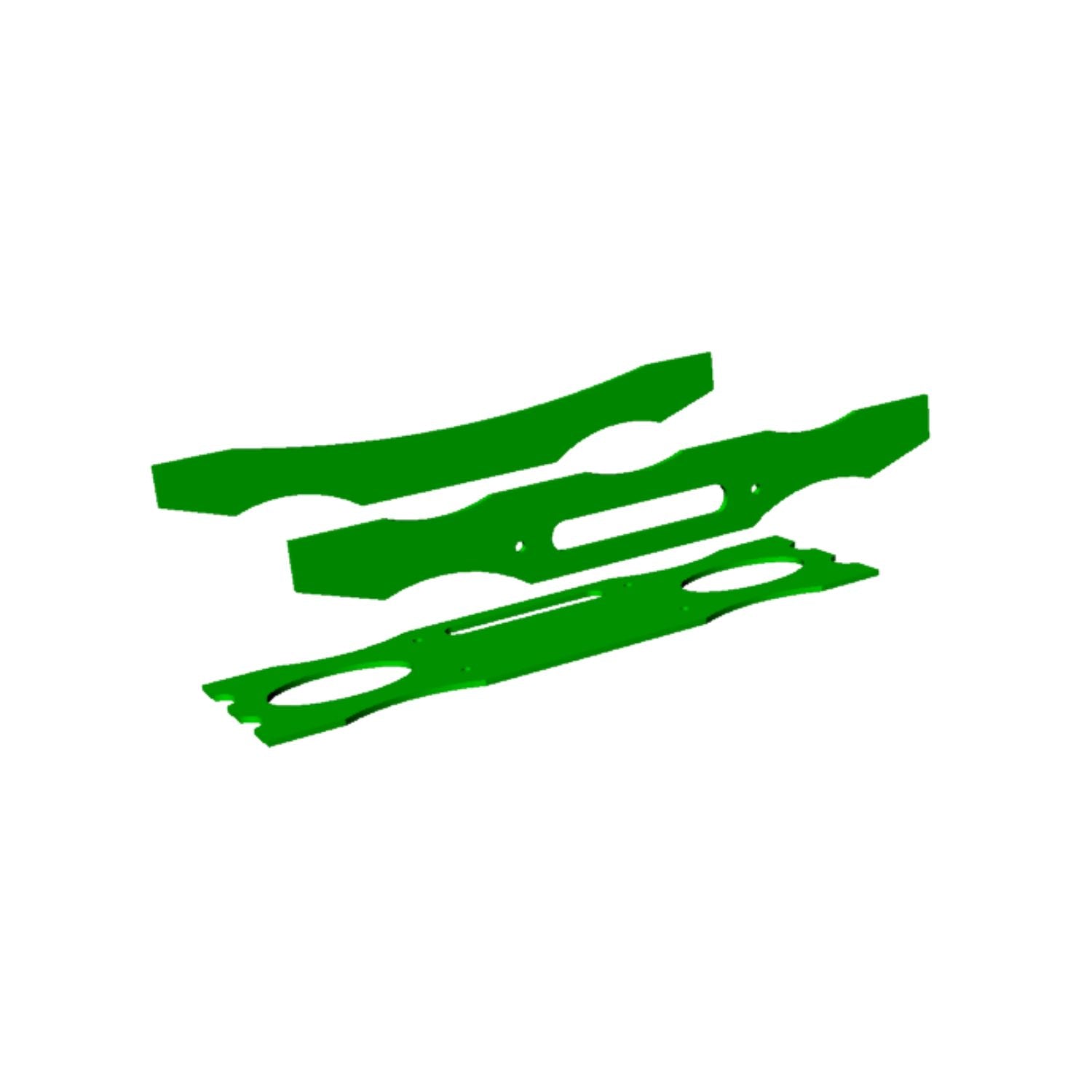

cad drawing of Revolution 4-Seat Winch Mount plates on a white background
Revolution weld-on 4-Seat Winch Mount on a white background
Heavy Duty Steel 4-Seat Winch Mount in use on a chassis
cad drawing of Revolution 4-Seat Winch Mount plates on a white background

Revolution 4 Seat Winch Mount

F021081

$129.99
/
Shipping calculated at checkout.

The Revolution 4-Seat Winch Mount is a heavy-duty, weld-on winch platform engineered specifically for the Wide Open Design Revolution 4-Seat Chassis. Built from 1/4" high strength plate steel and laser cut for precise fitment, this mount creates a strong, reliable location to run a narrow drum winch, commonly used in tight packaging chassis designs.

Sold unassembled, the mount allows you to position and weld it exactly where it fits best in your 4-seat build, ensuring ideal cable routing, structural integration, and front-end clearance.

Includes:

  • (1) Winch Mount (Sold Unassembled/ Weld Ready)
Specifications
  • Material: 1/4" High Strength Plate Steel
  • Cutting Method: Precision laser cut
  • Fitment: Revolution 4-Seat Chassis
  • Winch Compatibility: Narrow drum winches
  • Condition: Weld-ready
  • Configuration: Creates one winch mount location
  • Made in the USA
Fitment
  • Designed specifically for:
  • Wide Open Design Revolution 4-Seat Chassis
  • Compatible with:
  • Narrow drum winches
  • Compact drum recovery winches
  • Competition-style winches with slim motor housings
  • Ideal for:
  • Rock bouncers
  • Ultra4 4400/4800 style custom 4-seat builds
  • Tight front-end packaging
  • High-strength recovery systems
Tech Insight

4-seat chassis require more packaging strategy than 2-seat builds. Using a narrow drum winch provides better clearance around steering, cooling, and front driveshaft components. This 1/4" plate steel winch mount is engineered to distribute heavy recovery loads through the chassis rails, ensuring strength and reliability during hard pulls.
