Name: Radflo 2.0 Emulsion Coilover Shock - 7/8″ Shaft
Brand: Radflo Suspension
SKU: 5CE-005-00
Price: 435.0 USD
Availability: InStock

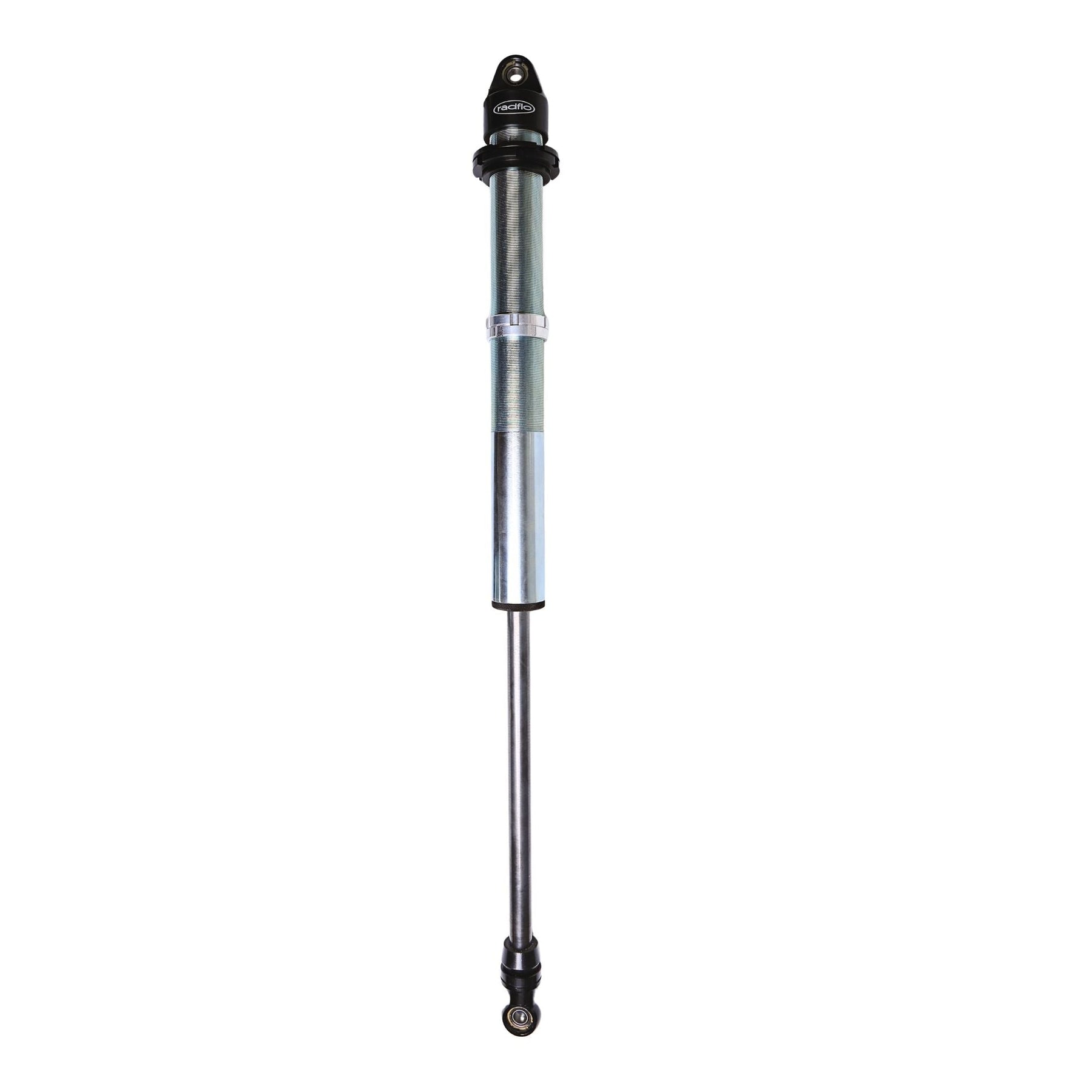

Radflo 2.0 emulsion coilover 7/8 shaft on a white background

Radflo 2.0 Emulsion Coilover Shock - 7/8″ Shaft

$435.00

Shipping calculated at checkout.

Quantity

The Radflo 2.0 Emulsion Coilover with 7/8″ shaft is built for advanced suspension systems requiring maximum tunability in a compact package. Designed for performance driven builds, this integrated spring and shock assembly delivers precise ride height, preload, and travel adjustment without removing the unit from the vehicle.

Choose your ideal single or dual-rate spring combination (springs sold separately), and Radflo will custom valve compression and rebound characteristics to complement your vehicle weight, geometry, and driving style.

The emulsion design combines oil and nitrogen in a single chamber for a simplified, space-saving configuration, which is perfect for tighter mounting locations. Radflo’s exclusive Freeflo Racing Piston and velocity sensitive valving automatically adapt to terrain changes, improving control, handling, and comfort.

Each shock is custom built to order and uniquely valved to meet your exact specifications.

Includes:

(1) Radflo 2.0 Emulsion Coilover Shock
Dual Rate Spring Hardware
Universal Spherical Bearing & Mounting Hardware

*Sold Individually

**Springs Sold Separately

Shock Type: Emulsion Coil-Over
Body Diameter: 2.0″

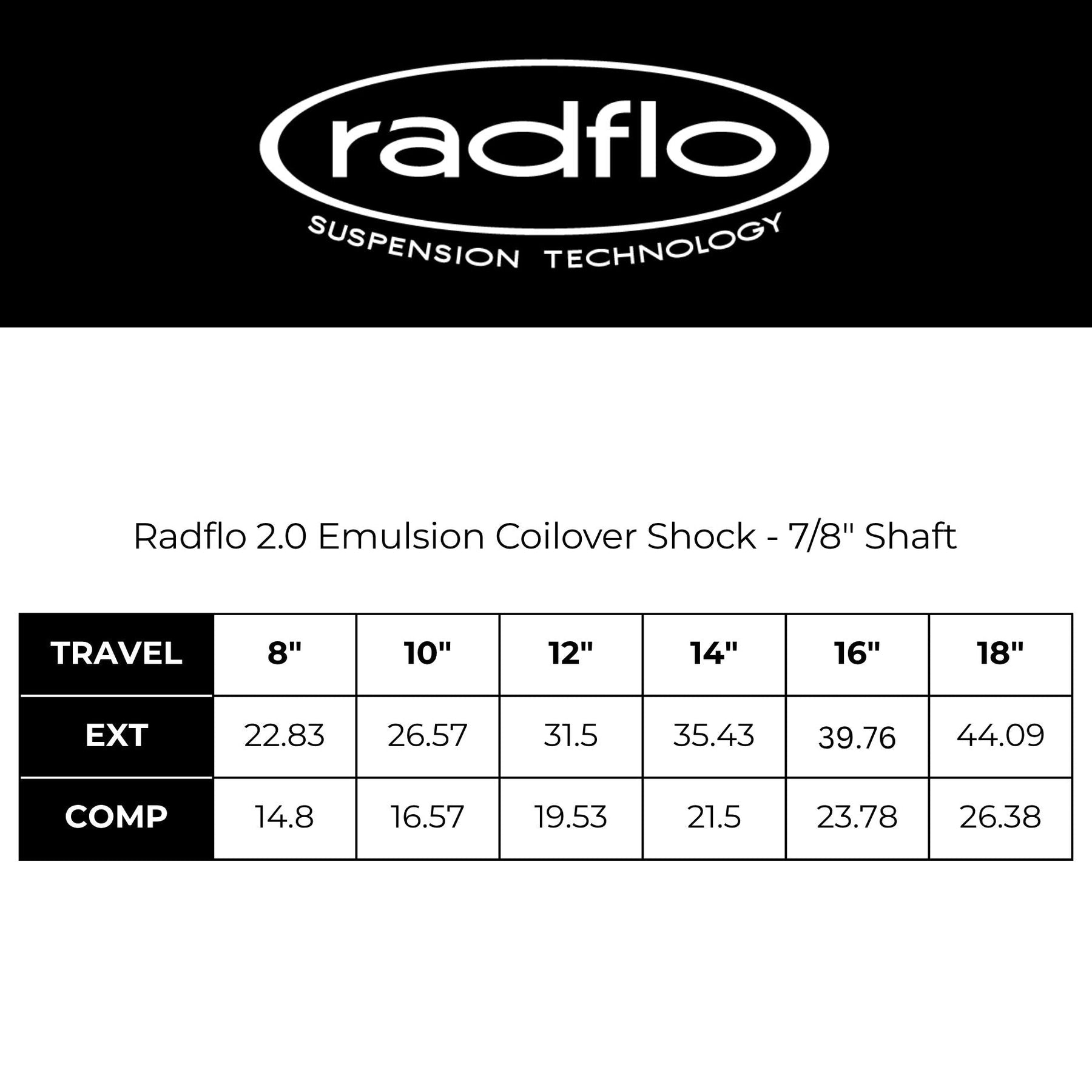

Travel Length: 8″, 10", 12", 14", 16", or 18"
Shaft Diameter: 0.875″ (7/8″)
Bearing Size: 0.5″
Body Material: SSID Alloy Steel Tube
Body Finish: Clear Cadmium Plating
Body Caps/Eyelets: CNC Machined 6061 Aluminum
Caps Finish: Black Anodized
Coil-Over Hardware: CNC Machined Aluminum with Nylatron Spring Slider
Rod Material: Nitro Steel
Rod Finish: Chrome Plated
Rod Guide: CNC Machined Bronze with PTFE Coating
Piston: Radflo Aluminum Freeflo Racing Piston
Seal System: Combination Quad-Ring & Lip Seal (Rebuildable)
Valving Type: Velocity-Sensitive Deflective Disc
Valving: Consumer or Factory Tunable
Oil Type: Radflo High Temp Foam Resistant Suspension Fluid
Pressurization: Nitrogen Gas
Charge Pressure: 200 PSI
Serviceability: Consumer or Factory Serviceable
Springs: Dual Rate Hardware Included (Springs Not Included)
Sold: Individually

Universal fitment for custom off-road suspension systems requiring:

2.0″ body coilover
7/8″ shaft

Common applications include:

Rock crawlers
Trail rigs
Lightweight buggies
Custom tube chassis builds

Verify spring rate, mounting dimensions, and clearances for your specific vehicle.

The 2.0″ coilover platform offers an ideal balance of compact size and performance capability. The emulsion design eliminates the need for a remote reservoir, making installation simpler while maintaining strong damping performance for many off-road applications.

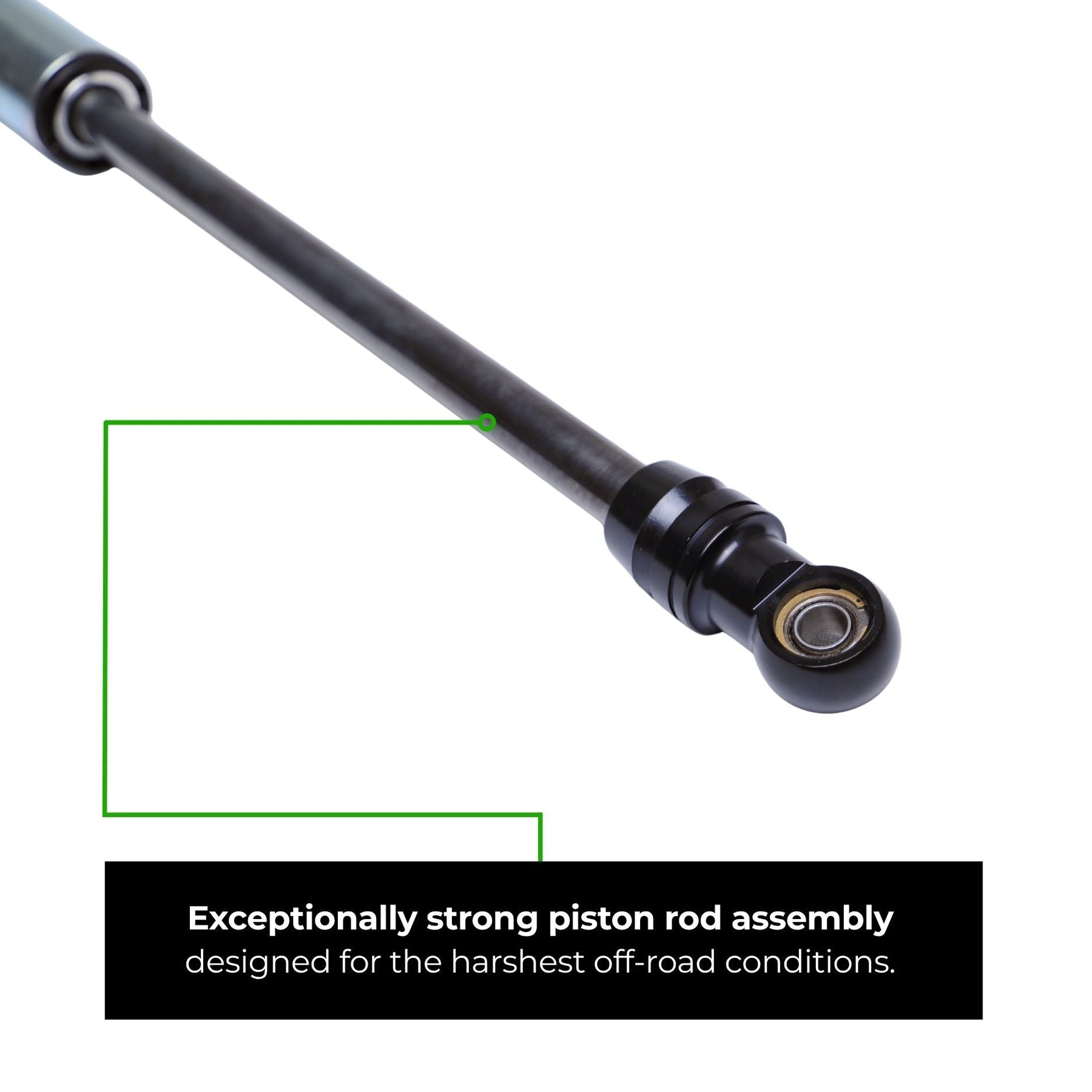

The 7/8″ Nitro Steel shaft provides excellent durability under heavy loads, while the PTFE-coated bronze rod guide ensures smooth cycling in harsh environments. Radflo’s velocity sensitive deflective disc valving automatically adjusts to terrain conditions, and individual shim stacks can be changed for fine tuned performance.

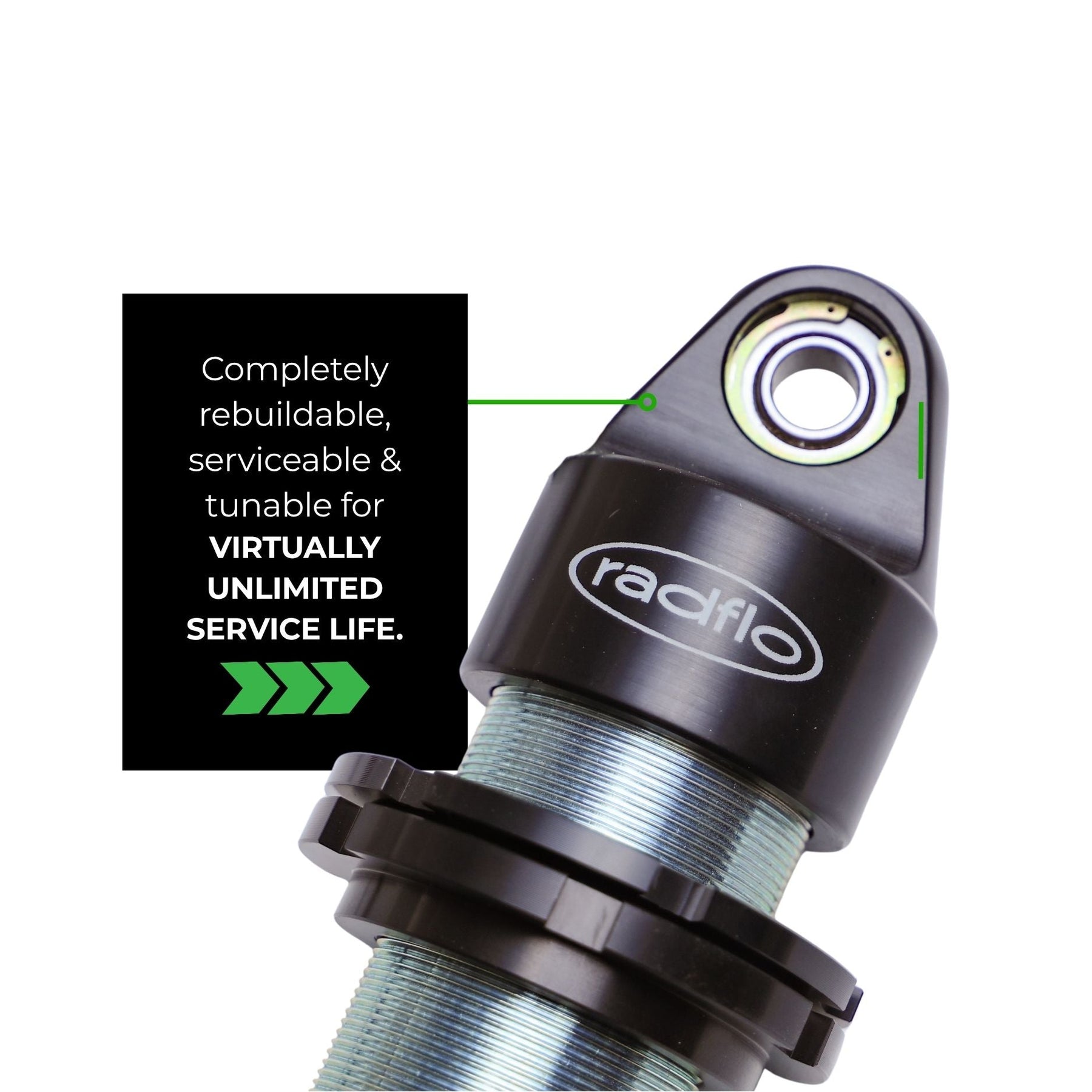

With full rebuildability and built to order valving, this coilover is engineered to deliver consistent, dependable performance race after race.
