Name: Radflo 2.5 Smooth Body Shock w/ Remote Reservoir - 7/8″ Shaft
Brand: Radflo Suspension
SKU: 6SR-001-00
Price: 560.0 USD
Availability: InStock

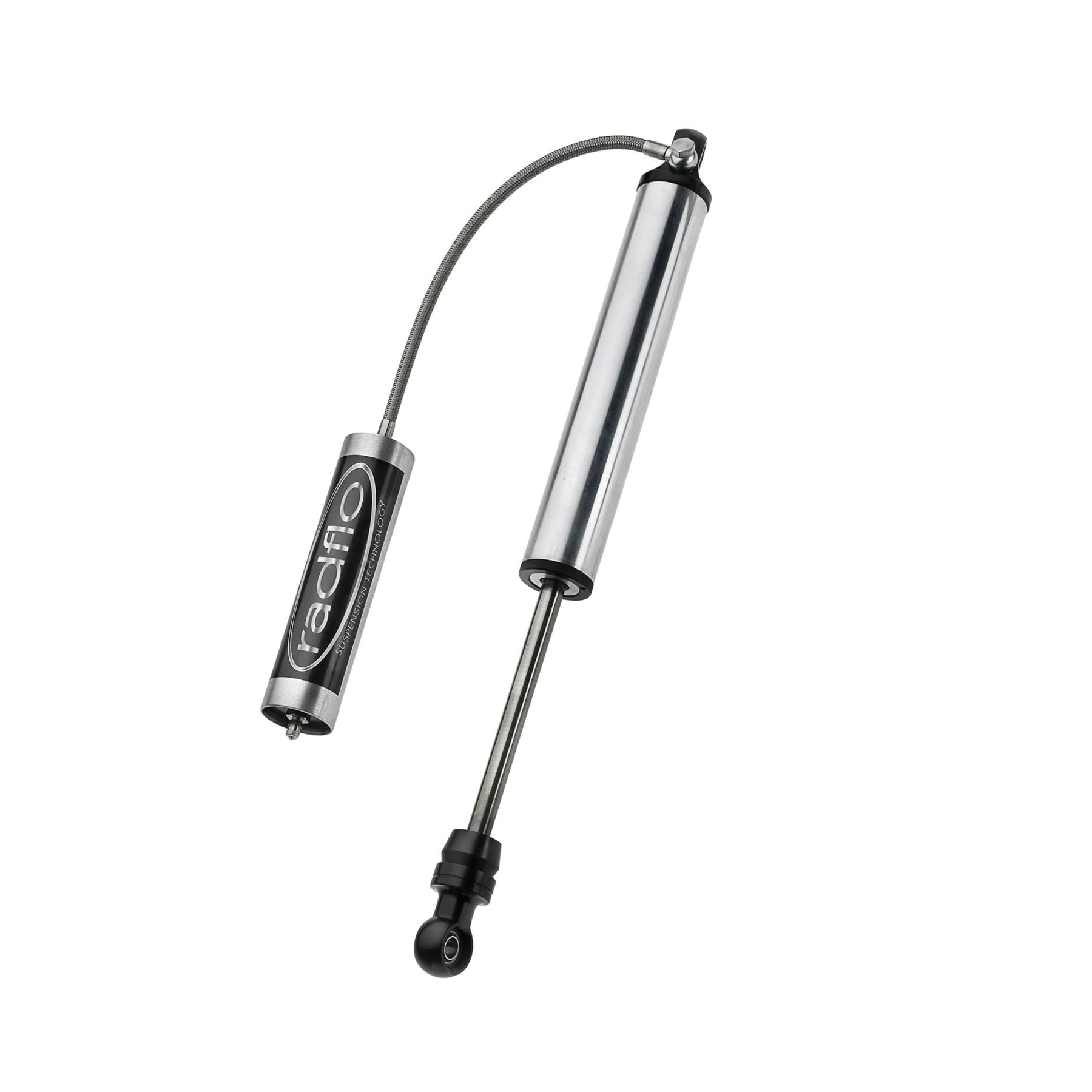

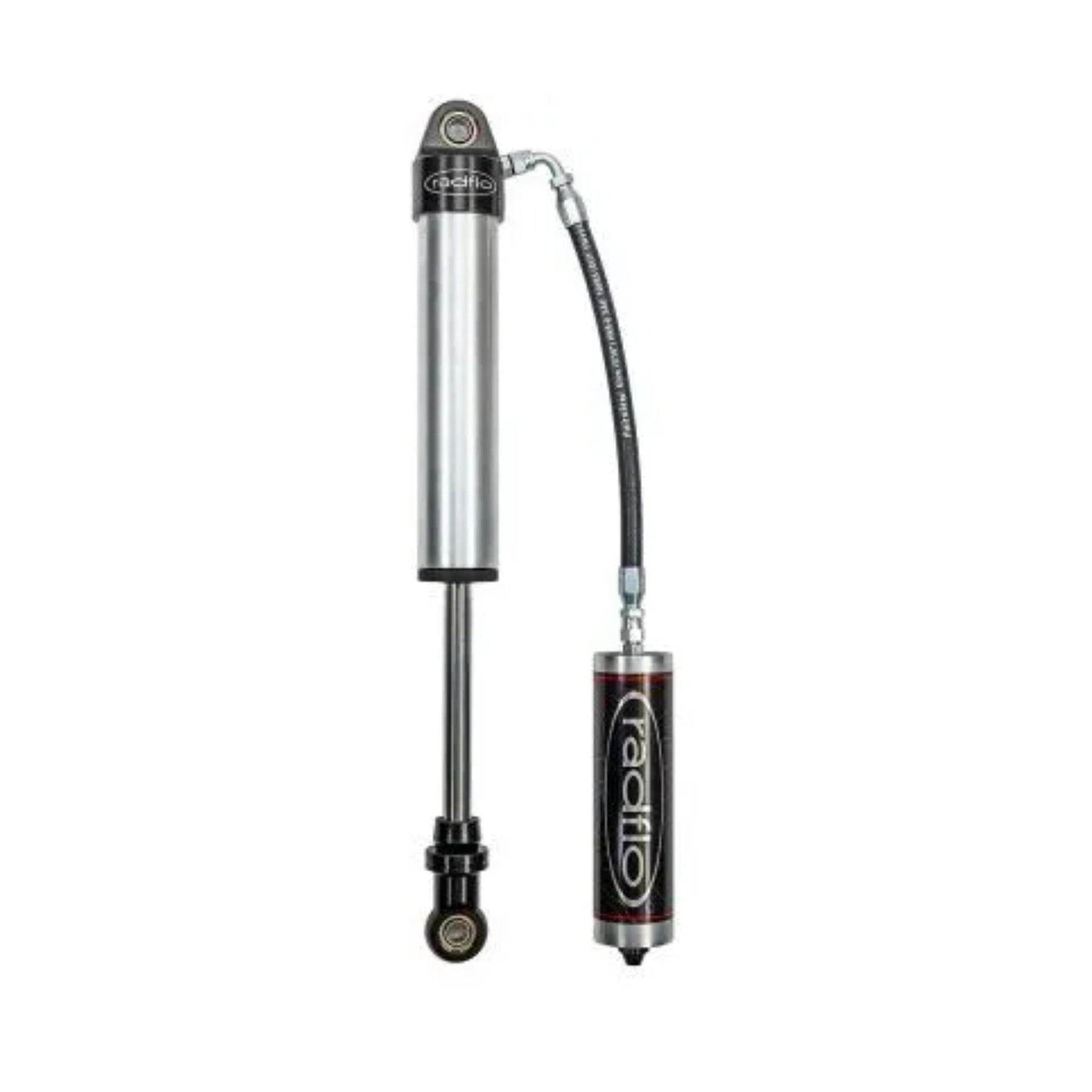

Radflo 2.5 smooth body remote reservoir shock on white background

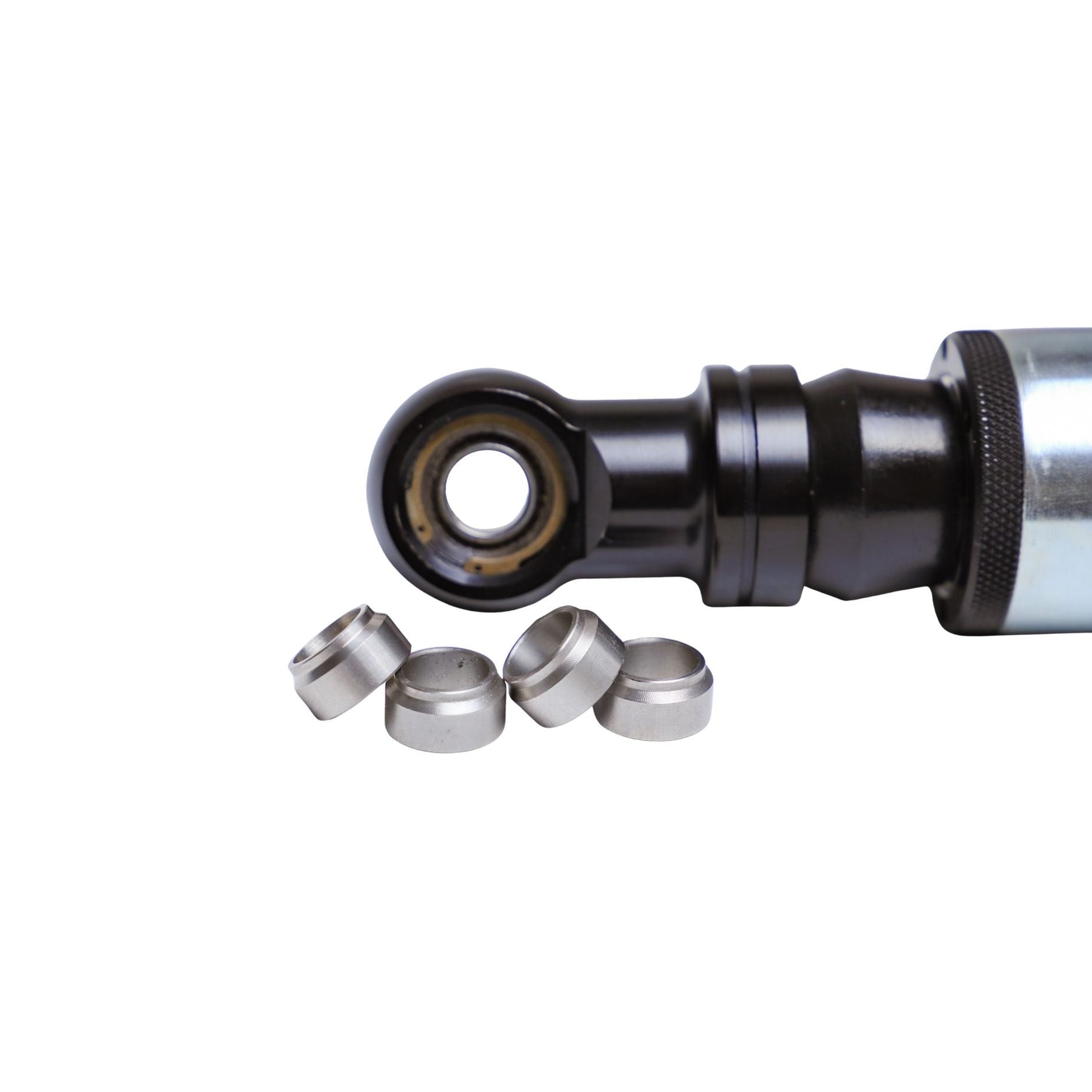

Radflo 2.5 rebuildable racing shock with bearings and washers on a white background

$560.00

Shipping calculated at checkout.

Quantity

The Radflo 2.5 Smooth Body Shock with Remote Reservoir is designed for off-roaders who need more suspension control, greater damping capacity, and improved durability than a traditional 2.0 shock can provide. Built around a large 2.5” shock body, heavy-duty 7/8” shaft, and remote reservoir, this shock delivers race-proven performance for rock crawlers, rock bouncers, Ultra4 vehicles, prerunners, and high-performance trail rigs.

Unlike coilover shocks that support vehicle weight through a spring mounted directly to the shock body, smooth body shocks are designed strictly for damping control. They are commonly used alongside coilovers, air shocks, torsion bar systems, or other suspension setups where additional control and impact absorption are needed.

The larger 2.5” body increases oil volume and damping capability, allowing the shock to better manage larger tires, heavier vehicles, longer suspension travel, and rougher terrain. Combined with a remote reservoir for additional cooling capacity, this shock maintains consistent performance even during long trail rides, competition use, and repeated hard impacts.

Includes:

(1) Radflo 2.5 Smooth Body Shock
Remote Reservoir
Universal Spherical Bearing & Mounting Hardware

Sold Individually.

Availability Note: As the #1 stocking warehouse for Radflo Performance Shocks, we maintain one of the largest inventories of Radflo coilovers and springs in the industry. While many popular shock configurations are available for immediate shipment, certain coilovers, custom valving packages, and special-order suspension components may require 4–6 weeks for production and delivery.

Need parts quickly? Call us for current inventory availability and expert help selecting the right coilover shocks, springs, or suspension package for your build.

Brand: Radflo
Shock Type: Smooth Body with Remote Reservoir
Body Diameter: 2.5″
Travel: 8″, 10, 12, 14, 16, or 18
Shaft Diameter: 0.875″ (7/8″)
Application: Front or Rear Suspension
Body Material: SSID Alloy Steel Tube
Body Finish: Clear Cadmium Plating
Body Caps/Eyelets: CNC Machined 6061 or 7075 Aluminum
Caps Finish: Black Anodized
Rod Material: Nitro Steel
Rod Finish: Mirror Polished
Rod Guide: CNC Machined Bronze with PTFE Coating
Piston: Radflo Aluminum Freeflo Racing Piston
Seal System: Combination Quad-Ring & Lip Seal (Rebuildable)
Valving Type: Velocity-Sensitive Deflective Disc
Valving: Consumer or Factory Tunable
Oil Type: Radflo High-Temp Foam Resistant Suspension Fluid
Pressurization: Nitrogen Gas
Charge Pressure: 200 PSI
Serviceability: Fully rebuildable and serviceable
Sold: Individually

Universal fitment for custom off-road applications including:

Jeep Suspension Systems
Rock Crawlers
Trail Rigs
UTVs
Prerunners
Custom Tube Chassis Vehicles
Secondary Shock Applications
Off-Road Race Vehicles

Note: Proper mounting width, valving setup, and reservoir routing must be confirmed for your specific vehicle.

1. What is the difference between a 2.0 and 2.5 smooth body shock?

A 2.5 shock body holds more oil and provides greater damping control than a 2.0. This makes it better suited for larger tires, heavier vehicles, and more aggressive off-road use.

2. What vehicles are best suited for a Radflo 2.5 Smooth Body Shock?

These shocks are commonly used on rock crawlers, rock bouncers, Ultra4 vehicles, prerunners, Jeeps, and custom off-road builds that require additional suspension control.

3. Do smooth body shocks replace coilovers?

No. Smooth body shocks are often used alongside coilovers or other spring systems to provide additional damping and suspension tuning.

4. What does the remote reservoir do?

The remote reservoir increases oil capacity and cooling performance, helping maintain consistent damping and reduce shock fade during aggressive off-road driving.

5. Are Radflo 2.5 Smooth Body Shocks rebuildable?

Yes. Radflo smooth body shocks are fully rebuildable and serviceable, allowing long-term maintenance and tuning as vehicle needs evolve.
