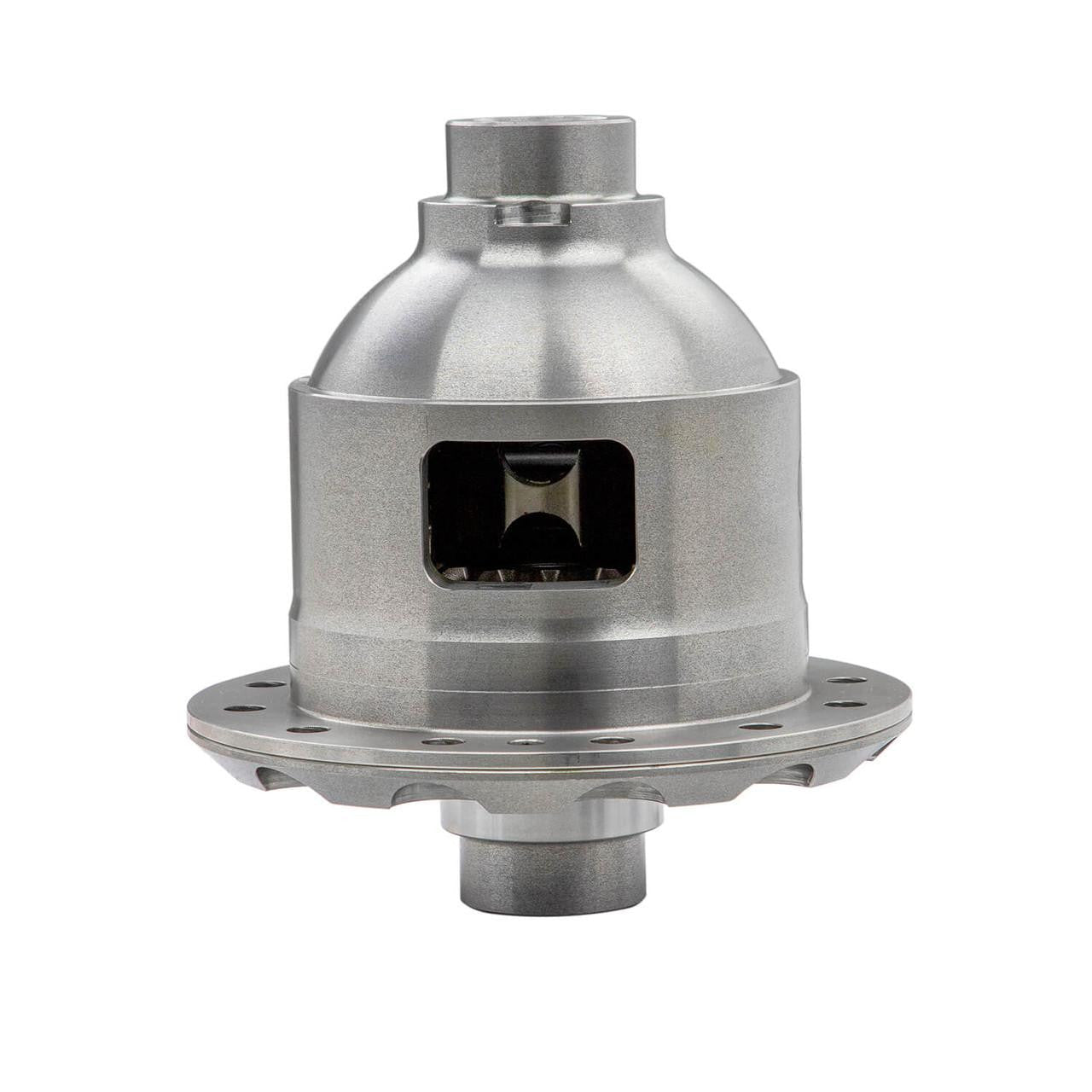

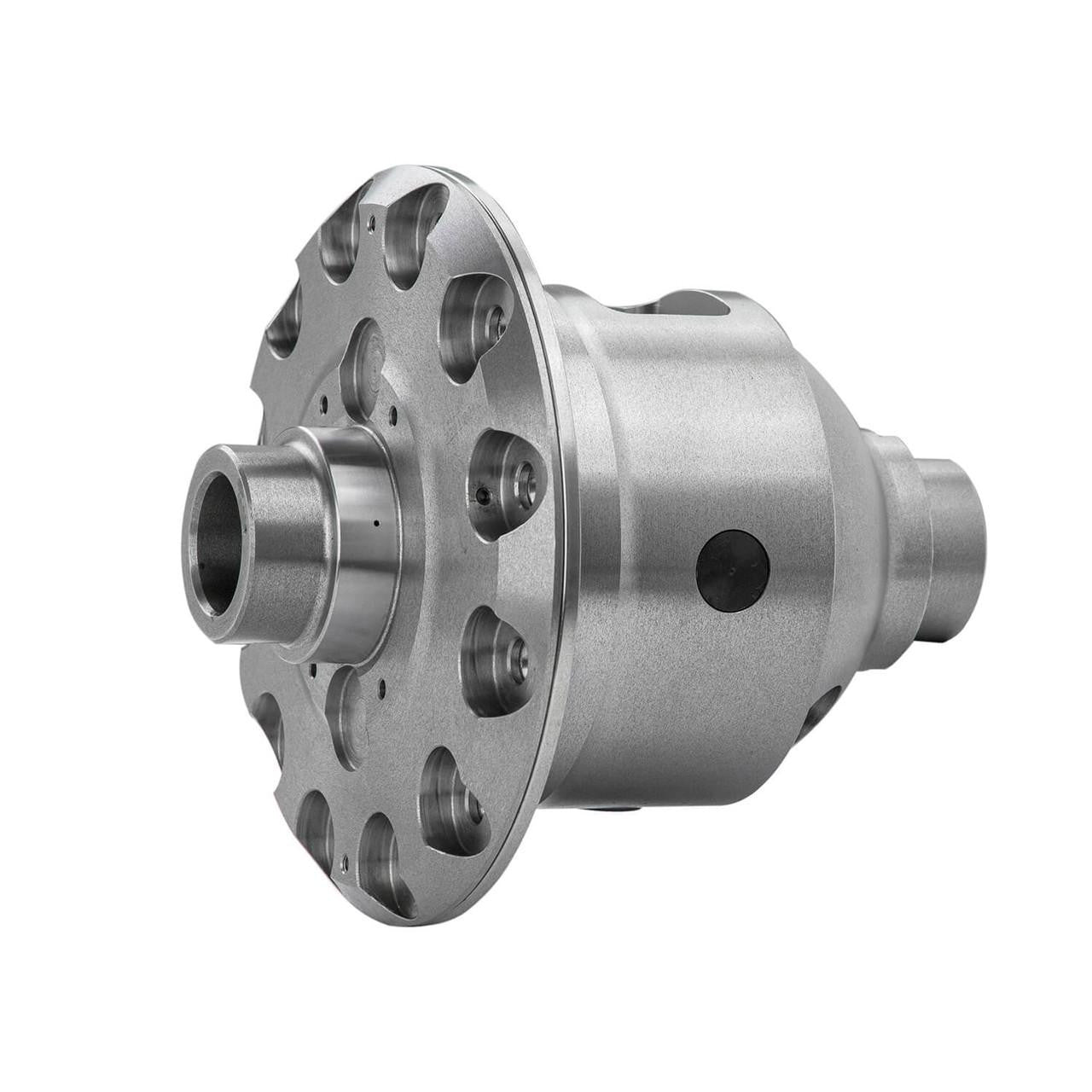

ARB Air Locker Differential - AAM / GM 9.25" Front & GM 9.5" Rear, RD197

The ARB RD197 Air Locker is listed for select Chevrolet, GMC, Dodge Ram, and Hummer applications equipped with compatible 33-spline AAM 9.25" front or GM 9.5" semi-float rear differentials. Fitment depends on the installed axle configuration rather than vehicle make and model alone.

Fitment Notes:

• Requires a compatible 33-spline differential configuration.
• Fits compatible AAM 9.25" front axle applications using 33-spline shafts.
• Fits compatible GM 9.25" IFS front differential applications using 33-spline shafts.
• Fits compatible GM 9.5" 14-Bolt semi-float rear axle applications using 33-spline shafts.
• Front 9.25" applications support all gear ratios according to the supplied ARB specifications.
• ARB lists both 3.23-and-up and all-ratio configurations for GM 9.5" rear applications; confirm the specific gear set before ordering.
• Listed year ranges combine multiple trims, engines, and vehicle configurations; not every vehicle within a range is compatible.
• Not compatible with GM 10.5" full-float 14-Bolt differentials.
• Not compatible with GM 11.5" rear differential applications.
• Requires a compatible air compressor and air supply system.
• ARB air compressor sold separately.
• Verify axle identification, spline count, ring gear mounting, and carrier dimensions before ordering.
• Professional differential installation and air line routing are recommended.

Builder Note: The AAM 9.25" front axle and GM 9.5" 14-Bolt semi-float rear axle are different drivetrain platforms that share compatibility with the RD197 in specific configurations. Chevrolet, GMC, Dodge, and Ram trucks were equipped with multiple axle options depending on model, engine, and drivetrain configuration. Always identify the installed axle before selecting the RD197 rather than relying on vehicle year and model alone.

What axles does the ARB RD197 Air Locker fit?

According to ARB, the RD197 is designed for compatible AAM / GM 9.25" front and GM 9.5" 14-Bolt semi-float rear axle applications using 33-spline shafts. Exact compatibility depends on the installed axle and ring gear configuration.

Will the ARB RD197 fit a GM 9.5" 14-Bolt rear axle?

Yes, ARB lists the RD197 for compatible GM 9.5" semi-float 14-Bolt rear differential applications using 33-spline axle shafts. Verify the carrier and gear ratio requirements before ordering.

Does the RD197 fit an AAM 9.25" front axle?

Yes. ARB lists compatible AAM 9.25" front axle applications using 33-spline shafts. This includes certain heavy-duty truck front axle configurations, but the installed axle must be identified before ordering.

What gear ratios work with the ARB RD197?

ARB lists all gear ratios for compatible AAM / GM 9.25" front applications. Its GM 9.5" rear specifications include both a 3.23-and-up listing and an all-ratio listing. Confirm the exact ring gear and carrier configuration with ARB before purchasing.

Is the RD197 compatible with a GM 10.5" full-float 14-Bolt axle?

No. The GM 9.5" semi-float and GM 10.5" full-float 14-Bolt axles use different differential designs and components. The RD197 is not intended for the larger 10.5" full-float axle.

How does the ARB RD197 Air Locker work?

Compressed air activates an internal locking mechanism that prevents the axle shafts from rotating independently. When engaged, both wheels rotate together for maximum available traction. When disengaged, the differential operates as a conventional open unit.

Does the ARB RD197 require an air compressor?

Yes. A compatible ARB air compressor and air supply system are required to engage the locking mechanism. The compressor is sold separately.

Can the ARB RD197 be used in a daily-driven truck?

Yes. When disengaged, the Air Locker operates as an open differential, maintaining normal differential action for street driving. The locking function provides additional traction when needed off-road.

What is the difference between an ARB Air Locker and an automatic locker?

An ARB Air Locker allows the driver to choose when the differential is locked using an air-operated control system. Automatic lockers engage and disengage mechanically according to their design and driving conditions. Selectable operation provides greater control over traction and steering behavior.

Does the RD197 remain locked all the time?

No. The RD197 remains an open differential when disengaged. The driver activates the locker when additional traction is required and switches it off to restore normal differential operation.

Does the ARB RD197 include the activation switch and air line?

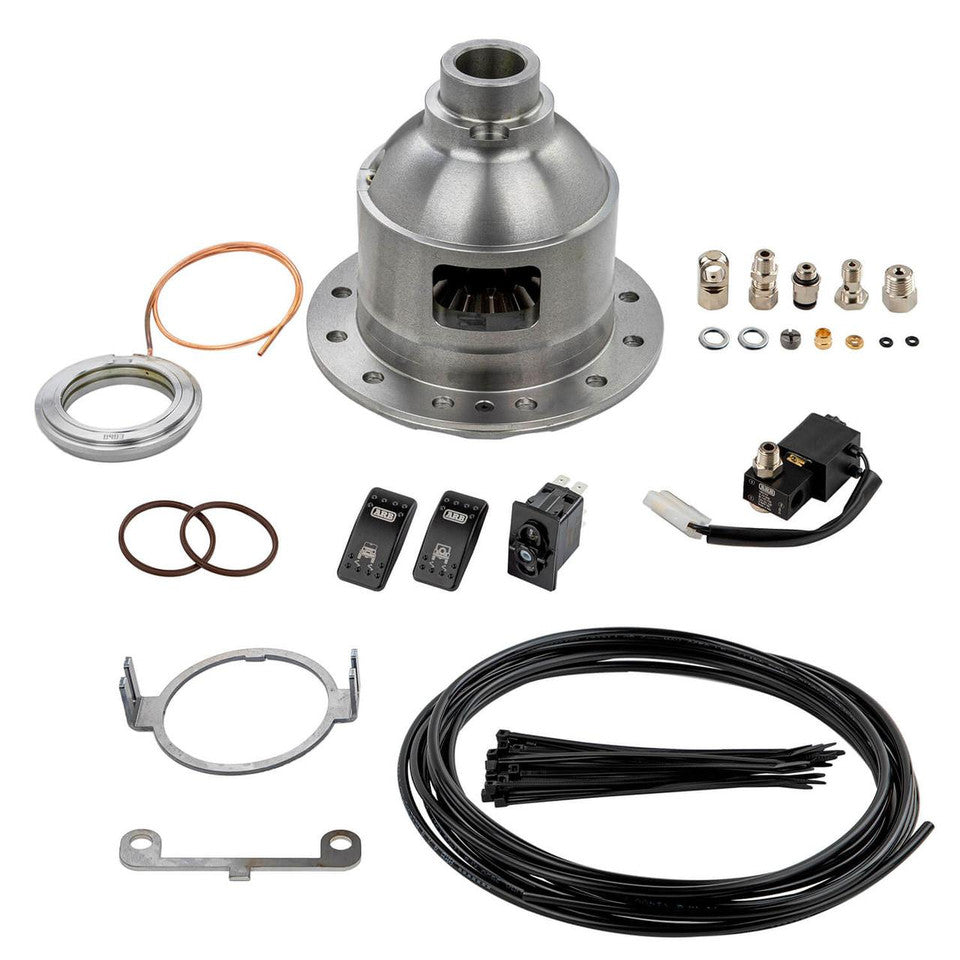

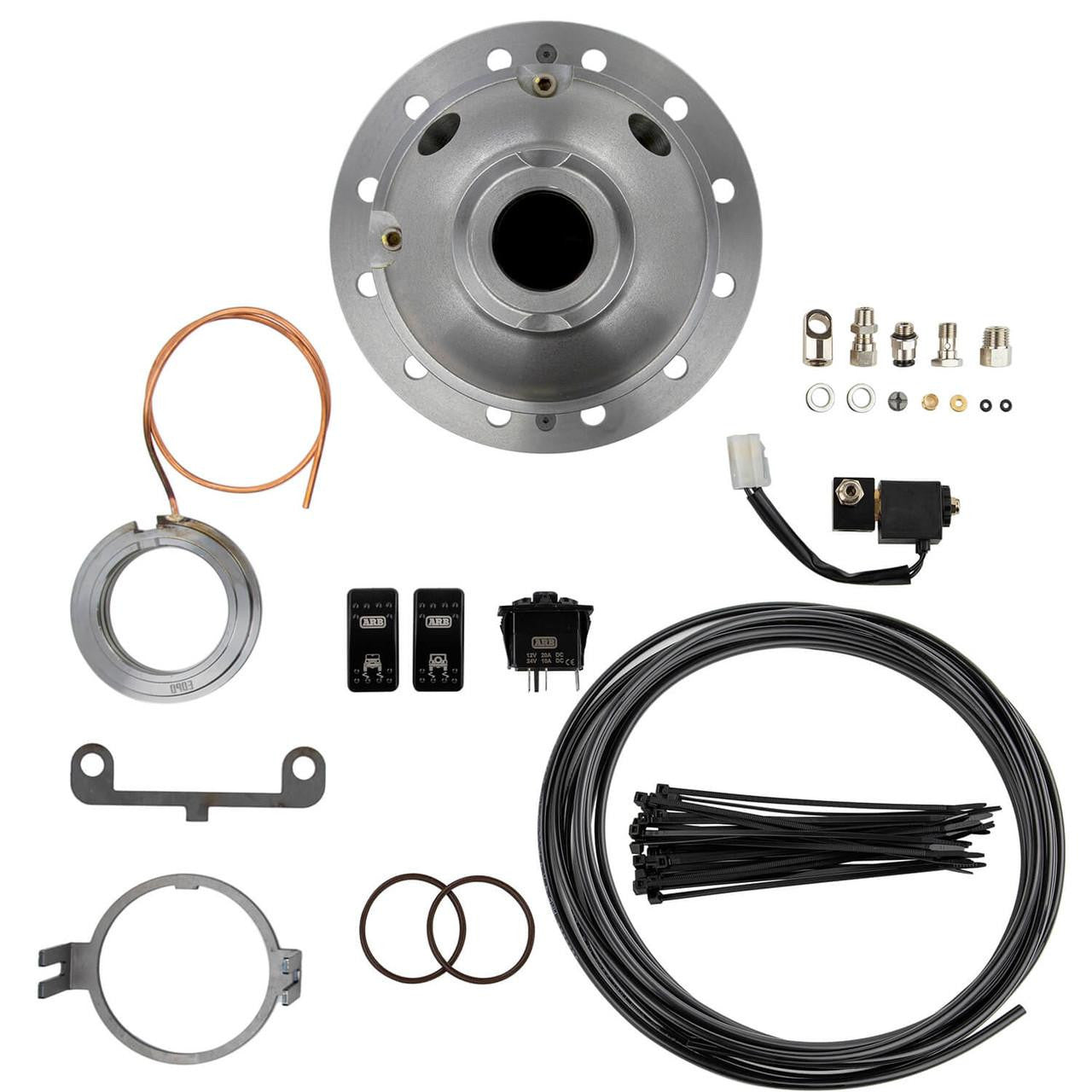

Yes. The supplied kit information lists the differential assembly, activation switch, solenoid valve, air line, and bulkhead fitting. The compressor is sold separately.

Can I install the RD197 during a ring and pinion gear change?

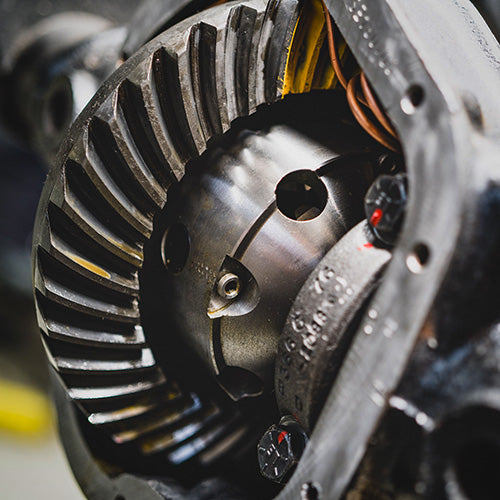

Yes. Installing the Air Locker during a gear change is practical because the original differential carrier is already being removed. Correct carrier bearing preload, ring gear backlash, and tooth contact pattern must be established during installation.

What makes the ARB Air Locker suitable for demanding off-road use?

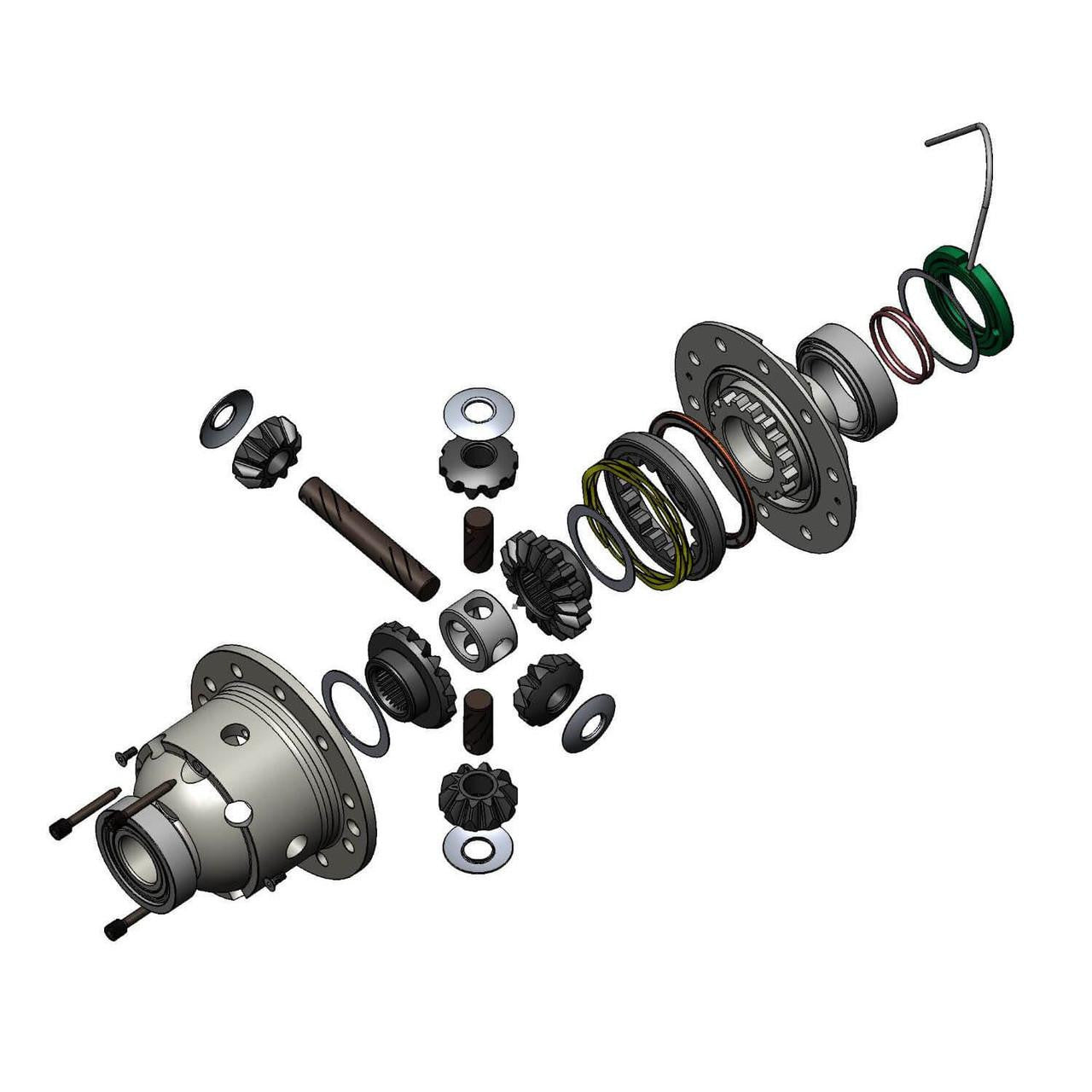

ARB uses a strong two-piece carrier, patented timed locking mechanism, and reinforced annular air seal designed for reliable operation in extreme conditions. Selectable locking allows drivers to engage maximum traction when needed without permanently locking the axle during normal driving.
