ARBRD166

$1,399.95
/
Shipping calculated at checkout.

Using a pneumatically actuated locking system, the ARB Air Locker for Dana 60HD instantly locks both axle shafts together at the flip of a switch, preventing differential action and ensuring both wheels turn with the ring gear. When disengaged, it operates as a standard open differential, eliminating unwanted noise, handling issues, and driveline wear on the street.

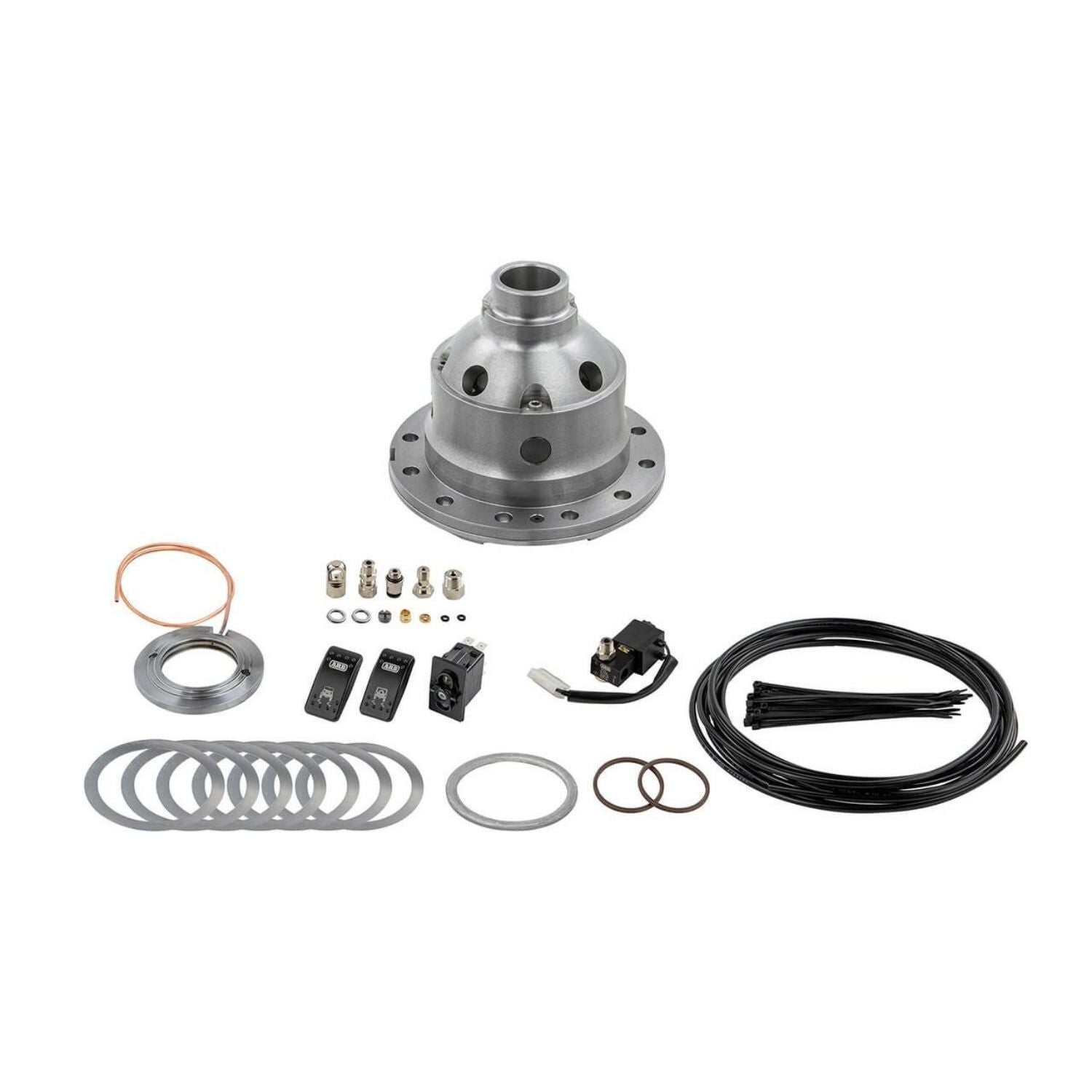

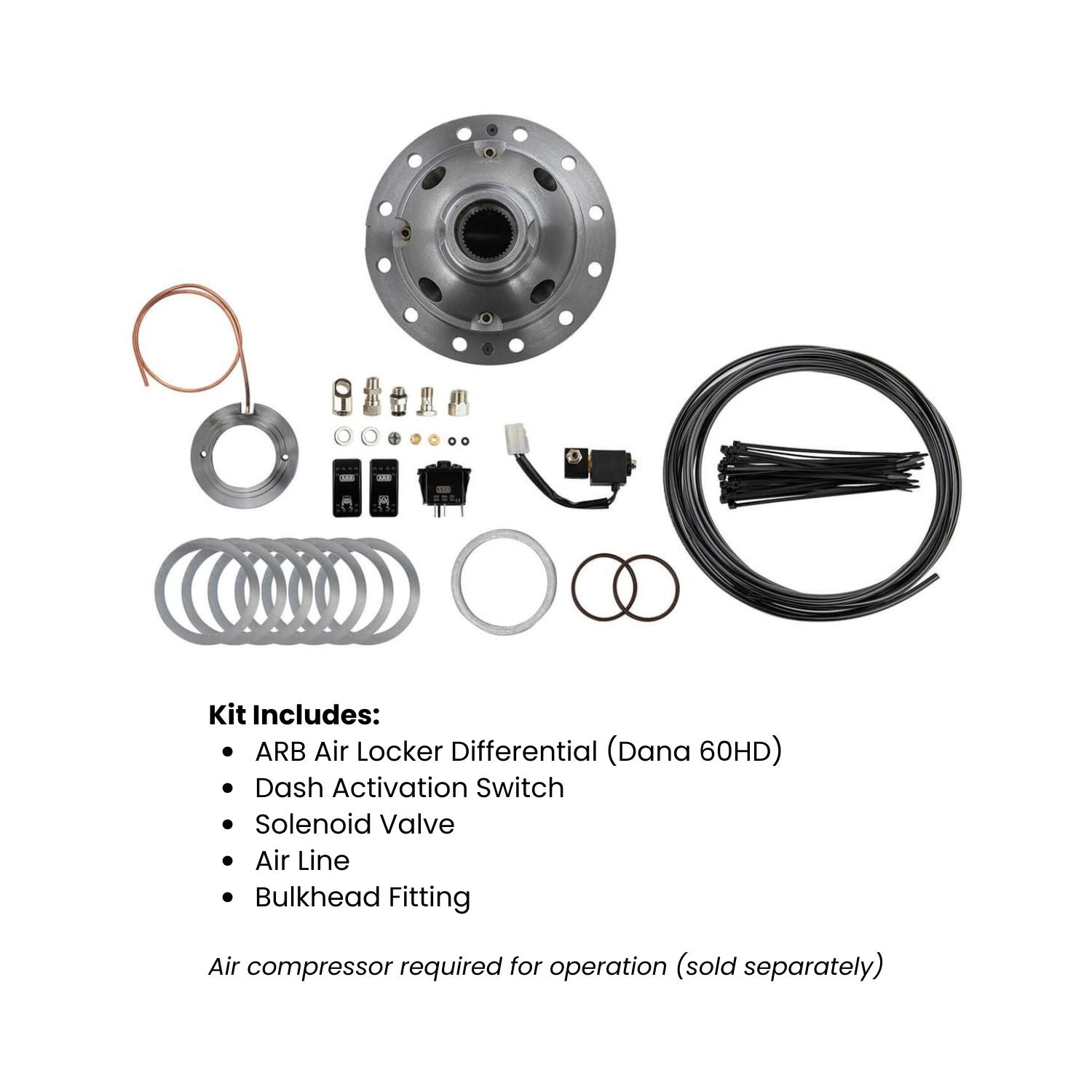

Kit Includes:

  • ARB 60HD Air Locker Differential
  • Dash Activation Switch
  • Solenoid Valve
  • Air Line
  • Bulkhead Fitting
  • Air compressor required for operation (sold separately).
Specifications
  • Axle Type: Dana 60HD
  • Spline Count: 35-Spline
  • Gear Ratio Compatibility: 4.56 & Up
  • Operation: Pneumatic (Selectable Locking)

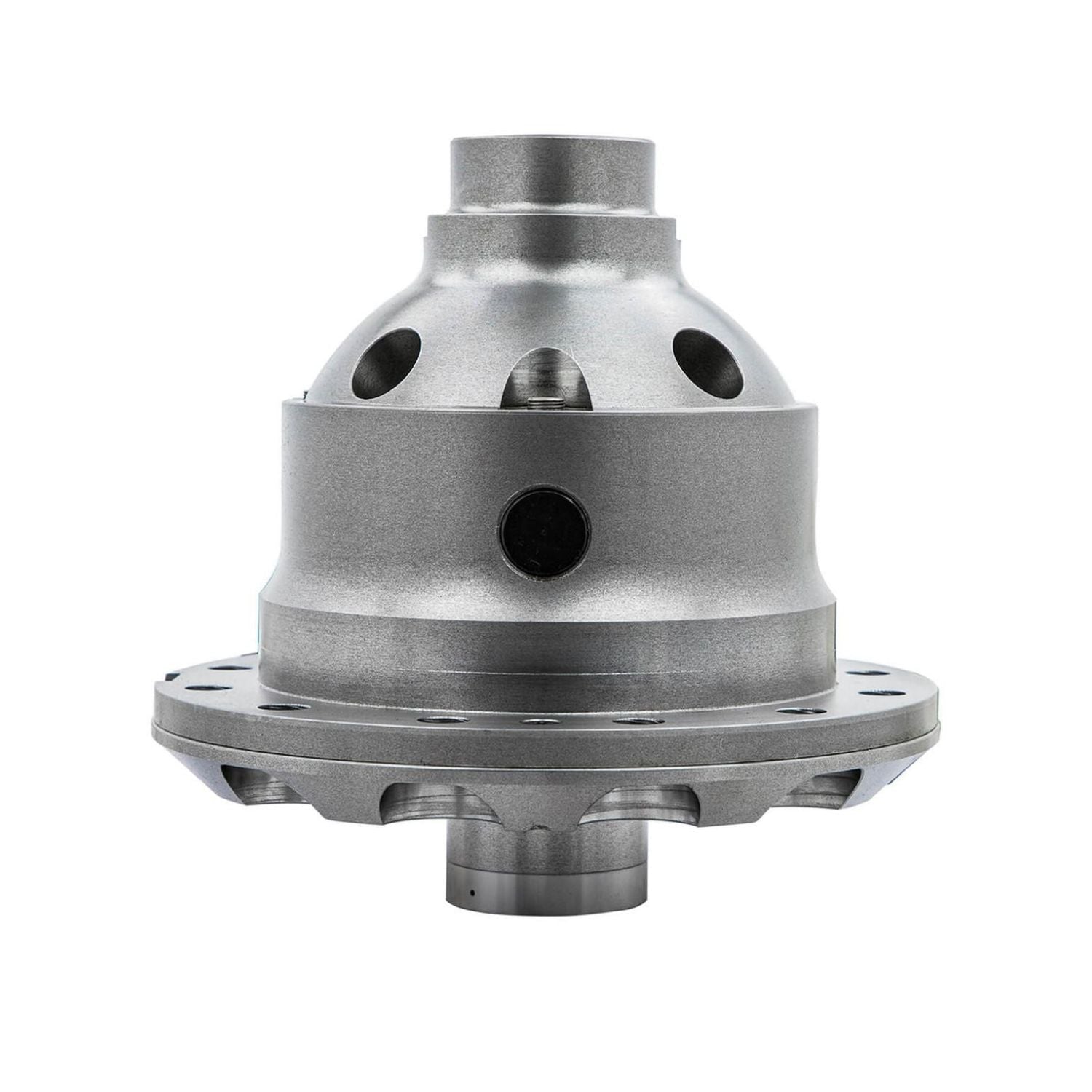

  • Differential Case: Heavy-Duty Two-Piece Design
  • Seal Type: Steel-Reinforced Elastomer Bonded Annular Seal
  • Internal Mechanism: ARB Patented Timed Locking System
Fitment

    Important Fitment Notes:

      • Multiple Dana 60 axle shaft variants exist — verify spline count before ordering
      • Reverse rotation Dana 60 front axles with aftermarket ring & pinion sets may require RD166 or RD167, depending on the ring & pinion design
    Year Make Model
    1996-1999 Ford F-250
    1997 Ford F-250 HD
    1996-1997 Ford F-350
    1999-2022 Ford F-250 Super Duty
    1999-2022 Ford F-350 Super Duty
    2008-2013 Ford E-150
    2003-2014 Ford E-250
    1997-2002 Ford E-250 Econoline
    1999-2008 Ford E-350 Super Duty
    1997-1998 Ford E-350 Econoline
    1997-2002 Ford E-350 Econoline Club Wagon
    2003-2005 Ford E-350 Club Wagon
    1996-2003 Dodge Ram 2500
    1998-2003 Dodge Ram 3500
    Tech Insight

    Features & Benefits

    100% traction on demand at the flip of a switch

    Fully open differential when unlocked for street use

    Heavy-duty two-piece design with minimal moving parts

    Patented timed locking mechanism for strength and reliability

    Steel-reinforced annular seal for extreme temperature durability

    Suitable for high-torque, heavy vehicle, and competition use

    Maintains driver control and reduces vehicle damage risk
