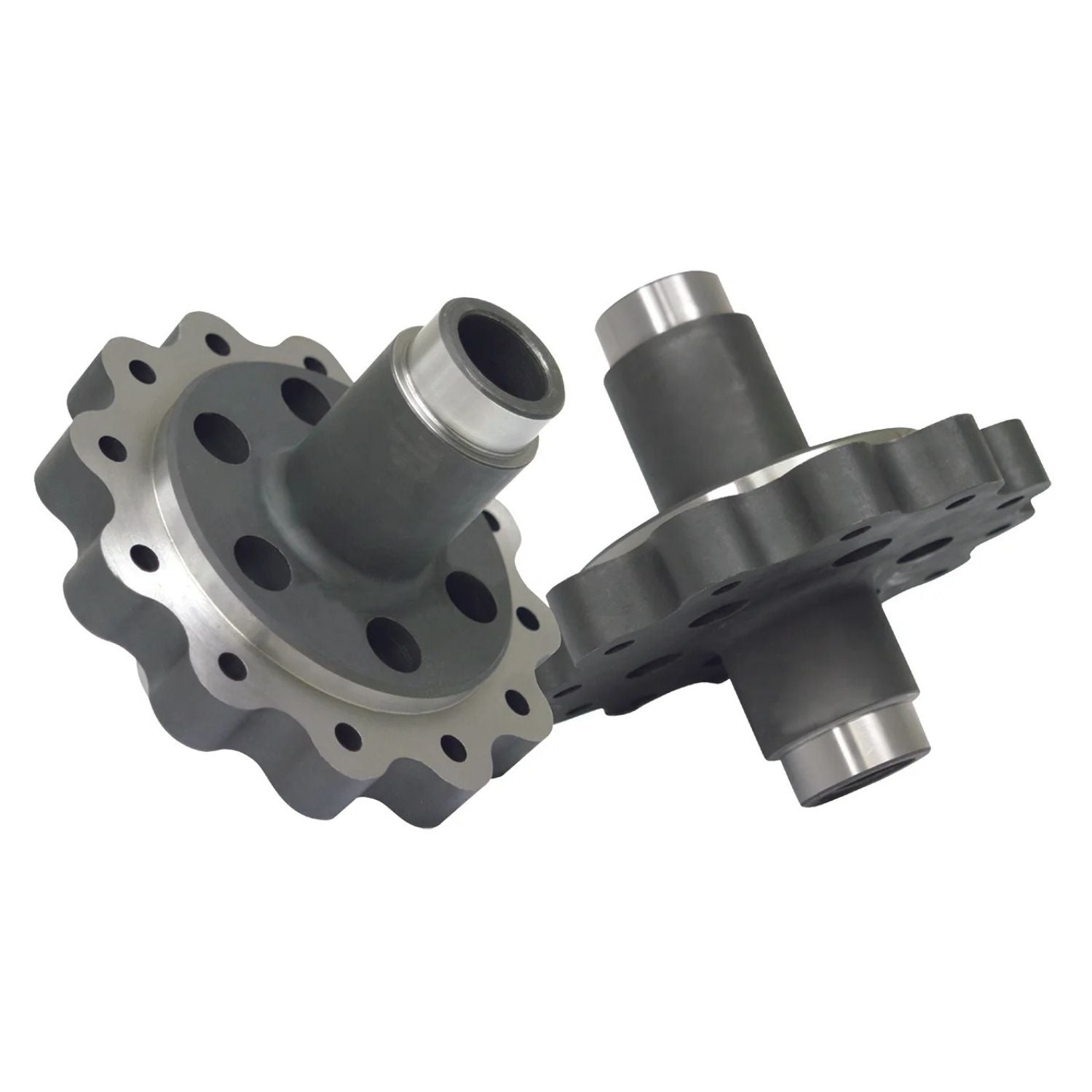

Yukon GM 14-Bolt 10.5" Steel Spool - 40 Spline, 4.10 & Down
YUKYP FSGM14T-3-40
The Yukon GM 14-Bolt 10.5" 40-Spline Steel Spool replaces the differential carrier and permanently locks both rear axle shafts together, delivering equal torque to both wheels at all times. With no clutches, gears, or locking mechanisms inside the carrier, a full spool provides a simple and exceptionally strong traction solution for dedicated rock bouncers, mud trucks, trail rigs, and competition vehicles.
This spool is designed for GM 10.5" 14-bolt full-float axles converted to 40-spline axle shafts. It is not a direct replacement for factory 30-spline axle assemblies and is best suited for dedicated off-road vehicles where maximum strength and full-time traction are more important than street handling, tire wear, and differential action while turning.
Includes:
- (1) Yukon GM 14-Bolt 10.5" 40-Spline Steel Spool
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Yukon Gear & Axle |
| Product Type | Full Differential Spool |
| Axle Application | GM 14-Bolt 10.5" Full-Float Rear Axle |
| Spline Count | 40-Spline |
| Material | Steel |
| Traction Type | Full-Time Locked |
| Differential Action | None |
| Position | Rear |
| Recommended Use | Dedicated Off-Road and Competition Vehicles |
| Street Use | Not Recommended |
| Gear Ratio Compatibility | Verify Yukon Part Number and Carrier Break Before Ordering |

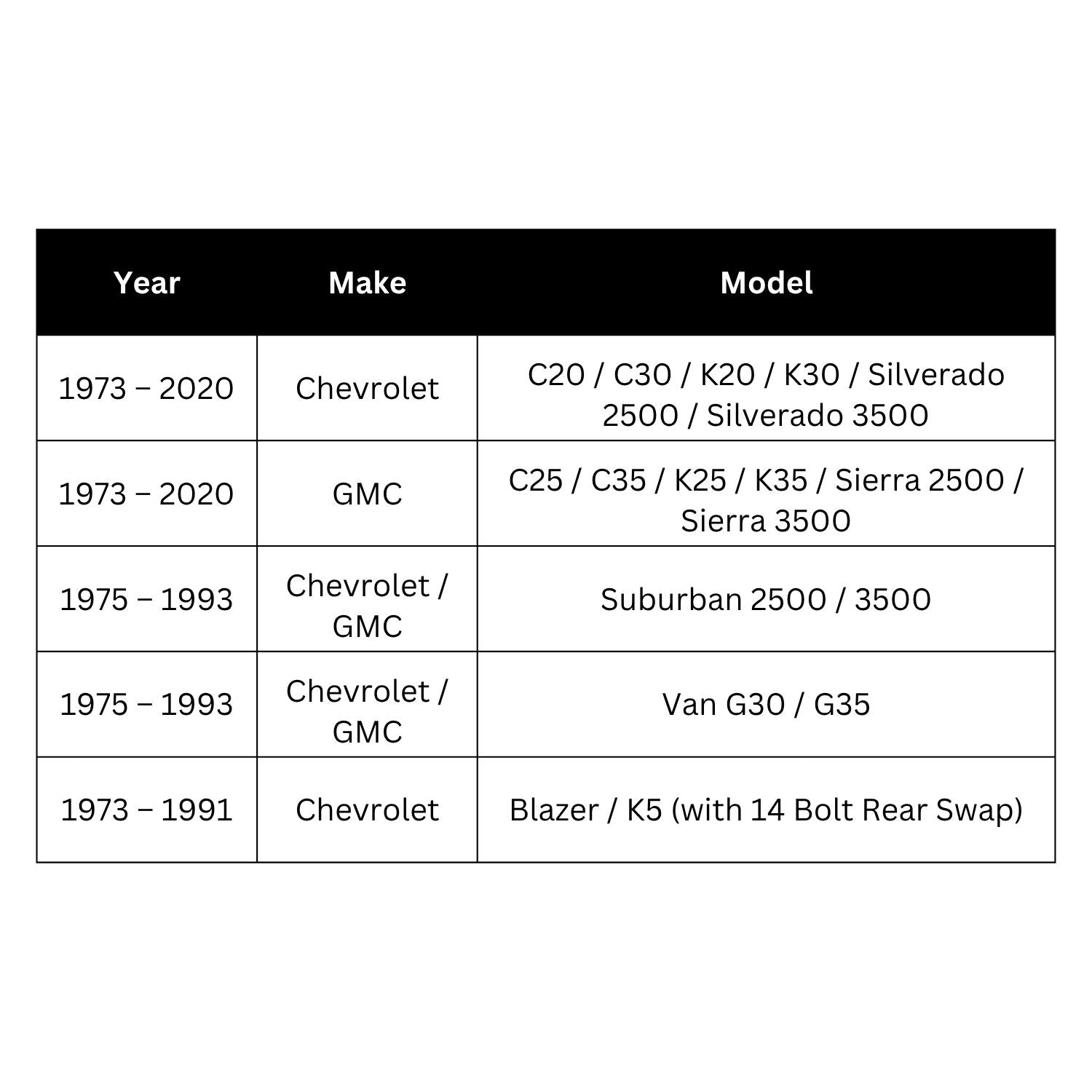

Fitment
| Make | Model / Application | Year Range | Required Axle Configuration |
|---|---|---|---|
| Chevrolet | C20, C30, K20, K30, Silverado 2500 and Silverado 3500 | 1973–2020 | GM 10.5" 14-Bolt Full-Float with 40-Spline Conversion |
| GMC | C25, C35, K25, K35, Sierra 2500 and Sierra 3500 | 1973–2020 | GM 10.5" 14-Bolt Full-Float with 40-Spline Conversion |
| Chevrolet / GMC | Suburban 2500 and 3500 | 1975–1993 | GM 10.5" 14-Bolt Full-Float with 40-Spline Conversion |
| Chevrolet / GMC | G30 and G35 Vans | 1975–1993 | GM 10.5" 14-Bolt Full-Float with 40-Spline Conversion |
| Custom / Axle Swap | Rock Bouncers, Crawlers, Mud Trucks and Competition Vehicles | Universal | GM 10.5" 14-Bolt Full-Float with 40-Spline Axle Shafts |
Fitment Notes:
- Requires a GM 10.5" 14-bolt full-floating rear axle.
- Requires aftermarket 40-spline axle shafts.
- Not compatible with factory 30-spline axle shafts.
- Vehicle year, make, and model do not guarantee fitment because many trucks used multiple rear axle options.
- Axle swaps and aftermarket housings are common; verify the actual housing, spline count, carrier design, and ring gear before ordering.
- The supplied source information lists conflicting gear-ratio compatibility: one section states 4.10-and-down, while another states 4.56-and-numerically-higher. Confirm the exact Yukon part number and carrier break before purchase.
- A spool permanently locks both rear wheels together and is intended primarily for off-road or competition use.
- Professional differential setup is recommended. Installation requires correct bearing preload, backlash, ring gear runout, and contact pattern.
FAQ
What does a spool do in a GM 14-bolt axle?
A spool replaces the differential carrier and mechanically connects both axle shafts to the ring gear. Both rear wheels rotate together at all times, providing full-time traction without clutches, spider gears, or a selectable locking mechanism.
Will this spool fit a factory 30-spline GM 14-bolt axle?
No. This spool requires 40-spline axle shafts and is intended for aftermarket or converted GM 14-bolt axle assemblies. Factory 30-spline shafts will not fit the 40-spline side gears.
Is a full spool stronger than a differential locker?
A spool is generally one of the strongest differential options because it contains no internal locking gears, clutches, or engagement components. Its simple construction makes it well suited for high-horsepower and high-shock-load applications.
Can a GM 14-bolt spool be driven on the street?
Regular street use is not recommended. Since both wheels must turn at the same speed, cornering on high-traction surfaces causes tire scrub, increased axle and driveline load, reduced maneuverability, and accelerated tire wear.
What gear ratios work with this Yukon 40-spline spool?
The supplied product information contains conflicting carrier-break details. One section lists 4.10-and-down compatibility, while another lists 4.56-and-higher ratios. Verify the exact Yukon spool part number, ring gear offset, and carrier break before ordering.
