RockJock Front AntiRock Sway Bar Arms - Fabricated Steel Replacement (Pair)
ROKRJ-202007-101
The RockJock Fabricated Steel Front AntiRock Sway Bar Arms are heavy-duty replacement sway bar arms designed for RockJock AntiRock front sway bar systems on Jeep XJ, MJ, TJ, LJ, and YJ models. Constructed from laser-cut and welded 3/8" thick steel, these arms deliver exceptional strength, consistent performance, and long-term durability in demanding off-road environments.
Each arm features five adjustable end link mounting holes, allowing you to fine-tune sway bar rate, body roll, and suspension articulation for everything from technical rock crawling to high-speed trail driving. Whether you're replacing damaged arms or building a custom AntiRock system around a 25-spline torsion bar, these genuine RockJock arms provide the strength and adjustability serious builders demand.
Includes:

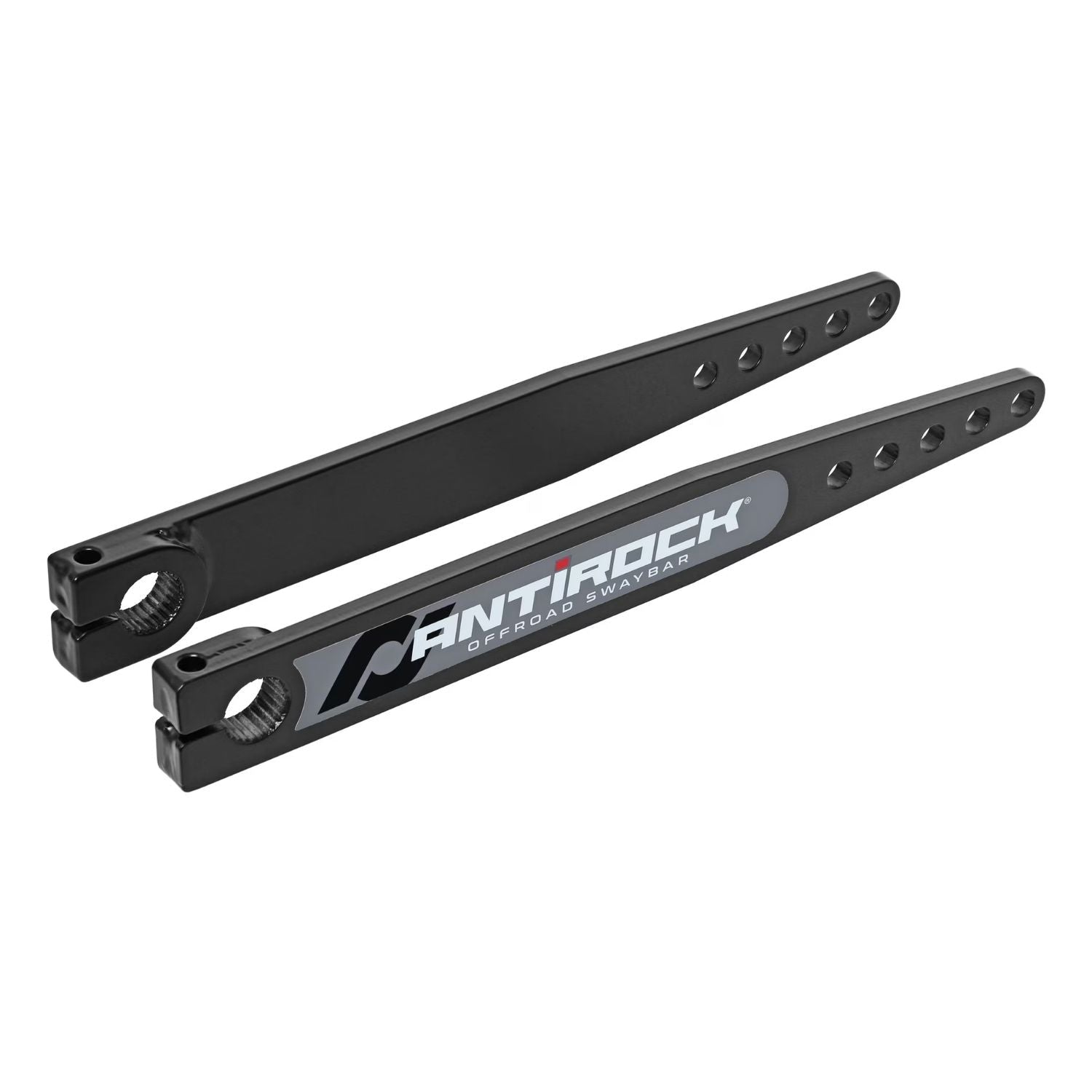

- (1) Pair of Fabricated Steel Front AntiRock Sway Bar Arms
- (1) Pair of RockJock Arm Stickers
Available Lengths:
- 17" – Jeep XJ Cherokee & MJ Comanche Front AntiRock Kits
- 18" – Jeep TJ Wrangler & LJ Unlimited Front AntiRock Kits
- 20" – Jeep YJ Wrangler Front AntiRock Kits
Specifications
| Specification | Details |
|---|---|
| Manufacturer | RockJock Off Road |
| Product Type | Front AntiRock Sway Bar Arms |
| Material | Laser-Cut & Welded 3/8" Steel |
| Spline Count | 25-Spline |
| Available Lengths | 17", 18", or 20" |
| End Link Mounting Holes | Five (5) 1/2" Diameter Holes |
| Weight | Approximately 8 lbs. per Pair |
| Sold As | Pair |
| Made In | USA |

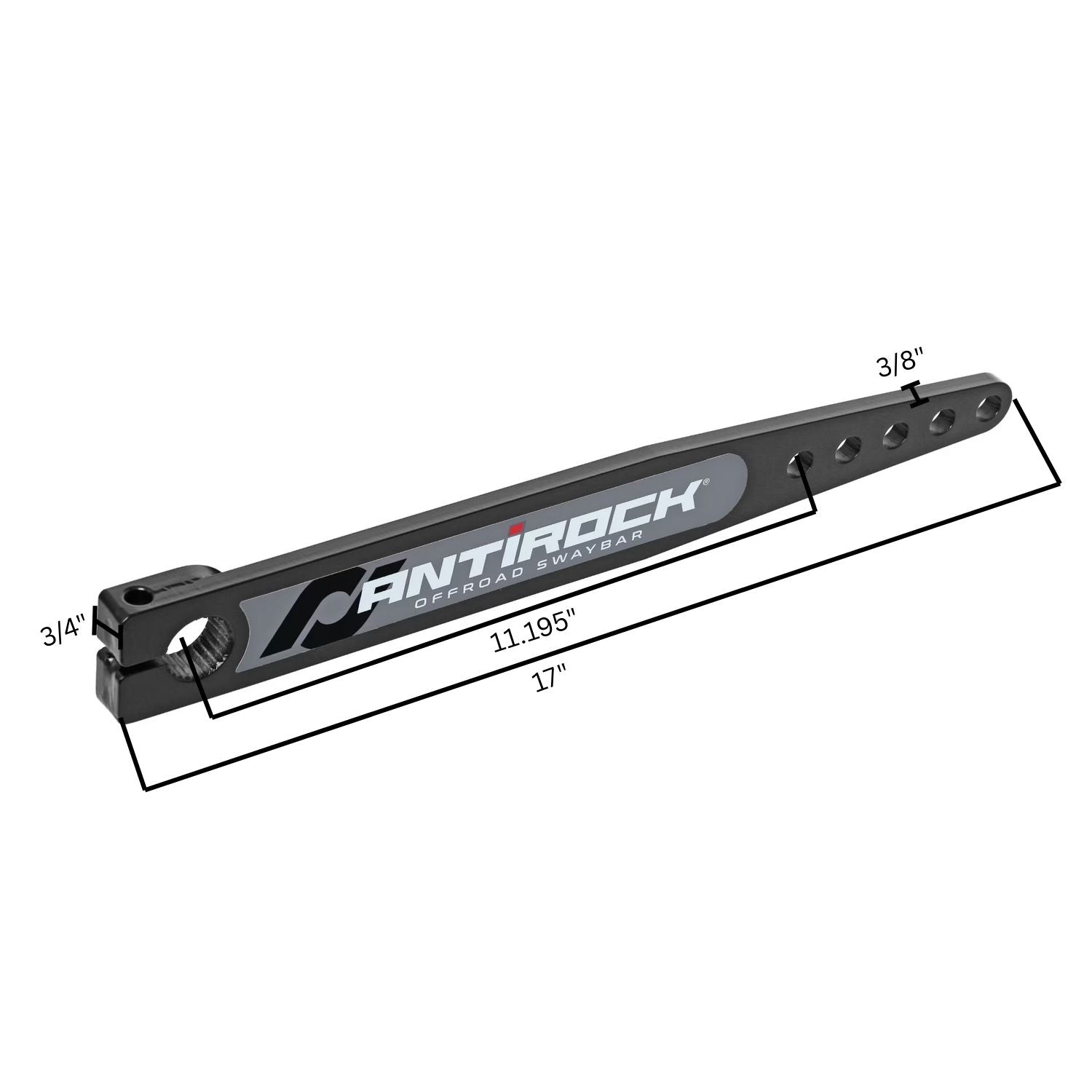

End Link Hole Centers (Measured from Spline Center):
- Hole #1 – 11.195"
- Hole #2 – 12.195"
- Hole #3 – 13.195"
- Hole #4 – 14.195"
- Hole #5 – 15.195"

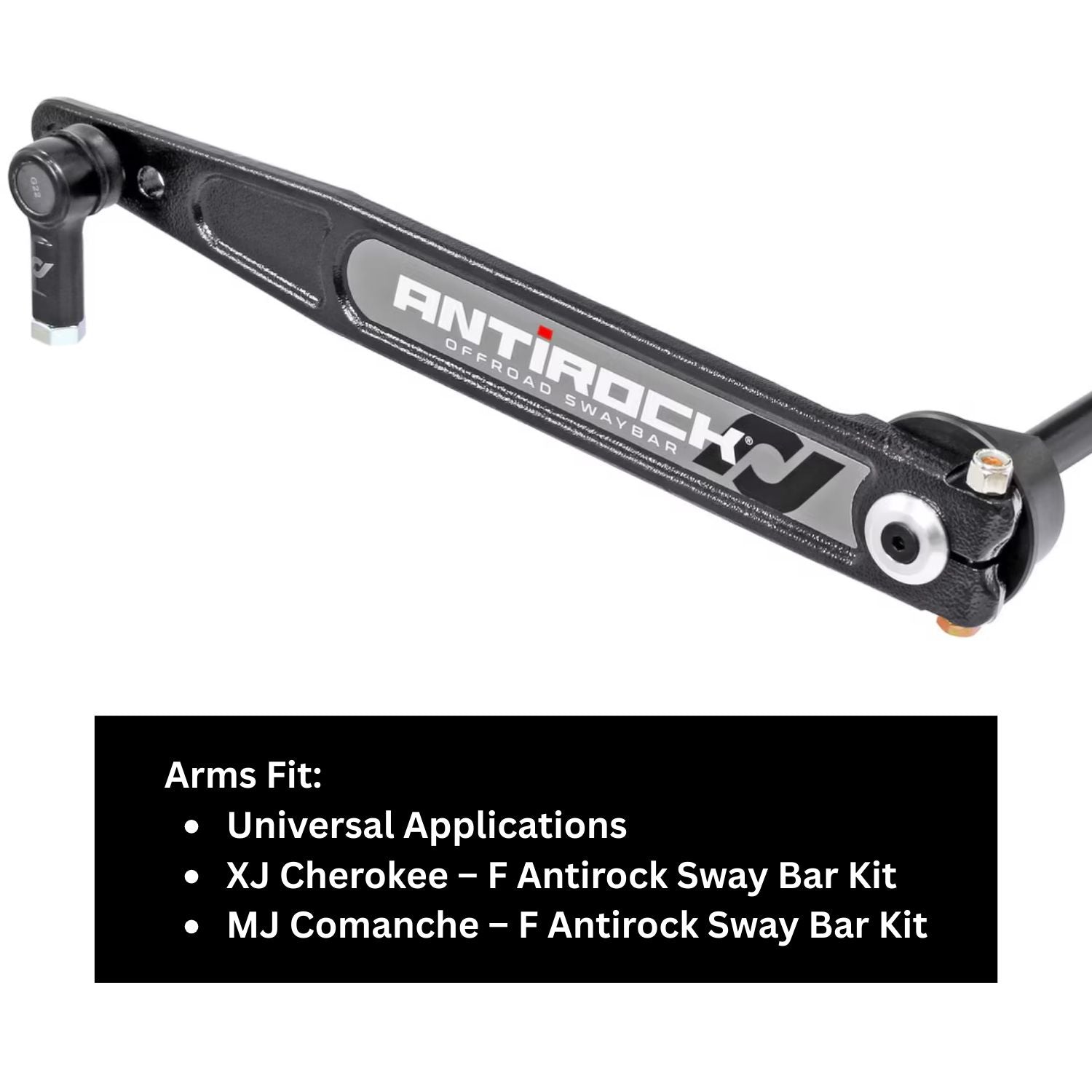

Fitment
Direct Replacement For:
- 17" Arms – Jeep XJ Cherokee Front AntiRock Kits
- 17" Arms – Jeep MJ Comanche Front AntiRock Kits
- 18" Arms – Jeep TJ Wrangler Front AntiRock Kits
- 18" Arms – Jeep LJ Unlimited Front AntiRock Kits
- 20" Arms – Jeep YJ Wrangler Front AntiRock Kits
Compatible With:
- 25-spline RockJock AntiRock torsion bars
- Custom AntiRock sway bar applications using 25-spline bars
Not Compatible With:
- 36" × 1" AntiRock sway bars
- 40" × 1" AntiRock sway bars
Tech Insight
Fine-Tune Body Roll and Articulation
The five end link mounting holes allow you to easily adjust sway bar leverage. Mounting the end links closer to the torsion bar increases sway bar stiffness for improved on-road handling, while moving them farther out softens the effective rate to increase suspension articulation on the trail.
Built for Real Off-Road Abuse
Unlike lightweight aluminum arms, these fabricated steel arms are designed for maximum durability in harsh rock crawling environments where repeated impacts, high suspension loads, and severe articulation are common.
Perfect for Repairs or Custom Builds
These arms are ideal as direct replacements for damaged RockJock AntiRock arms or as the foundation for custom sway bar installations utilizing a 25-spline AntiRock torsion bar. Their laser-cut construction ensures consistent dimensions and accurate end link positioning for predictable suspension tuning.
